Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan
Supported model
Data version 2018-06

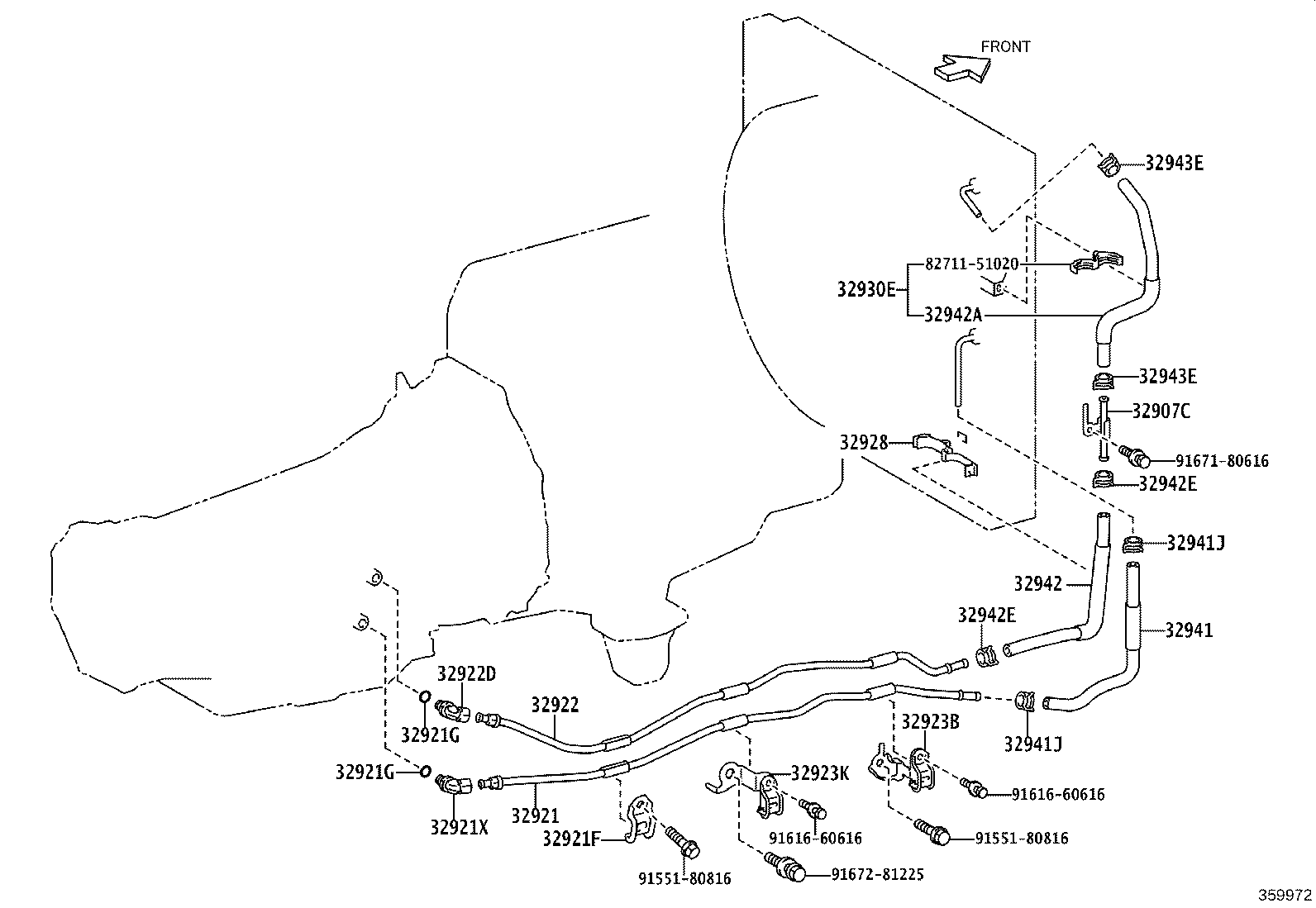

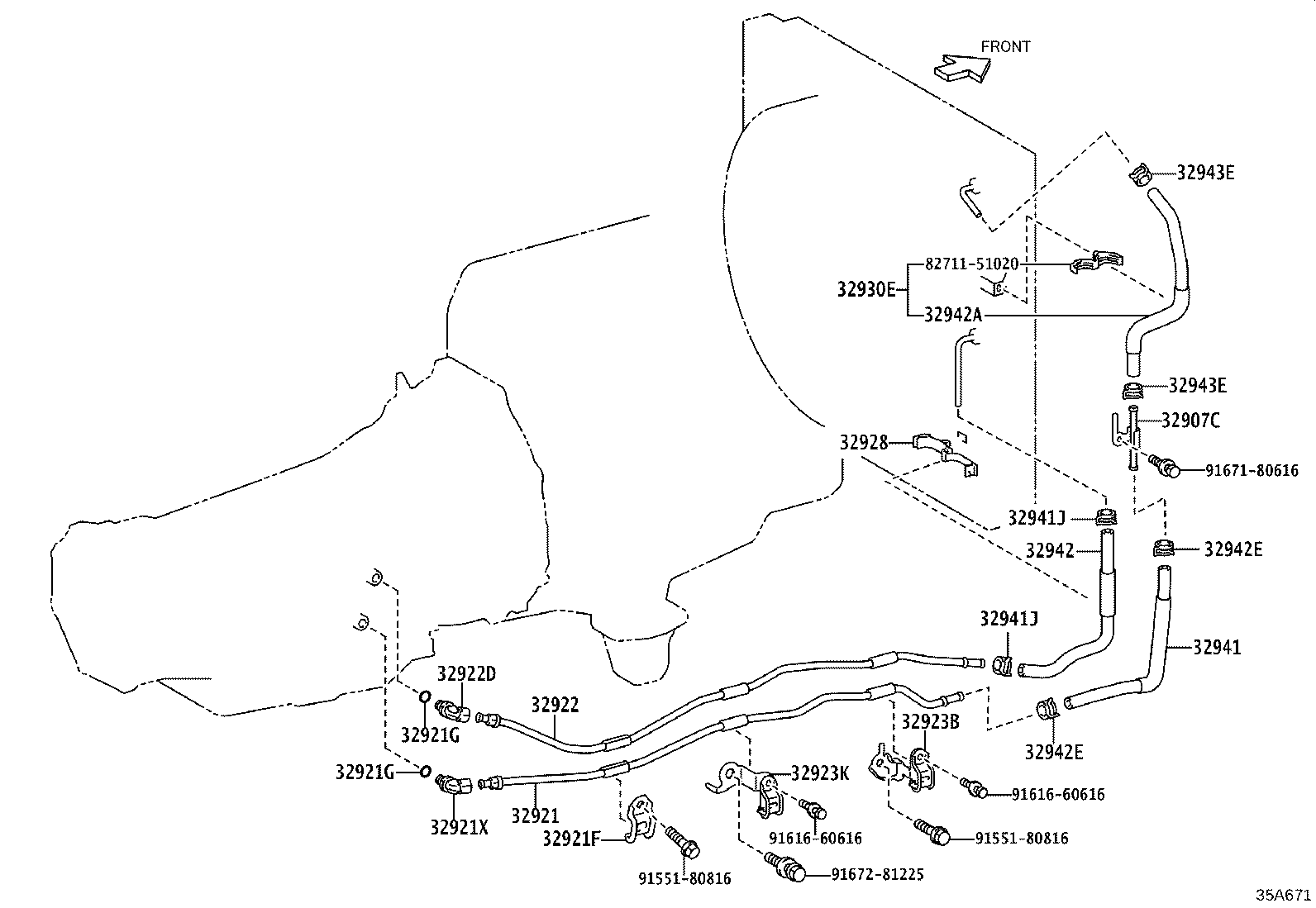

Oil Cooler & Tube (ATM)
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 32907C | Tube Sub-assy, Oil Cooler W/O Hose, NO.1 |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921F | Clamp(FOR OIL COOLER TUBE) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921X | Union OR Elbow, Oil Cooler Inlet |
| 32922 | Tube, Oil Cooler Outlet, NO.1 |
| 32922D | Union OR Elbow, Oil Cooler Outlet |
| 32922F | Tube, Oil Cooler Outlet, NO.2 |
| 32923 | Clamp, Automatic Transmission Oil Cooler Tube |
| 32923A | Clamp, Automatic Transmission Oil Cooler Tube |
| 32923B | Clamp, Automatic Transmission Oil Cooler Tube, NO.1 |
| 32923K | Clamp, Automatic Transmission Oil Cooler Tube, NO.2 |
| 32923L | Clamp, Automatic Transmission Oil Cooler Tube, NO.3 |
| 32924A | Clamp(FOR OIL COOLER TUBE, NO.2) |
| 32928 | Clamp, Flexible Hose, NO.1 |
| 32930E | Hose Assy, Transmission Oil Cooler, NO.1 |
| 32931H | Tube, Oil Cooler Inlet, NO.2 |
| 32941 | Hose, Oil Cooler Inlet, NO.1 |
| 32941J | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942 | Hose, Oil Cooler Outlet, NO.1 |
| 32942A | Hose, Oil Cooler Outlet, NO.2 |
| 32942E | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943 | Hose, Transmission Oil Cooler, NO.1 |
| 32943A | Hose, Transmission Oil Cooler, NO.2 |
| 32943E | Clip, NO.3(FOR OIL COOLER HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
