Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

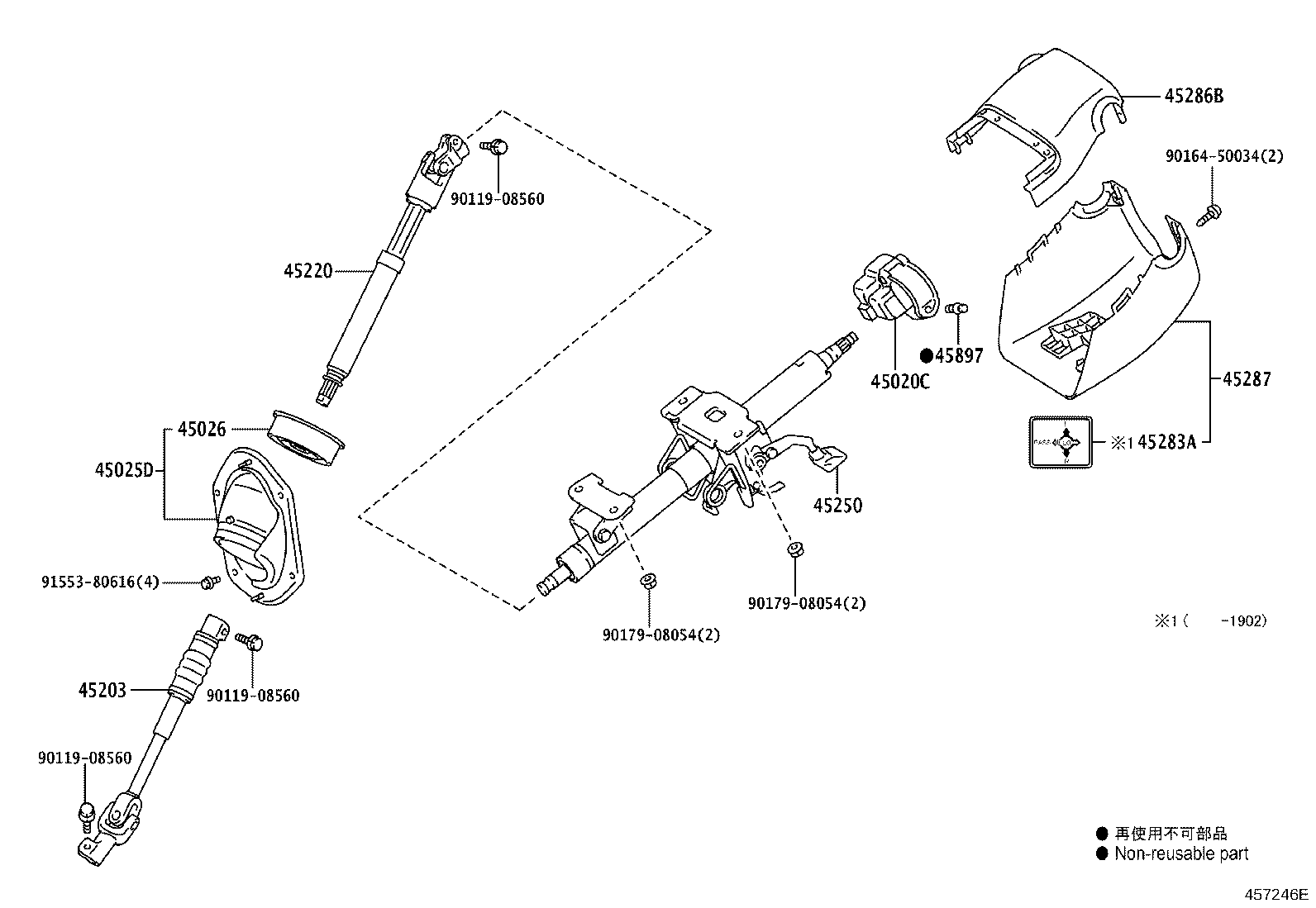

Figure 457245G 457245G 2017-08 → — Figure 457246E 457246E 2017-08 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45026 Cover Sub-assy, Steering Column Hole, NO.2
45203 Shaft Sub-assy, Steering Intermediate, NO.2
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45283A Plate, Beam Change & Turn Signal Caution
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45817 Stopper, Steering Shaft Thrust
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
