Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

302 part groups · 13 illustrations

Illustrations

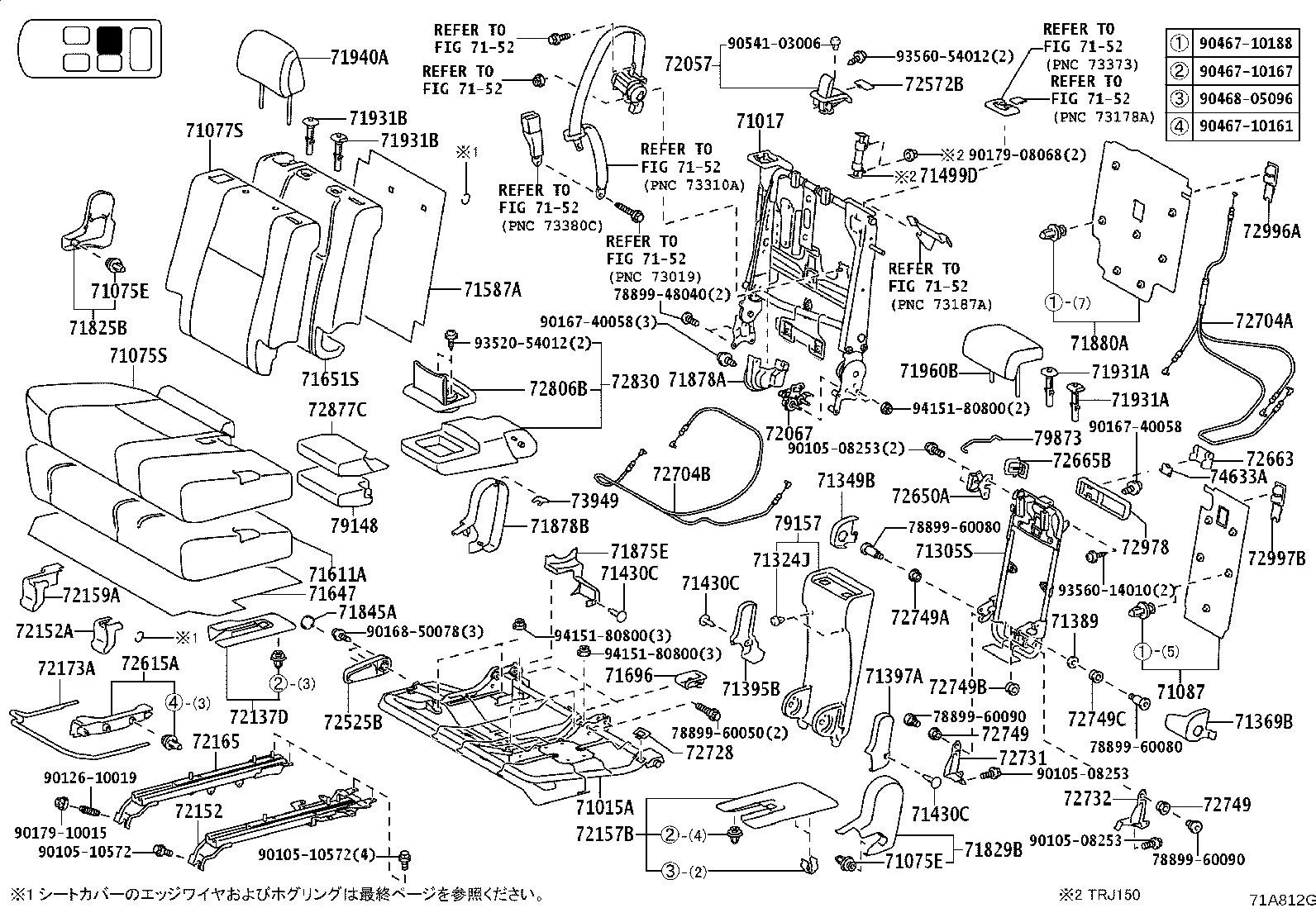

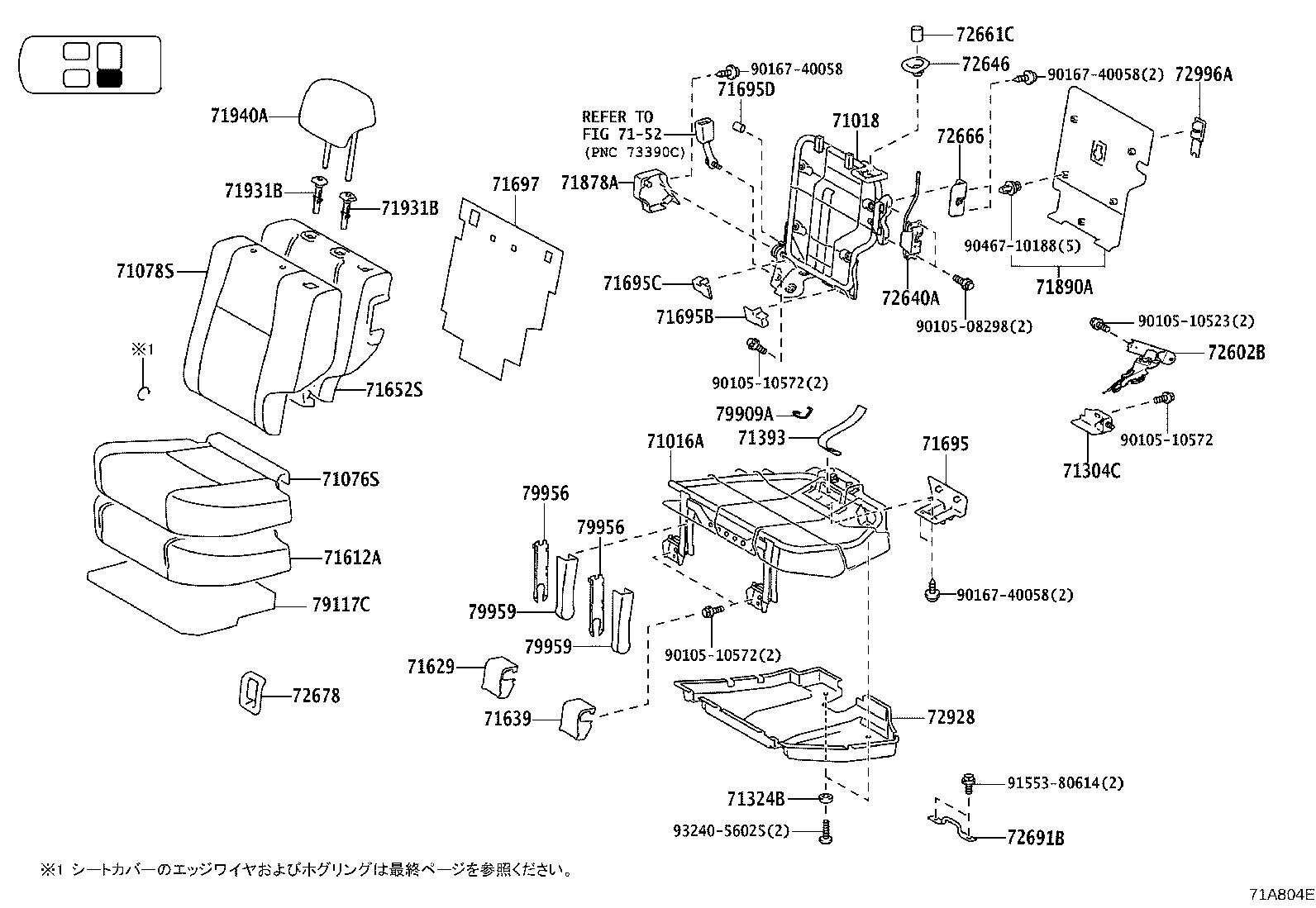

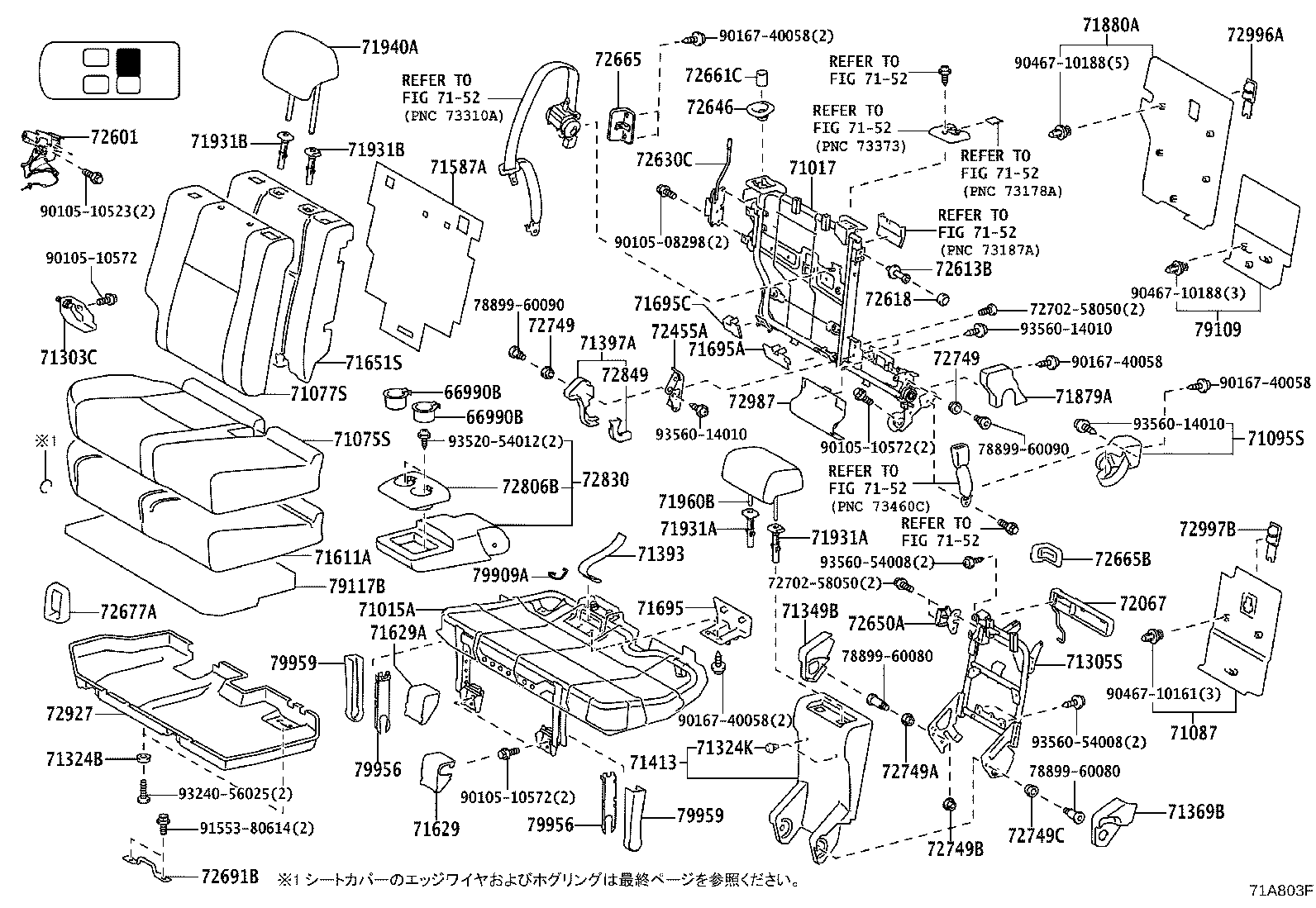

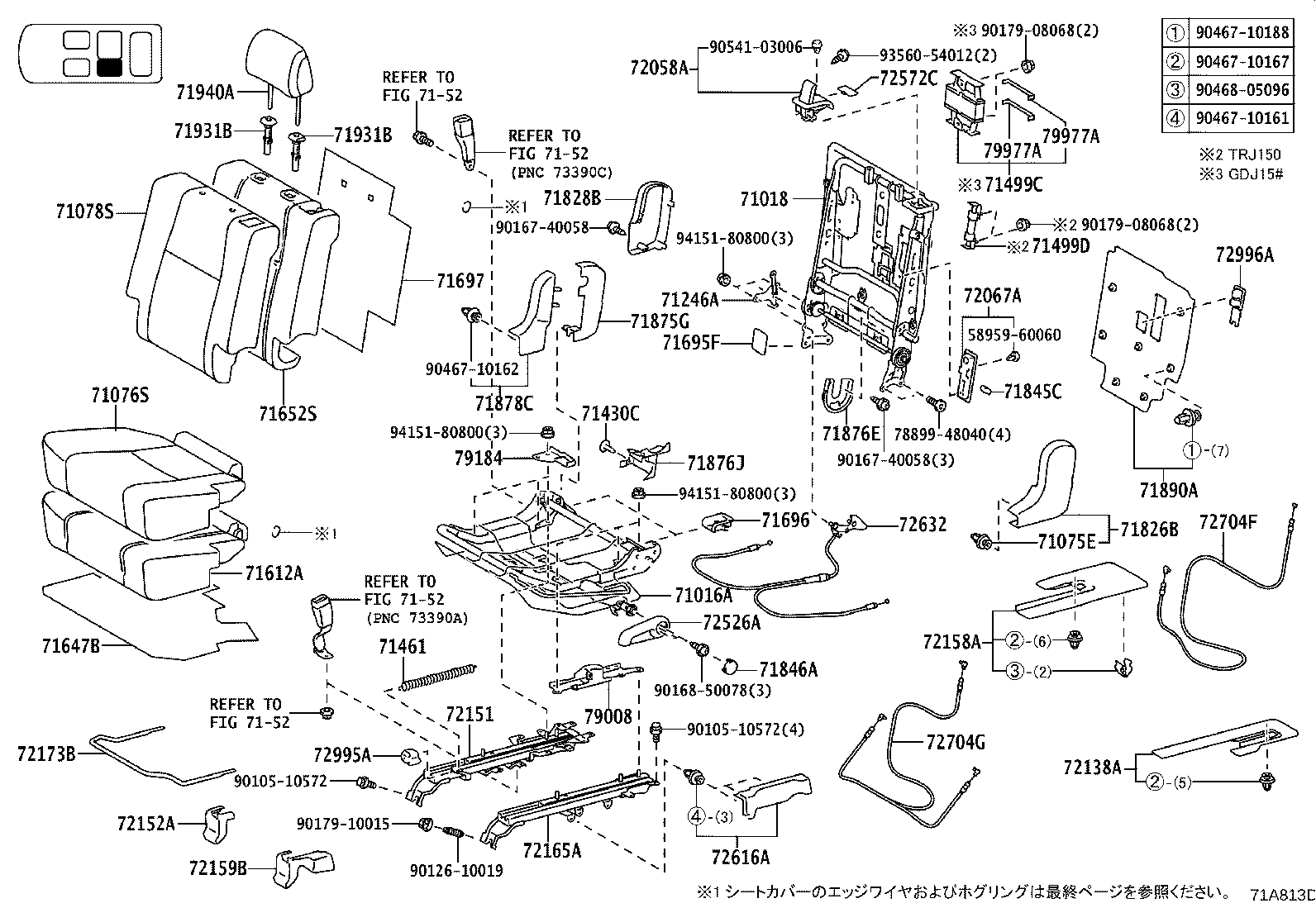

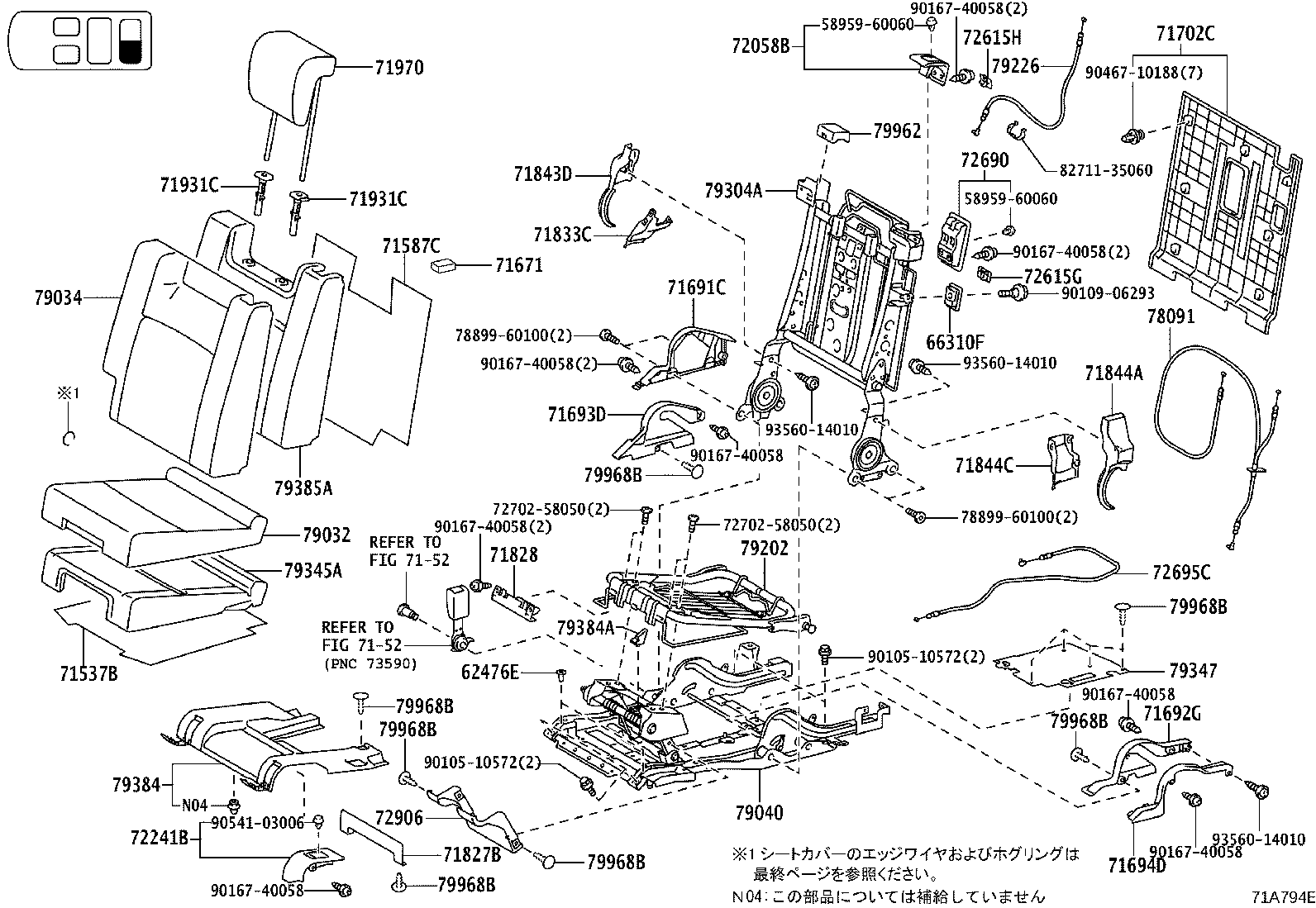

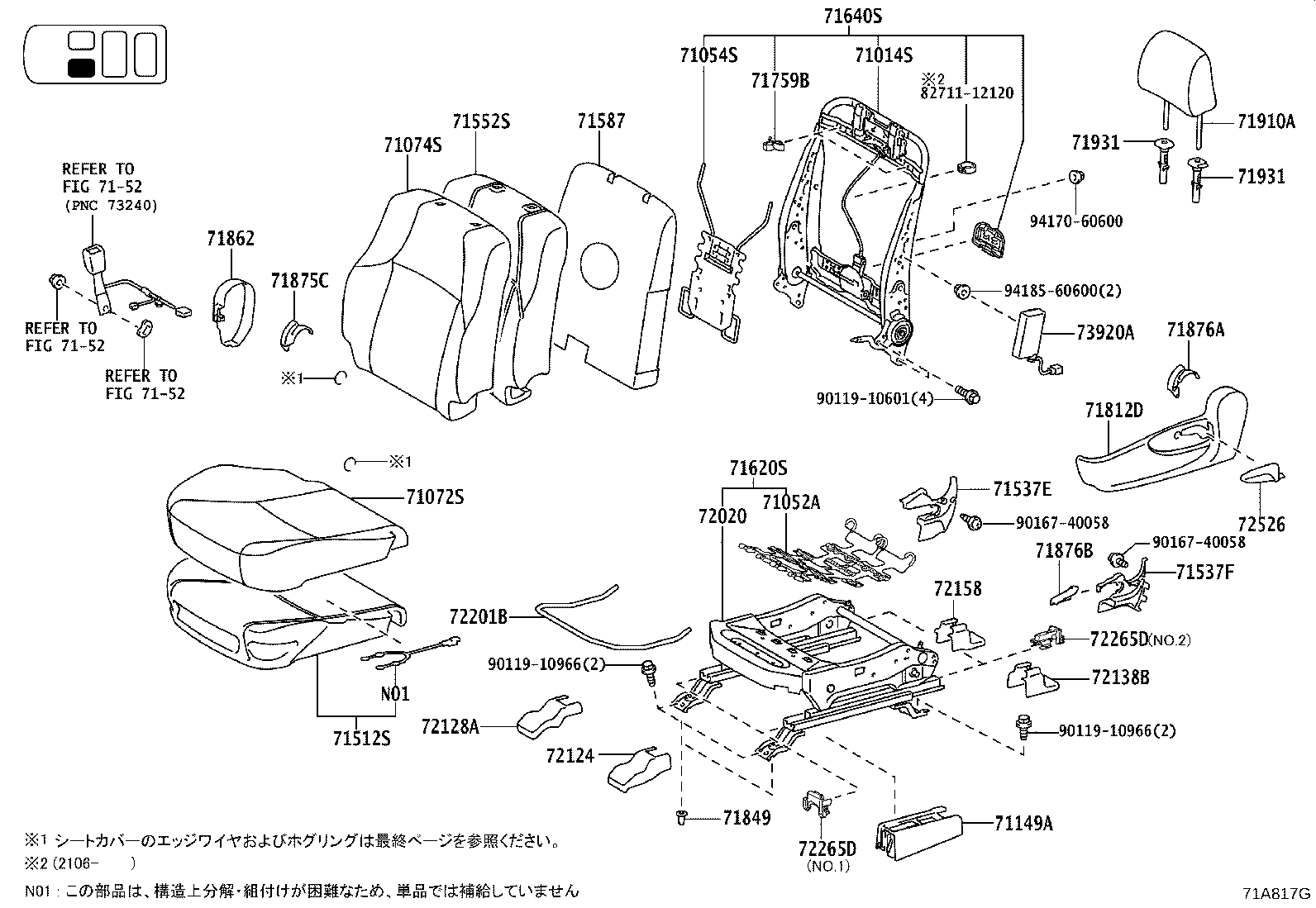

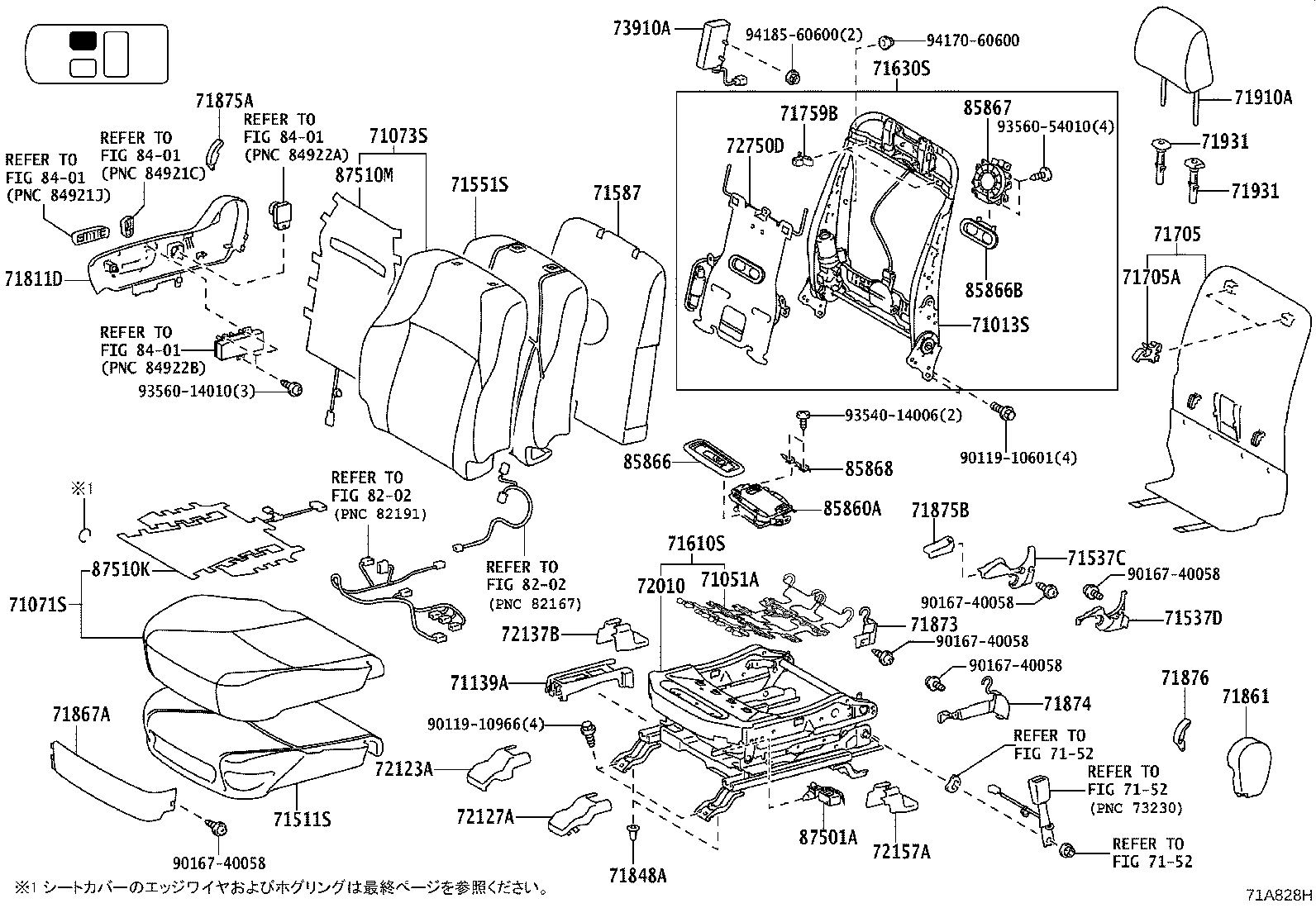

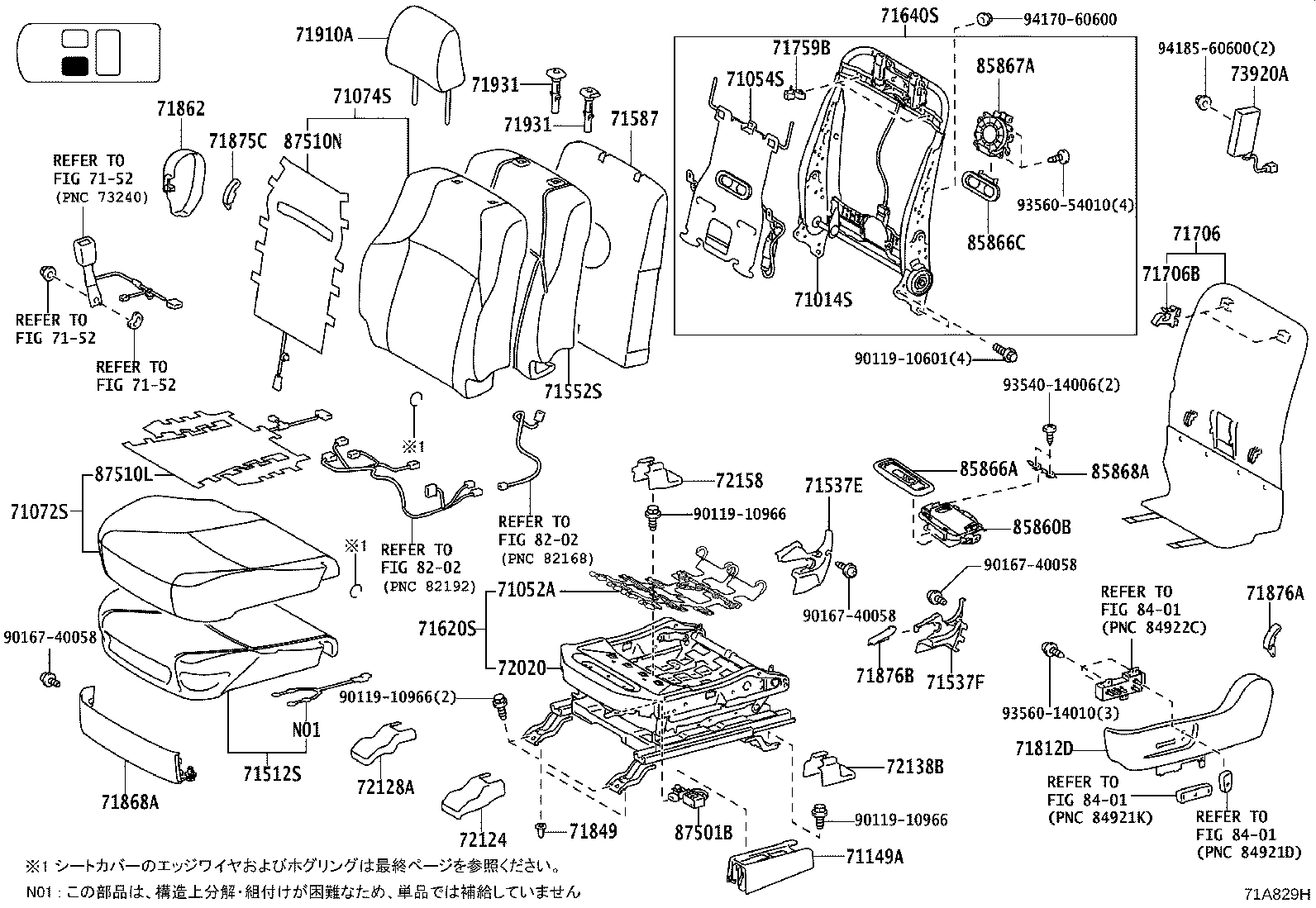

Figure 71A816H 71A816H 2017-08 → — Figure 71A828H 71A828H 2017-08 → — Figure 71A817G 71A817G 2017-08 → — Figure 71A829H 71A829H 2017-08 → — Figure 71A803F 71A803F 2017-08 → — Figure 71A804E 71A804E 2017-08 → — Figure 71A812G 71A812G 2017-08 → — Figure 71A813D 71A813D 2017-08 → — Figure 71A793E 71A793E 2017-08 → — Figure 71A794E 71A794E 2017-08 → — Figure 71A797G 71A797G 2017-08 → — Figure 71A798F 71A798F 2017-08 → — Figure 71A789 71A789 2017-08 → —

Part groups

PNCDescription
62476E Cap, Rear Seat
66310F Hook Assy, Rope
66990B Holder Assy, Cup, NO.2 RH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E Clip(FOR REAR SEAT)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087 Board Sub-assy, Rear Seatback
71095S Cover Sub-assy, Center Seatback
71139A Cover, Front Seat Leg, NO.1
71149A Cover, Front Seat Leg, LH
71246A Plate, Rear Seat Cushion Set
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305S Frame Sub-assy, Center Seatback
71324B Cushion, Rear Seat
71324J Cushion, Rear Seat
71324K Cushion, Rear Seat
71349B Cover, Rear Seatback Stay, RH
71369B Cover, Rear Seatback Stay, LH
71389 Spacer, Center Seat Hinge
71393 Band, Rear Seat Cushion
71395B Cover, Center Seat Hinge, RH
71397A Cover, Center Seat Hinge
71413 Plate, NO.1 Rear Seat Side, NO.2
71430C Clip
71461 Spring, Rear Seat Cushion
71468 Protector, Rear Seat, NO.1 (FOR SEAT CUSHION)
71499C Damper, Rear Seat Cushion Spring
71499D Damper, Rear Seatback Spring
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71523 Rail, Rear Seat
71537A Protector, Front Seat Cushion
71537B Protector, Rear Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71537E Protector, Front Seat Cushion, NO.1
71537F Protector, Front Seat Cushion, NO.2
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71587A Protector, Rear Seatback Edge
71587C Protector, Rear Seatback Edge NO.2
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629 Cover, Rear Seat Cushion Hinge
71629A Cover, Rear Seat Cushion Hinge, RH
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639 Cover, Rear Seat Cushion Hinge, LH
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647 Protector, Rear Seat Cushion Edge
71647B Protector, Rear Seat Cushion Edge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71671 Pad, Rear Seatback Silencer, A
71691C Cover, Rear Seat Lock, Inner RH
71692G Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71693A Cover, Rear Seat Cushion Hinge, NO.3
71693C Cover, Rear Seat Cushion Hinge, Outer RH
71693D Cover, Rear Seat Cushion Hinge, Inner RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71694D Cover, Rear Seat Cushion Hinge, Outer LH
71695 Protector, Rear Seatback
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71695C Protector, Rear Seat, NO.1
71695D Protector, Seat
71695F Protector, Rear Seat, NO.1
71696 Protector, Rear Seat, NO.2
71697 Protector, Rear Seatback Edge
71697A Protector, Rear Seat, NO.3 RH
71697B Protector, Rear Seat, NO.3 LH
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71705 Board Sub-assy, Front Seatback, RH
71705A Clip(FOR FRONT SEATBACK BOARD)
71706 Board Sub-assy, Front Seatback, LH
71706B Clip, Front Seatback Board
71759B Hook, Front Seatback
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71827B Moulding, Rear Seat Cushion, Front
71828 Moulding,Rear Seatback, Center
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71833C Cover, Rear Seat Reclining, NO.2 RH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834C Cover, Rear Seat Reclining, NO.3 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71843D Cover, Rear Seat Reclining, NO.2 RH
71843E Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71844A Cover, Rear Seat Reclining, NO.2 LH
71844C Cover, Rear Seat Reclining, NO.2 LH
71845A Cover, Rear Seat Reclining, Upper RH
71845C Cap, Rear Seat Cover
71846A Cover, Rear Seat Reclining, Upper LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71865 Bezel, Rear Seat Cover, NO.1
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71876J Cover, Reclining Adjuster Inside, LH
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71878C Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71880A Carpet Assy, Rear Seatback Board, RH
71890A Carpet Assy, Rear Seatback Board, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
71970 Headrest Assy, Rear Seat
71970A Cover, Rear Seat Headrest
71987A Cable, Rear Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058 Lever Sub-assy, Rear Seat Lock Control
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72058B Lever Sub-assy, Rear Seat Lock Control, LH
72067 Lever Sub-assy, Rear Back Lock Control, RH
72067A Lever, Rear Back Lock Control, Center
72111 Rail, Seat Track Upper
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137B Cover, Seat Track, RH
72137D Cover, Rear Seat Track, RH
72138A Cover, Rear Seat Track, LH
72138B Cover, Seat Track, LH
72151 Rail, Seat Track, Lower RH
72152 Rail, Seat Track, Lower LH
72152A Cover, Rear Seat Track Bracket, Inner
72157A Cover, Seat Track Bracket, Inner RH
72157B Cover, Rear Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72158A Cover, Rear Seat Track Bracket, Inner LH
72159A Cover, Rear Seat Track Bracket
72159B Cover, Rear Seat Track Bracket, Outer
72165 Rail, Rear Outer Seat Track, Lower RH
72165A Rail, Rear Outer Seat Track, Lower LH
72173A Handle, Rear Seat Track Adjusting, RH
72173B Handle, Rear Seat Track Adjusting, LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72241A Lever, Seat Track Lock
72241B Lever, Seat Track Lock
72265D Cover, Seat Track Upper Rail
72455A Bracket, Seat Frame Set, NO.1
72494 Handle, Vertical Adjusting, RH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72572B Cap, Reclining Adjuster Knob, RH
72572C Cap, Reclining Adjuster Knob, LH
72601 Striker Sub-assy, Rear Seat Lock
72602B Striker Sub-assy, Rear Seatback Lock, NO.2 LH
72613B Striker, Rear Seat Lock
72615A Cover, Rear Seatback Lock Striker, RH
72615G Cover, Front Seatback Lock Striker,NO.2
72615H Cover, Rear Seatback Lock Striker, NO.1
72616A Cover, Rear Seatback Lock Striker, LH
72618 Protector, Rear Seatback Lock Striker
72630C Lock Assy, Rear Seatback, RH
72632 Plate, Rear Seatback Lock, LH
72635B Hook, Rear Seatback Lock(MALE)
72635C Hook, Rear Seatback Lock(FEMALE)
72640A Lock Assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72650A Lock Assy, Rear Seat, RH
72661C Button, Rear Seatback Lock Release
72663 Lever, Rear Seat Lock Control, NO.1
72665 Cover, Rear Seatback Lock, RH
72665B Cover, Rear Seatback Lock
72666 Cover, Rear Seatback Lock, LH
72677A Base, Rear Seatback Lock Control Lever, RH
72678 Base, Rear Seatback Lock Control Lever, LH
72690 Lever Assy, Seat Cushion Lock Release
72690A Strap Assy, Rear Seat Lock Release
72691B Striker, Rear Seat Cushion Lock
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72704A Cable, Rear Seat Reclining Control
72704B Cable, Rear Seat Reclining Control, NO.2
72704F Cable, Rear Seat Reclining Control, NO.3
72704G Cable, Rear Seat Reclining Control, NO.4
72728 Protector, Rear Seat Reclining, Inner RH
72731 Bracket, Rear Seat Reclining, RH
72732 Bracket, Rear Seat Reclining, LH
72749 Spacer, Rear Seat Reclining
72749A Spacer, Rear Seat Reclining
72749B Spacer, Rear Seat Reclining, NO.1
72749C Spacer, Rear Seat Reclining, NO.2
72750D Adjuster Assy, Lumbar Support, RH
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72849 Cap, Seat Armrest, NO.2
72877C Cover, Seat Armrest
72905 Link Sub-assy, 3RD Seat, RH
72906 Link Sub-assy, 3RD Seat, LH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72978 Cover, NO.2 Center Seatback
72987 Cover, Rear Seat Center Armrest
72995A Cover, Rear Seat
72996A Cover, Rear Seatback
72997B Cover, Rear Seatback
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
73949 Cap
74633A Cap, Coat Hook
78091 Cable Sub-assy, Fold Seat Lock Control
79008 Frame, Seat Cushion Side, LH Outer NO.2
79030 Leg Assy, NO.3 Seat, RH
79031 Cover Sub-assy, NO.3 Seat Cushion, RH
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033 Cover Sub-assy, NO.3 Seatback, RH
79034 Cover Sub-assy, NO.3 Seatback, LH
79040 Leg Assy, NO.3 Seat, LH
79109 Board Sub-assy, NO.1 Seatback
79117B Cover, NO.1 Seat Cushion, RH
79117C Cover, NO.1 Seat Cushion, LH
79148 Pad, NO.1 Seat Cushion, Center
79157 Cover, NO.1 Seatback
79184 Plate, NO.1 Seat Leg
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79226 Cable, NO.2 Seat Lock
79303A Frame Sub-assy, NO.3 Seatback, RH
79304A Frame Sub-assy, NO.3 Seatback, LH
79335A Pad, NO.3 Seat Cushion, RH
79337 Carpet, NO.2 Seat Cushion Under, RH
79345A Pad, NO.3 Seat Cushion, LH
79347 Carpet, NO.2 Seat Cushion Under, LH
79374 Cover, NO.3 Seat Leg, Rear RH
79374A Cover, NO.3 Seat Leg, Rear RH
79375A Pad, NO.3 Seatback, RH
79384 Cover, NO.3 Seat Leg, Rear LH
79384A Cover, NO.3 Seat Leg, Rear LH
79385A Pad, NO.3 Seatback, LH
79873 Wire, Fold Seatback
79909A Wire Sub-assy, Seat Cushion
79956 Cover, Rear Seat Leg Bracket
79959 Cover, RR Seat Leg
79962 Cover, NO.2 Seatback
79968B Clip
79977A Felt, Seatback
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85866B Duct, Seatback Climate Control, RH
85866C Duct, Seatback Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85868 Bracket, Seat Cushion Climate Control, RH
85868A Bracket, Seat Cushion Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
