Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan
Supported model
Data version 2018-06

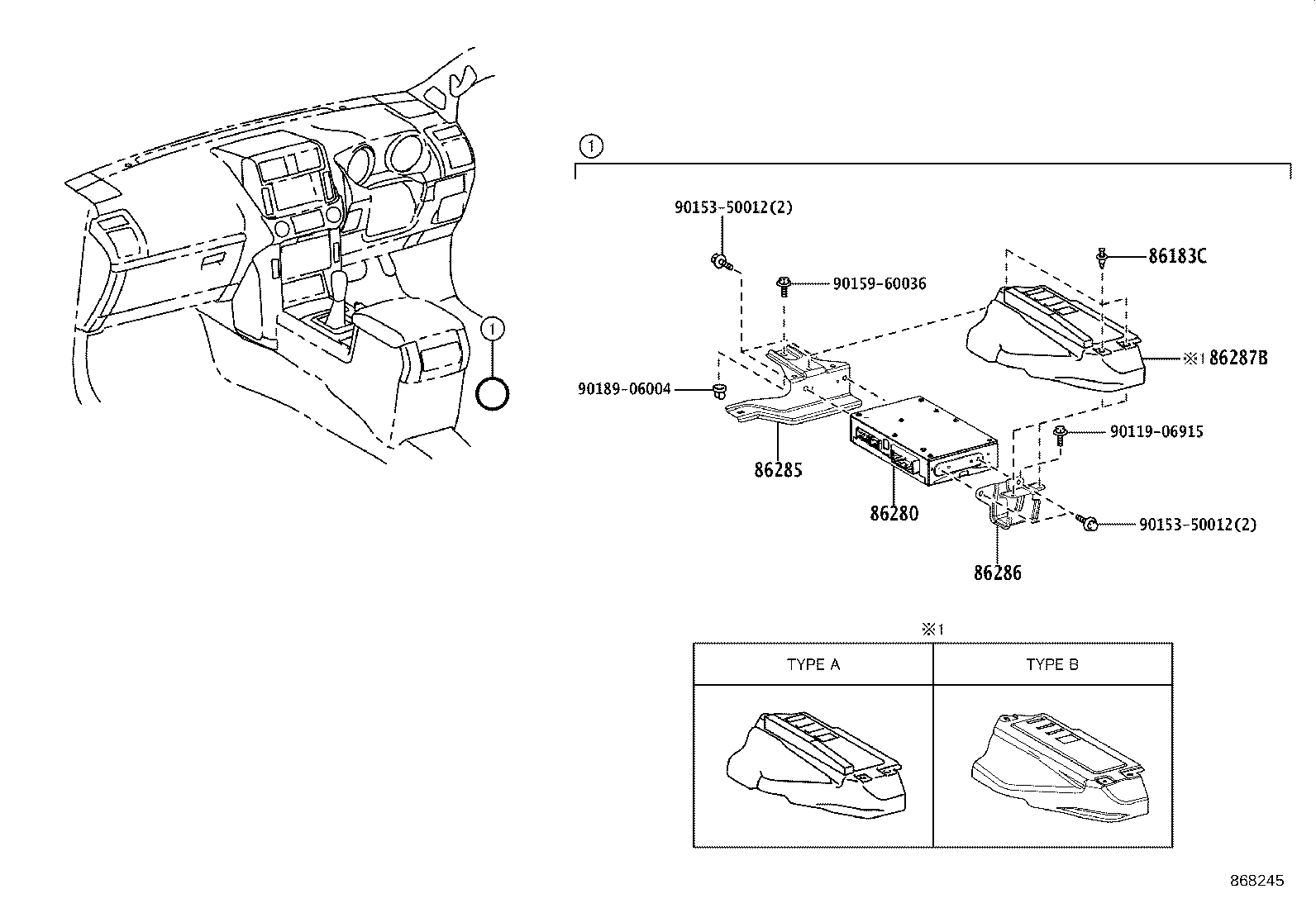

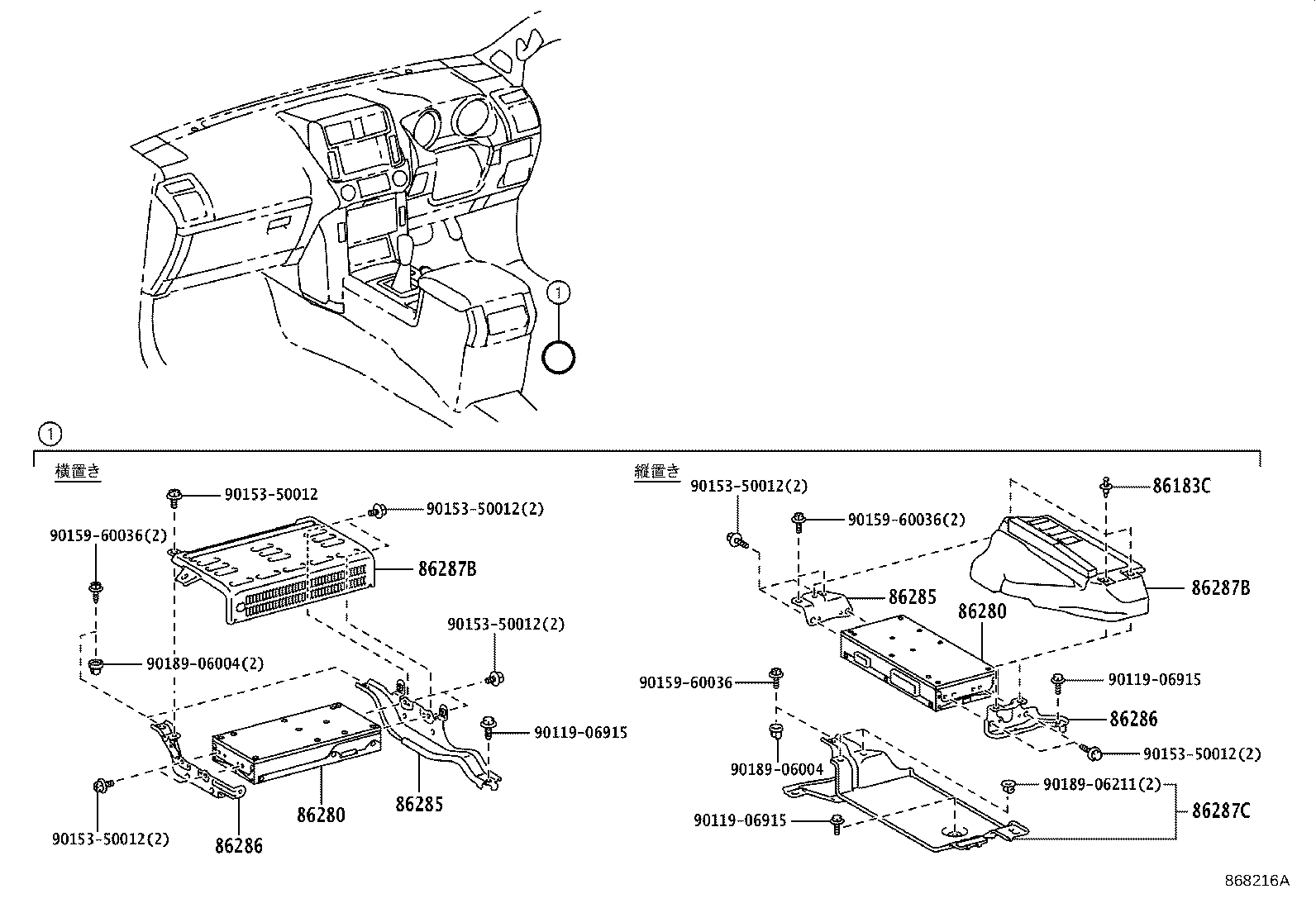

Radio Receiver & Amplifier & Condenser
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

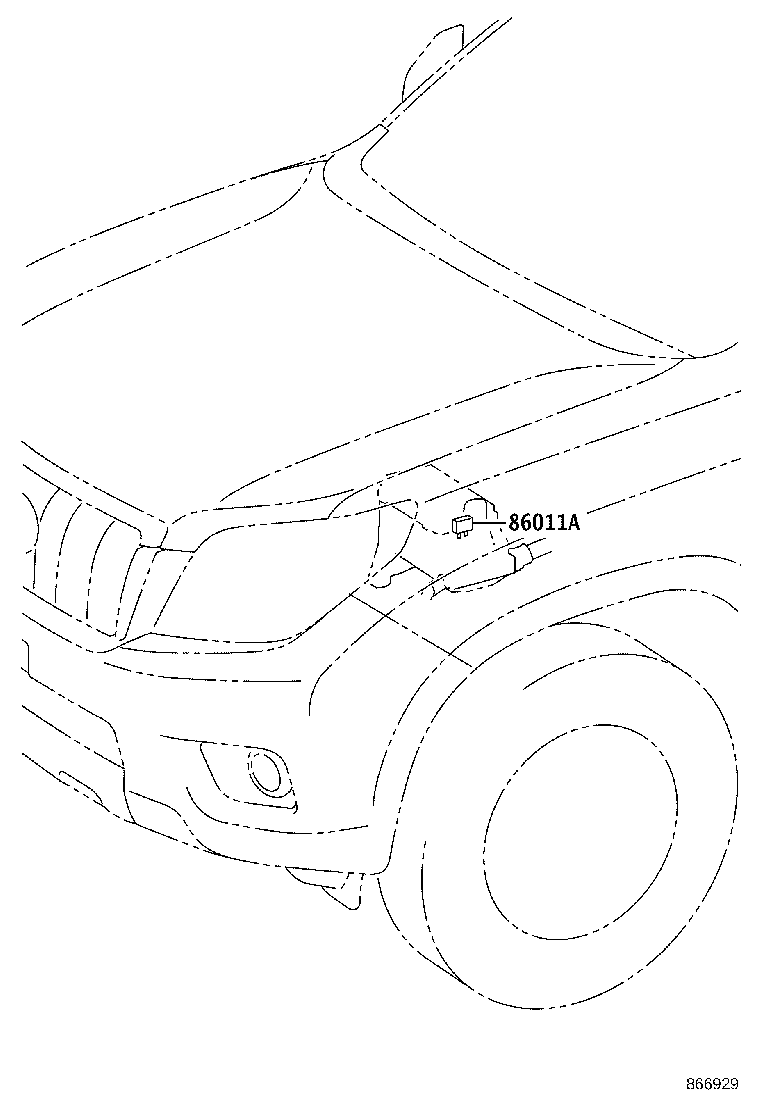

| 86011A | Condenser, Radio Setting |
| 86183C | Clip, Audio Rack |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86287B | Cover, Amplifier |
| 86287C | Cover, Amplifier NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
