Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan
Supported model
Data version 2018-06

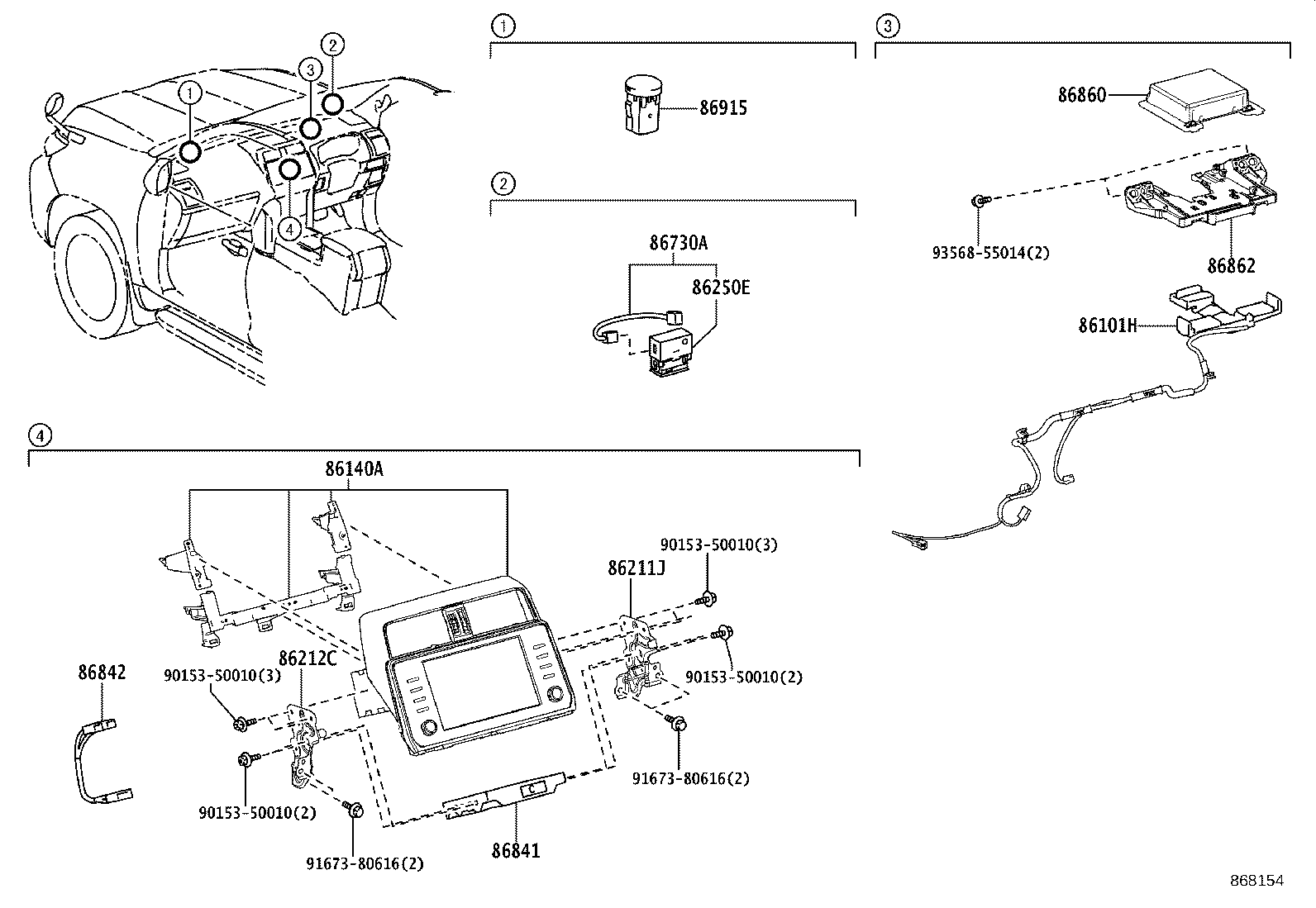

Navigation & Front Monitor Display
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101H | Cord Sub-assy, Antenna |
| 86120L | Receiver Assy, Navigation |
| 86140A | Receiver Assy, Radio & Display |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86273B | Adapter, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
