Heating & Air Conditioning - Cooler Unit

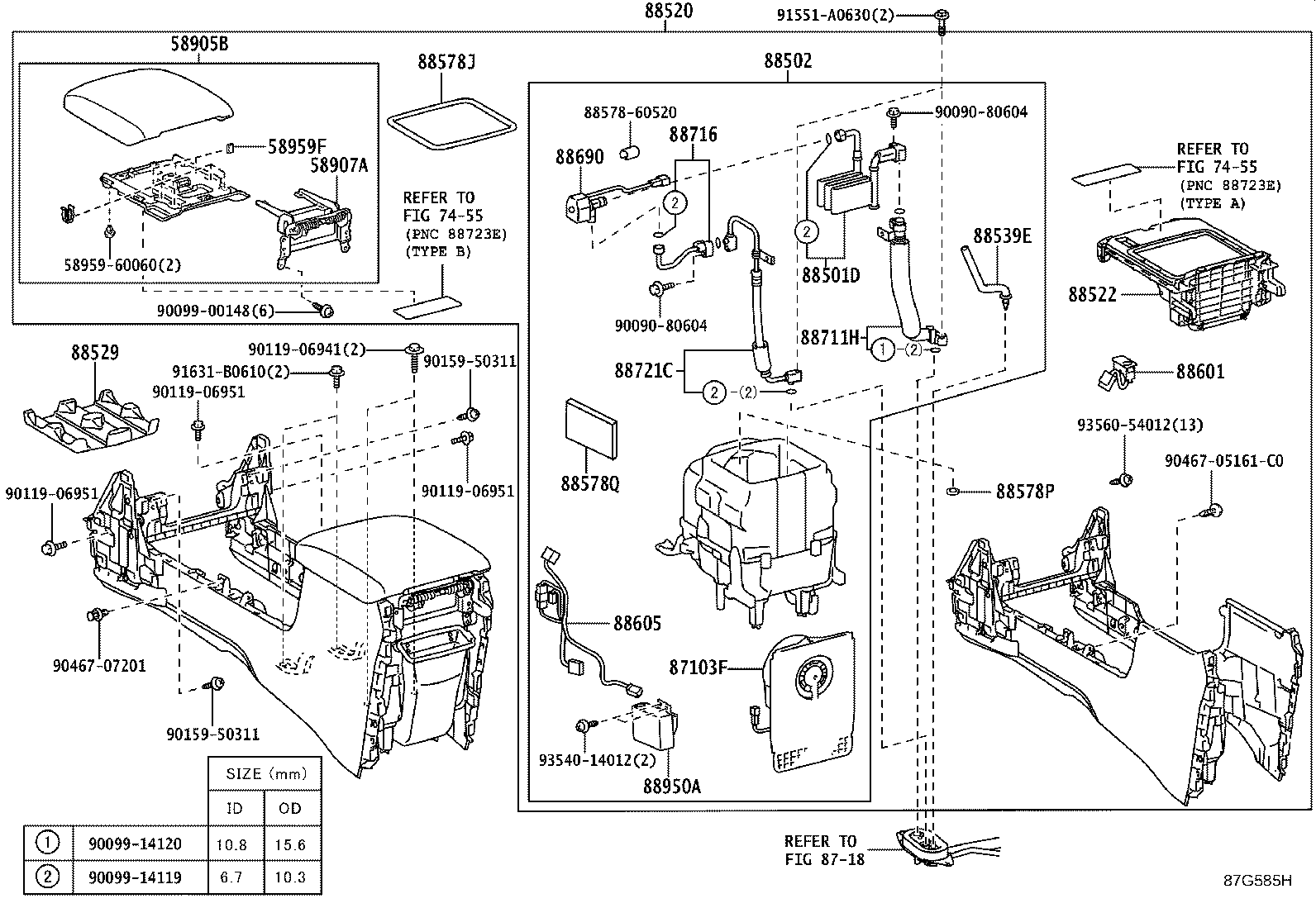

43 part groups · 2 illustrations

PNC	Description
58905B	Door Sub-assy, Console Compartment(FOR COOL BOX)
58907A	Hinge Sub-assy, Cooling Box Door
58959F	Cushion, Cooling Box Door
82210K	Harness Assy, Air Conditioner
87050	Radiator Assy, Air Conditioner
87050C	Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D	Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87103B	Motor Sub-assy, Blower W/Fan
87103F	Motor Sub-assy, Blower W/Fan(FOR COOL BOX)
87107A	Unit Sub-assy, Heater Radiator
87128	Grommet, Heater
87130D	Blower Assy
87130K	Damper Servo Sub-assy, Blower, NO.1
87139C	Filter, Clean Air
87710G	Quick Heater Assy
88501	Evaporator Sub-assy, Cooler, NO.1
88501D	Evaporator Sub-assy, Cooler, NO.2
88502	Case Sub-assy, Cooling Unit
88515	Valve, Cooler Expansion
88520	Box Assy, Cooling
88522	Door, Cooling Unit
88529	Tray, Cooling Box
88539E	Hose, Cooler Unit Drain, NO.3
88539J	Hose, Drain Cooler
88578J	Packing, Cool Box, NO.1
88578P	Packing, Cool Box, NO.2
88578Q	Packing, Cool Box, NO.3
88601	Switch Sub-assy, Cooler Control
88605	Harness Sub-assy, Cooler Wiring, NO.1
88625	Thermistor, Cooler, NO.1
88650N	Amplifier Assy, Air Conditioner
88669B	Hose, Cooler Air
88690	Valve Assy, Cooler Magnet
88710H	Tube & Accessory Assy, Air Conditioner
88711H	Hose, Discharge
88716	Tube, Liquid
88721C	Hose, Liquid
88897K	Grommet, (FOR COOLER PIPE)
88897U	Pipe, Aspirator
88899K	Plate, Cover
88899M	Plate, Cover(FOR AIR FILTER)
88899N	Plate, Cover
88950A	Amplifier Assy, Cooling Box

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
