Toyota Land Cruiser Prado
2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan
Supported model
Data version 2018-06
Heating & Air Conditioning - Control & Air Duct
21 part groups · 3 illustrations
Part groups

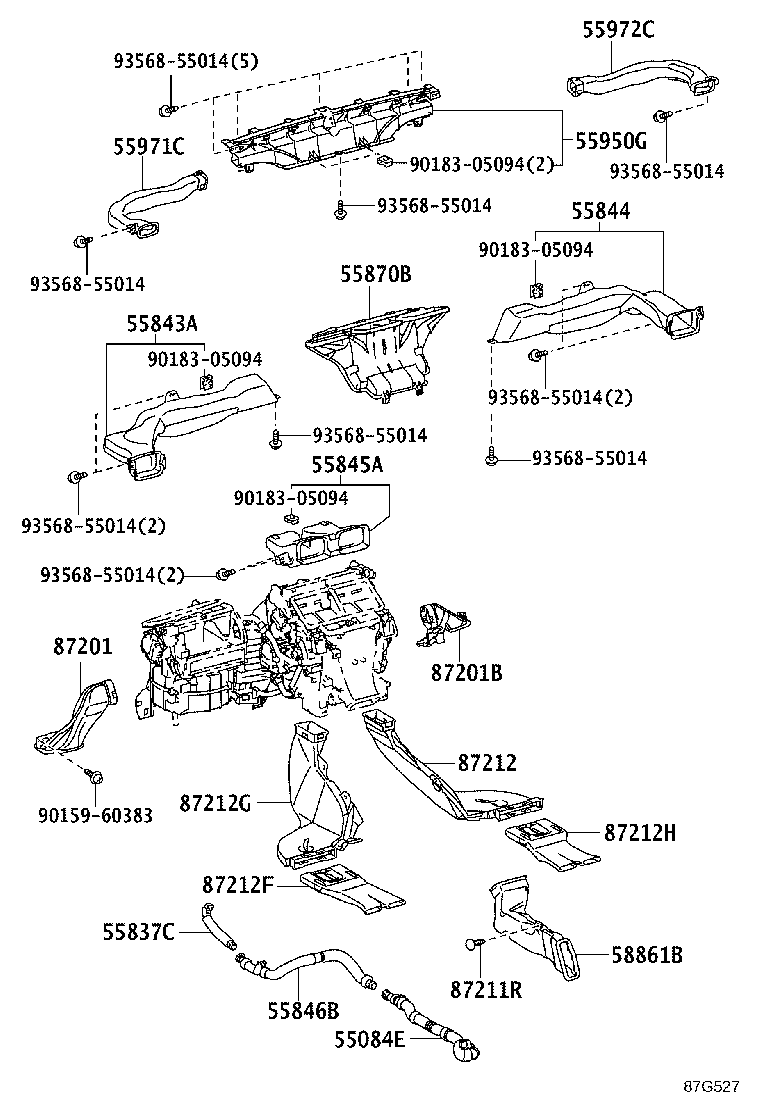

| PNC | Description |
|---|---|
| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55837C | Duct, Heater TO Register Center Sub |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846B | Duct, Heater TO Register, NO.4 |
| 55870B | Duct Assy, Heater TO Register |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 58861B | Duct, Console Box, NO.1 |
| 84010A | Control & Panel Assy, Integration |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87211R | Clip, Air Duct |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |

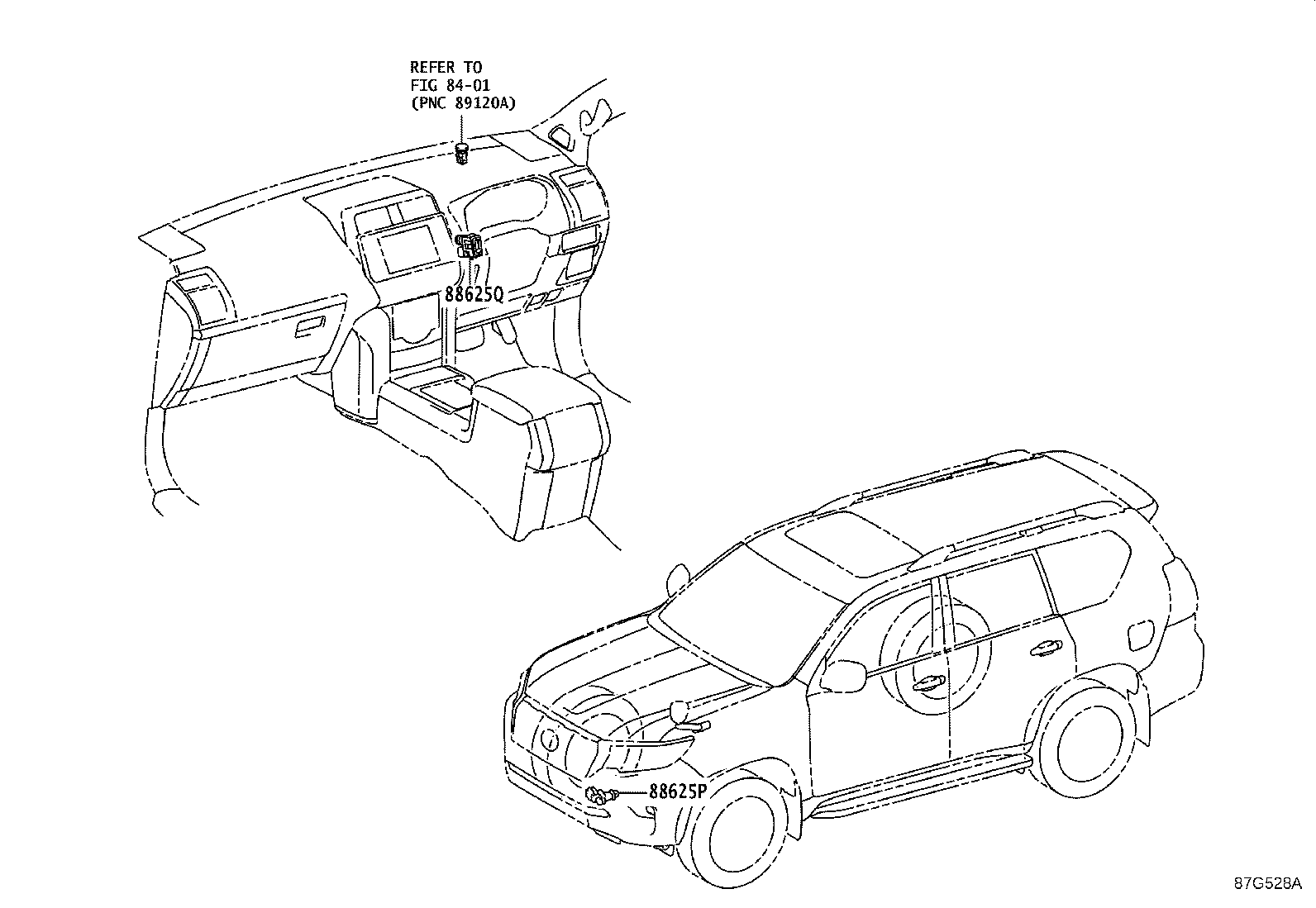

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
