Toyota Land Cruiser Prado

2017-08 → present · chassis GDJ15#,TRJ150 · catalogue 781180 · Japan

Supported model Data version 2018-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 3 illustrations

Illustrations

Figure 87G622A

87G622A 2017-08 → —

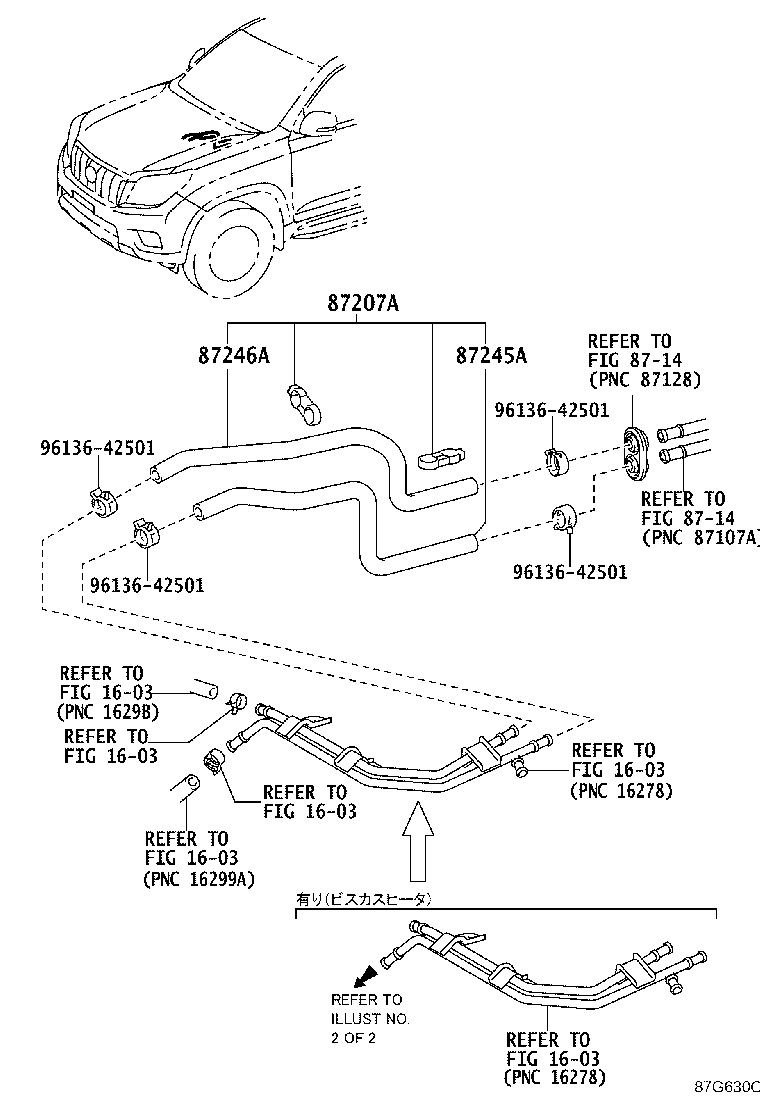

Figure 87G630C

87G630C 2017-08 → —

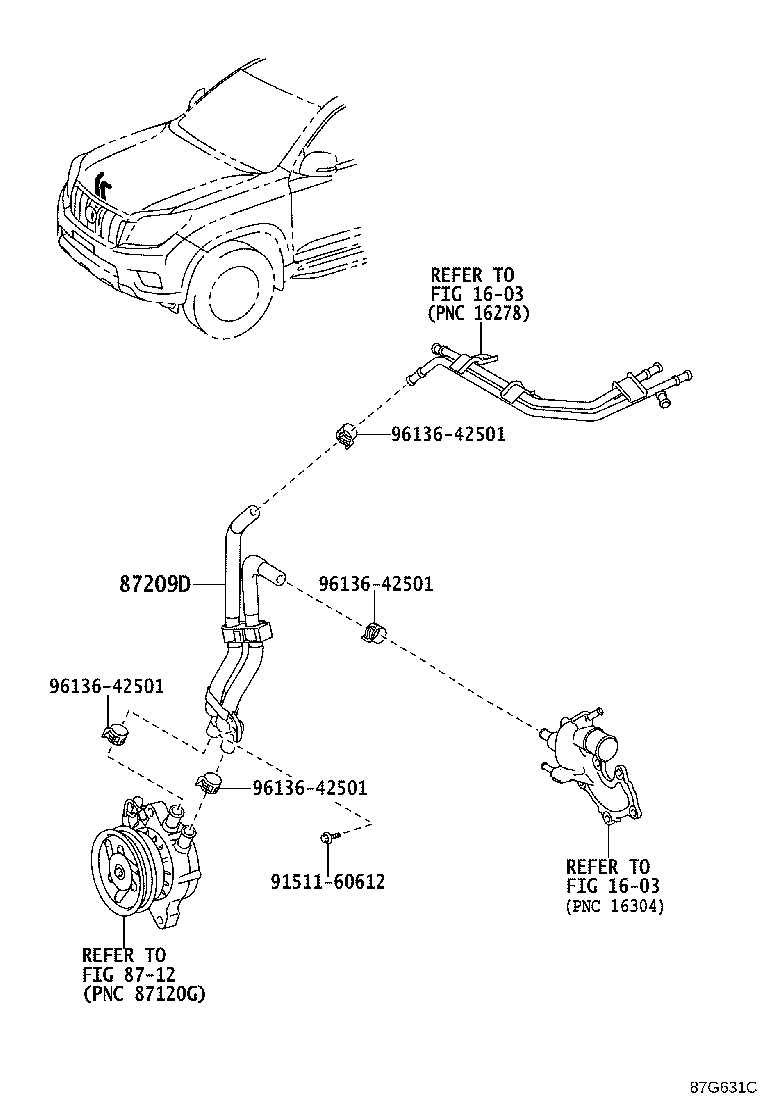

Figure 87G631C

87G631C 2017-08 → —

Part groups

PNC	Description
87207A	Pipe & Hose Sub-assy, Water A
87209D	Hose Sub-assy, Water, D
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
