Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

6 part groups · 2 illustrations

Illustrations

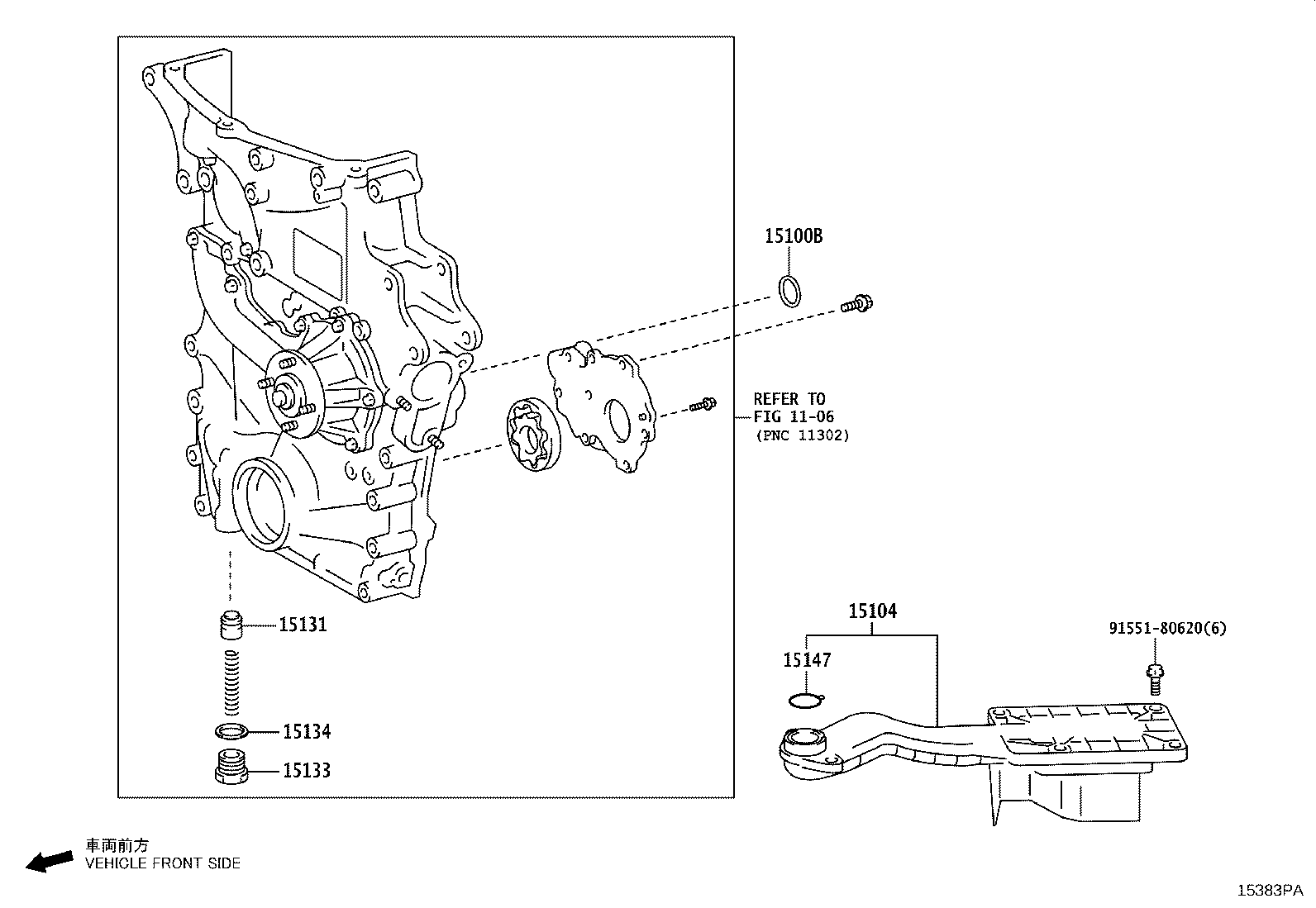

Figure 15383N 15383N 2024-04 → — Figure 15383PA 15383PA 2024-04 → —

Part groups

PNCDescription
15100B Ring, O(FOR OIL PUMP)
15104 Strainer Sub-assy, Oil
15131 Valve, Oil Pump Relief
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
