Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 3 illustrations

Illustrations

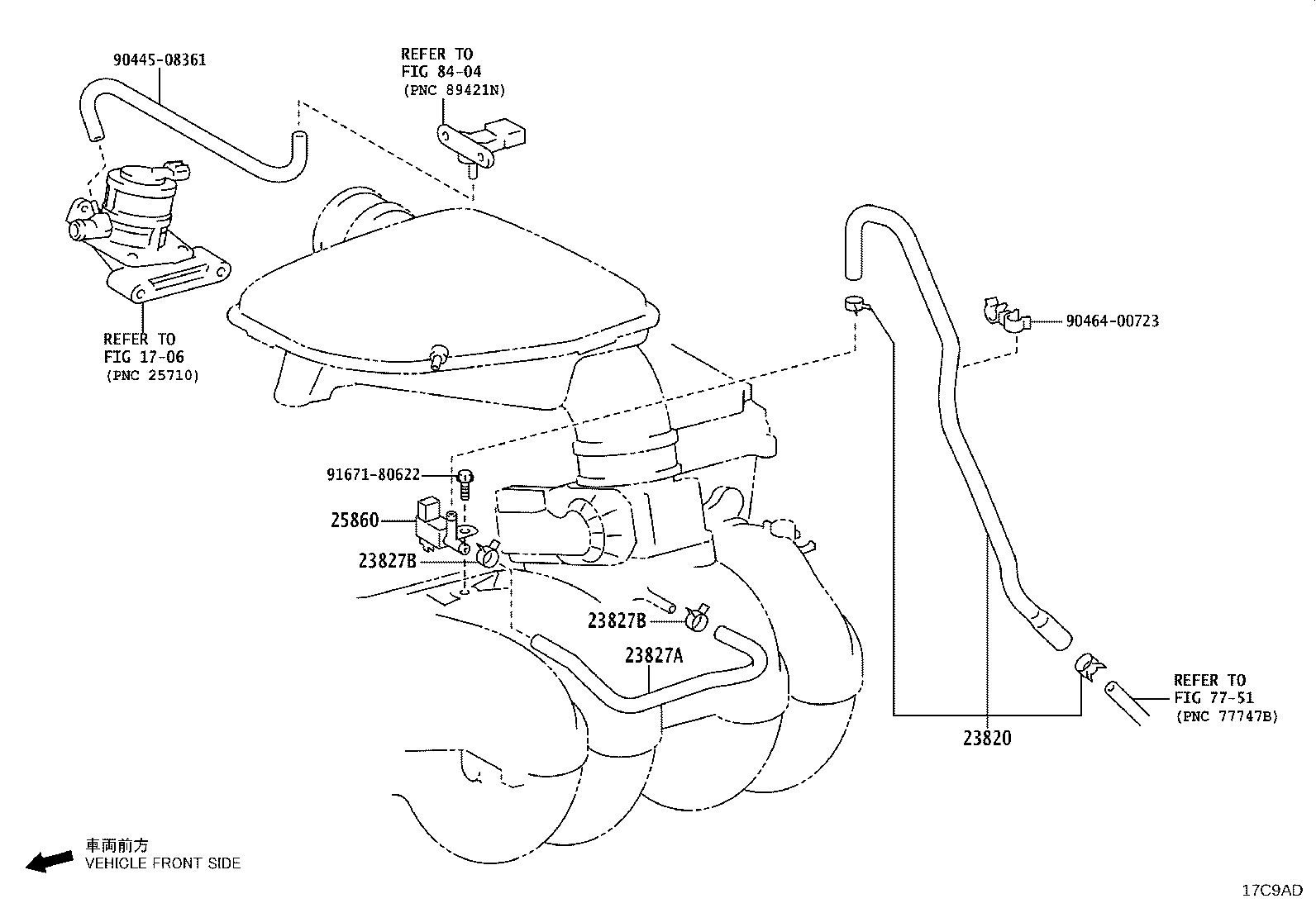

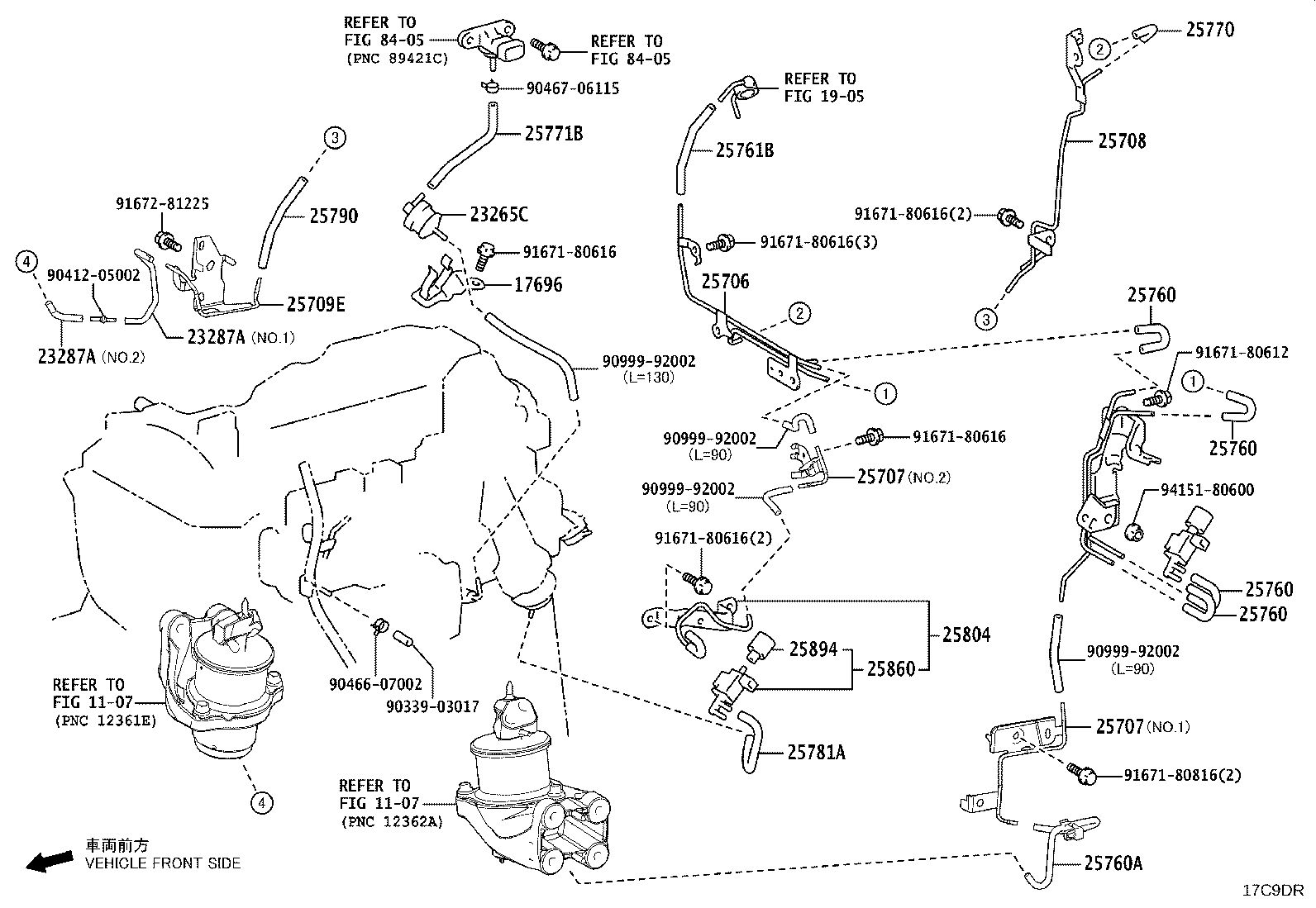

Figure 17C9B3 17C9B3 2024-04 → — Figure 17C9DR 17C9DR 2024-04 → — Figure 17C9AD 17C9AD 2024-04 → —

Part groups

PNCDescription
17341P Hose, Air
17578B Clamp, Pipe
17696 Bracket, Gas Filter
23265C Filter, Gas
23287A Hose, Vacuum(FOR VACUUM TRANSMITTING VALVE)
23820 Hose Assy, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709E Pipe Sub-assy, Vacuum Transmitting, NO.4
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25894 Filter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
