Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

24 part groups · 3 illustrations

Illustrations

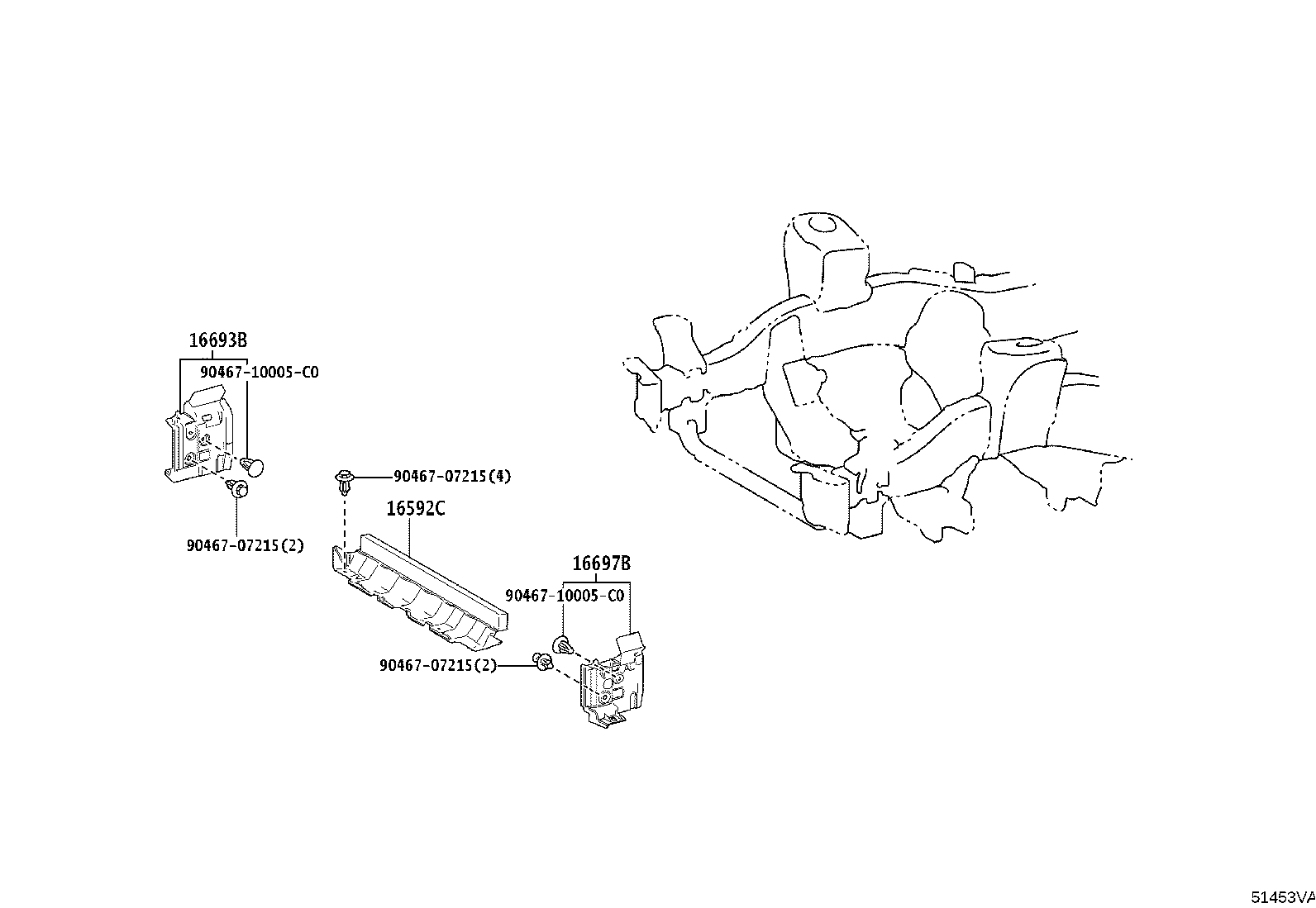

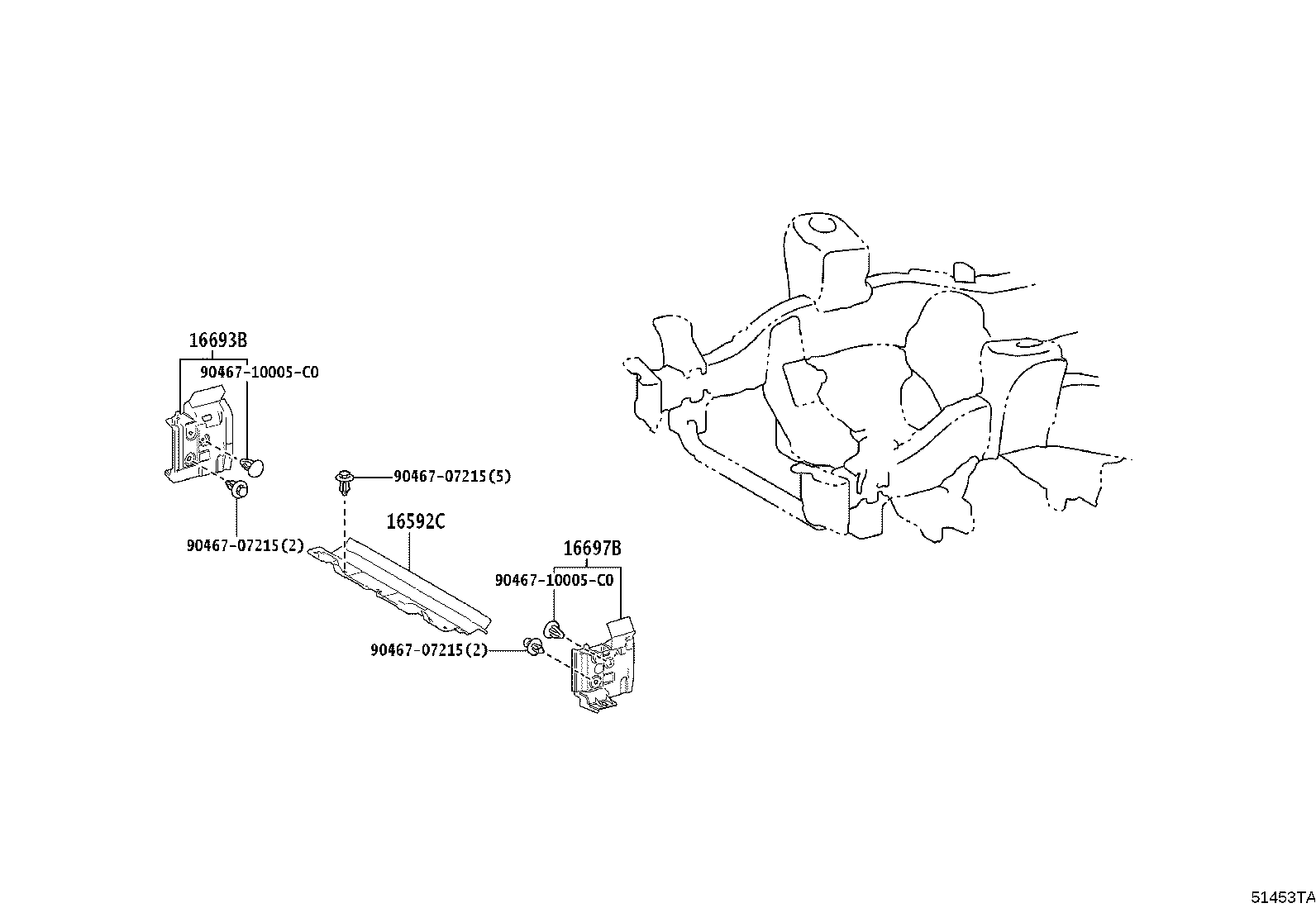

Figure 51453QC 51453QC 2024-04 → — Figure 51453TA 51453TA 2024-04 → — Figure 51453VA 51453VA 2024-04 → —

Part groups

PNCDescription
16592C Guide, Radiator Air, NO.3
16693B Plate, Radiator Side Air Guide, Rear RH
16697B Plate, Radiator Side Air Guide, Rear LH
48806C Brace Sub-assy, Front Stabilizar, Center
51021B Crossmember Sub-assy, Frame Auxiliary
5103C Plate Sub-assy, Side Rail Extension, RH
5103D Plate Sub-assy, Side Rail Extension, LH
51100F Frame Sub-assy
51110 Extension Assy, Side Rail, RH
51120 Extension Assy, Side Rail, LH
51195 Patch, Rear Frame Rail, RH
51196 Patch, Rear Frame Rail, LH
51209C Crossmember Sub-assy, Frame, Rear
51391 Gusset, Frame Rear Crossmember, RH
51392 Gusset, Frame Rear Crossmember, LH
5159C Insulator, Frame Crossmember Heat
51603A Bracket Sub-assy, Front Bound Stopper, RH
51604 Bracket Sub-assy, Front Bound Stopper, LH
51701 Bracket Sub-assy, Cab Mounting, NO.1 RH
51702 Bracket Sub-assy, Cab Mounting, NO.1 LH
51704A Bracket Sub-assy, Cab Rear Mounting, LH
51705D Bracket Sub-assy, Cab Rear Mounting, RH
51963A Hook, Transport, Front RH
51964A Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
