Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

11 part groups · 2 illustrations

Illustrations

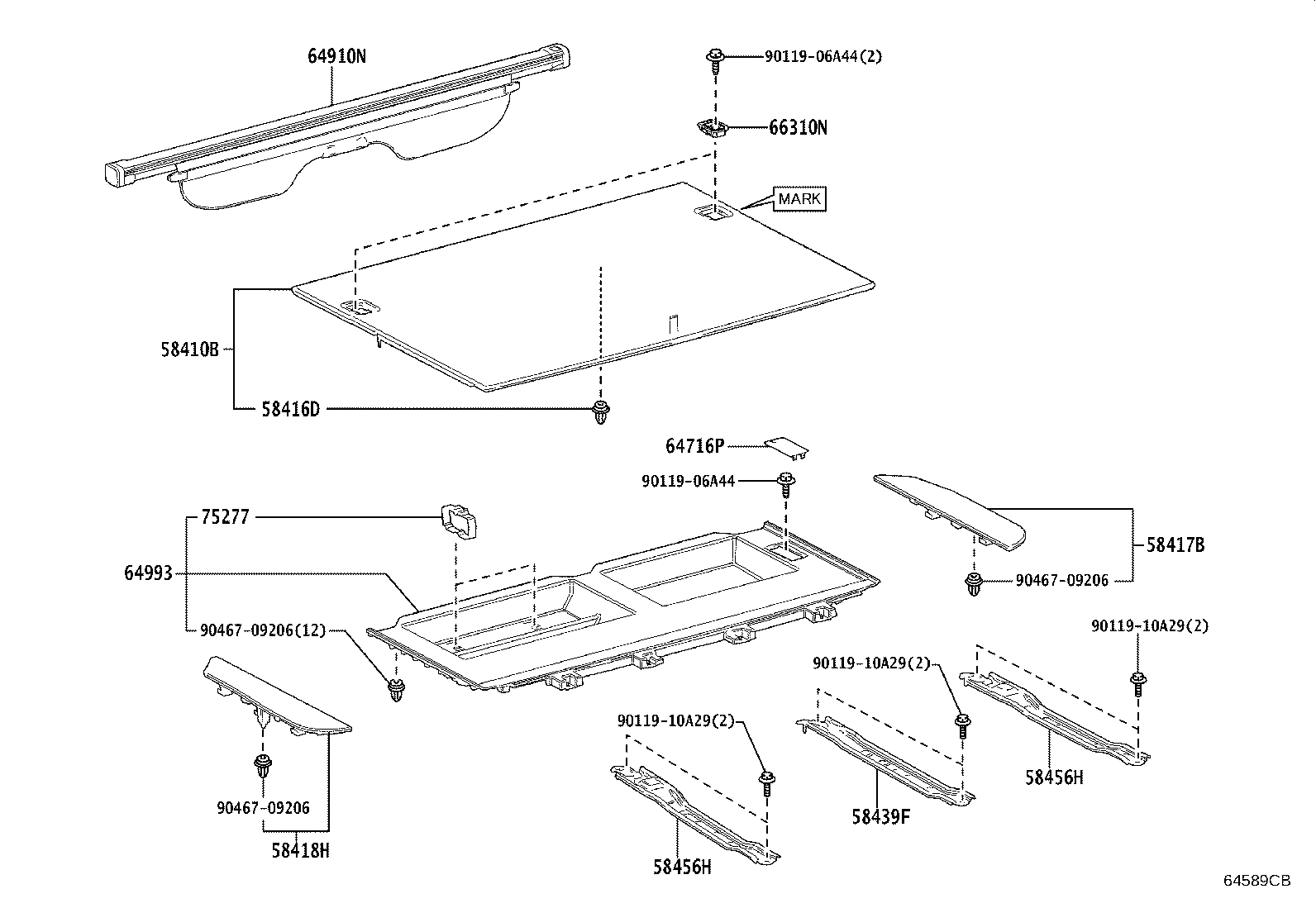

Figure 64589BA 64589BA 2024-04 → — Figure 64589CB 64589CB 2024-04 → —

Part groups

PNCDescription
58410B Board Assy, Deck
58416D Clip, Rear Floor Board
58417B Board, Rear Floor, Rear RH
58418H Board, Rear Floor, Rear LH
58439F Reinforcement, Deck Board Bracket
58456H Bracket, Deck Floor NO.2
64716P Cover, Deck Trim, Rear
64910N Cover Assy, Tonneau
64993 Box, Deck Floor, Rear
66310N Hook Assy, Rope
75277 Band, Tool, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
