Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

8 part groups · 2 illustrations

Illustrations

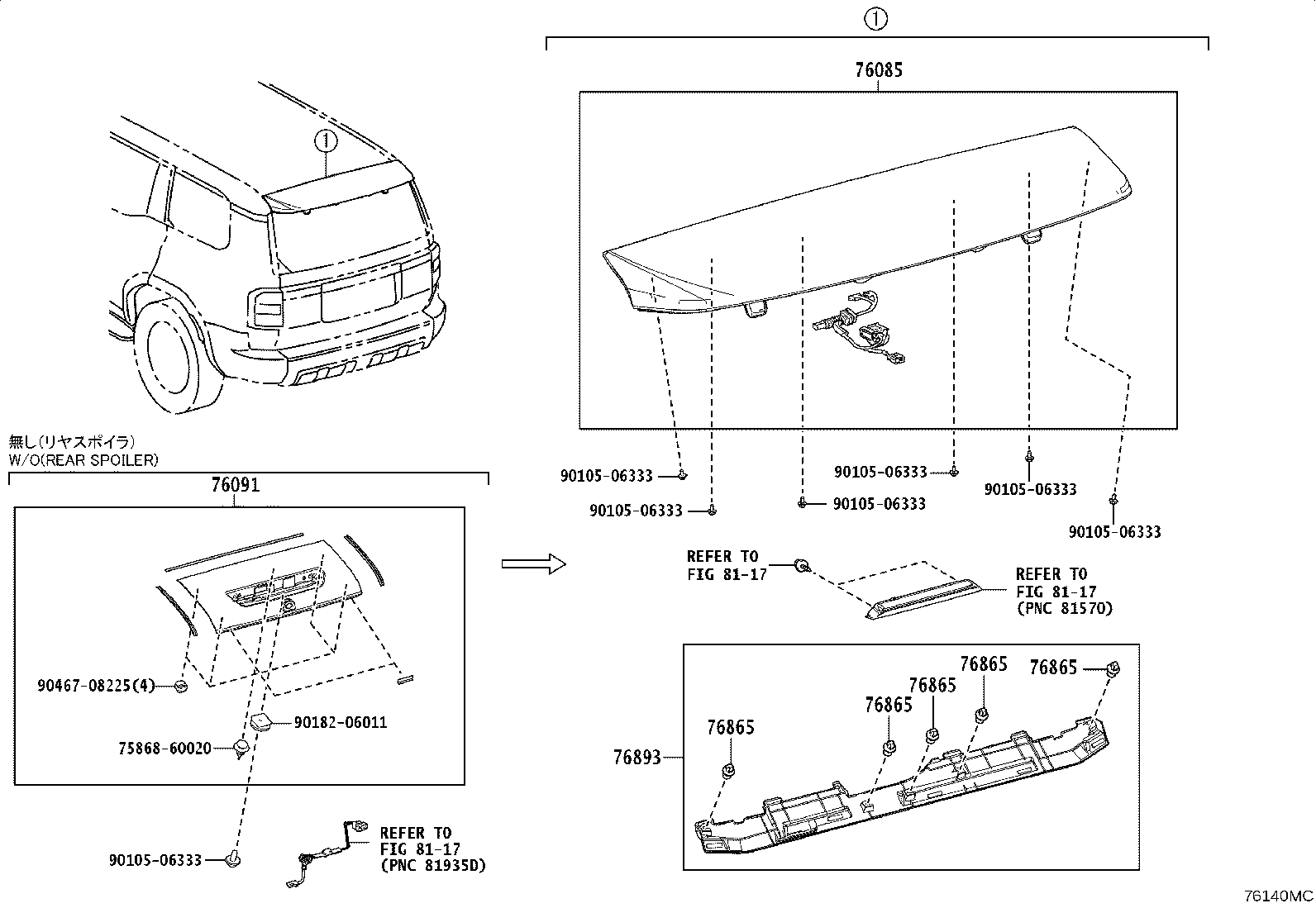

Figure 76140E 76140E 2024-04 → — Figure 76140MC 76140MC 2024-04 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76091 Spoiler Sub-assy, Rear Upper
76621D Mudguard, Front Fender, RH
76622D Mudguard, Front Fender, LH
76625G Mudguard, Quarter Panel, Rear RH
76626E Mudguard, Quarter Panel, Rear LH
76865 Retainer, Rear Spoiler, NO.1
76893 Cover, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
