Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

112 part groups · 16 illustrations

Illustrations

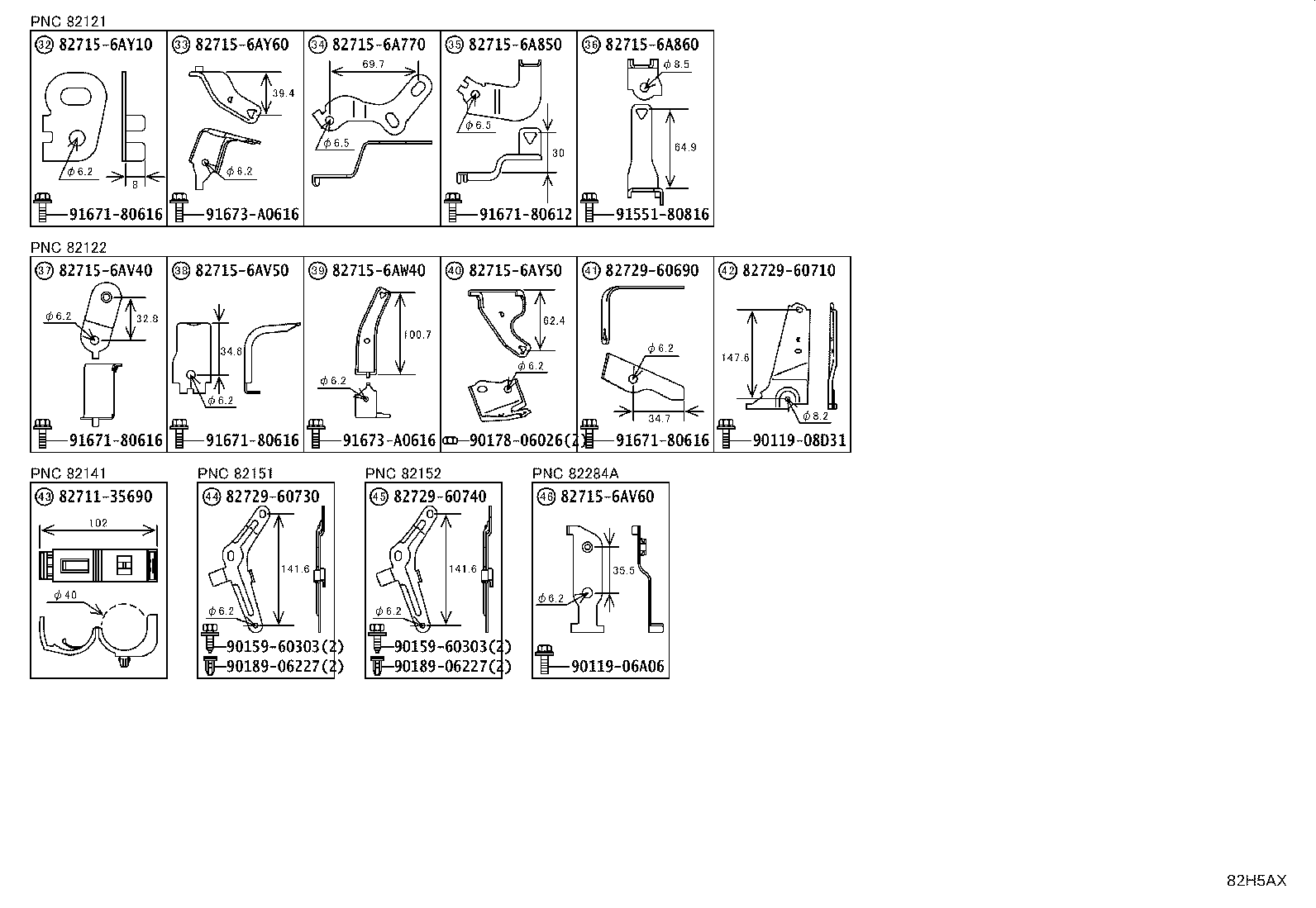

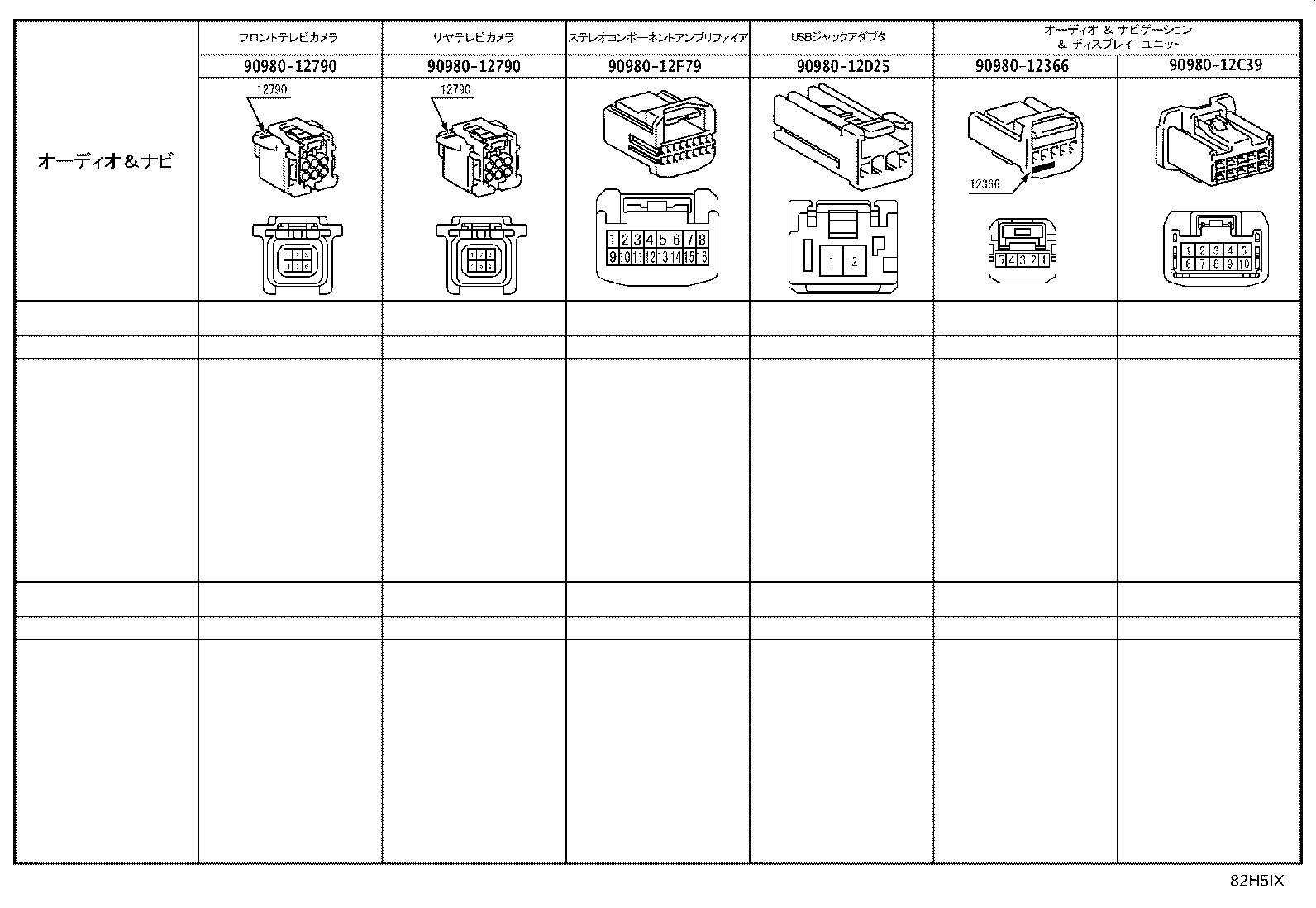

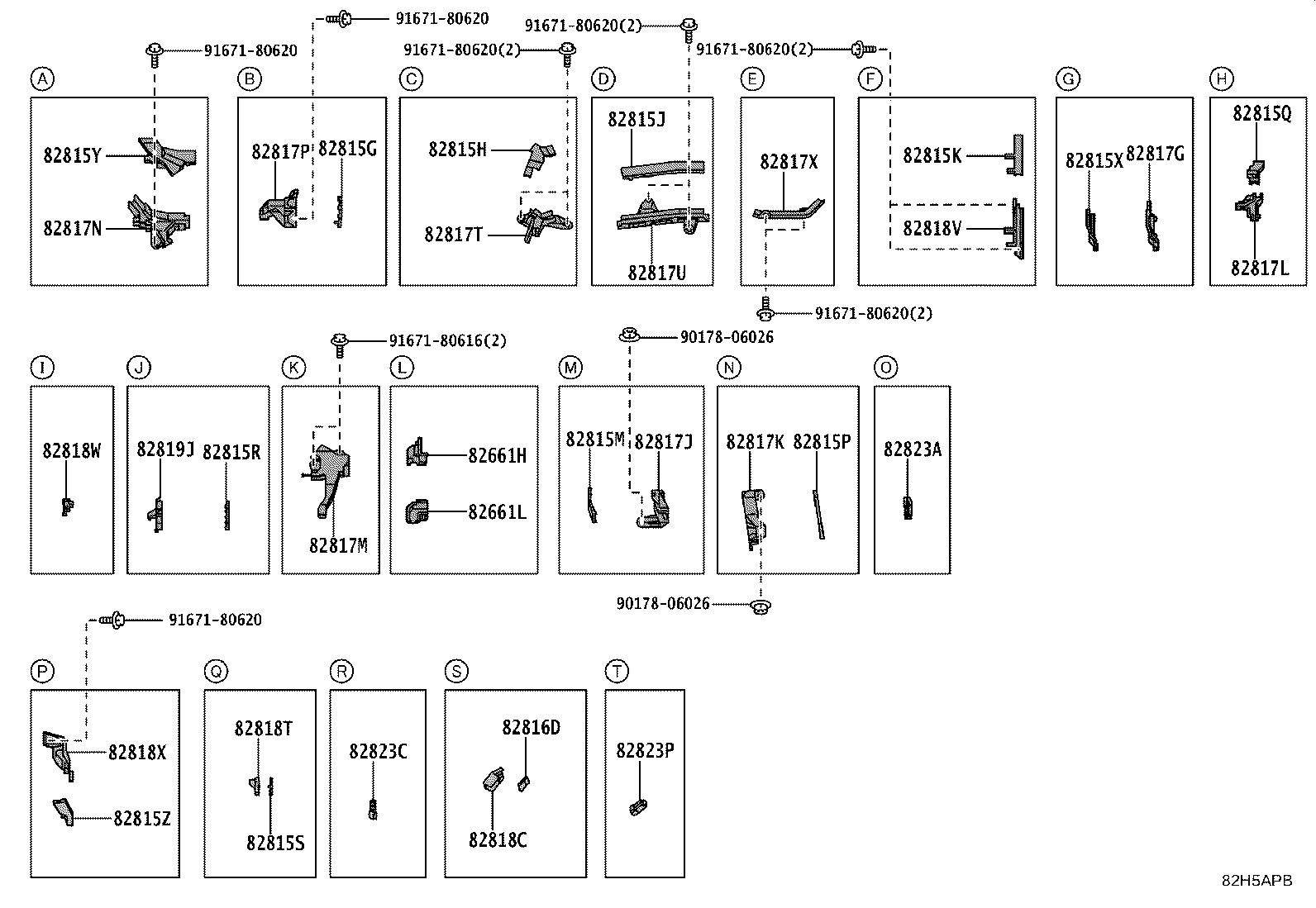

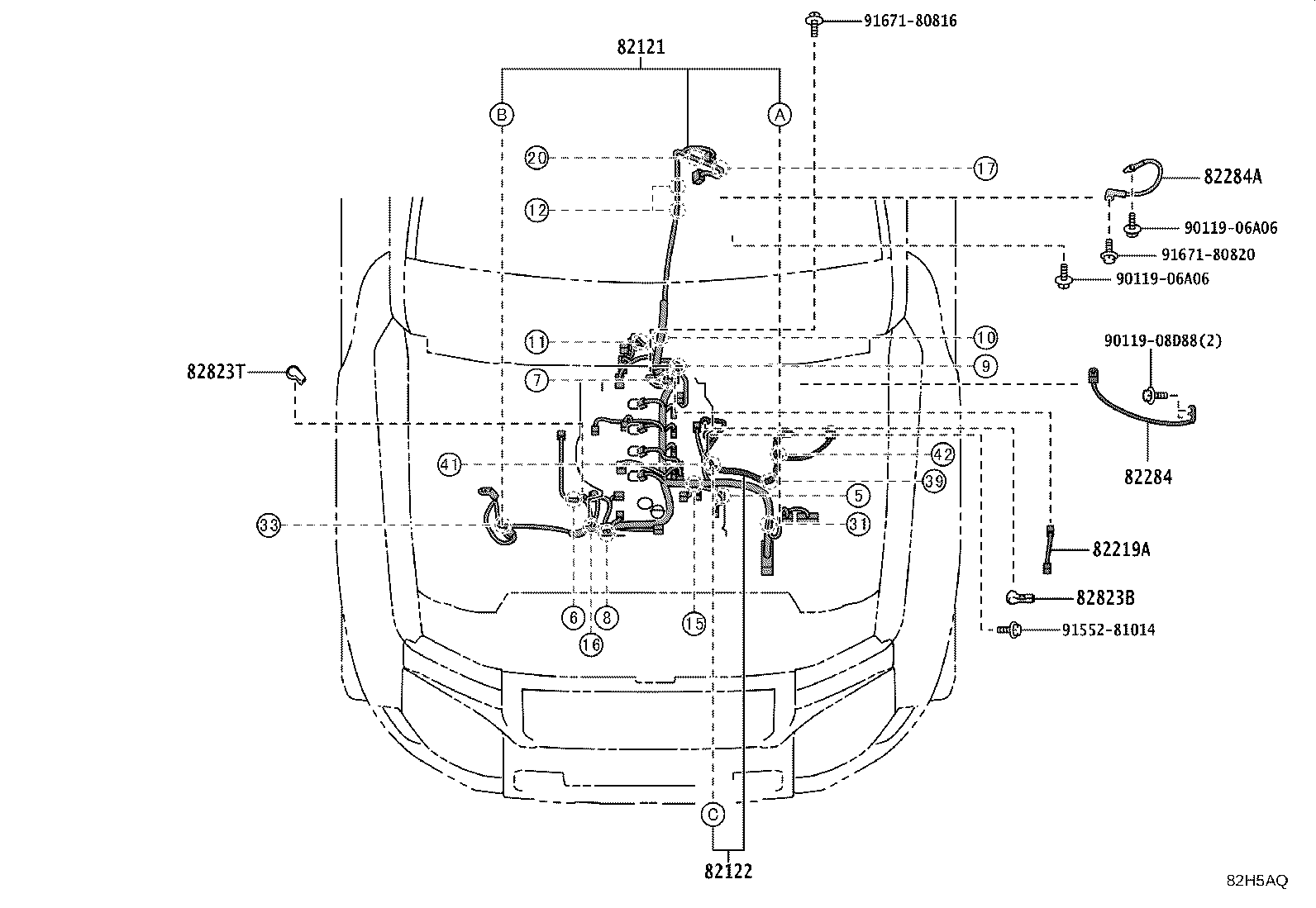

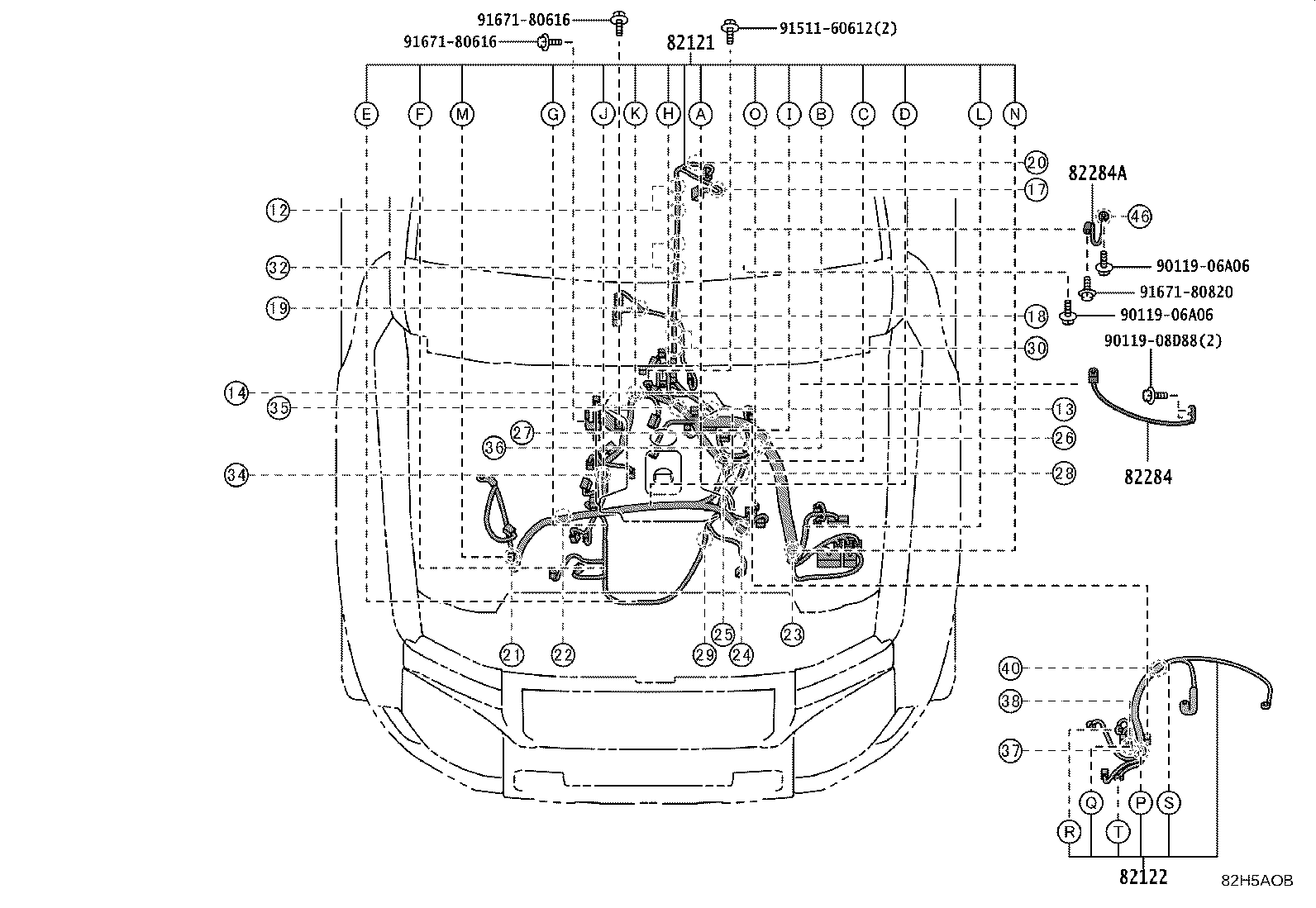

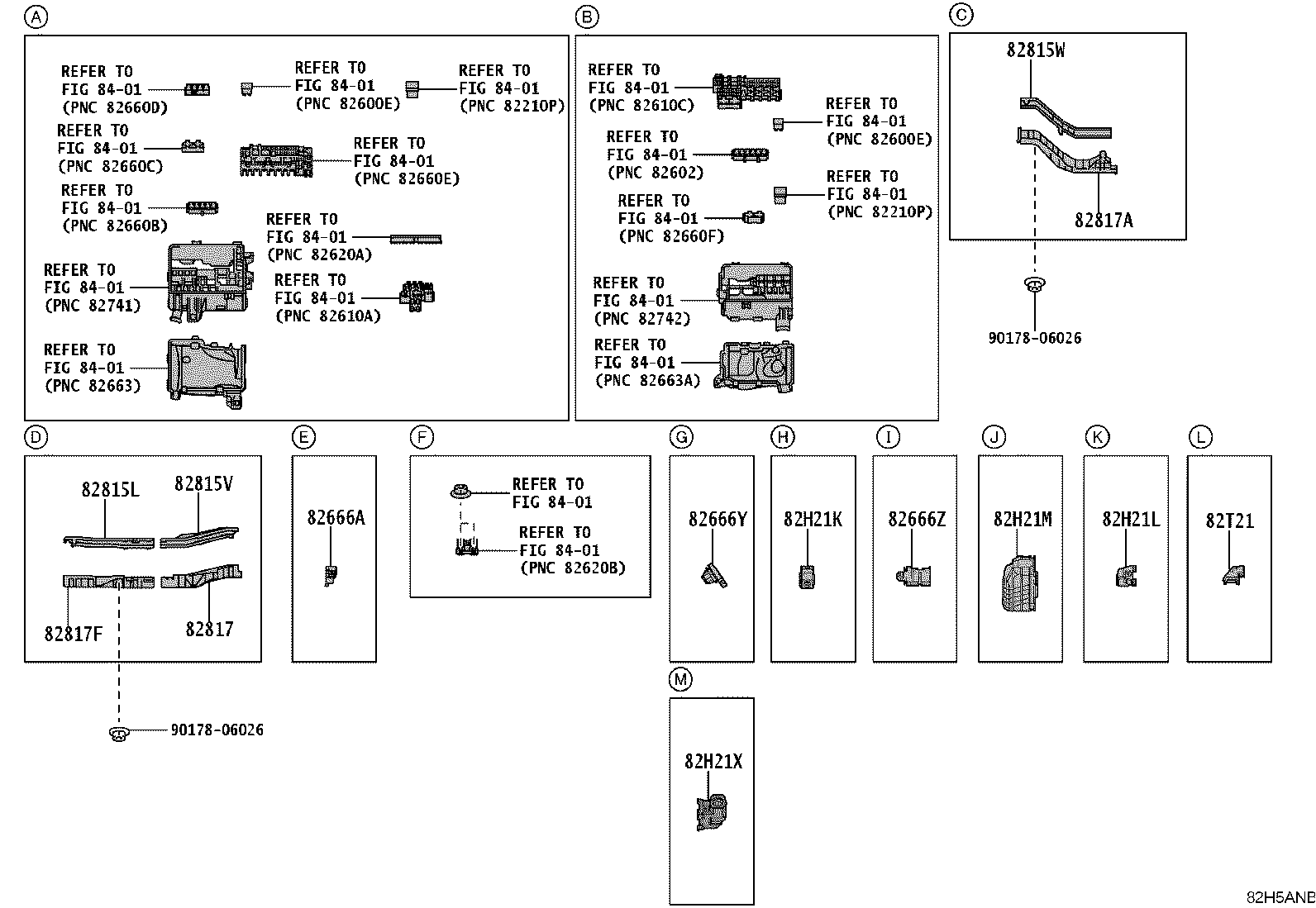

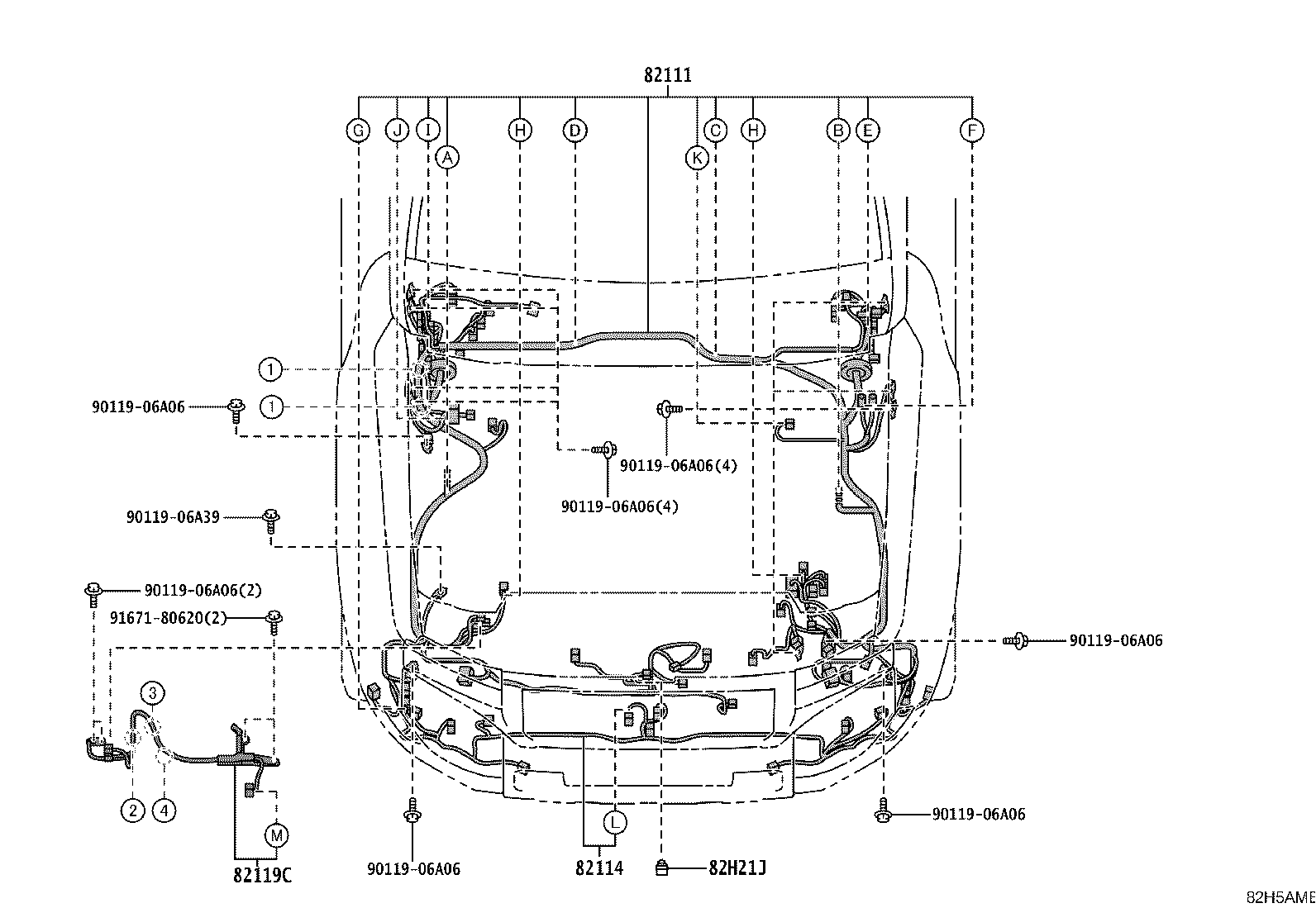

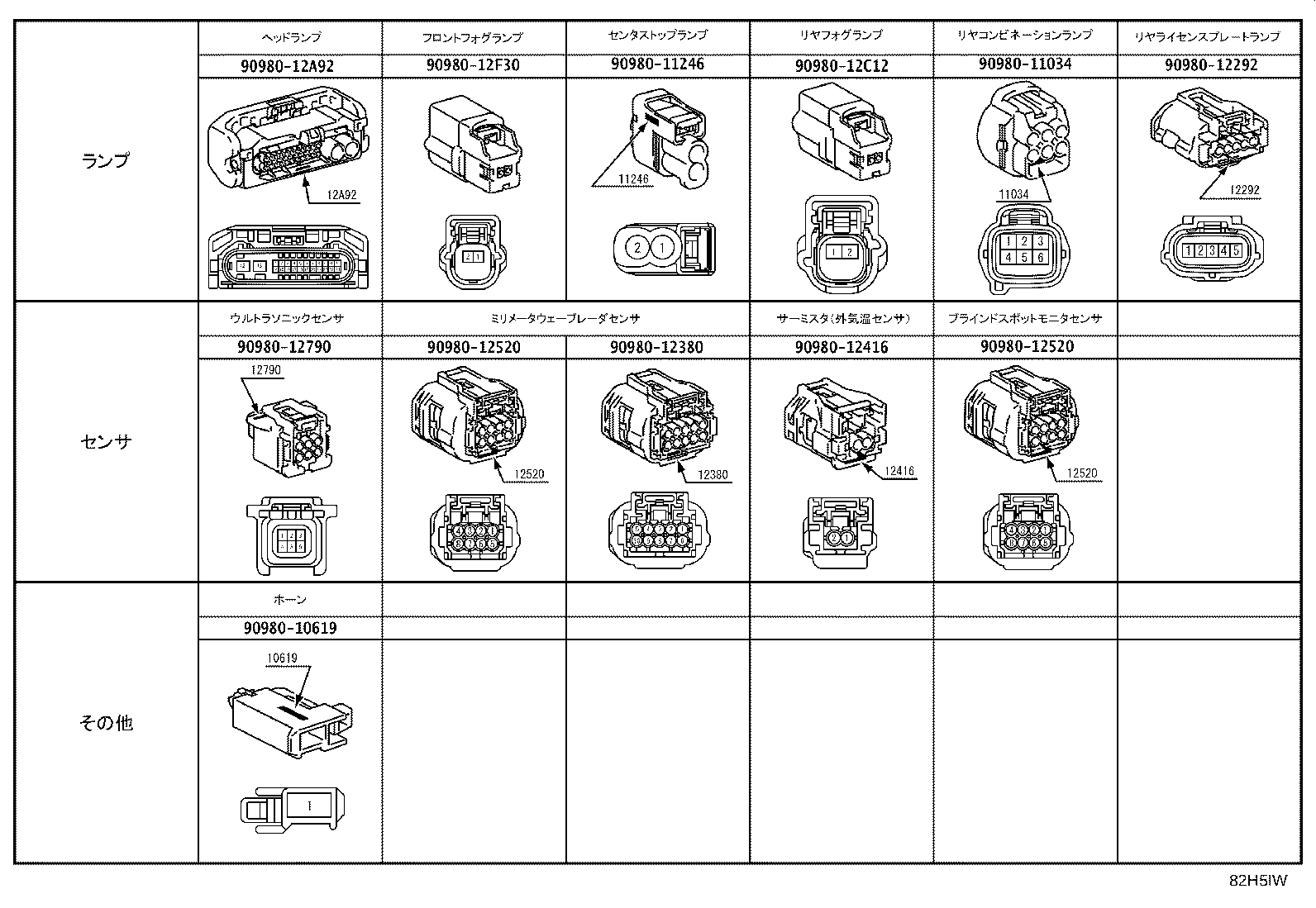

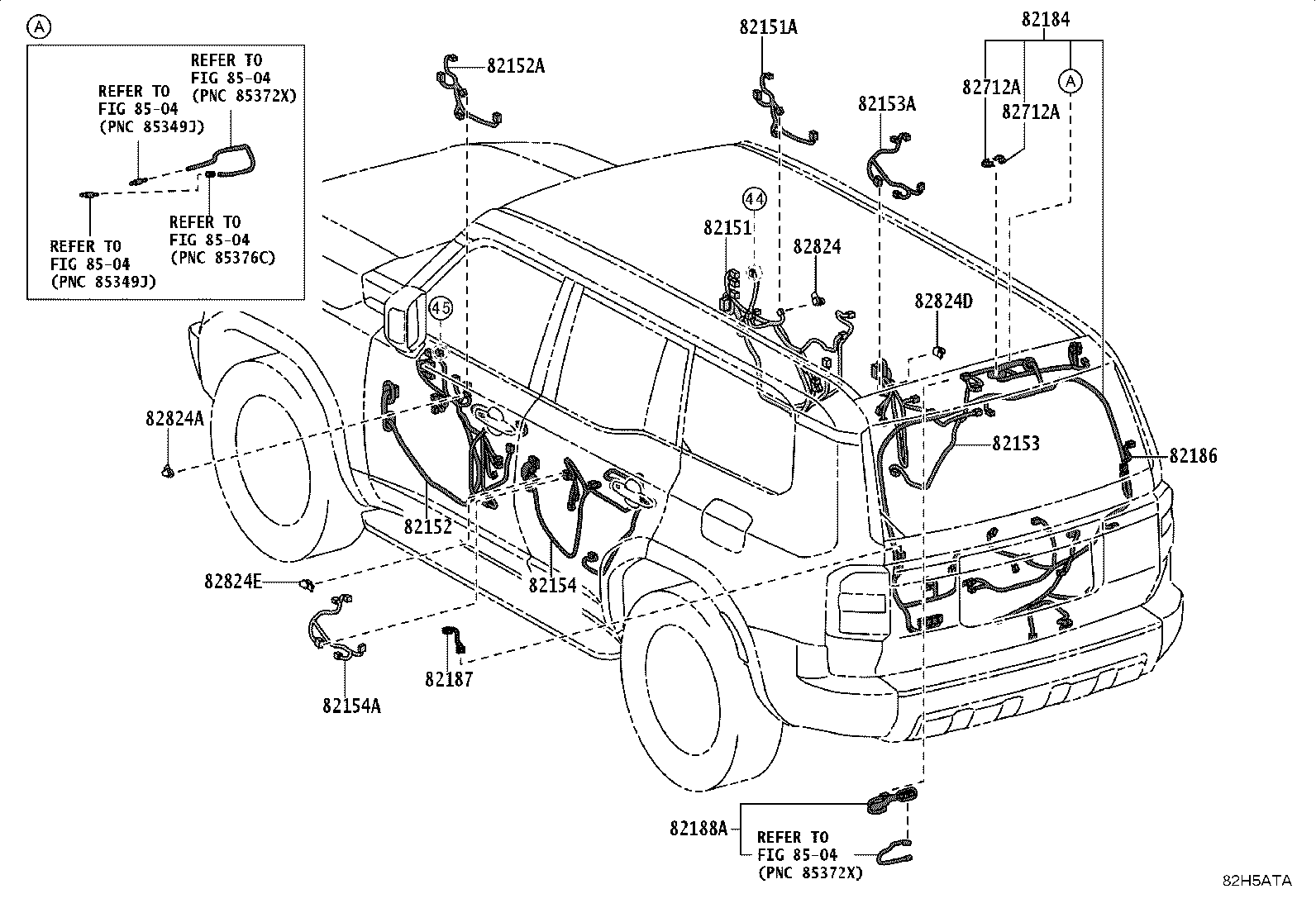

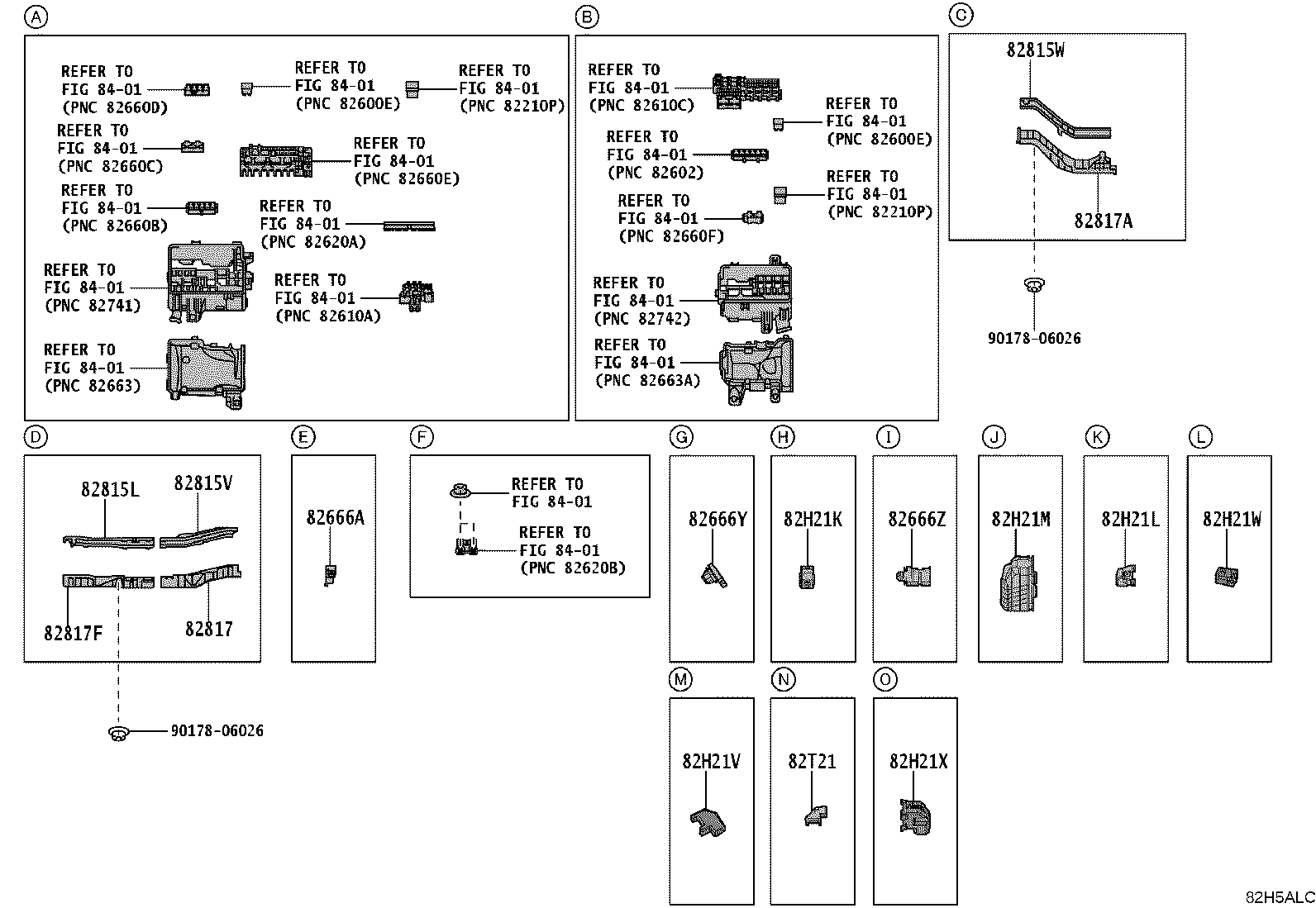

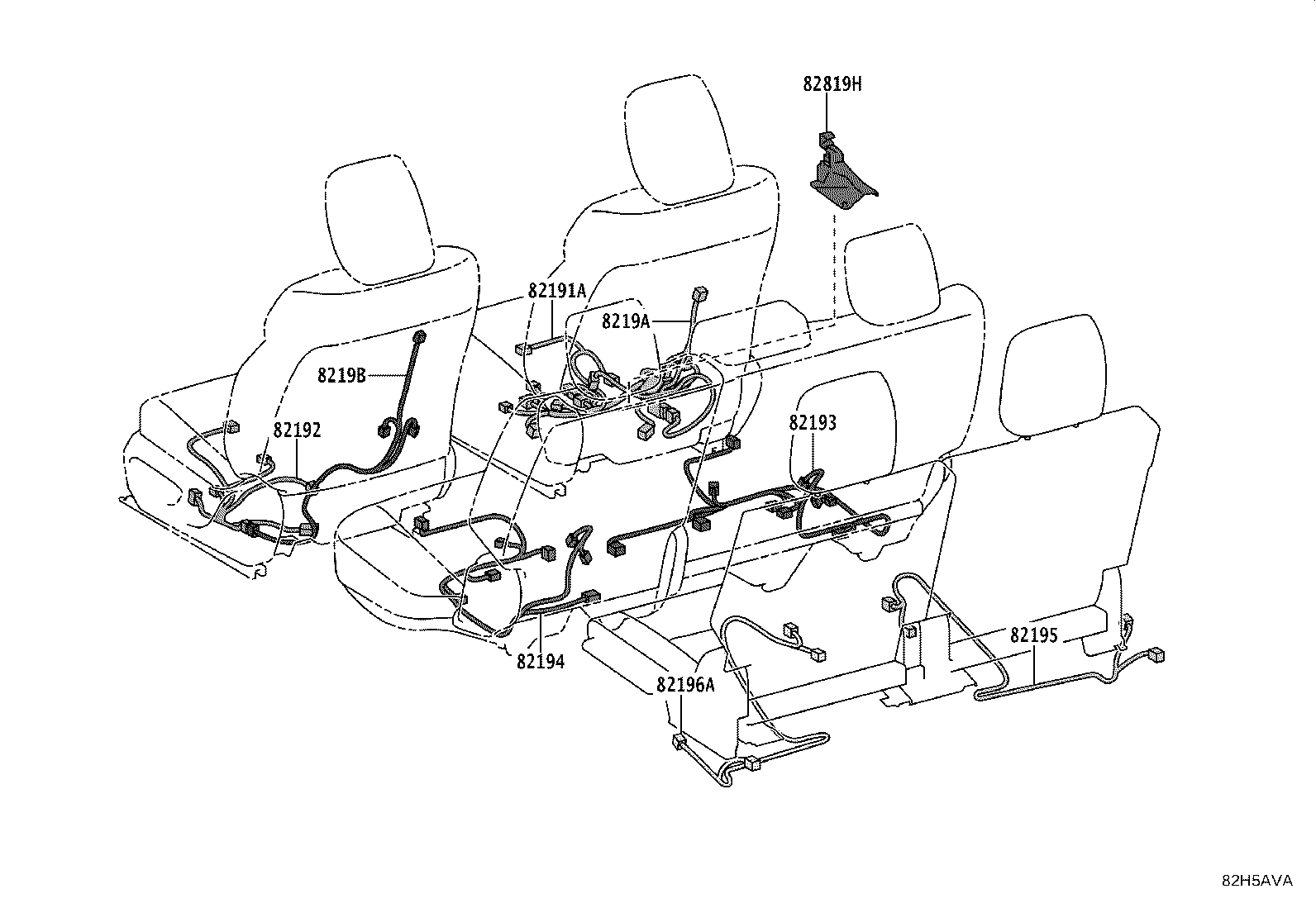

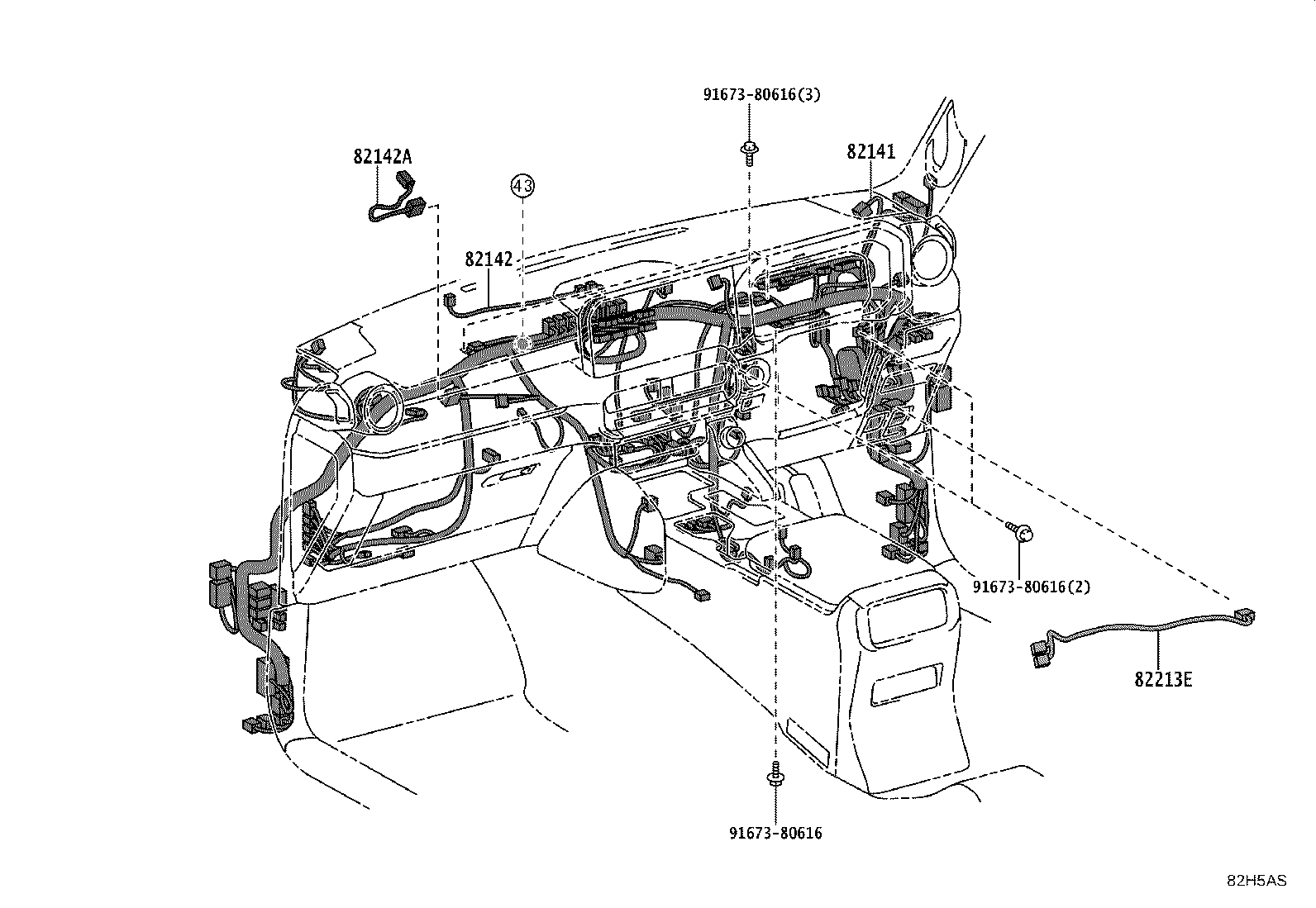

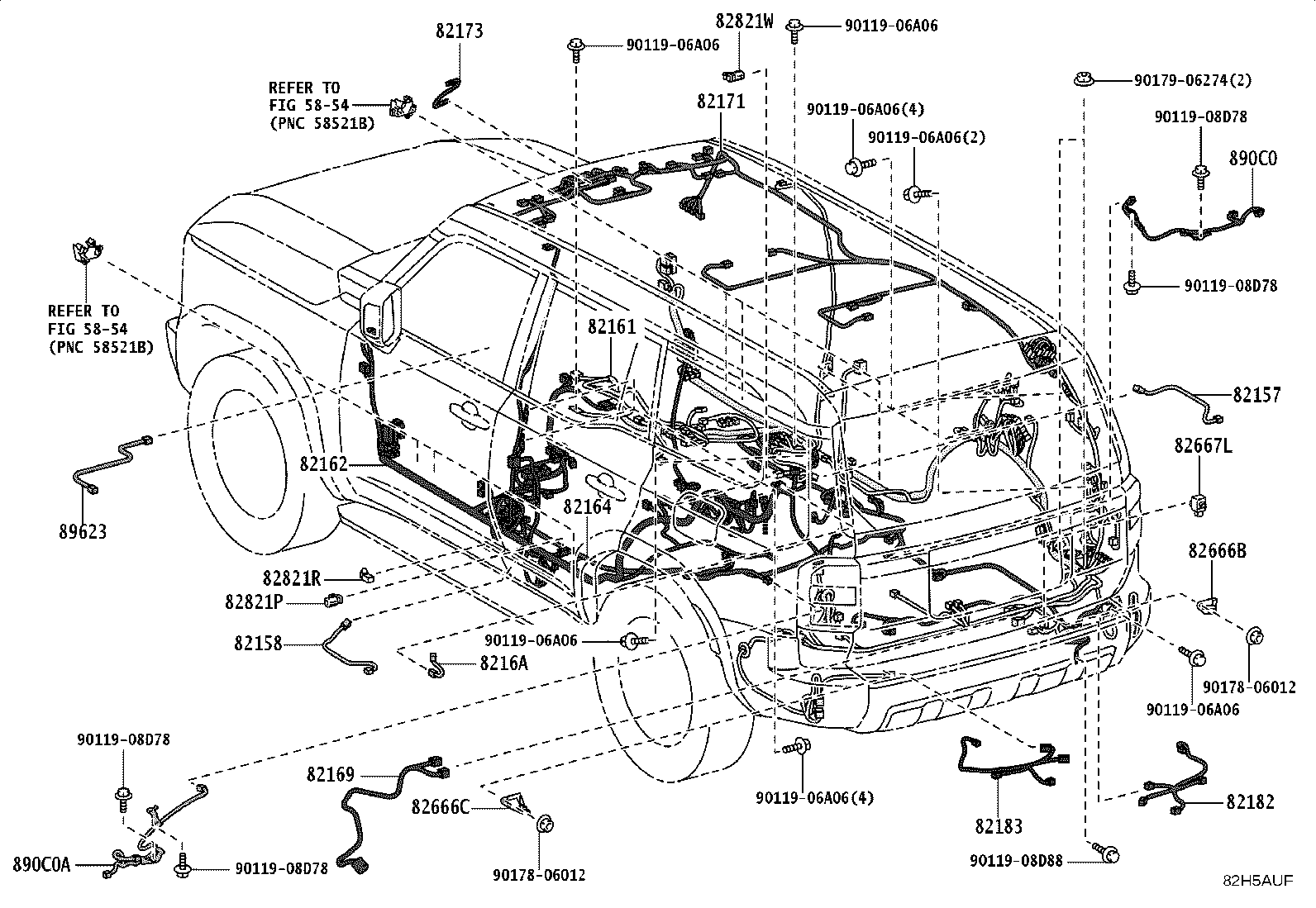

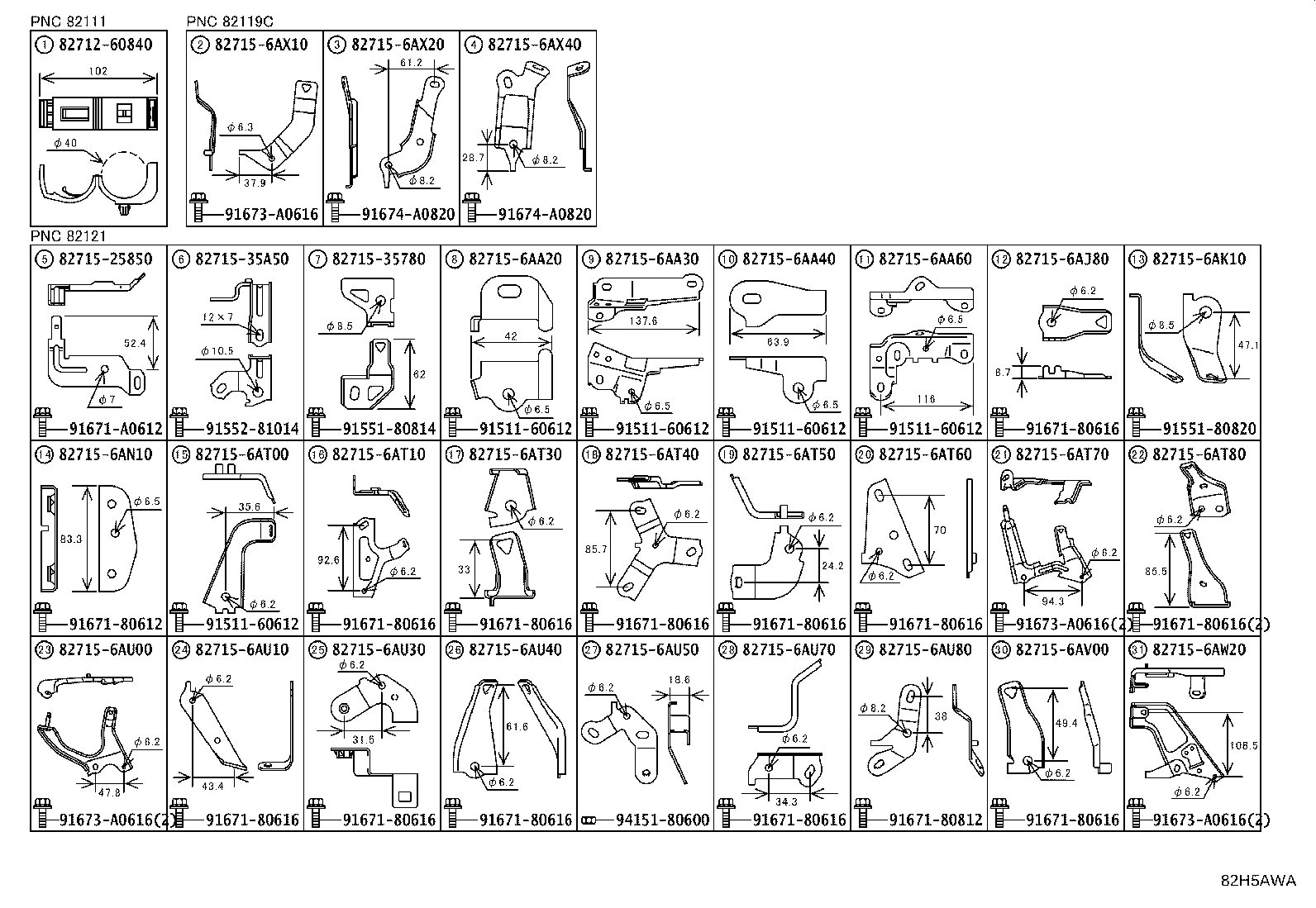

Figure 82H5AKB 82H5AKB 2024-04 → — Figure 82H5ALC 82H5ALC 2024-04 → — Figure 82H5AMB 82H5AMB 2024-04 → — Figure 82H5ANB 82H5ANB 2024-04 → — Figure 82H5AOB 82H5AOB 2024-04 → — Figure 82H5APC 82H5APC 2024-04 → — Figure 82H5AQ 82H5AQ 2024-04 → — Figure 82H5AR 82H5AR 2024-04 → — Figure 82H5AS 82H5AS 2024-04 → — Figure 82H5ATA 82H5ATA 2024-04 → — Figure 82H5AUF 82H5AUF 2024-04 → — Figure 82H5AVA 82H5AVA 2024-04 → — Figure 82H5AWA 82H5AWA 2024-04 → — Figure 82H5AX 82H5AX 2024-04 → — Figure 82H5IW 82H5IW 2024-04 → — Figure 82H5IX 82H5IX 2024-04 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82157 Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82169 Wire Frame, NO.3
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82173 Wire, Roof, NO.3
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196A Wire, Rear Seat, LH NO.3
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82213E Wire, Heater Blower
82219A Wire, Sensor
82284 Wire, Earth
82284A Wire, Earth NO.2
82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667L Holder, Connector, NO.26
82712A Support, Wiring Harness
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816D Cover, Wiring Harness Protector, NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818C Protector, Wiring Harness, NO.4
82818T Protector, Wiring Harness, NO.16
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82821P Cover, Connector
82821R Cover, Connector
82821W Cover, Connector
82823A Cap, Terminal, NO.2
82823B Cap, Terminal, NO.3
82823C Cap, Terminal, NO.4
82823P Cap, Terminal, NO.6
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21V Cover, Connector
82H21W Cover, Connector
82H21X Cover, Connector
82T21 Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89623 Wire, Power Steering Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
