Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

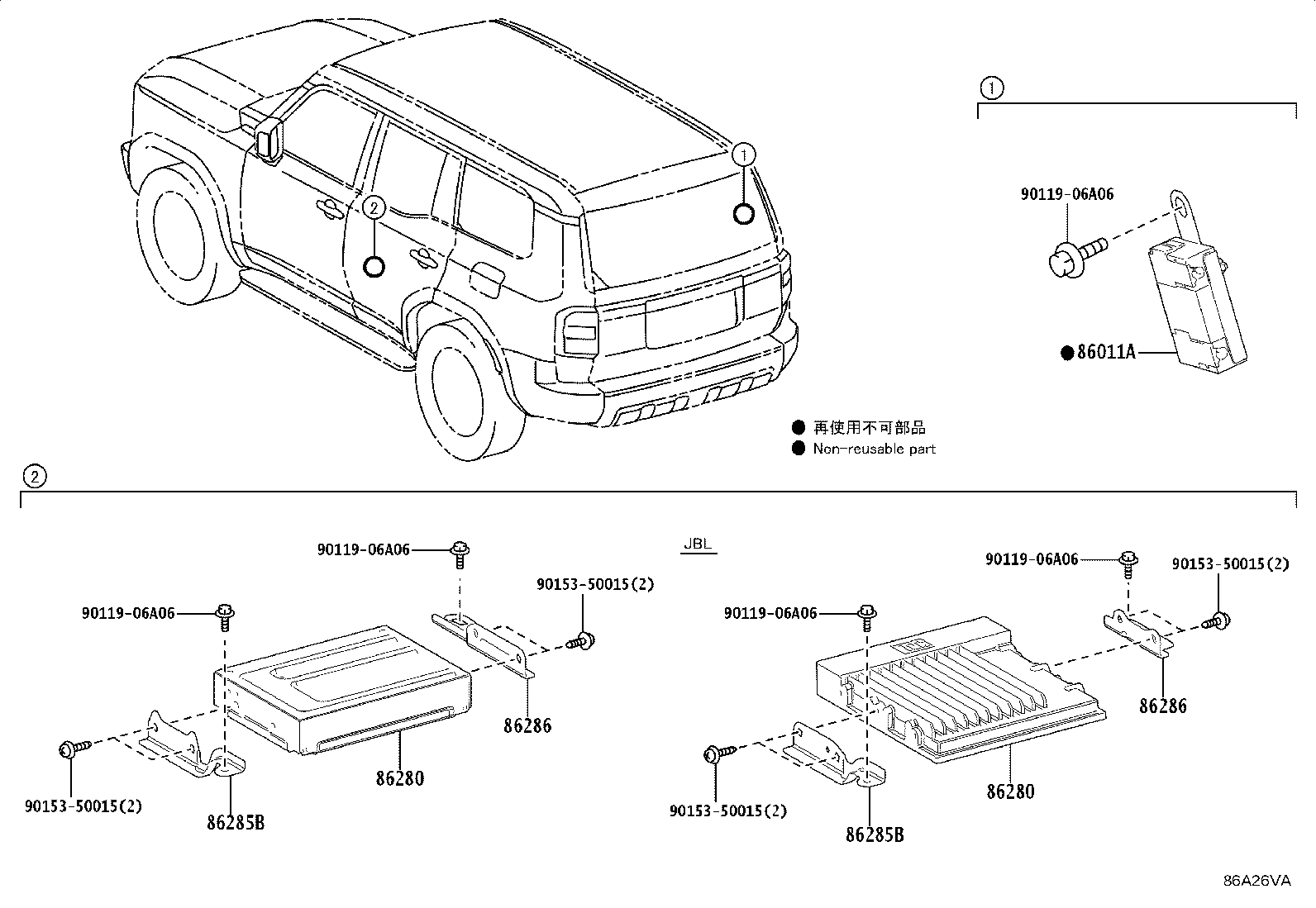

Figure 86A2E9 86A2E9 2024-04 → — Figure 86A26VA 86A26VA 2024-04 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86190C Adapter Assy, Stereo Jack, NO.1
86280 Amplifier Assy, Stereo Component
86285B Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
