Toyota Land Cruiser

2024-03 → present · chassis GDJ250,TRJ250 · catalogue 781190 · Japan

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

9 part groups · 2 illustrations

Illustrations

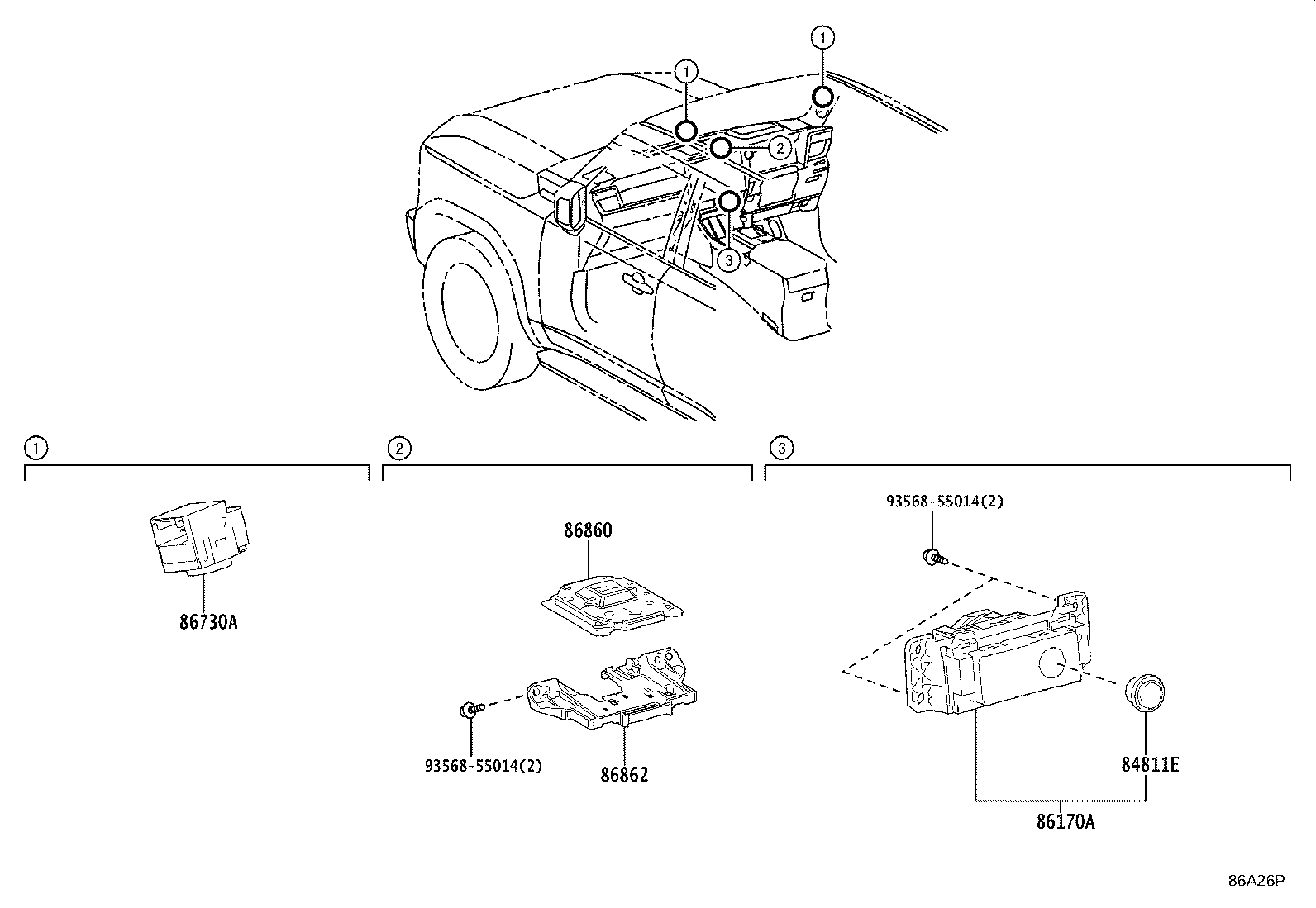

Figure 86A27OD 86A27OD 2024-04 → — Figure 86A27P 86A27P 2024-04 → —

Part groups

PNCDescription
84811E Knob, Switch
86140A Receiver Assy, Radio & Display
86170A Switch & Volume Assy
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86730A Microphone Assy, Telephone
86809 Usb Set, Usb Memory Navigation Data
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
