Heating & Air Conditioning - Water Piping

19 part groups · 6 illustrations

Illustrations

Figure 87M4F4B

87M4F4B 2024-04 → —

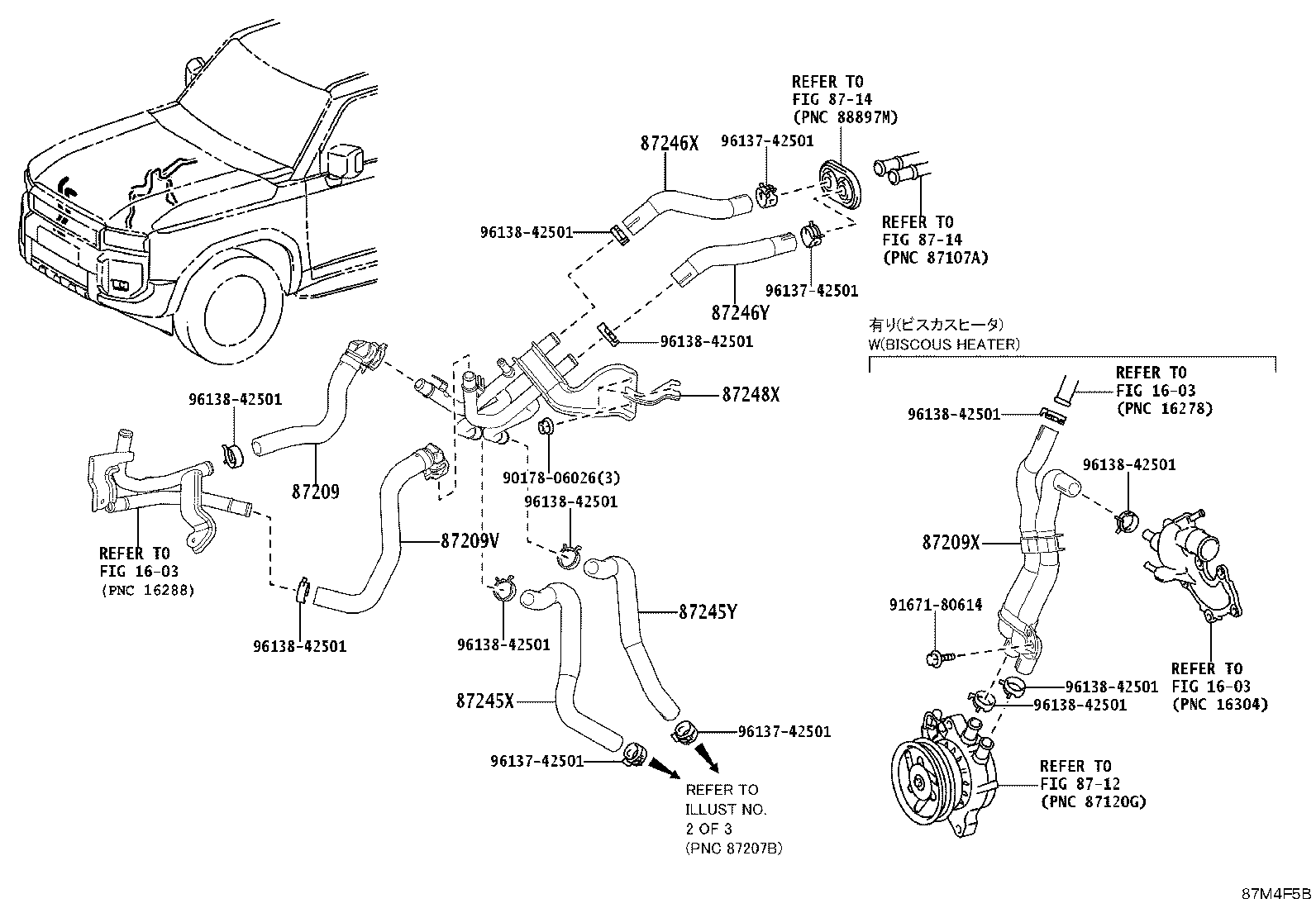

Figure 87M4F5B

87M4F5B 2024-04 → —

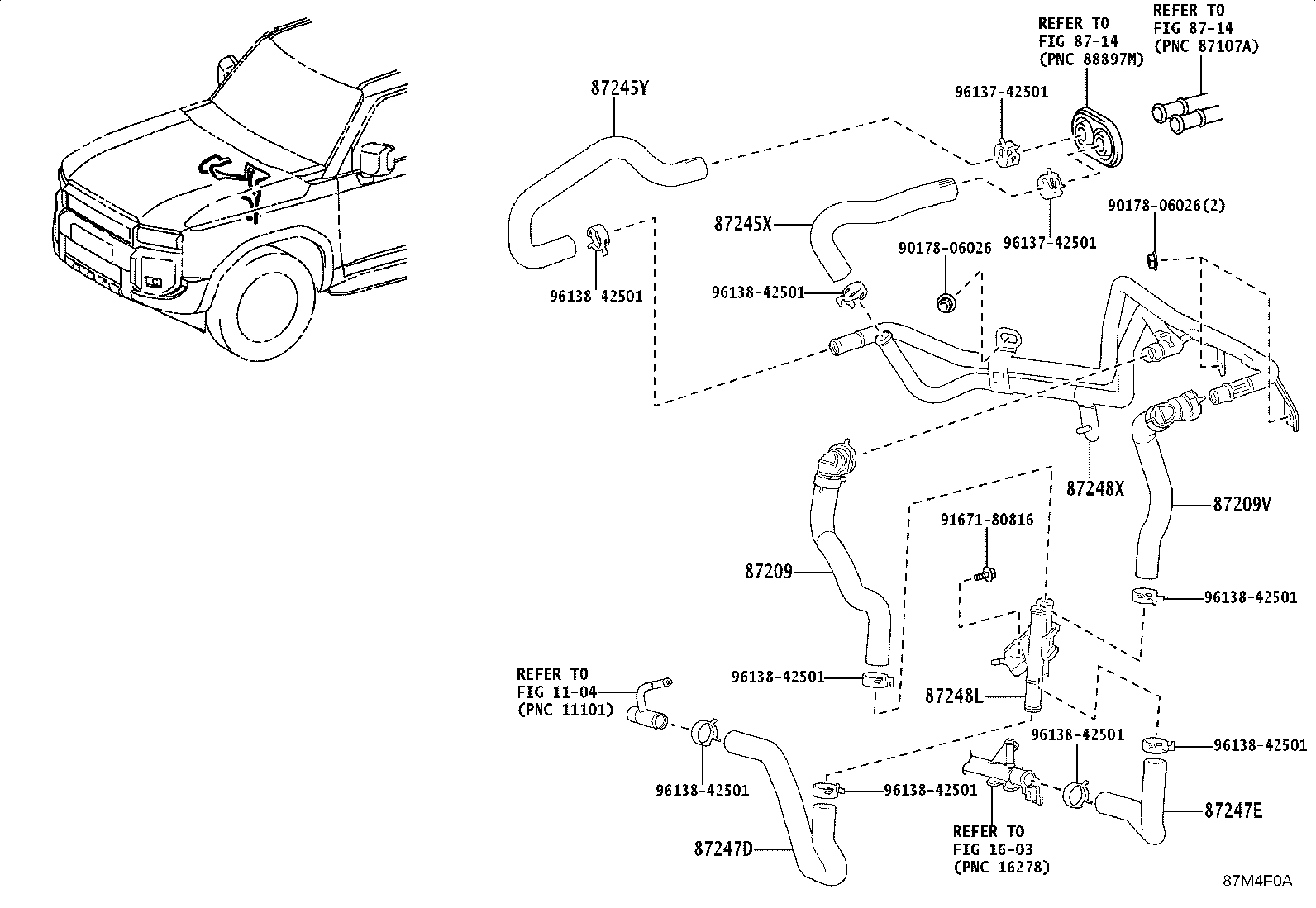

Figure 87M4F0A

87M4F0A 2024-04 → —

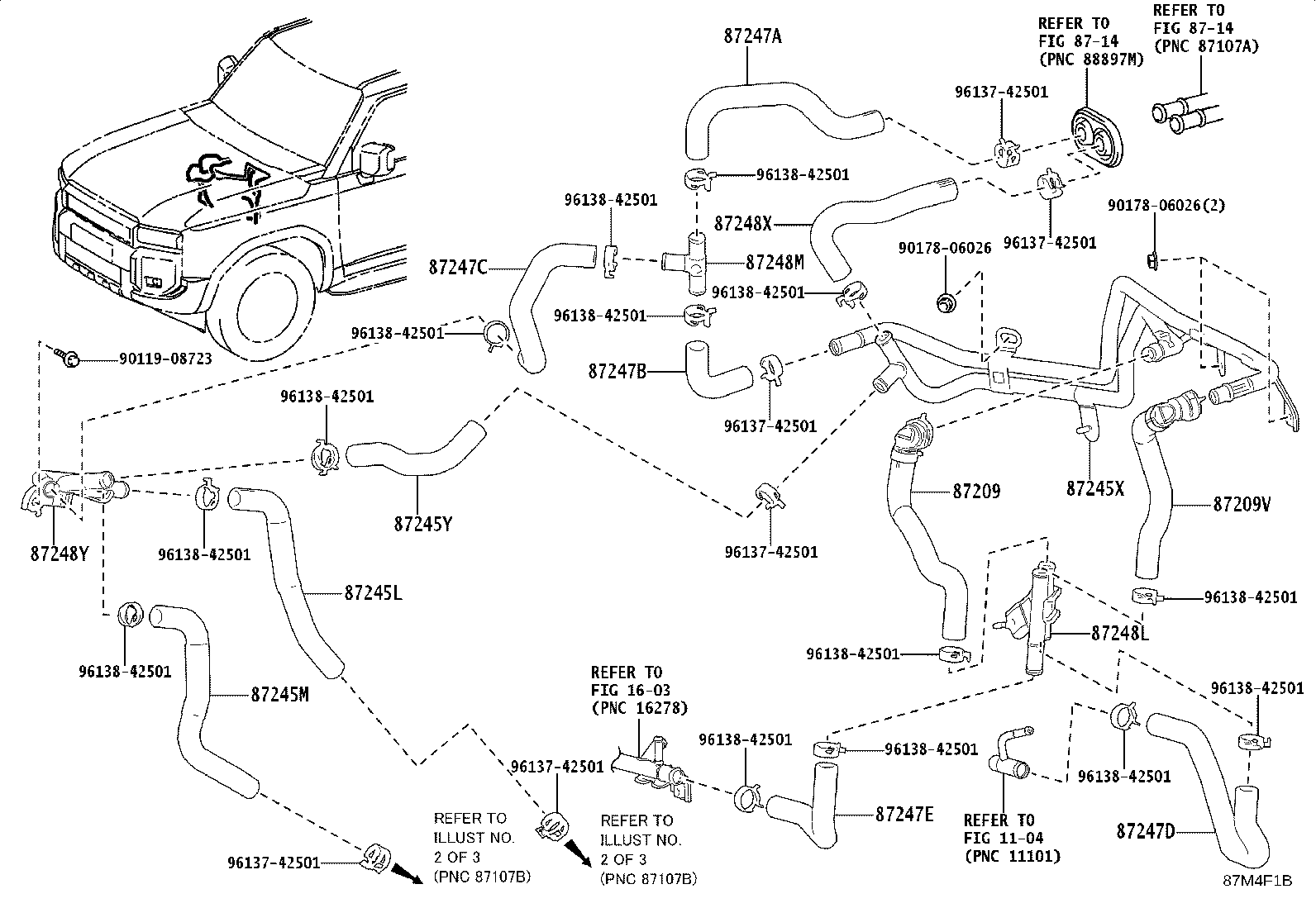

Figure 87M4F1B

87M4F1B 2024-04 → —

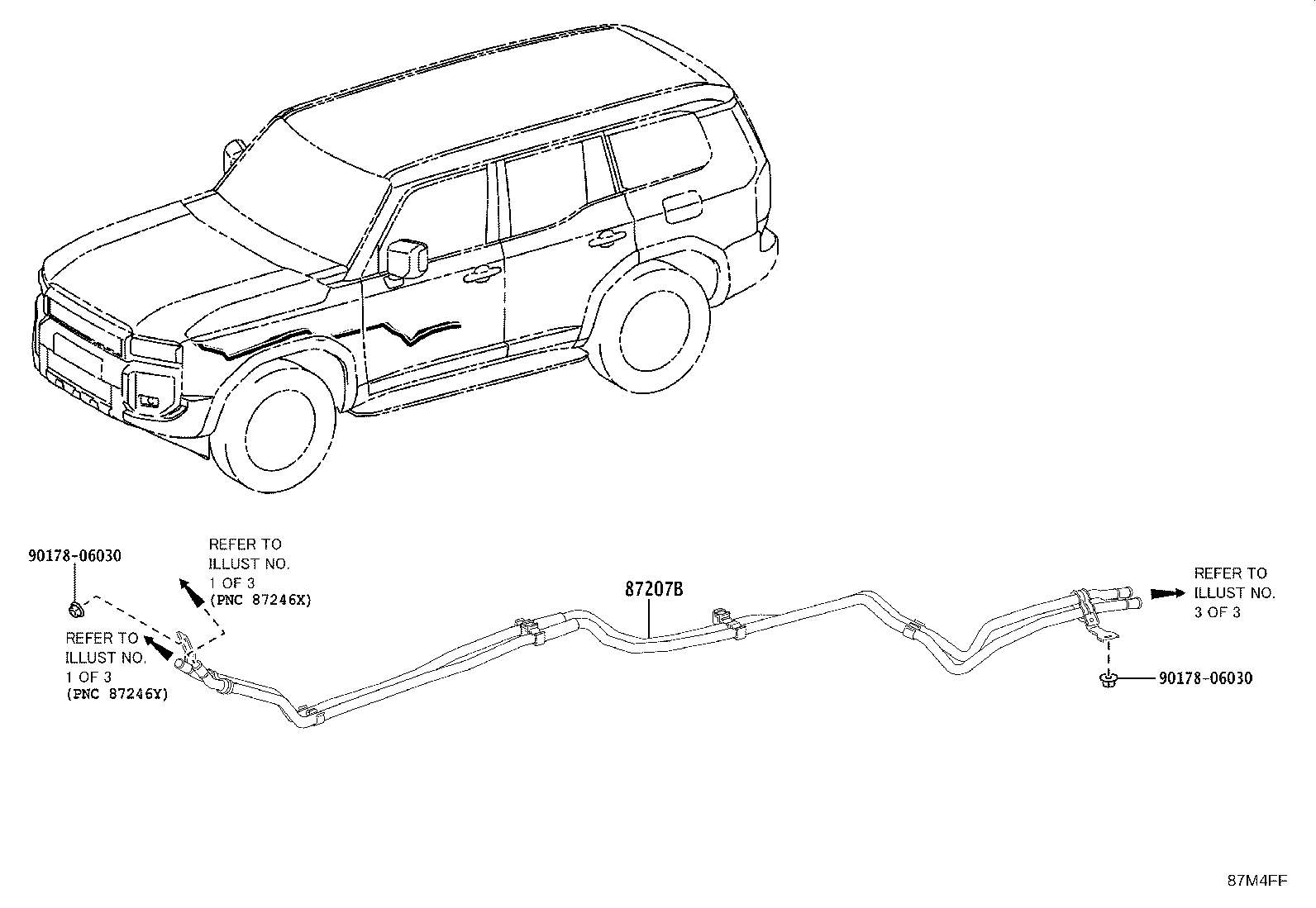

Figure 87M4FF

87M4FF 2024-04 → —

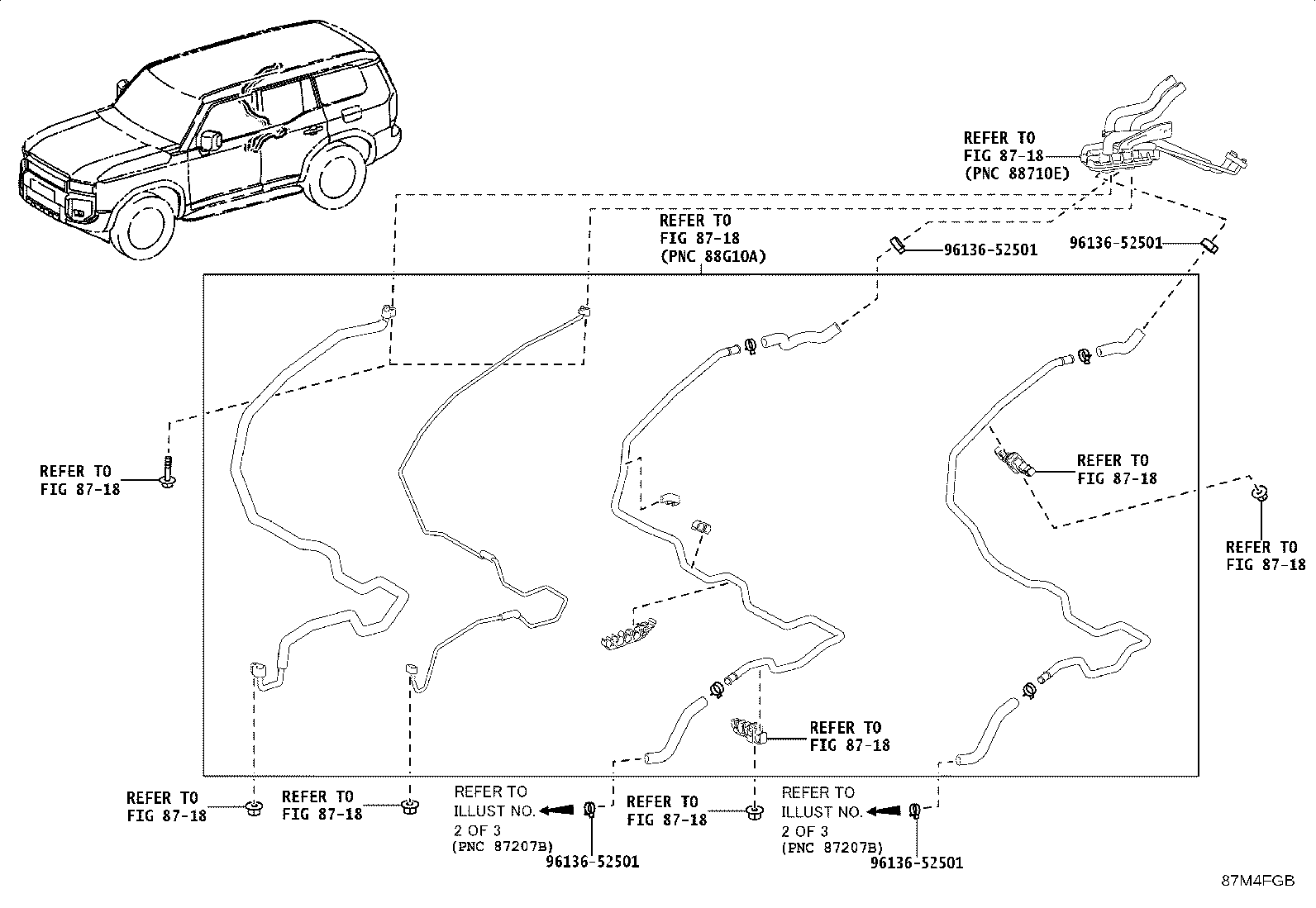

Figure 87M4FGB

87M4FGB 2024-04 → —

Part groups

PNC	Description
87207B	Pipe & Hose Sub-assy, Water B
87209	Hose Sub-assy, Water
87209V	Hose Sub-assy, Water, NO.2
87209X	Hose Sub-assy, Water, NO.4
87245L	Hose, Heater Water, L
87245M	Hose, Heater Water, M
87245X	Hose, Heater Water
87245Y	Hose, Heater Water
87246X	Hose, Heater Water
87246Y	Hose, Heater Water
87247A	Hose, Heater Water, A
87247B	Hose, Heater Water, B
87247C	Hose, Heater Water, C
87247D	Hose, Heater Water, D
87247E	Hose, Heater Water, E
87248L	Pipe, Heater Water, L
87248M	Pipe, Heater Water, M
87248X	Pipe, Heater Water
87248Y	Pipe, Heater Water, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
