Toyota Lexus GX550

2024-05 → present · chassis VJA252 · catalogue 782120 · Japan

Supported model Data version 2024-05

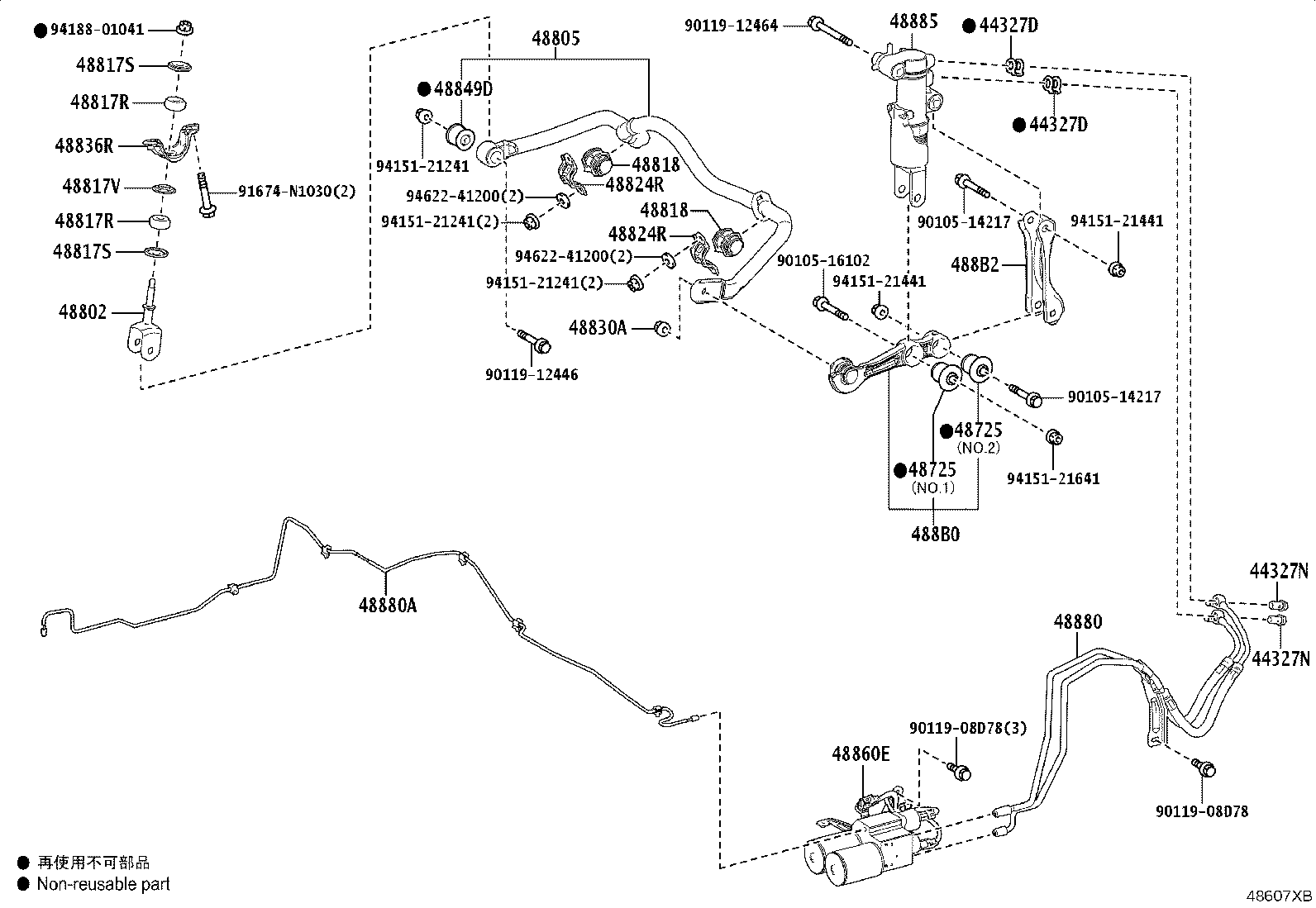

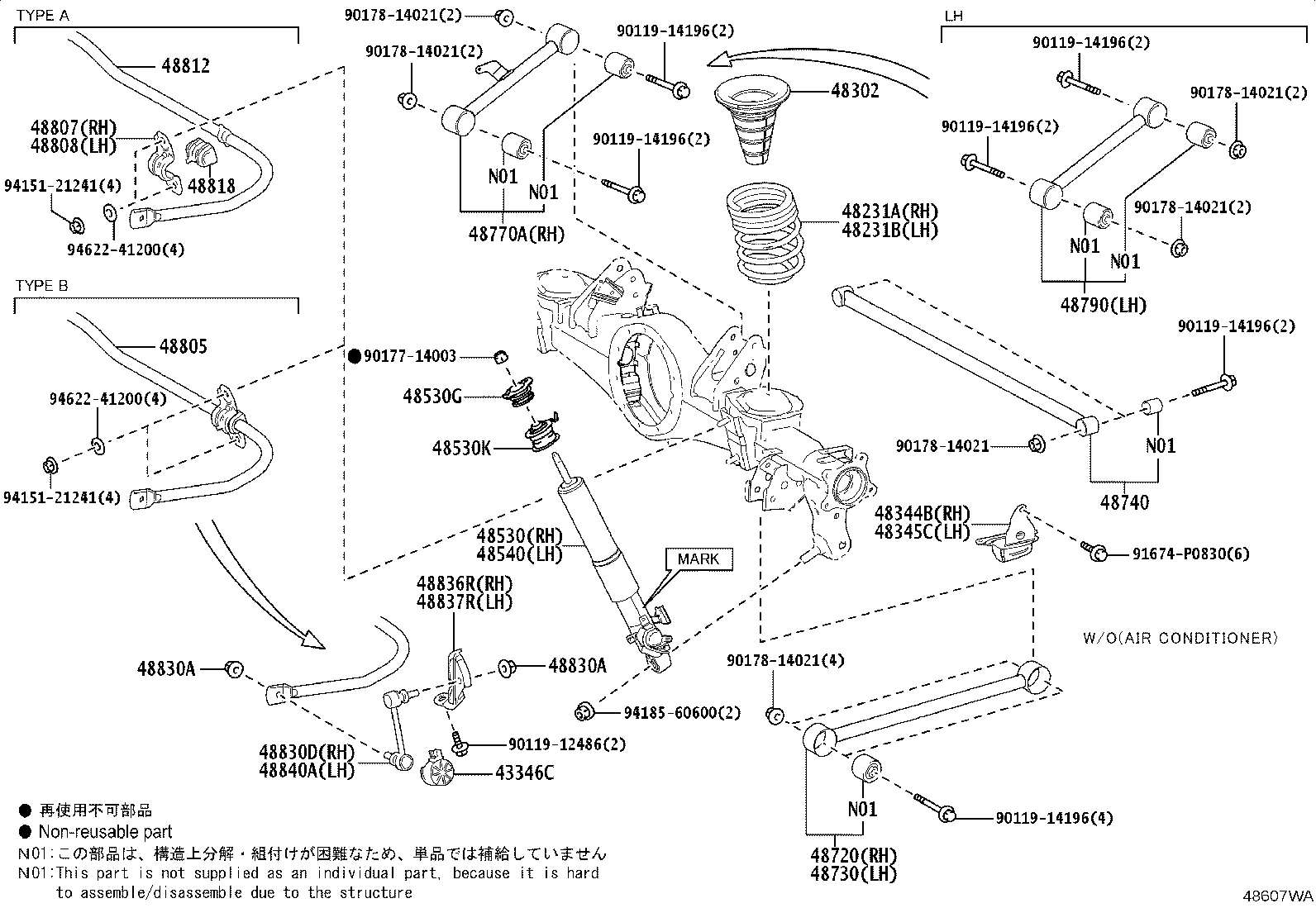

Rear Spring & Shock Absorber

40 part groups · 3 illustrations

PNC	Description
43346C	Protector, Lower Ball Joint Dust Cover
44327D	Gasket, Pressure Port(FOR REAR STABILIZER CONTROL TUBE)
44327N	Bolt, Union(FOR REAR STABILIZER CONTOROL TUBE)
48231A	Spring, Coil, Rear RH
48231B	Spring, Coil, Rear LH
48302	Spring Sub-assy, Hollow
48344B	Stopper, Bumper, Rear RH
48345C	Stopper, Bumper, Rear LH
48530	Absorber Assy, Shock, Rear RH
48530G	Cushion, Rear Shock Absorber, NO.1
48530K	Cushion, Rear Shock Absorber, NO.2
48540	Absorber Assy, Shock, Rear LH
48720	Arm Assy, Lower Control, RH
48725	Bush, Lower Control Arm
48730	Arm Assy, Lower Control, LH
48740	Rod Assy, Rear Lateral Control
48770A	Arm Assy, Upper Control, Rear RH
48790	Arm Assy, Upper Control, Rear LH
48802	Link Sub-assy, Stabilizer
48805	Bar Sub-assy, Rear Stabilizer
48807	Bracket, Rear Stabilizer Bar, RH
48808	Bracket, Rear Stabilizer Bar, LH
48812	Bar, Stabilizer, Rear
48817R	Cushion, Stabilizer(FOR REAR)
48817S	Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817V	Retainer, Cushion, NO.2(FOR STABILIZER REAR BAR)
48818	Bush, Stabilizer, Rear
48824R	Bracket, Stabilizer(FOR REAR)
48830A	Nut(FOR REAR STABILIZER LINK)
48830D	Link Assy, Rear Stabilizer, RH
48836R	Bracket, Rear Stabilizer End, RH
48837R	Bracket, Rear Stabilizer End, LH
48840A	Link Assy, Rear Stabilizer, LH
48849D	Bush, Rear Stabilizer Link
48860E	Housing Sub-assy, Rear Stabilizer
48880	Tube Assy, Rear Stabilizer Control, NO.1
48880A	Tube Assy, Rear Stabilizer Control, NO.2
48885	Cylinder, Rear Stabilizer Control
488B0	Arm Assy, Rear Stabilizer Control
488B2	Arm, Rear Stabilizer Control, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
