Toyota Lexus GX550

2024-05 → present · chassis VJA252 · catalogue 782120 · Japan

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

25 part groups · 3 illustrations

Illustrations

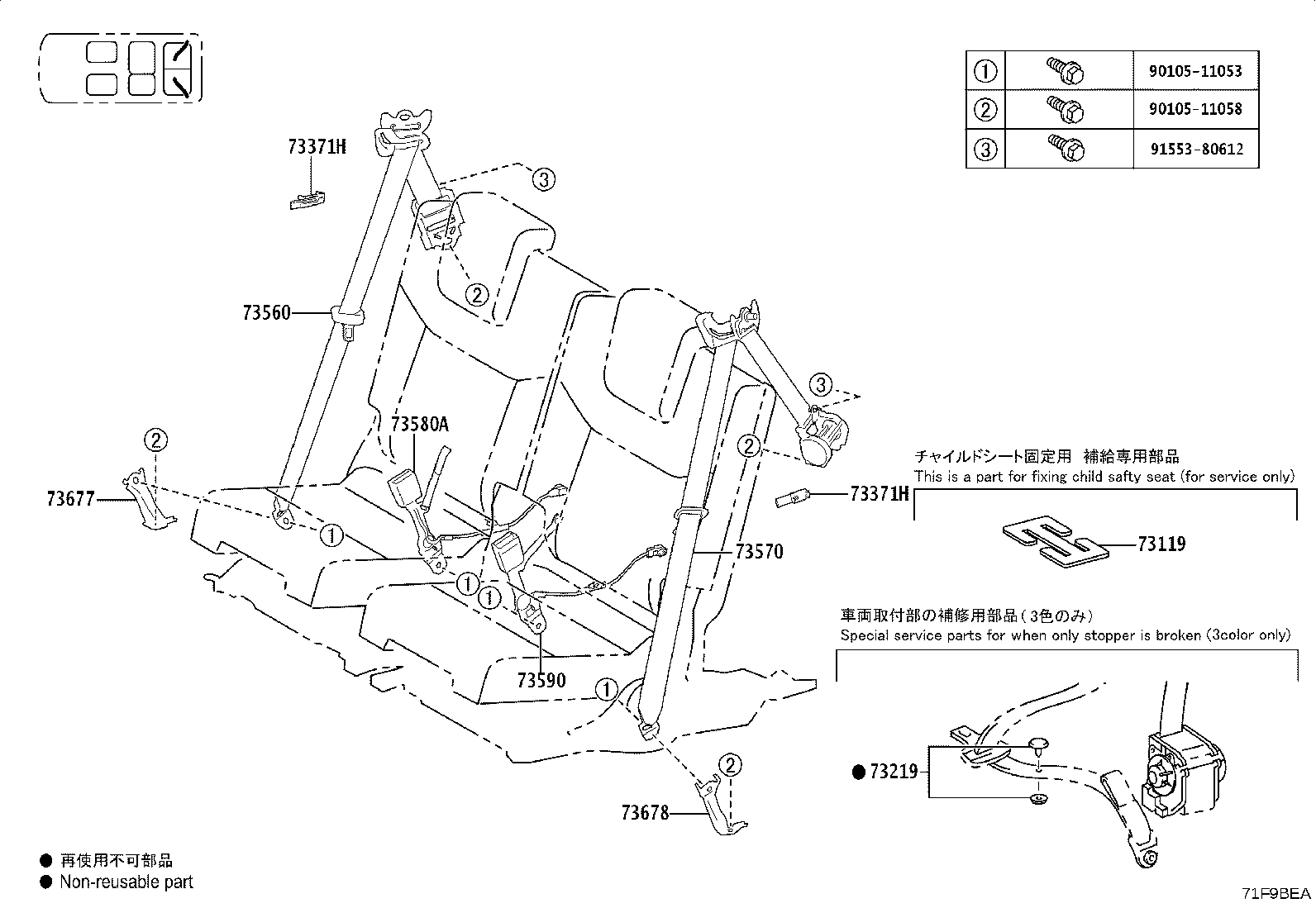

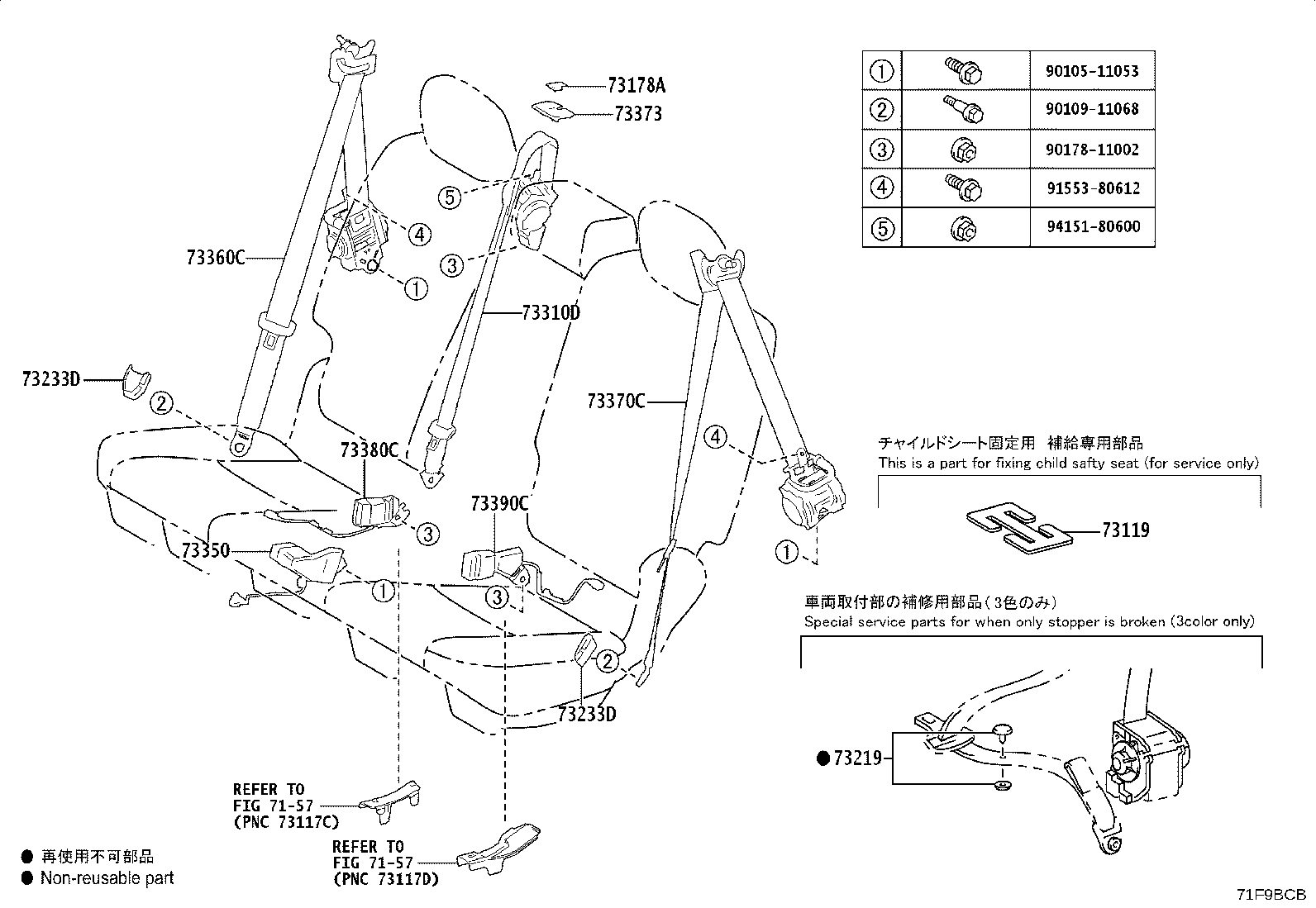

Figure 71F9HEA 71F9HEA 2024-05 → — Figure 71F9BCB 71F9BCB 2024-05 → — Figure 71F9BEA 71F9BEA 2024-05 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233D Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73310D Belt Assy, Rear Seat 3 Point Type, Center
73350 Belt Assy, Rear Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371H Hanger, Rear NO.2 Seat Shoulder Belt
73373 Cover, Rear Seat Shoulder Belt
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73677 Plate, Rear Outer Anchor, Rear RH
73678 Plate, Rear Outer Anchor, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
