Toyota Lexus GX550

2024-05 → present · chassis VJA252 · catalogue 782120 · Japan

Supported model Data version 2024-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

14 part groups · 2 illustrations

Illustrations

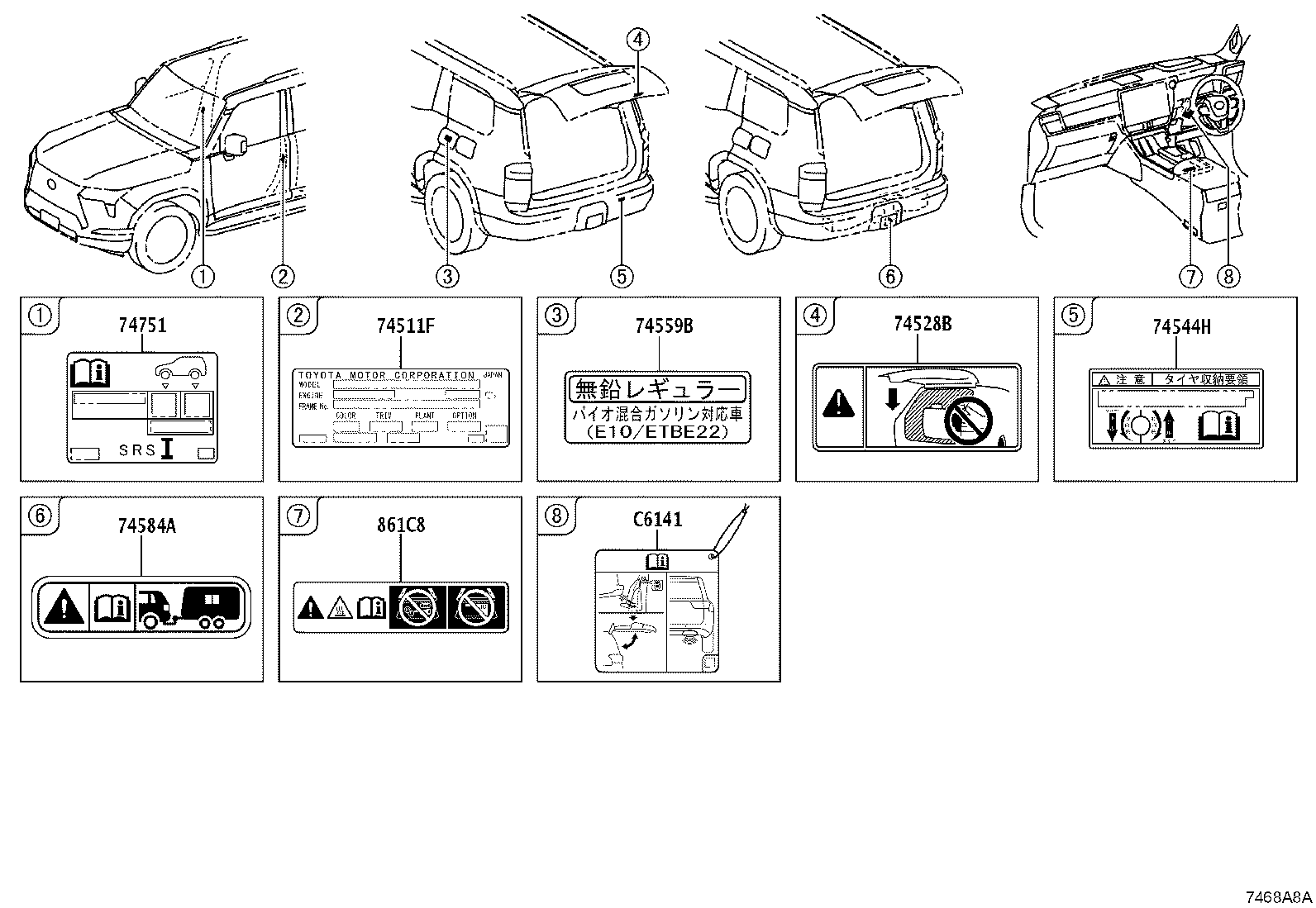

Figure 7468A7 7468A7 2024-05 → — Figure 7468A8A 7468A8A 2024-05 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11285J Label, Coolant System Caution, NO.2
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
288A2A Label, Battery Location, NO.2
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528B Label, Back Door Caution
74544H Label, Tire Carrier Notice
74559B Label, Fuel Information
74584A Label, Towing Caution
74751 Label, Tire Pressure Information
861C8 Label, Mobile Wireless Charger Caution
C6141 Label, Back Door OR Luggage Compartment Door Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
