Toyota Lexus GX550

2024-05 → present · chassis VJA252 · catalogue 782120 · Japan

Supported model Data version 2024-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 4 illustrations

Illustrations

Figure 87M49FA

87M49FA 2024-05 → —

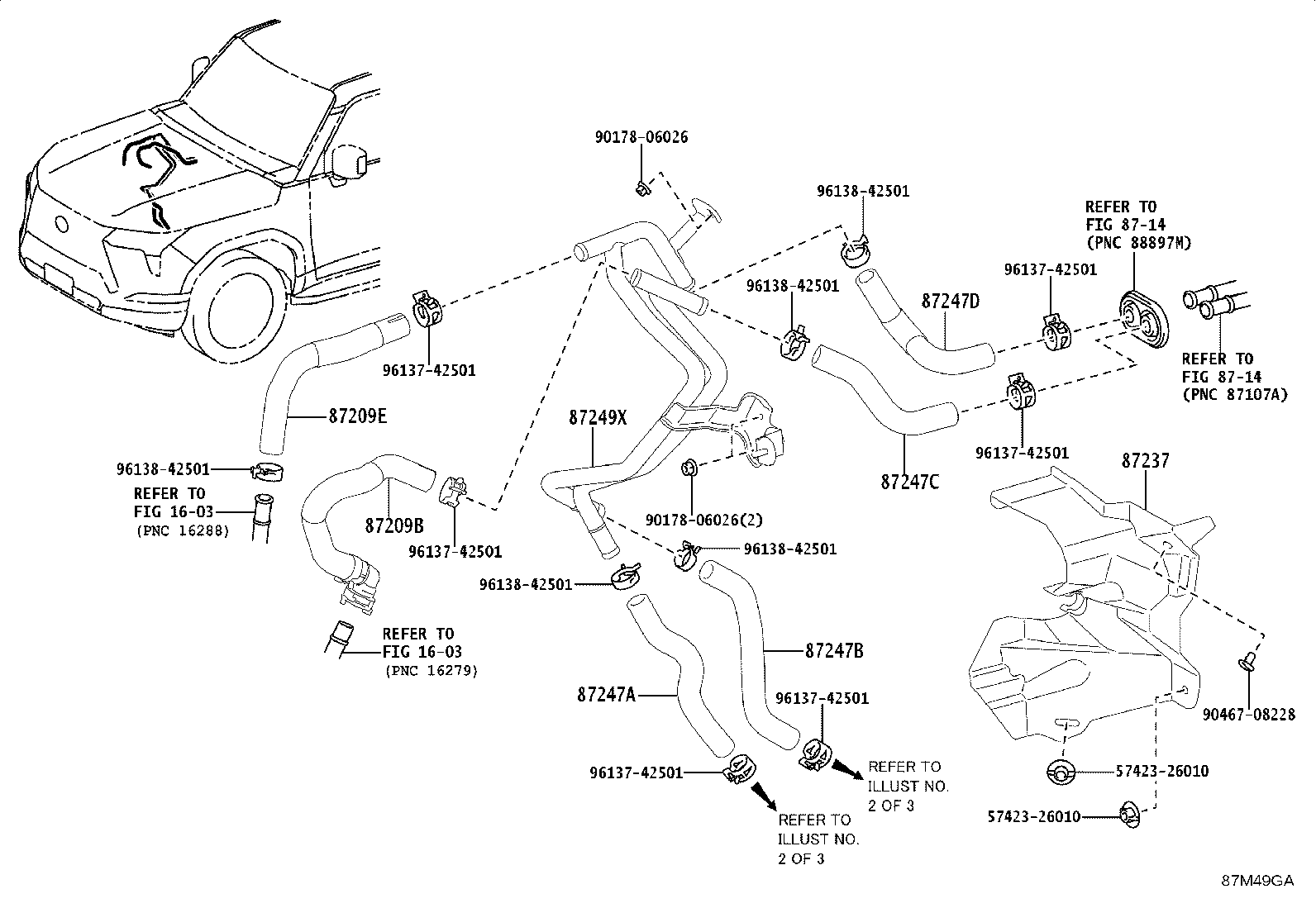

Figure 87M49GA

87M49GA 2024-05 → —

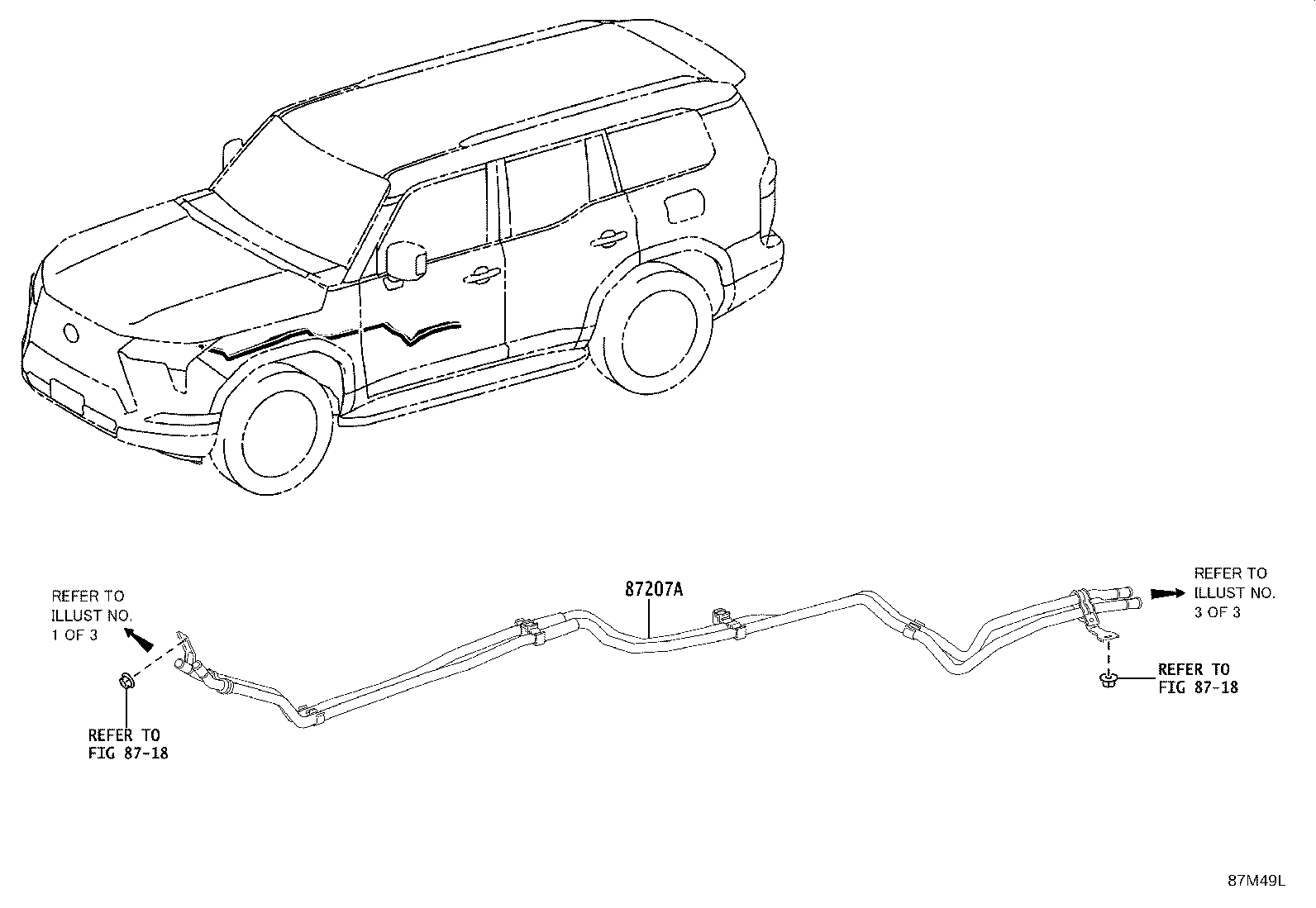

Figure 87M49L

87M49L 2024-05 → —

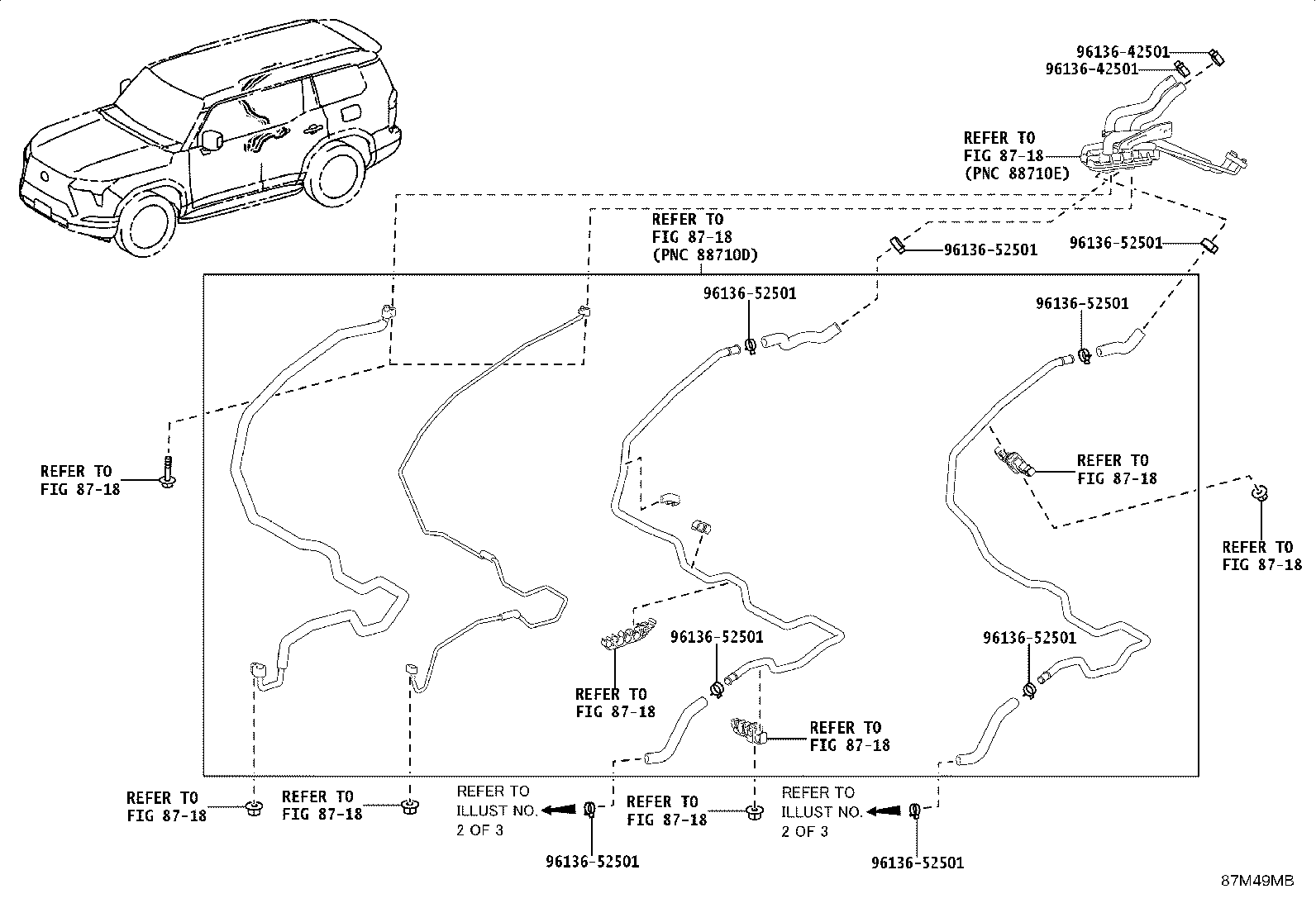

Figure 87M49MB

87M49MB 2024-05 → —

Part groups

PNC	Description
87207A	Pipe & Hose Sub-assy, Water A
87209B	Hose Sub-assy, Water, B
87209E	Hose Sub-assy, Water, E
87237	Cover, Heater Piping
87247A	Hose, Heater Water, A
87247B	Hose, Heater Water, B
87247C	Hose, Heater Water, C
87247D	Hose, Heater Water, D
87249X	Pipe, Water
87438B	Bracket, Heater Pipe, C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
