Toyota Land Cruiser Van
1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan
Discontinued model
Data version 1981-01

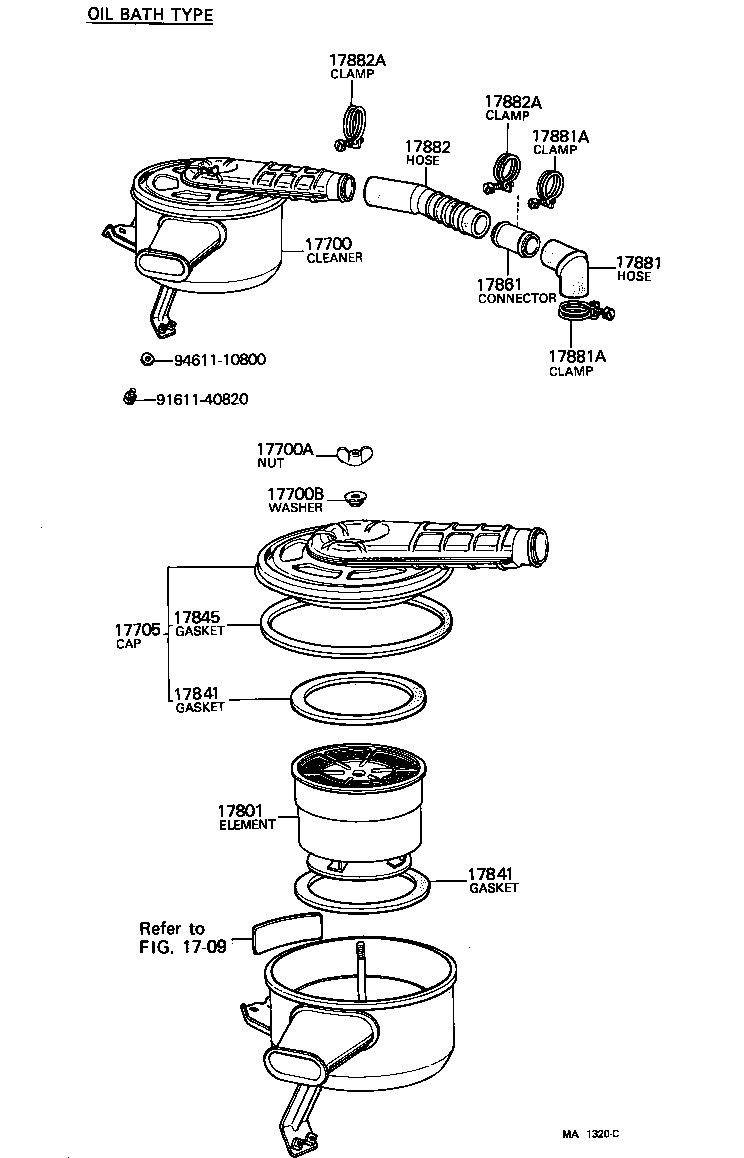

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-56060 |
Cleaner Assy, Air
1974-02 → 1976-09
ended
|
B BJ4# | — | |
| 17700-56061 |
Cleaner Assy, Air
1976-09 → 1979-05
ended
|
B,2B BJ4# | — | |
| 17700-56062 |
Cleaner Assy, Air
1979-05 → 1980-07
ended
|
2B BJ4# | ¥45,500 | |
| 17700-56070 note |
Cleaner Assy, Air
1974-02 → 1976-09
ended
|
B BJ4# | — | |
| 17700-56071 note |
Cleaner Assy, Air
1976-09 → 1977-09
ended
|
B BJ4# | — | |
| 17700-60270 note |
Cleaner Assy, Air
1970-03 → 1973-09
ended
|
F FJ4#,55 | — | |
| 17700-60290 |
Cleaner Assy, Air
1969-03 → 1969-09
ended
|
F FJ4#,55 | — | |
| 17700-60291 |
Cleaner Assy, Air
1969-09 → 1971-01
ended
|
F FJ4#,55 | — | |
| 17700-60380 |
Cleaner Assy, Air
1973-09 → 1975-09
ended
|
F FJ4#,55 | ¥21,900 | |
| 17700-61010 |
Cleaner Assy, Air
1975-01 → 1979-02
ended
|
2F FJ56 | — | |
| 17700-61140 |
Cleaner Assy, Air
1979-02 → 1979-09
ended
|
2F FJ56 | ¥66,800 | |
| 17700-61141 |
Cleaner Assy, Air
1979-09 → 1980-07
ended
|
2F FJ56 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1979-02 → 1980-07
ended
|
2F FJ56 | — | |
| 94270-00800 |
Nut, Wing(FOR AIR CLEANER)
1969-03 → 1973-05
ended
|
F FJ4#,55 | — | |
| 94271-00800 |
Nut, Wing(FOR AIR CLEANER)
1973-05 → 1979-02
ended
|
F,2F FJ4#,5# | — | |
| 94271-00800 |
Nut, Wing(FOR AIR CLEANER)
1979-02 → 1980-07
ended
|
2B BJ4# | — | |
| 94271-00800 |
Nut, Wing(FOR AIR CLEANER)
1973-05 → 1979-02
ended
|
B BJ4# | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1969-03 → 1979-02
ended
|
B BJ4# | — | |
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1969-03 → 1979-02
ended
|
F,2F FJ4#,5# | — | |
| 90210-08003 |
Washer, Seal(FOR AIR CLEANER)
1979-02 → 1980-07
ended
|
2B BJ4# | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-47020 note |
Cap Sub-assy, Air Cleaner
1974-02 → 1977-09
ended
|
B BJ4# | — | |
| 17705-56070 |
Cap Sub-assy, Air Cleaner
1974-02 → 1977-09
ended
|
B BJ4# | — | |
| 17705-56071 |
Cap Sub-assy, Air Cleaner
1977-09 → 1980-07
ended
|
B,2B BJ4# | — | |
| 17705-60140 |
Cap Sub-assy, Air Cleaner
1969-03 → 1969-09
ended
|
F FJ4#,55 | — | |
| 17705-60141 |
Cap Sub-assy, Air Cleaner
1969-09 → 1971-01
ended
|
F FJ4#,55 | — | |
| 17705-60200 note |
Cap Sub-assy, Air Cleaner
1970-03 → 1973-09
ended
|
F FJ4#,55 | — | |
| 17705-60250 |
Cap Sub-assy, Air Cleaner
1973-09 → 1975-09
ended
|
F FJ4#,55 | — | |
| 17705-61010 |
Cap Sub-assy, Air Cleaner
1975-01 → 1979-02
ended
|
2F FJ56 | — | |
| 17705-61042 |
Cap Sub-assy, Air Cleaner
1979-02 → 1979-09
ended
|
2F FJ56 | — | |
| 17705-61043 |
Cap Sub-assy, Air Cleaner
1979-09 → 1980-07
ended
|
2F FJ56 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-47030 note |
Element Sub-assy, Air Cleaner Filter
1974-02 → 1977-09
ended
|
B BJ4# | ¥5,100 | |
| 17801-60040 |
Element Sub-assy, Air Cleaner Filter
1969-03 → 1979-02
ended
|
F,2F FJ4#,5# | ¥2,940 | |
| 17801-61010 |
Element Sub-assy, Air Cleaner Filter
1979-02 → 1980-07
ended
|
2F FJ56 | ¥4,520 | |
| 17801-66020 |
Element Sub-assy, Air Cleaner Filter
1974-02 → 1980-07
ended
|
B,2B BJ4# | ¥2,420 | |
| 17841 — Gasket, Filter Element | ||||
| 17841-24020 |
Gasket, Filter Element
1977-09 → 1980-07
ended
|
B,2B BJ4# | — | |
| 17841-60011 |
Gasket, Filter Element
1969-03 → 1979-02
ended
|
F,2F FJ4#,5# | — | |
| 17841-60020 note |
Gasket, Filter Element
1974-02 → 1977-09
ended
|
B BJ4# | — | |
| 17841-61010 |
Gasket, Filter Element
1979-02 → 1980-07
ended
|
2F FJ56 | — | |
| 90430-10164 note |
Gasket, Filter Element
1974-02 → 1977-09
ended
|
B BJ4# | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-56040 |
Gasket, Air Cleaner Cap
1976-08 → 1980-07
ended
|
B,2B BJ4# | — | |
| 17845-60040 |
Gasket, Air Cleaner Cap
1976-08 → 1979-02
ended
|
2F FJ56 | — | |
| 17845-60040 |
Gasket, Air Cleaner Cap
1969-03 → 1976-08
ended
|
F,2F FJ4#,5# | — | |
| 17845-60040 |
Gasket, Air Cleaner Cap
1969-03 → 1976-08
ended
|
B BJ4# | — | |
| 17845-61010 |
Gasket, Air Cleaner Cap
1979-02 → 1980-07
ended
|
2F FJ56 | — | |
| 17861 — Connector, Intake Air | ||||
| 17885-56010 |
Connector, Intake Air
1974-02 → 1980-07
ended
|
B,2B BJ4# | ¥3,620 | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-56030 |
Hose, Air Cleaner, NO.1
1974-02 → 1980-07
ended
|
B,2B BJ4# | ¥3,420 | |
| 17881-61010 |
Hose, Air Cleaner, NO.1
1979-02 → 1980-07
ended
|
2F FJ56 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10650 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-02 → 1980-07
ended
|
2F FJ56 | ¥240 | |
| 96111-10670 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1976-06 → 1980-07
ended
|
B,2B BJ4# | ¥370 | |
| 96111-10690 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1974-02 → 1976-06
ended
|
B BJ4# | ¥160 | |
| 17882 — Hose, Air Cleaner, NO.2 | ||||
| 17882-56020 |
Hose, Air Cleaner, NO.2
1974-02 → 1980-07
ended
|
B,2B BJ4# | ¥6,800 | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10670 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1976-06 → 1980-07
ended
|
B,2B BJ4# | ¥370 | |
| 96111-10690 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1974-02 → 1976-06
ended
|
B BJ4# | ¥160 | |
| 96111-10750 note |
Clamp(FOR AIR CLEANER HOSE, NO.2)
1974-02 → 1980-07
ended
|
B,2B BJ4# | ¥190 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
