Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 3 illustrations

Illustrations

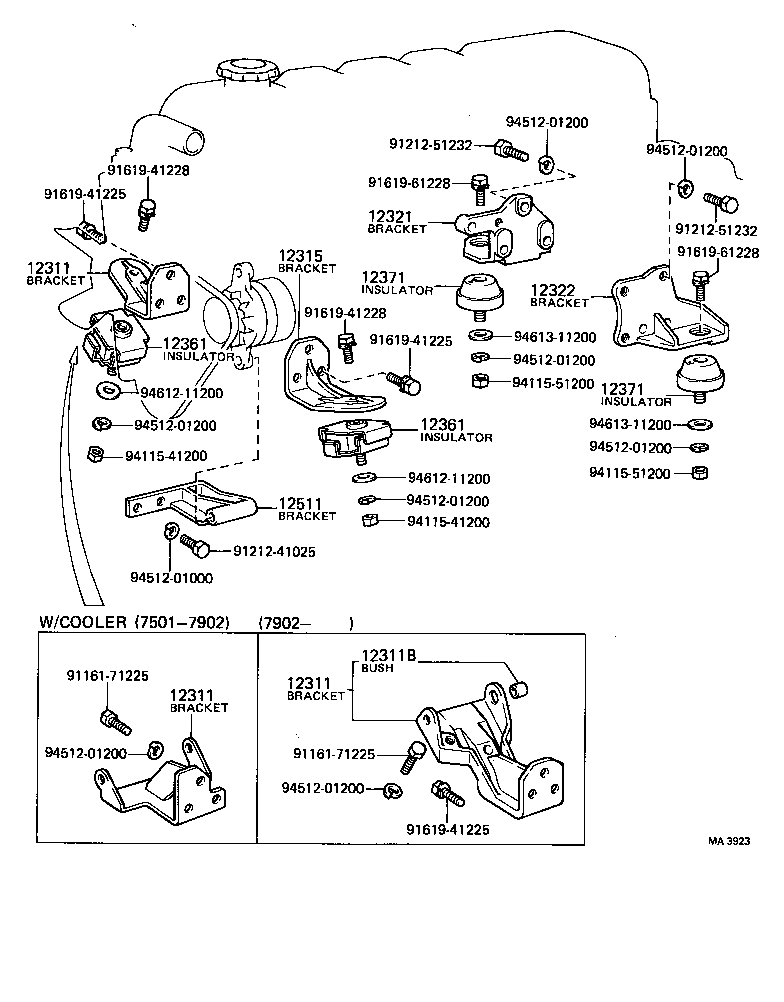

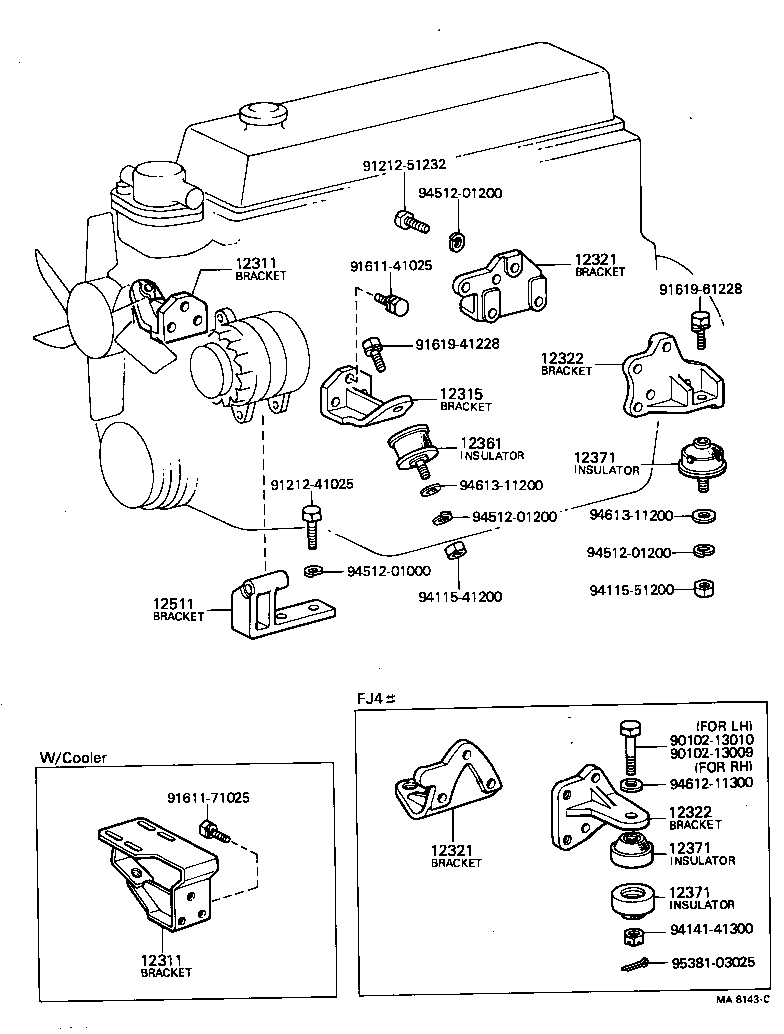

Figure MA1311B MA1311B 1974-02 → 1980-07 Figure MA8143C MA8143C 1969-03 → 1975-09 Figure MA3923 MA3923 1975-01 → 1980-07

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12311B Bush(FOR ENGINE MOUNTING BRACKET)
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
