Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

25 part groups · 5 illustrations

Illustrations

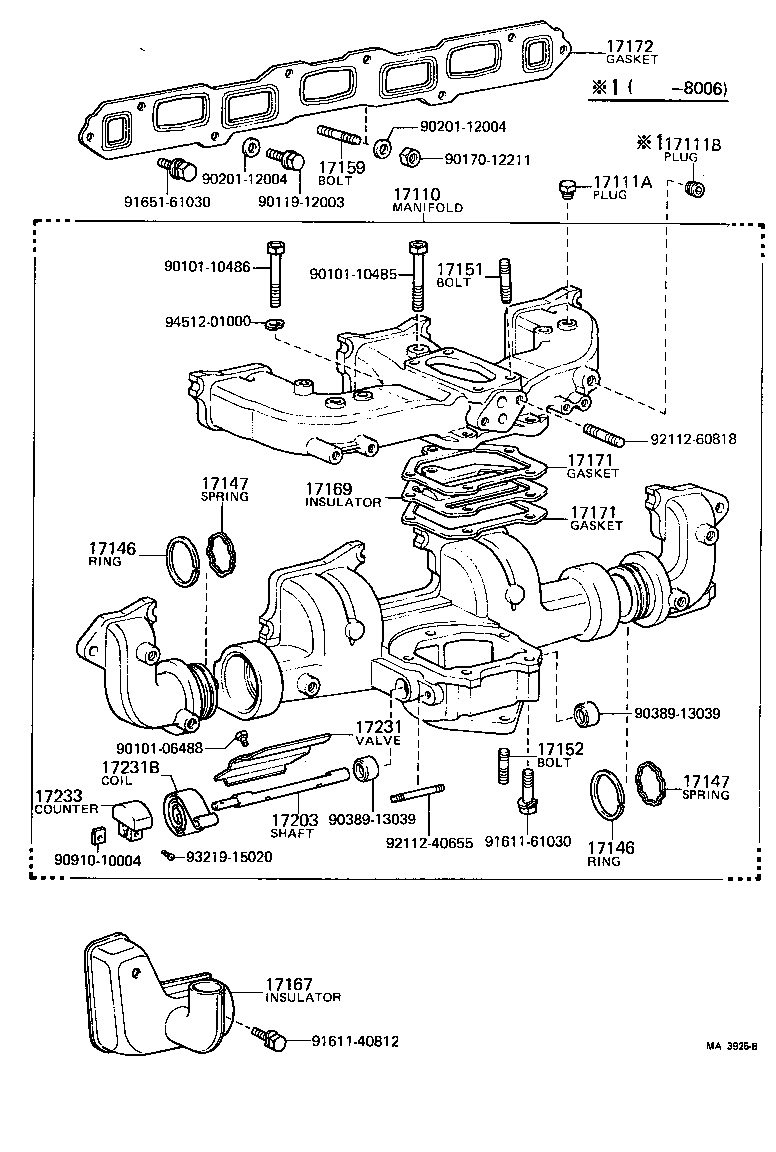

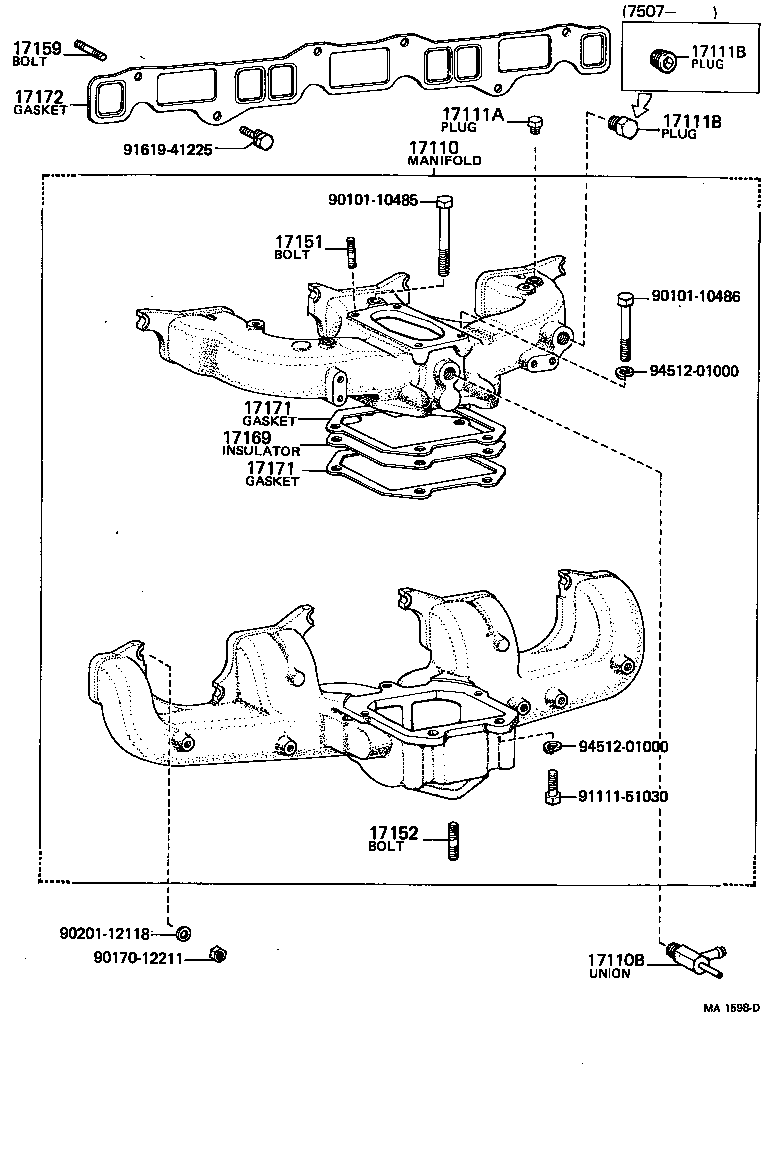

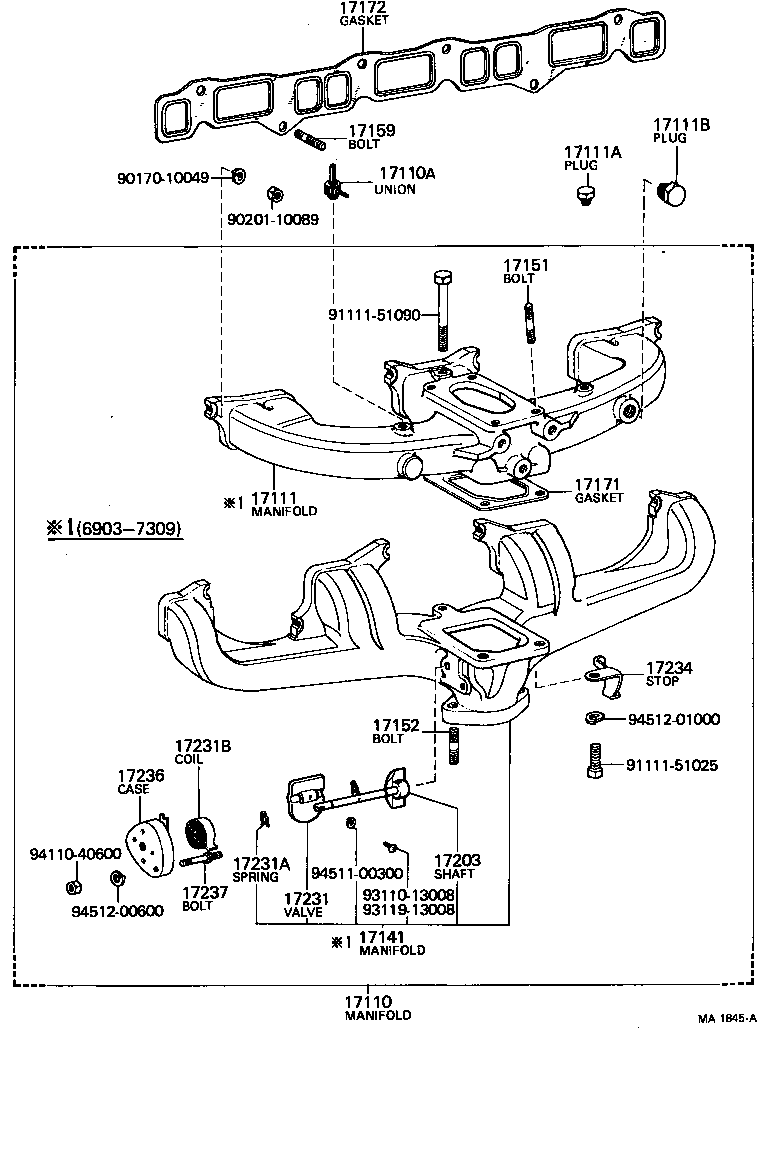

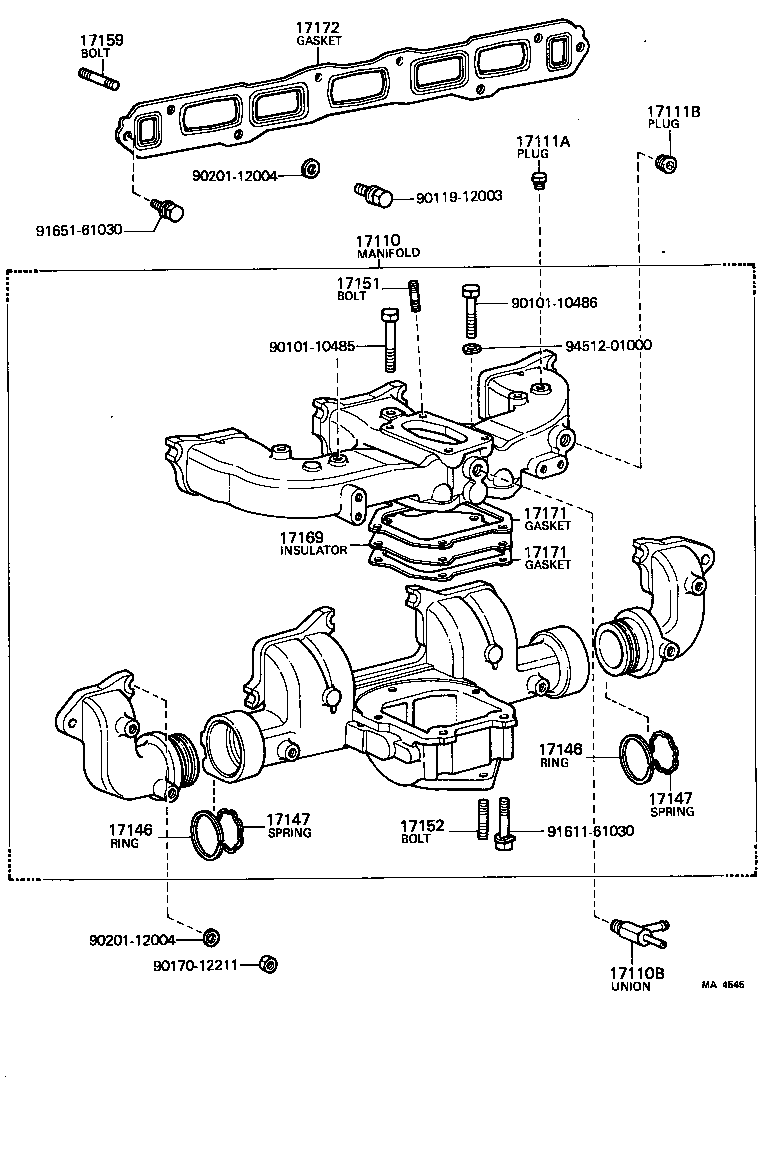

Figure MA1317C MA1317C 1974-02 → 1980-07 Figure MA1845A MA1845A 1969-03 → 1975-09 Figure MA1598D MA1598D 1975-01 → 1976-08 Figure MA4545 MA4545 1976-08 → 1979-02 Figure MA3925B MA3925B 1979-02 → 1980-07

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17141 Manifold, Exhaust
17146 Ring, Exhaust Manifold
17147 Spring, Exhaust Manifold
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17169 Insulator, Exhaust Manifold Heat, NO.3
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17203 Shaft Sub-assy, Manifold Heat Control
17231 Valve, Manifold Heat Control
17231A Spring, Retainer(FOR MANIFOLD HEAT CONTROL VALVE)
17231B Coil, Heat Control Valve
17233 Counter Weight
17234 Stop, Counter Weight
17236 Case, Heat Control Bimetal Set
17237 Bolt, Heat Control Case
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
