Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

4 part groups · 3 illustrations

Illustrations

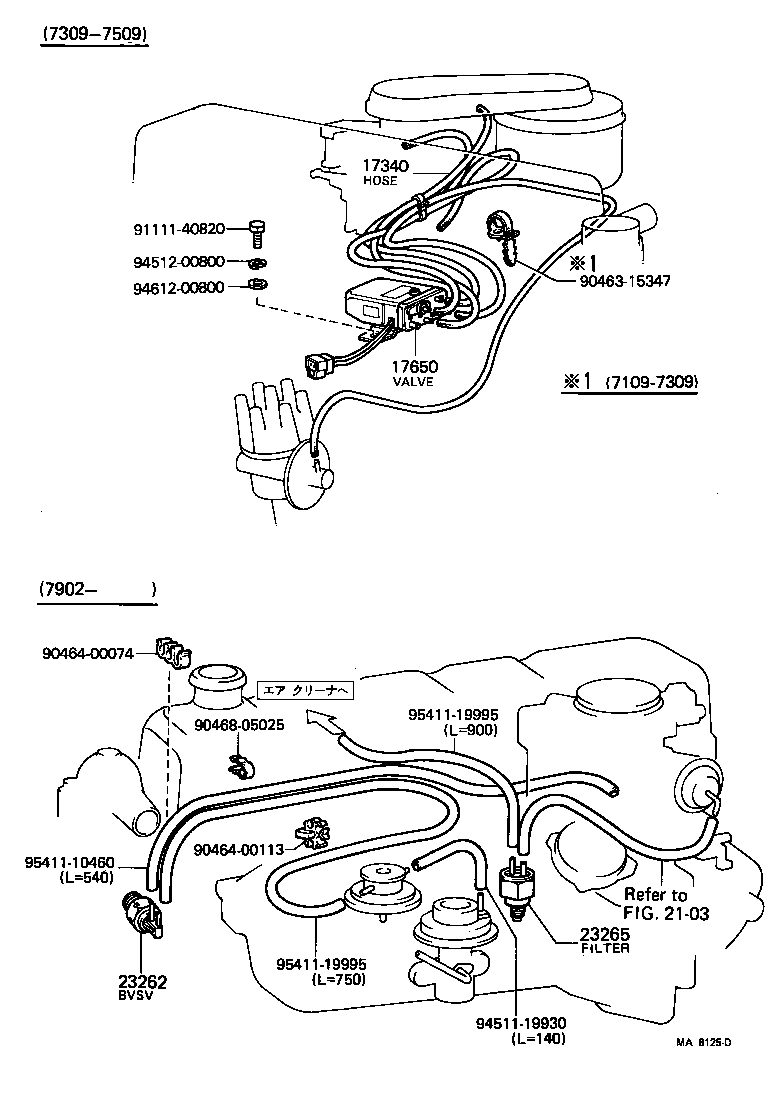

Figure MA9500 MA9500 1973-09 → 1980-07 Figure MA8125D MA8125D 1973-09 → 1975-09 Figure MA8125D MA8125D 1979-02 → 1980-07

Part groups

PNCDescription
17340 Hose Assy, Vacuum Switching Valve
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
