Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

13 part groups · 5 illustrations

Illustrations

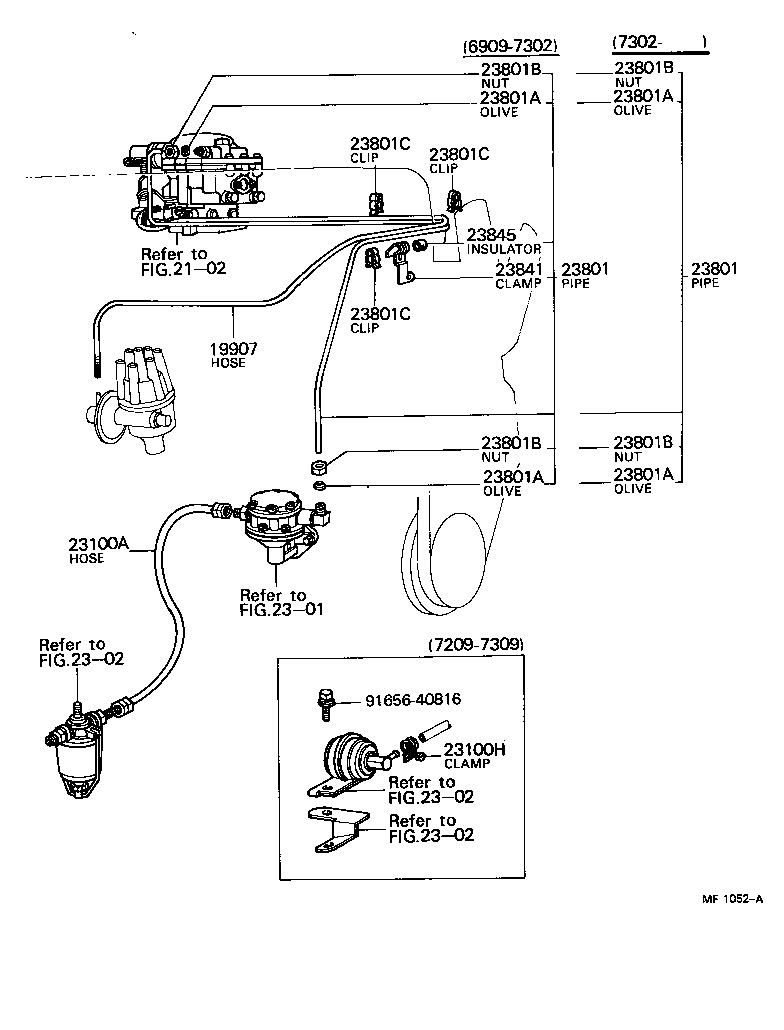

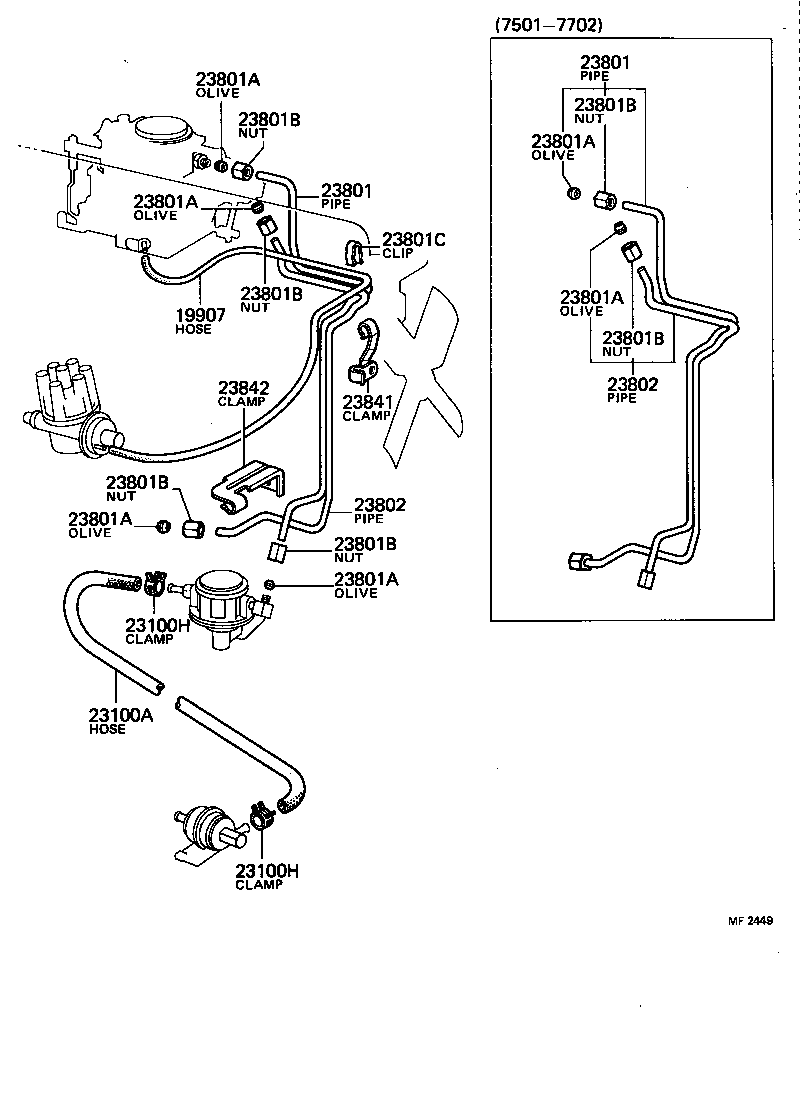

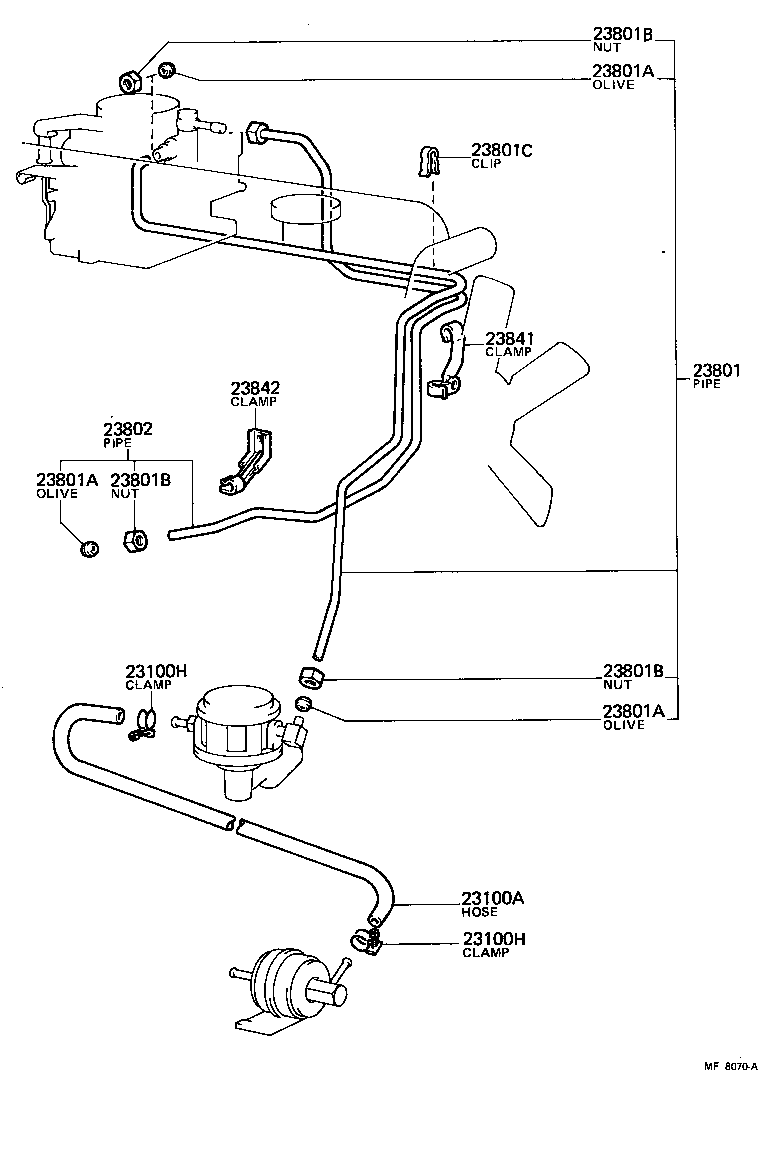

Figure MF0858B MF0858B 1969-03 → 1969-09 Figure MF1052A MF1052A 1969-09 → 1973-09 Figure MF8070A MF8070A 1973-09 → 1975-09 Figure MF2449 MF2449 1975-01 → 1979-02 Figure MF2450A MF2450A 1979-02 → 1980-07

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
19907A Nut, Union(FOR VACUUM HOSE SETTING)
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23802 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.2
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
