Toyota Land Cruiser Van
1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan
Discontinued model
Data version 1981-01

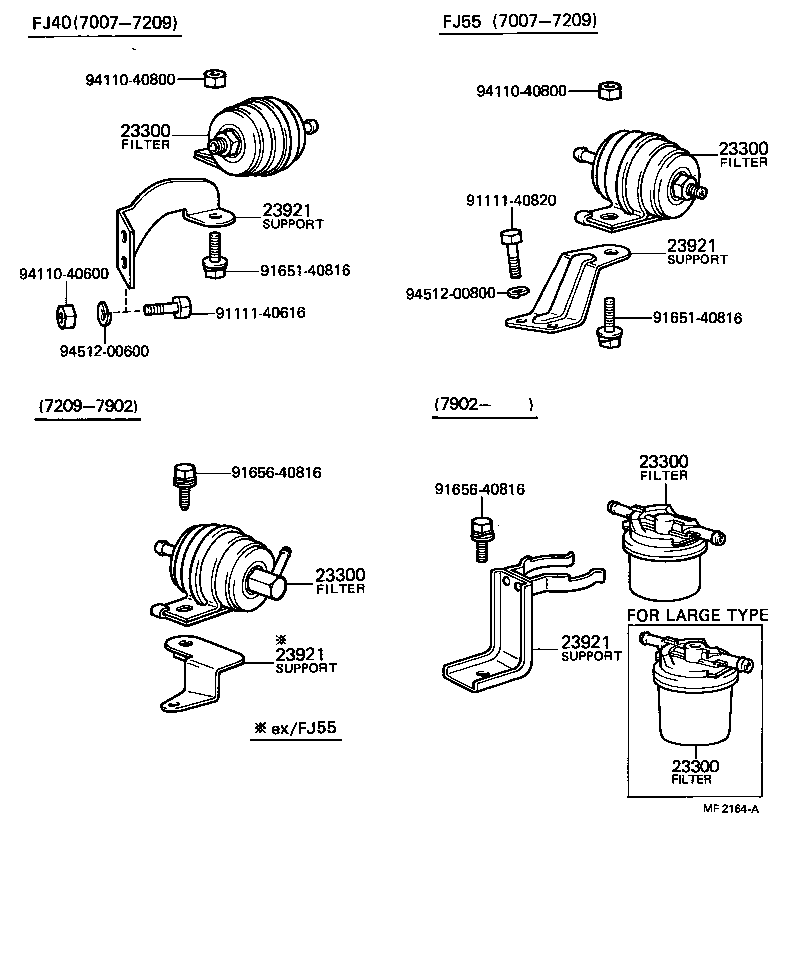

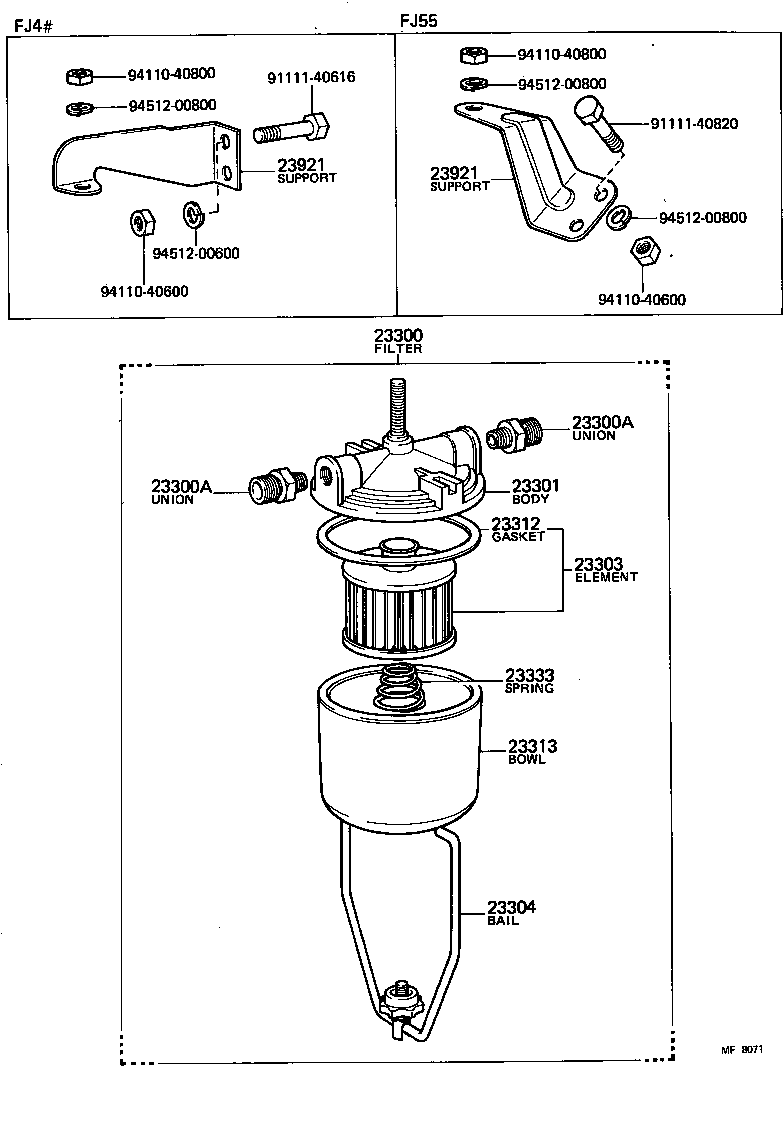

Fuel Filter
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23300 | Filter Assy, Fuel |
| 23300A | Union, Nipple(FOR FUEL FILTER INLET) |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23301 | Body Sub-assy, Fuel Filter |
| 23302 | Body Sub-assy, Fuel Filter, Lower |
| 23303 | Element Sub-assy, Fuel Filter |
| 23304 | Bail Sub-assy, Filter Bowl |
| 23312 | Gasket, Filter Bowl |
| 23313 | Bowl OR Cylinder, Fuel Filter |
| 23319 | Screw, Fuel Pipe Follow |
| 23329 | Bolt, Fuel Filter Center |
| 23329A | Ring, O(FOR FUEL FILTER CENTER BOLT) |
| 23332 | Gasket, Element(FOR FUEL FILTER) |
| 23333 | Spring, Filter Element Set |
| 23334 | Plate, Spring(FOR FILTER ELEMENT) |
| 23351 | Plug, Air Vent |
| 23353 | Ring, O(FOR AIR VENT PLUG) |
| 23921 | Support, Fuel Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
