Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

59 part groups · 9 illustrations

Illustrations

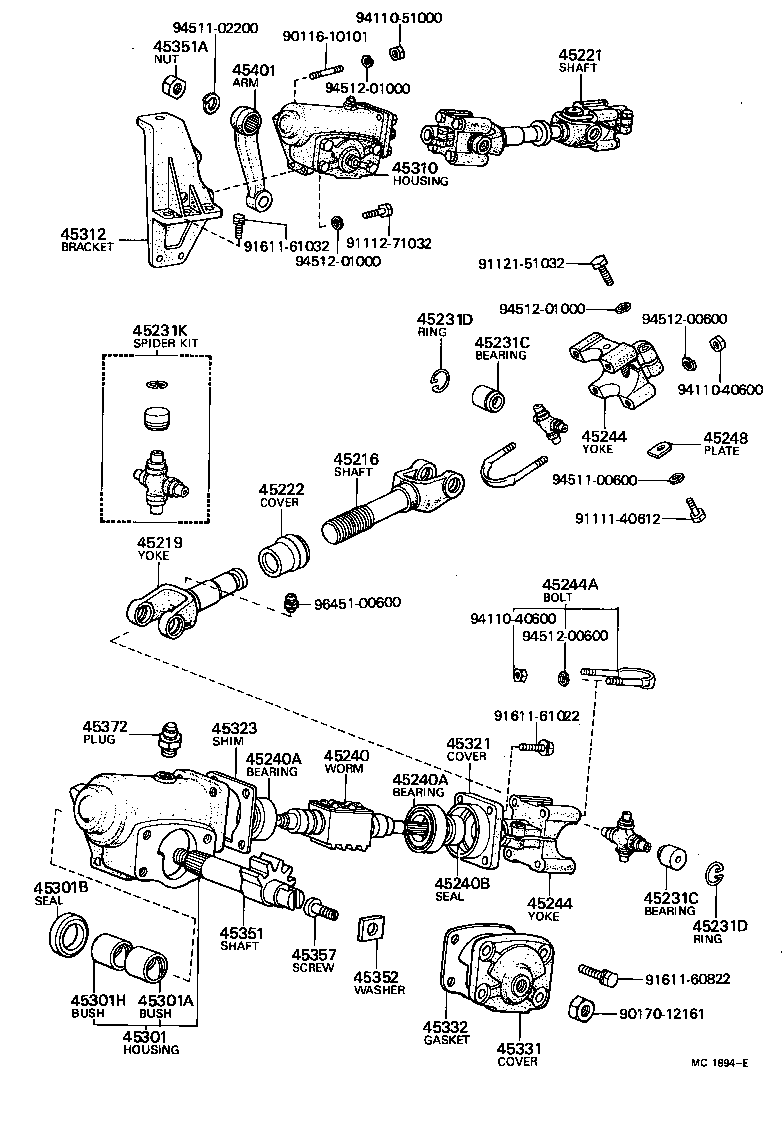

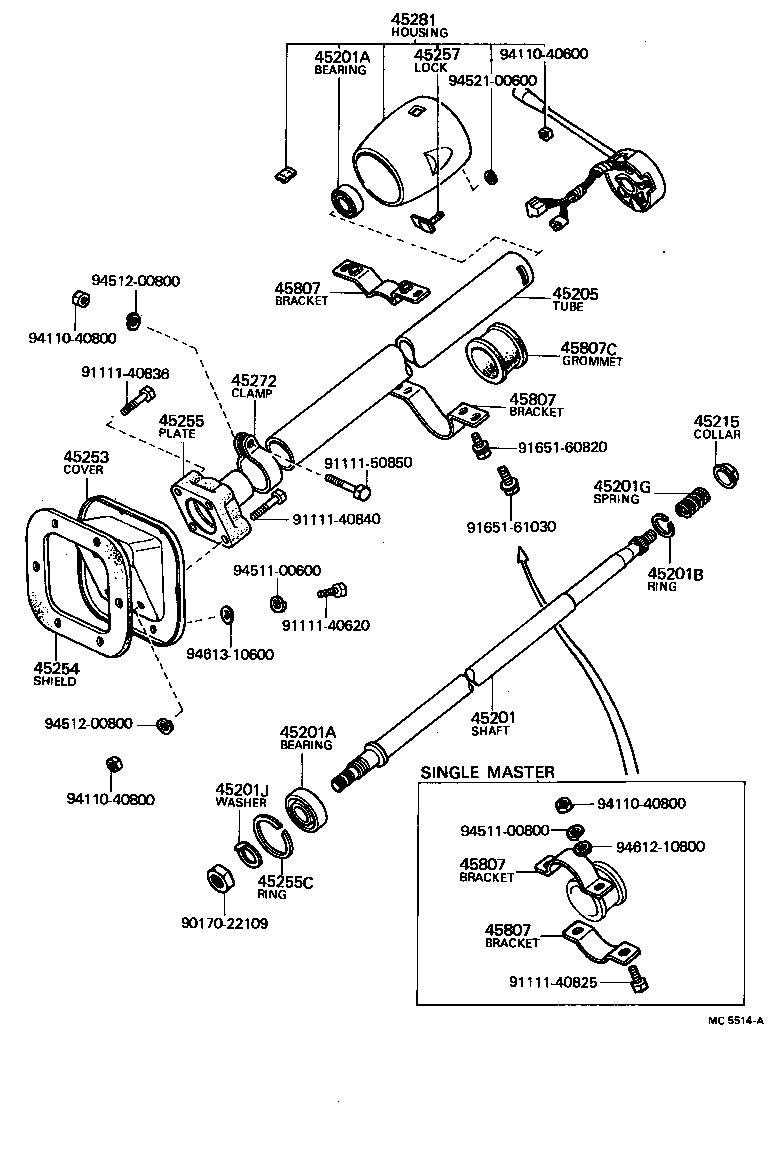

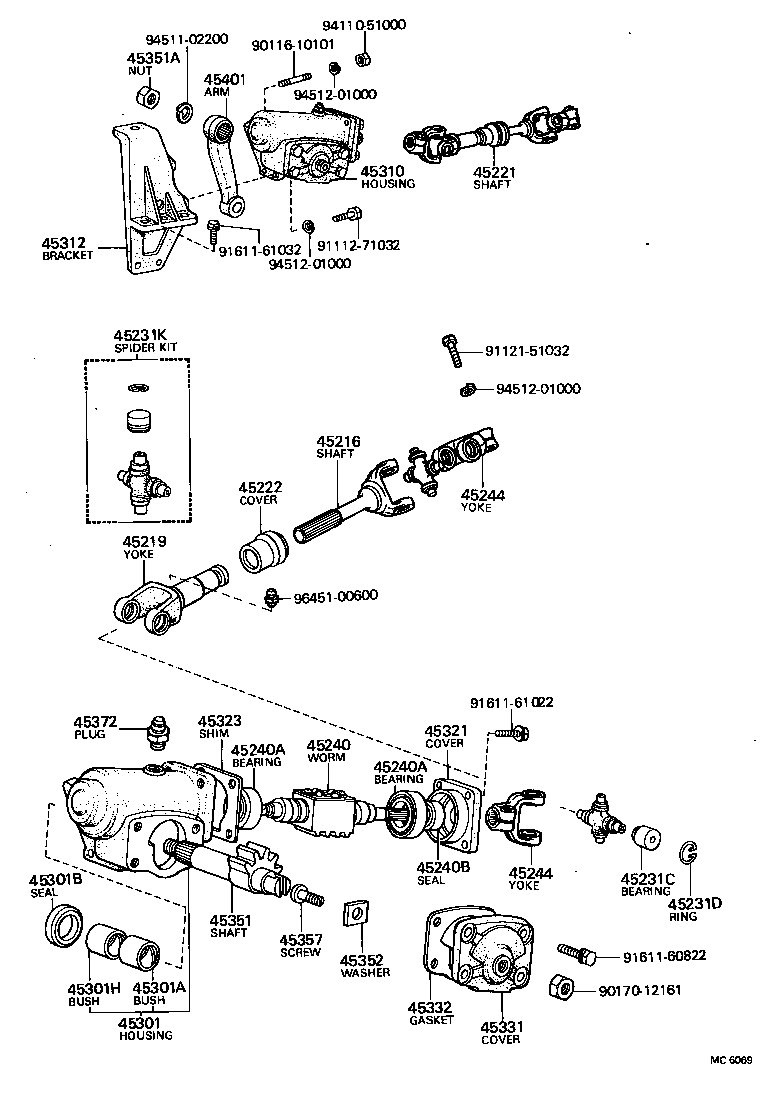

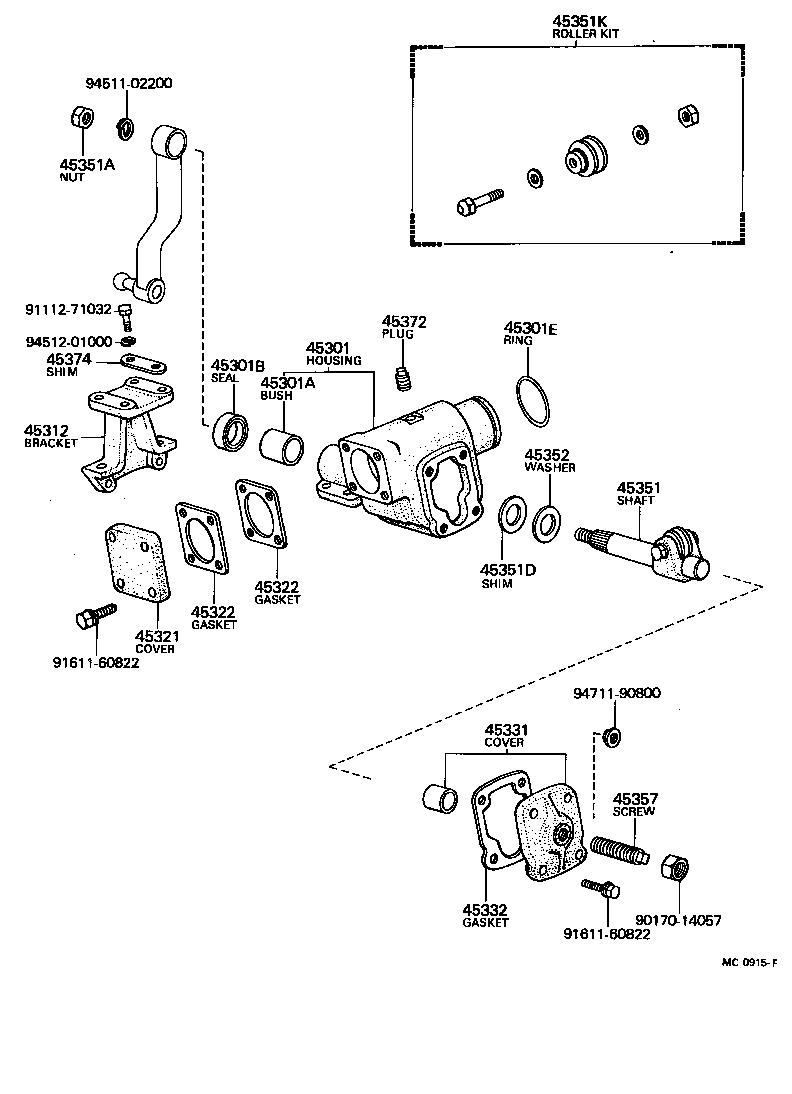

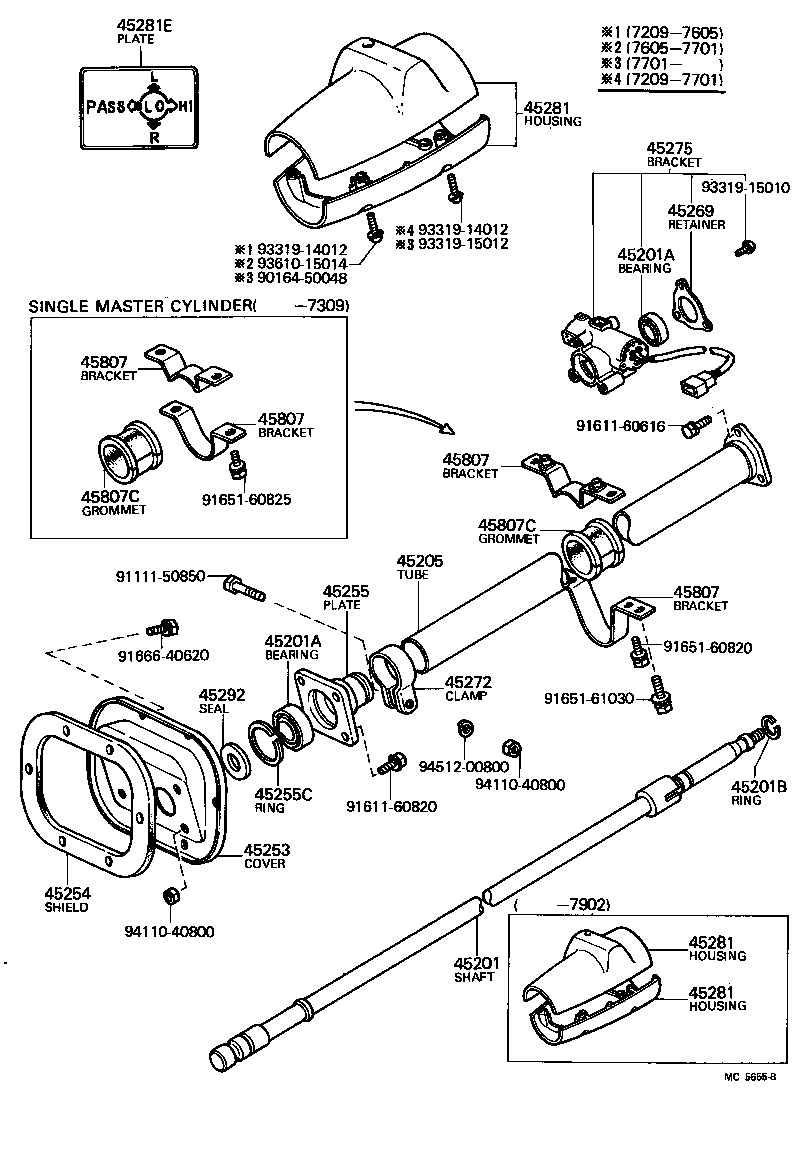

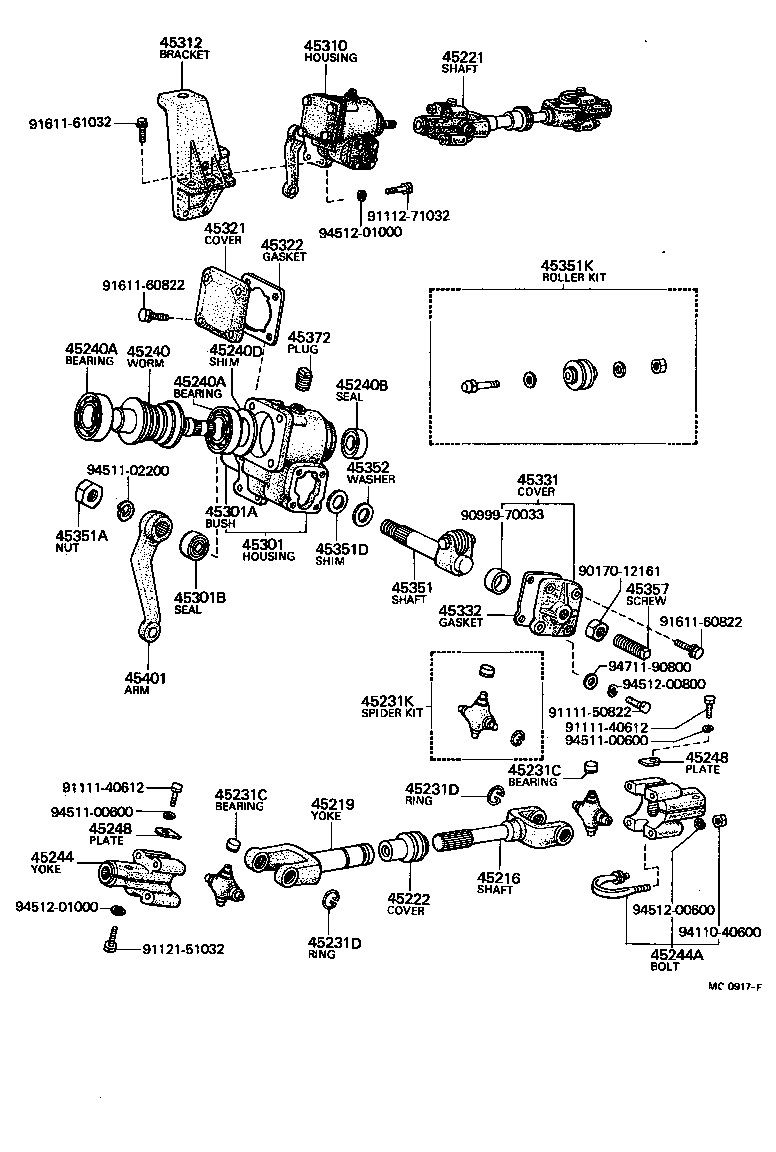

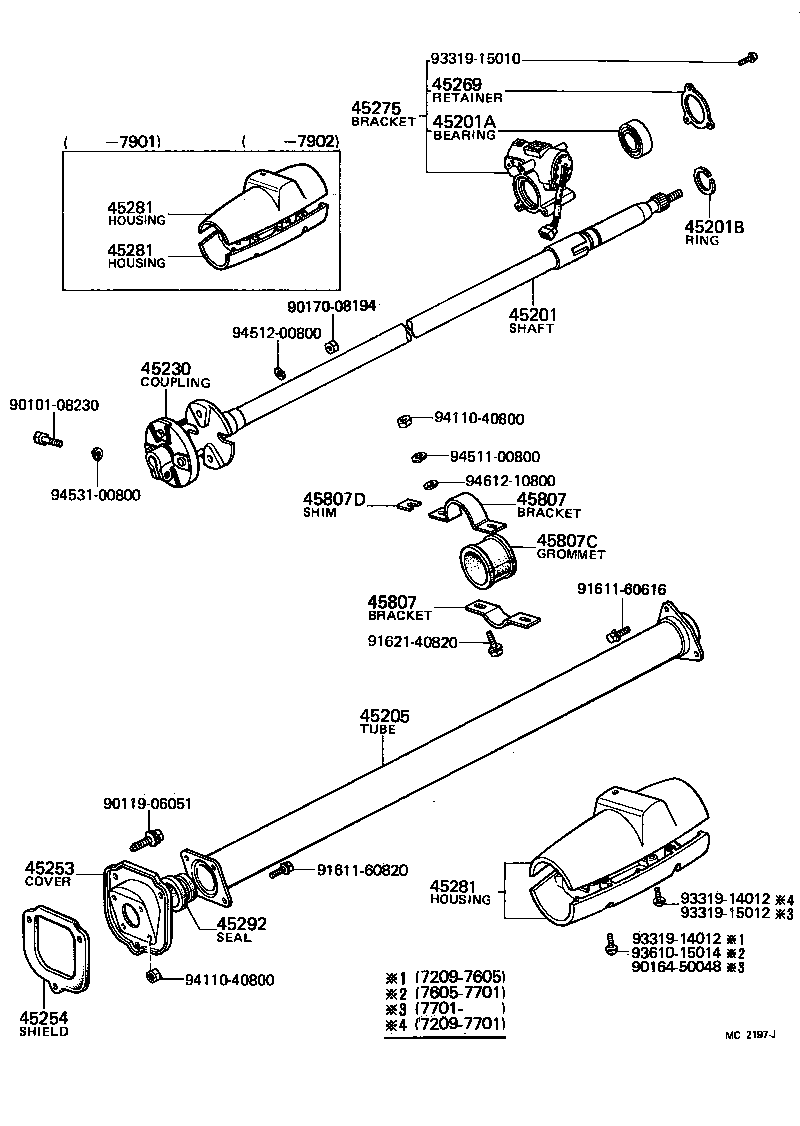

Figure MC0914G MC0914G 1969-03 → 1972-09 Figure MC2197J MC2197J 1972-09 → 1980-07 Figure MC5514A MC5514A 1969-03 → 1972-09 Figure MC5655B MC5655B 1972-09 → 1980-07 Figure MC0915F MC0915F 1969-03 → 1972-09 Figure MC2883C MC2883C 1972-09 → 1980-07 Figure MC0917F MC0917F 1969-03 → 1972-04 Figure MC1894E MC1894E 1972-04 → 1979-02 Figure MC6069 MC6069 1979-02 → 1980-07

Part groups

PNCDescription
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201G Spring, Compression(FOR STEERING MAIN SHAFT)
45201J Washer, Claw(FOR STEERING MAIN SHAFT BEARING SET)
45205 Tube Sub-assy, Steering Column
45205A Bush(FOR STEERING COLUMN TUBE)
45205F Grommet, Steering Column
45215 Collar, Main Shaft Bearing Thrust
45216 Shaft, Steering Sliding
45219 Yoke, Steering Sliding
45221 Shaft, Steering Intermediate
45222 Cover, Steering Gear Dust
45230 Coupling Assy, Flexible
45231C Bearing, Universal Joint Spider(FOR STEERING MAIN SHAFT)
45231D Ring, Hole Snap(FOR STEERING MAIN SHAFT)
45231K Spider Kit, Universal Joint(FOR STEERING MAIN SHAFT)
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45240D Shim(FOR STEERING WORM BEARING ADJUST)
45244 Yoke, Steering Worm
45244A Bolt, U, Steering Worm Yoke
45248 Plate, Cup Stopper, NO.1
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255C Ring, Hole Snap(FOR STEERING COLUMN TUBE SUPPORT)
45257 Lock, Steering Column Tube
45269 Retainer, Main Shaft Bearing
45272 Clamp, Steering Column, Lower
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45292 Seal, Main Shaft Lower Dust
45301 Housing Sub-assy, Steering Gear
45301A Bush OR Bearing, Sector Shaft, NO.1
45301B Seal, Oil(FOR SECTOR SHAFT)
45301E Ring, O(FOR STEERING GEAR HOUSING)
45301H Bush OR Bearing, Sector Shaft, NO.2
45310 Housing Assy, Steering Gear
45312 Bracket, Steering Gear Housing
45321 Cover, Gear Housing End
45322 Gasket, Gear Housing End Cover
45323 Shim, Gear Housing End Cover
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45351D Shim(FOR STEERING SECTOR ADJUSTING)
45351K Roller Kit, Steering Sector
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45374 Shim, Steering Post Adjusting
45401 Arm Sub-assy, Pitman
45807 Bracket Sub-assy, Steering Column Upper Support
45807C Grommet(FOR STEERING COLUMN CLAMP)
45807D Shim, Steering Column Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
