Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

23 part groups · 3 illustrations

Illustrations

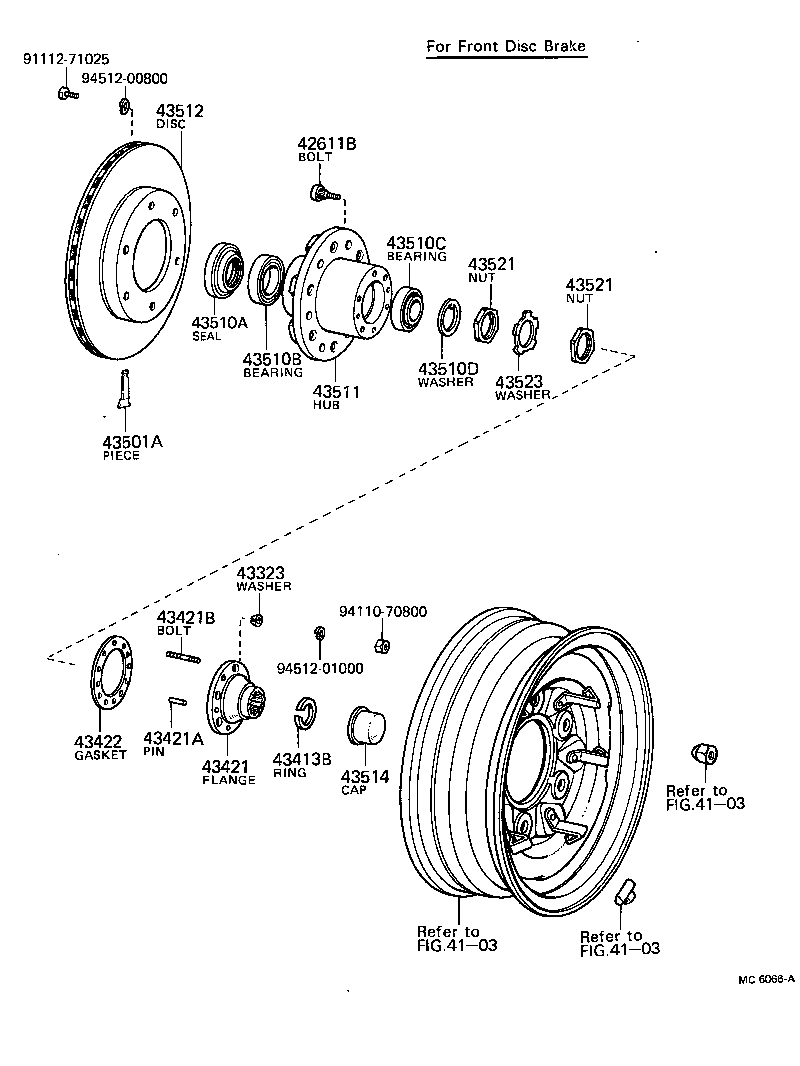

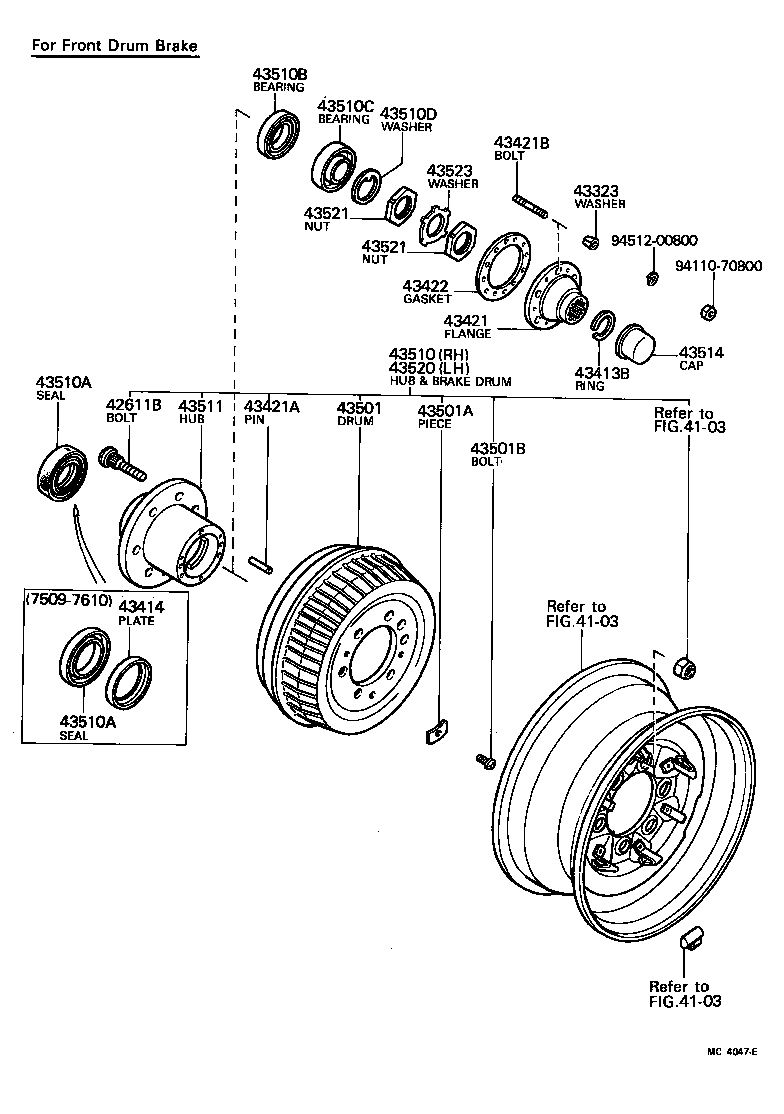

Figure MC0879D MC0879D 1969-03 → 1975-09 Figure MC4047E MC4047E 1975-09 → 1980-07 Figure MC6066A MC6066A 1979-02 → 1980-07

Part groups

PNCDescription
42444 Gasket, Brake Drum (FOR FRONT AXLE)
42611B Bolt, Hub (FOR FRONT AXLE)
43323 Washer, Cone (FOR FRONT AXLE SHAFT)
43413B Ring, Drive Shaft Snap
43414 Plate, Front Axle Hub
43421 Flange, Front Axle Outer Shaft
43421A Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE)
43421B Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE)
43422 Gasket, Front Axle Outer Shaft Flange
43501 Drum Sub-assy, Front Brake
43501A Piece, Balance (FOR FRONT BRAKE DRUM)
43501B Bolt, Set (FOR FRONT BRAKE DRUM SETTING)
43510 Hub And Brake Drum Assy, Front Axle, RH
43510A Seal, Oil (FOR FRONT AXLE HUB)
43510B Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING)
43510C Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING)
43510D Washer, Claw (FOR STEERING KNUCKLE WASHER)
43511 Hub, Front Axle
43512 Disc, Front
43514 Cap, Front Hub Grease
43520 Hub And Brake Drum Assy, Front Axle, LH
43521 Nut, Front Wheel Adjusting
43523 Washer, Front Wheel Adjusting Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
