Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

15 part groups · 4 illustrations

Illustrations

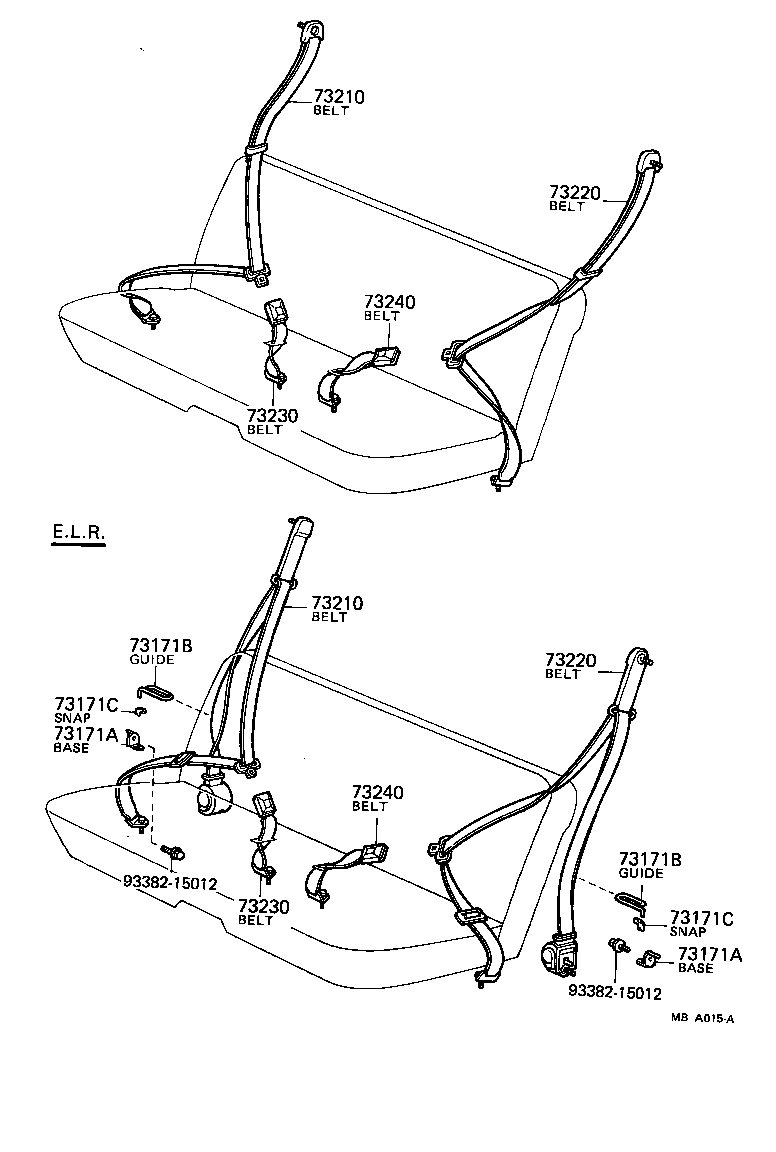

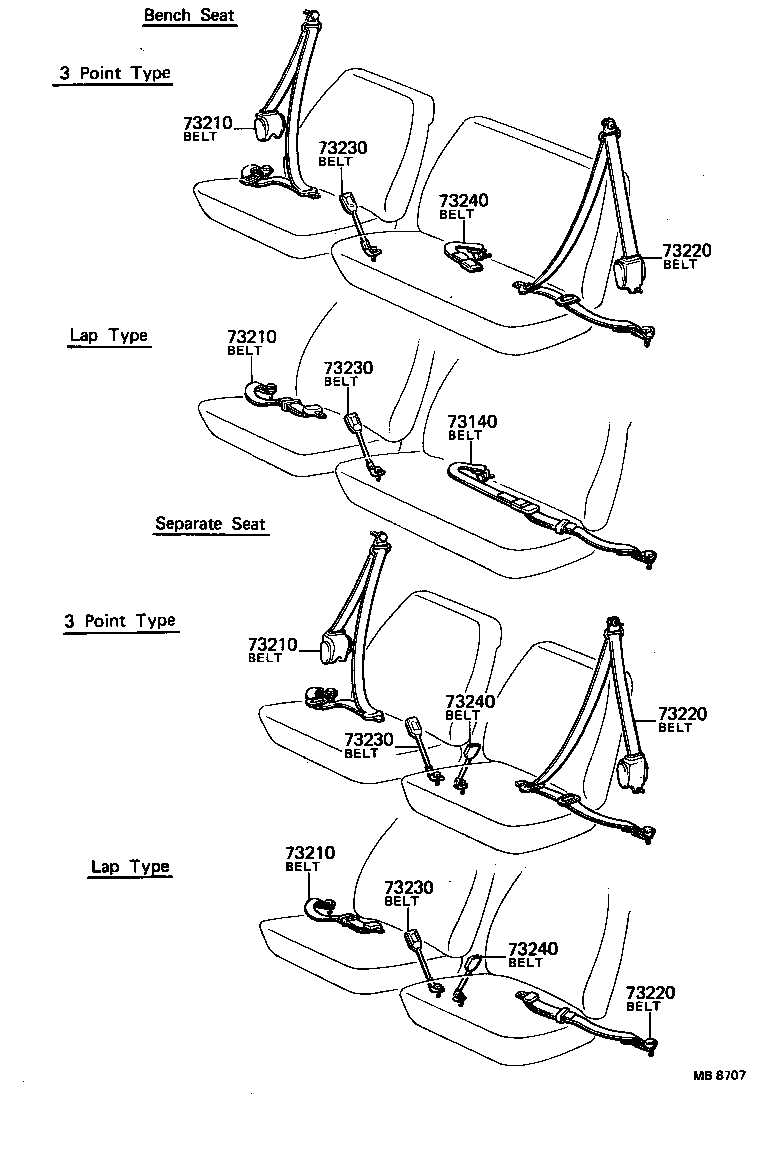

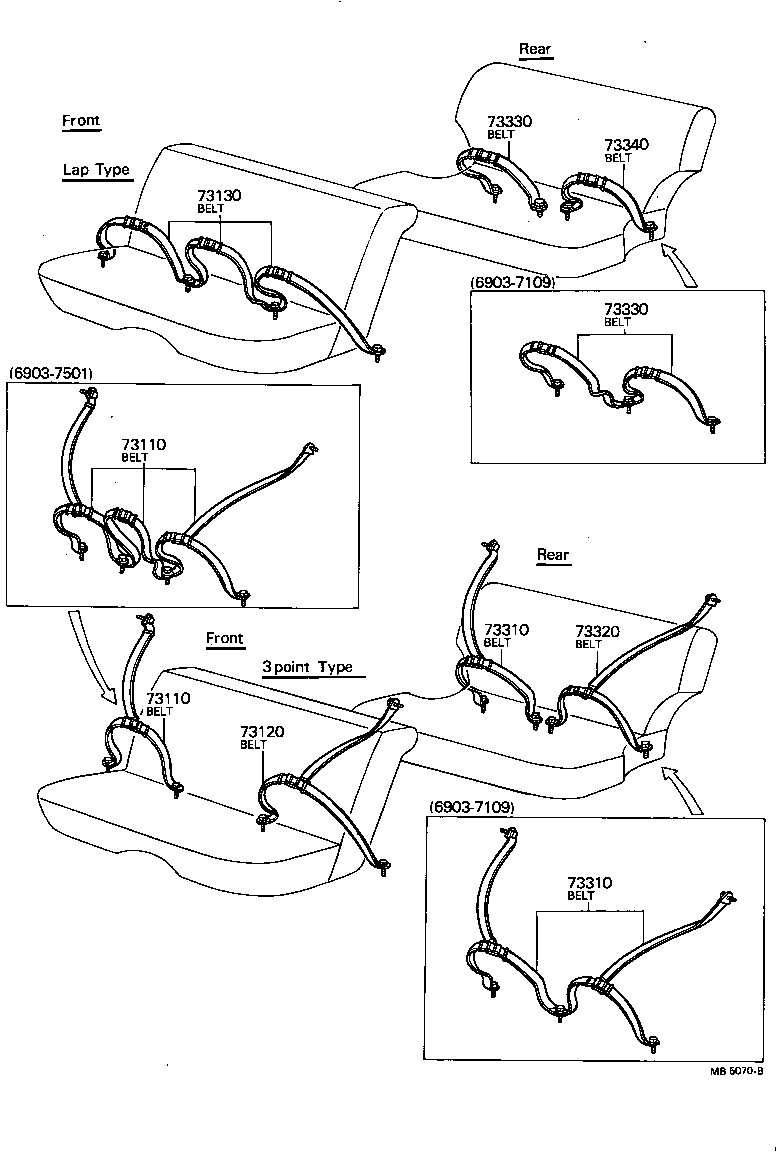

Figure MB8841A MB8841A 1969-03 → 1979-02 Figure MB8707 MB8707 1979-02 → 1980-07 Figure MB5070B MB5070B 1969-03 → 1979-02 Figure MBA015A MBA015A 1979-02 → 1980-07

Part groups

PNCDescription
73110 Belt Assy, Front Seat 3 Point Type, RH
73120 Belt Assy, Front Seat 3 Point Type, LH
73130 Belt Assy, Front Seat Lap Type, RH
73140 Belt Assy, Front Seat Lap Type, LH
73171A Base, Front Seat Shoulder Belt
73171B Guide, Front Seat Shoulder Belt
73171C Snap (FOR FRONT SEAT SHOULDER BELT)
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73320 Belt Assy, Rear Seat 3 Point Type, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
