Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

14 part groups · 2 illustrations

Illustrations

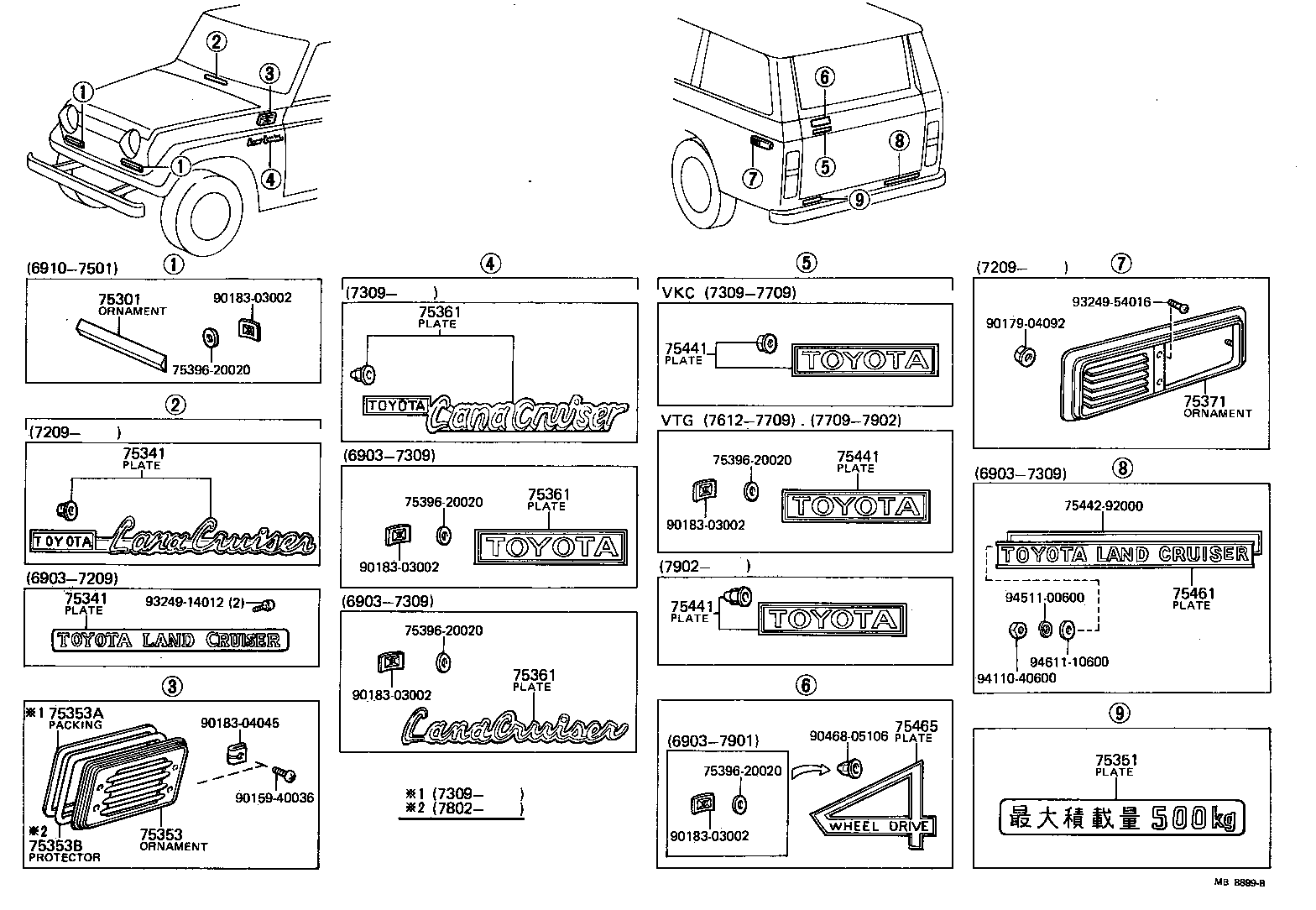

Figure MB8900A MB8900A 1969-03 → 1980-07 Figure MB8899B MB8899B 1969-03 → 1980-07

Part groups

PNCDescription
75301 Ornament, Radiator Grille (OR FRONT PANEL)
75305 Emblem, Hood
75310 Plate Assy, Front Panel
75321 Plate, Radiator Grille OR Front Panel Name
75341 Plate, Instrument Panel Name, NO.1
75351 Plate, Rear Name, NO.6 (MAXIMUM LOAD)
75353 Ornament, Front Fender
75353A Packing, Front Fender Ornament
75353B Protector, Front Fender Upper Ornament
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75371 Ornament, Air Outlet
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
