Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

14 part groups · 2 illustrations

Illustrations

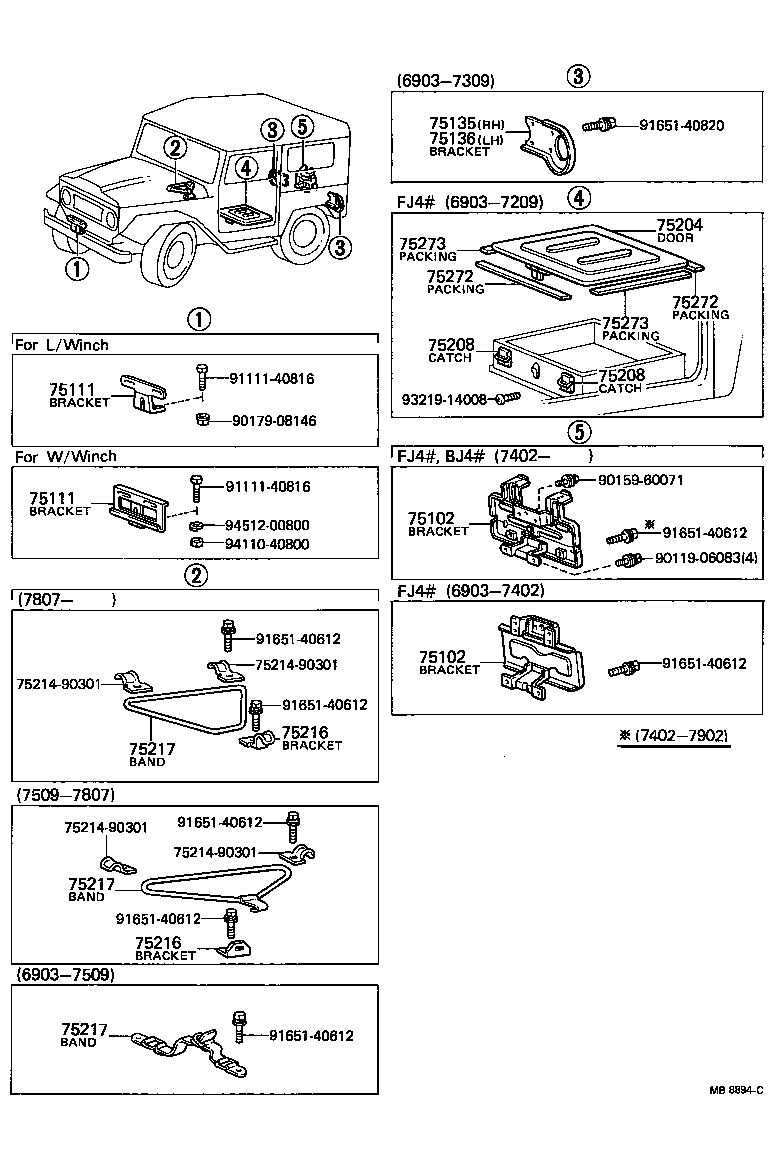

Figure MB8907C MB8907C 1969-03 → 1980-07 Figure MB8894C MB8894C 1969-03 → 1980-07

Part groups

PNCDescription
52177 Handle, Starting OR Spare Wheel Carrier
74741 Spring, Starting Handle Support
75102 Bracket Sub-assy, Rear License Plate
75111 Bracket, Front License Plate
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75202 Rest Sub-assy, Jack
75202A Base Sub-assy, Jack Handle Clamp
75204 Door Sub-assy, Tool Box
75208 Catch Sub-assy, Tool Box Door
75216 Bracket, Tool Bag Band
75217 Band, Tool Bag
75272 Packing, Tool Box Door, NO.1
75273 Packing, Tool Box Door, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
