Toyota Land Cruiser Van
1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan
Discontinued model
Data version 1981-01

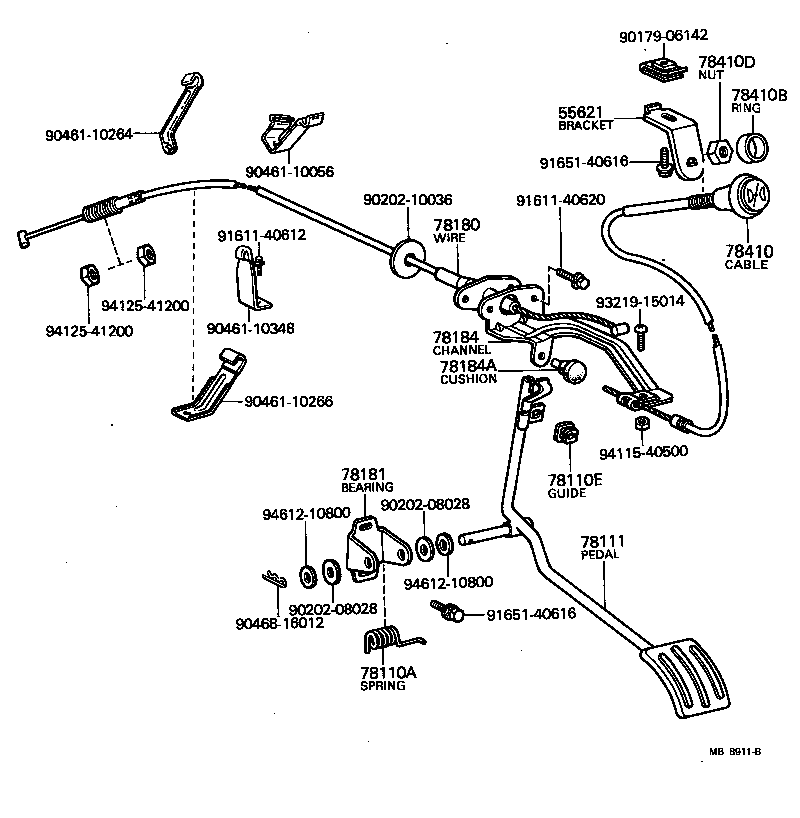

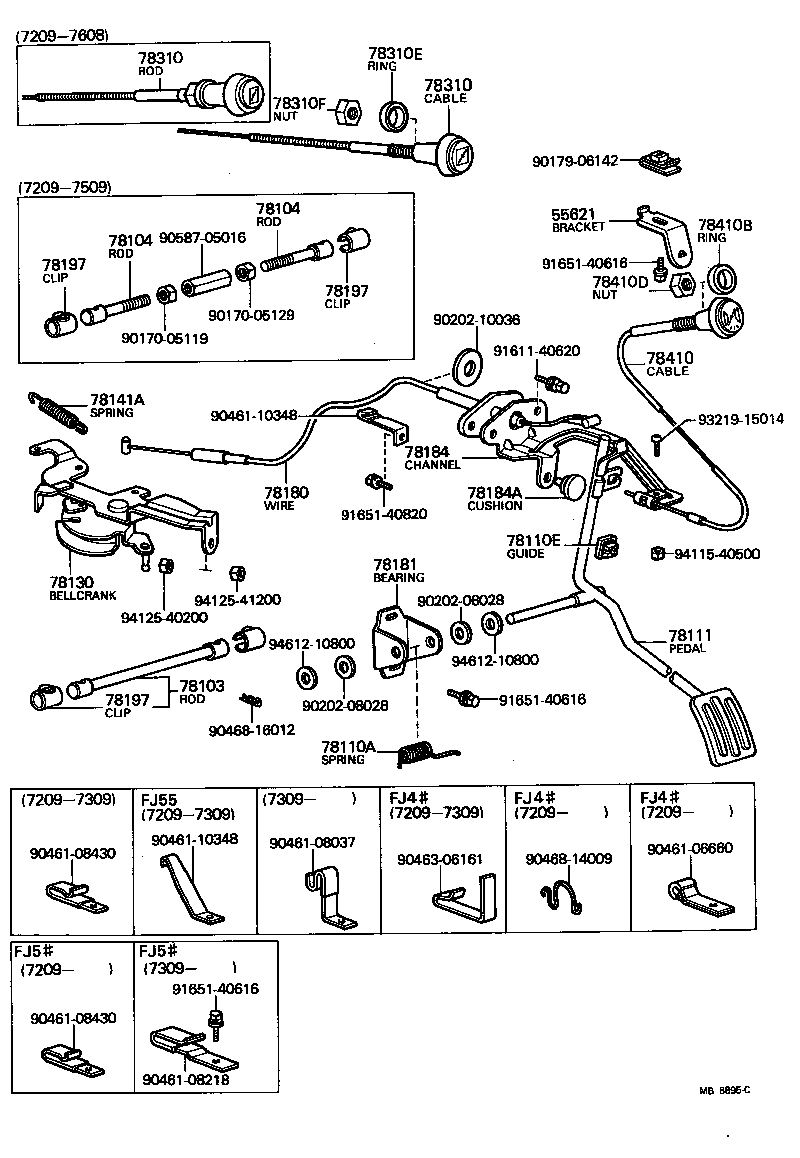

Accelerator Link
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55621 | Bracket, Throttle Rod Support |
| 78103 | Rod Sub-assy, Accelerator Connecting, NO.1 |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78110E | Guide, Throttle Wire |
| 78111 | Pedal, Accelerator |
| 78130 | Bellcrank Assy, Accelerator |
| 78137A | Spring, Accelerator Link Pin |
| 78141A | Spring, Tension(FOR ACCELERATOR WIRE RETURN SPRING) |
| 78163 | End, Flexible Wire |
| 78180 | Wire Assy, Accelerator |
| 78180A | Pin, Accelerator Wire Set |
| 78180C | Spring, Tension (FOR ACCELERATOR WIRE) |
| 78181 | Bearing, Accelerator Pedal Rod Support |
| 78184 | Channel, Accelerator Idle Adjusting Stopper |
| 78184A | Cushion (FOR ACCELERATOR ADJUST STOPPER CHANNEL) |
| 78197 | Clip, Accelerator Joint Ball |
| 78310 | Cable Assy, Choke |
| 78310E | Ring, Choke |
| 78310F | Nut, Choke |
| 78410 | Cable Assy, Throttle Control |
| 78410B | Ring, Throttle |
| 78410D | Nut, Throttle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
