Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

7 part groups · 2 illustrations

Illustrations

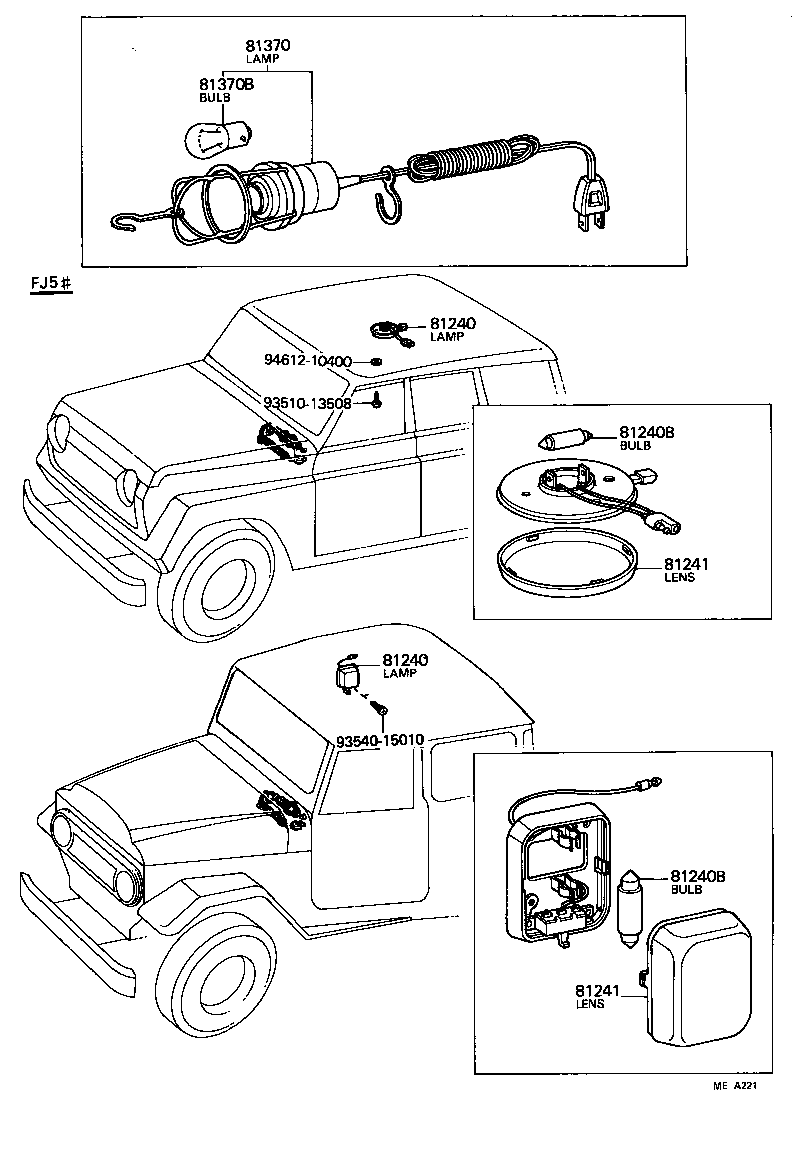

Figure MEA220 MEA220 1969-03 → 1973-09 Figure MEA221 MEA221 1973-09 → 1980-07

Part groups

PNCDescription
81240 Lamp Assy, Room, NO.1
81240A Bracket Sub-assy, Room Lamp, NO.1
81240B Bulb, Room Lamp, NO.1
81241 Lens, Room Lamp, NO.1
81242 Gasket, Room Lamp, NO.1
81370 Lamp Assy, Inspection
81370B Bulb, Inspection Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
