Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 17 illustrations

Illustrations

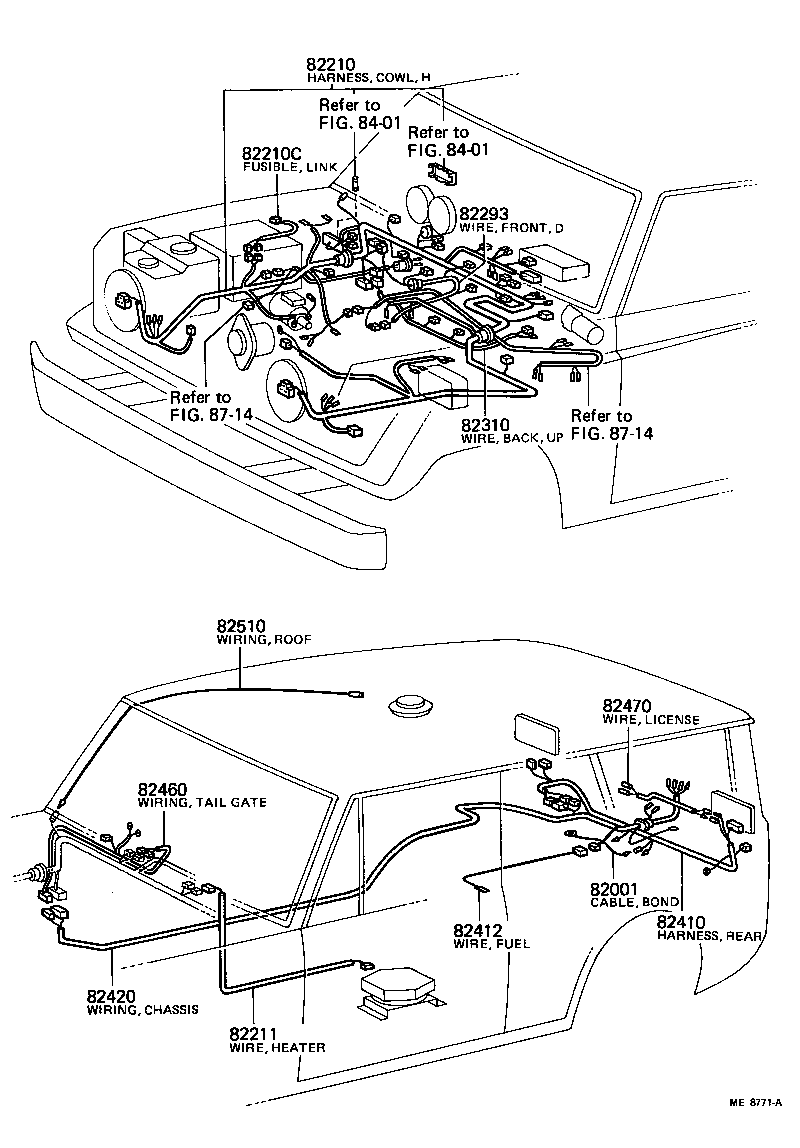

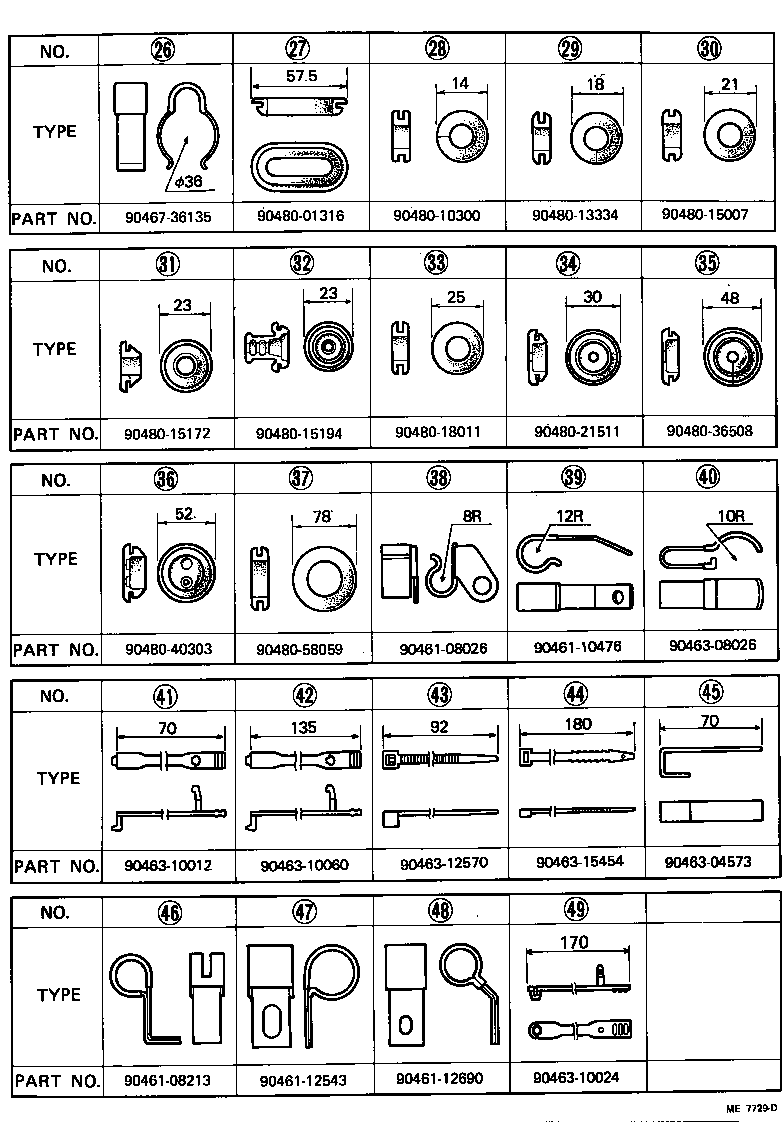

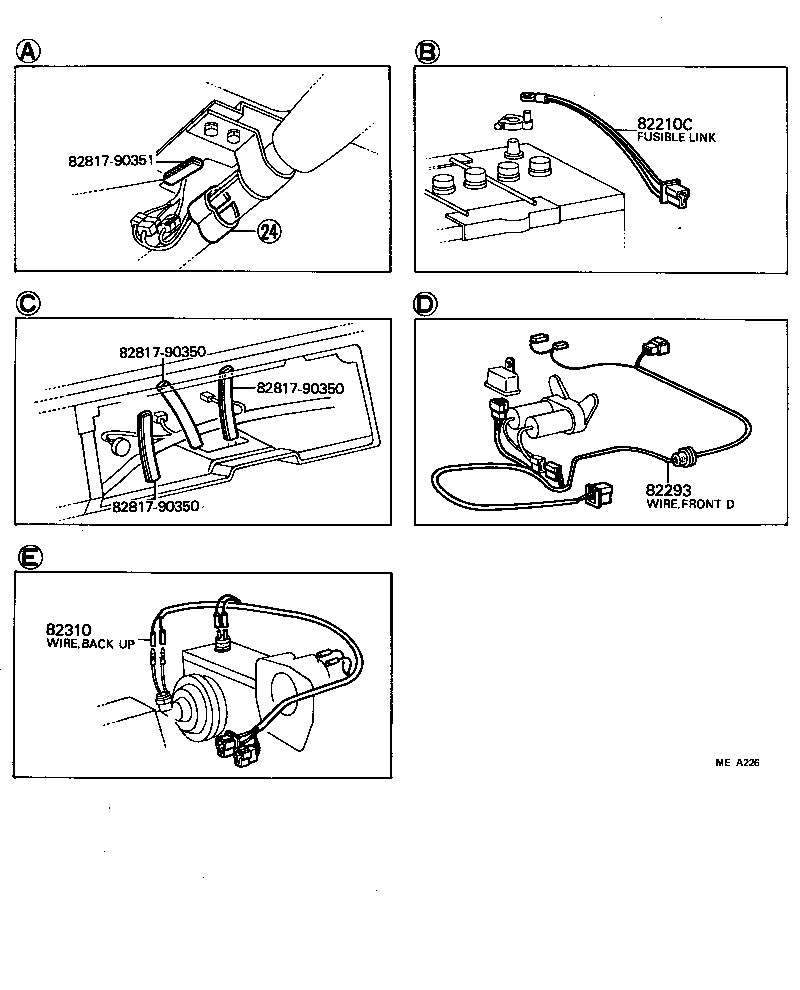

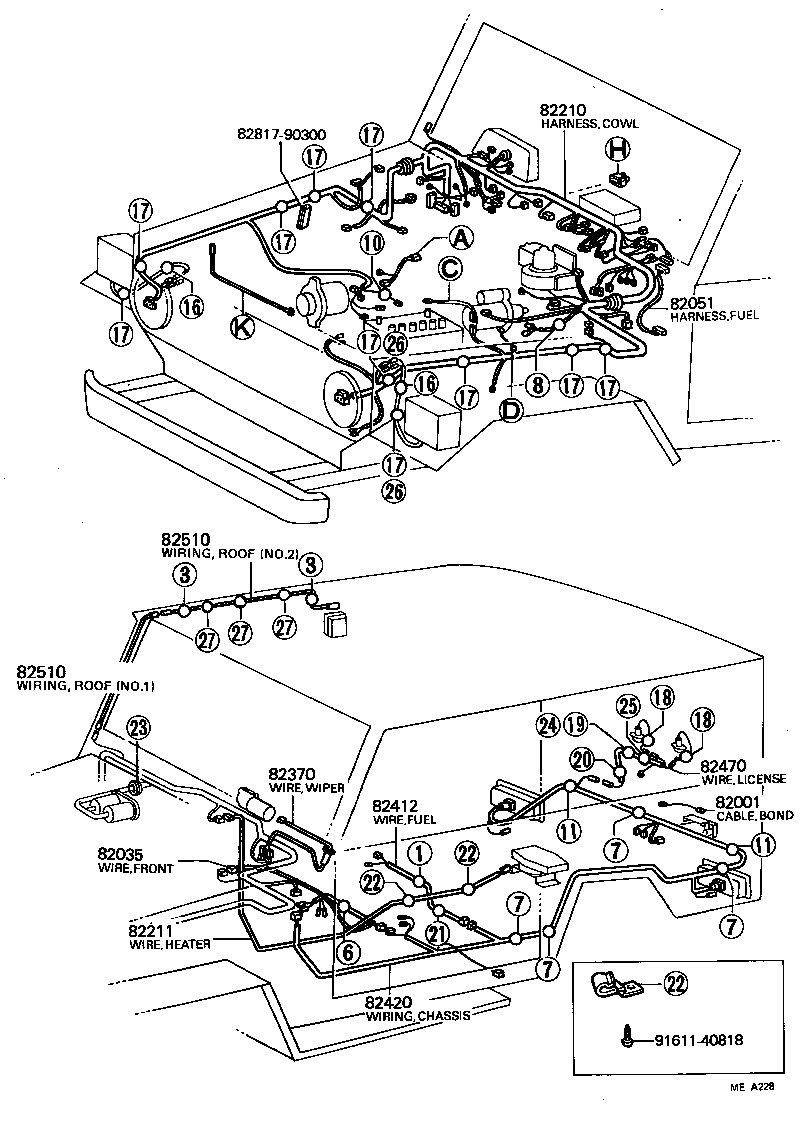

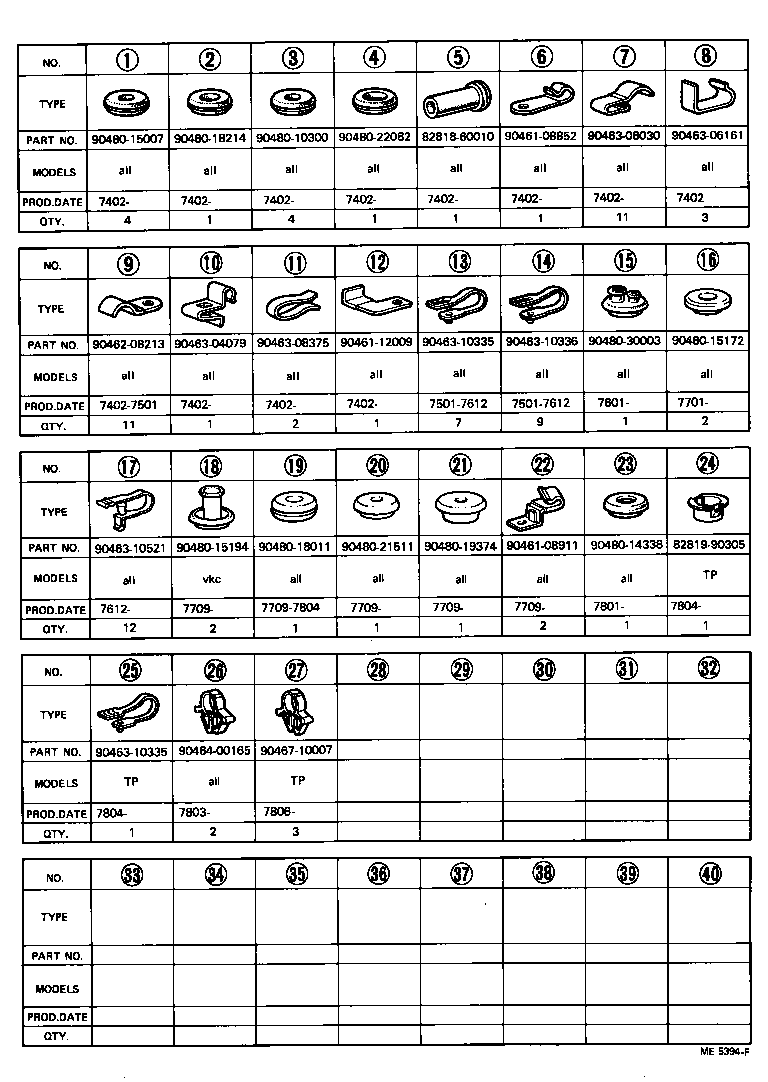

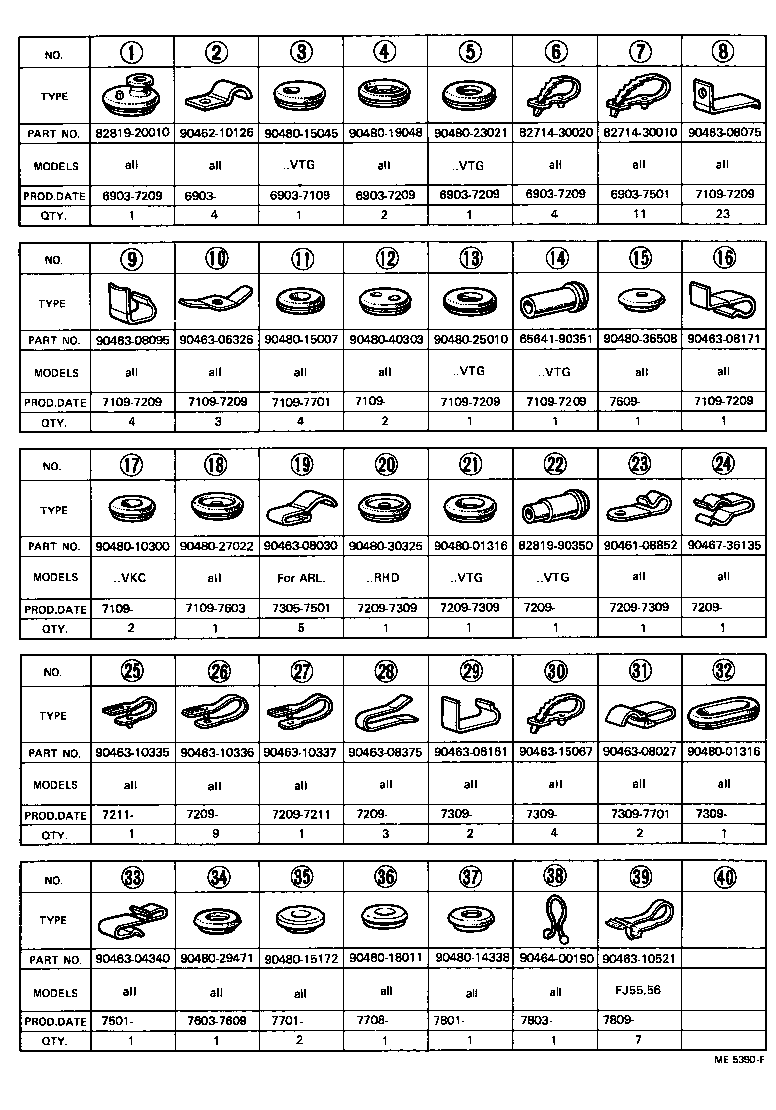

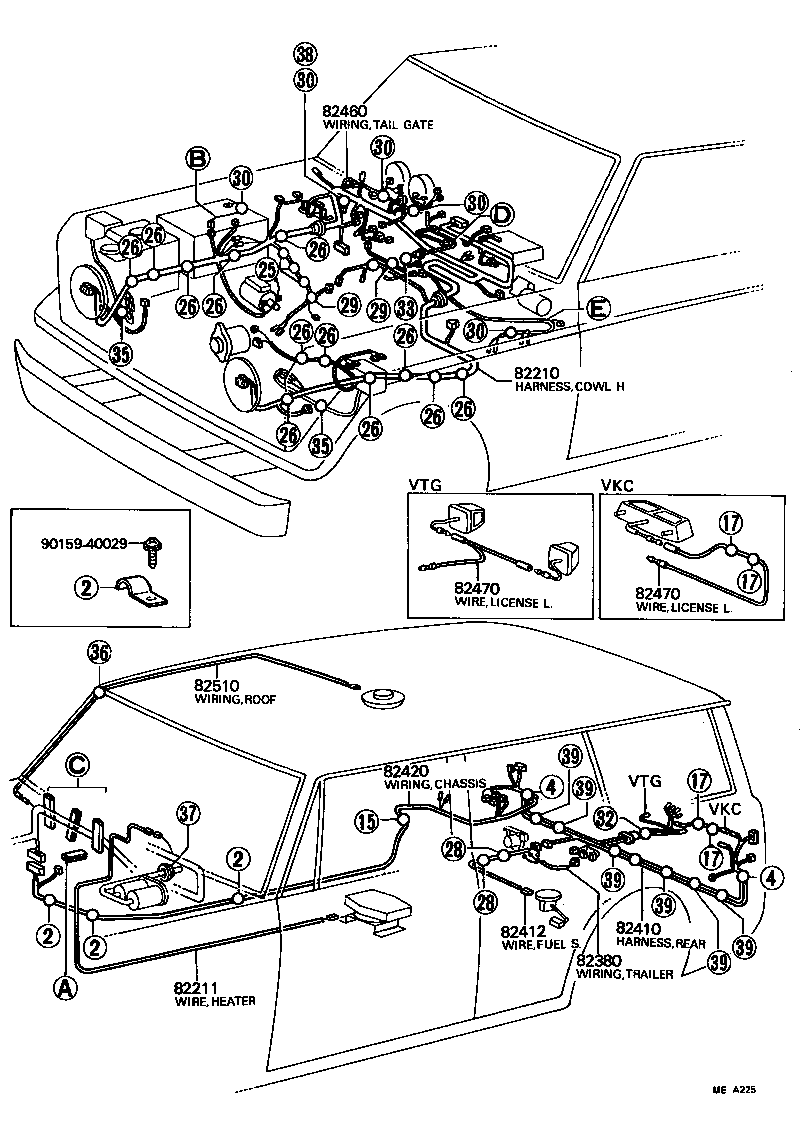

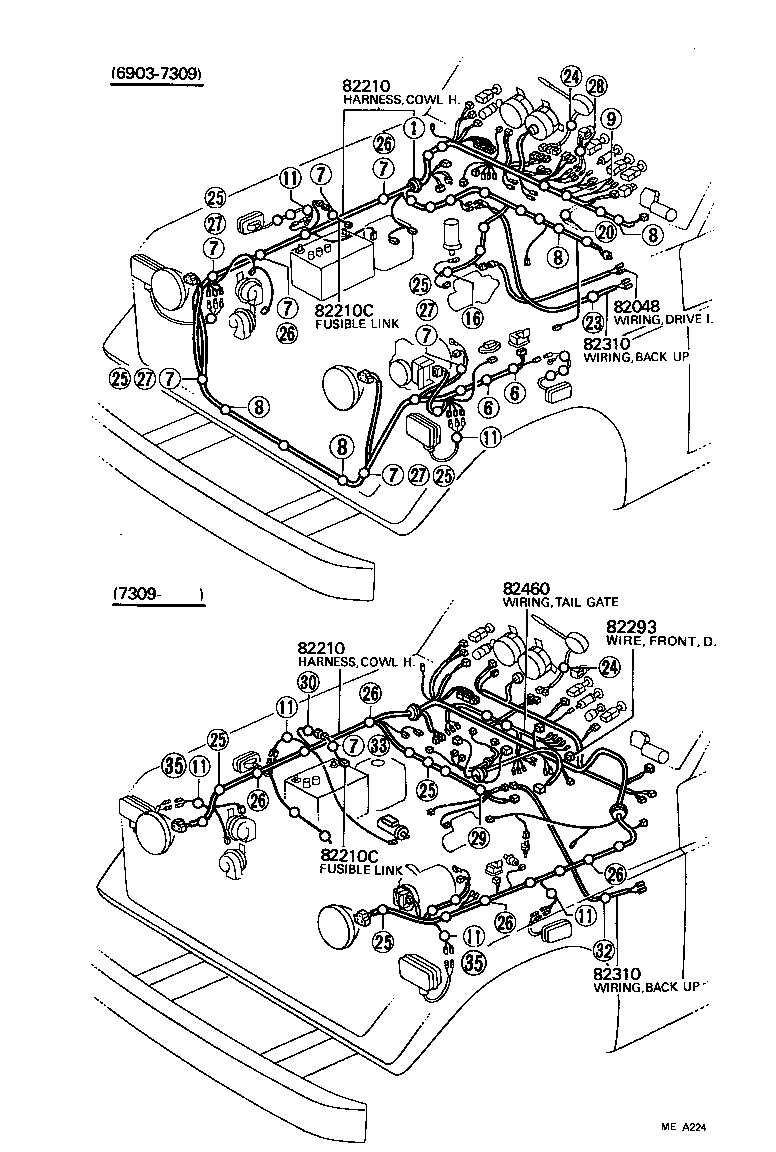

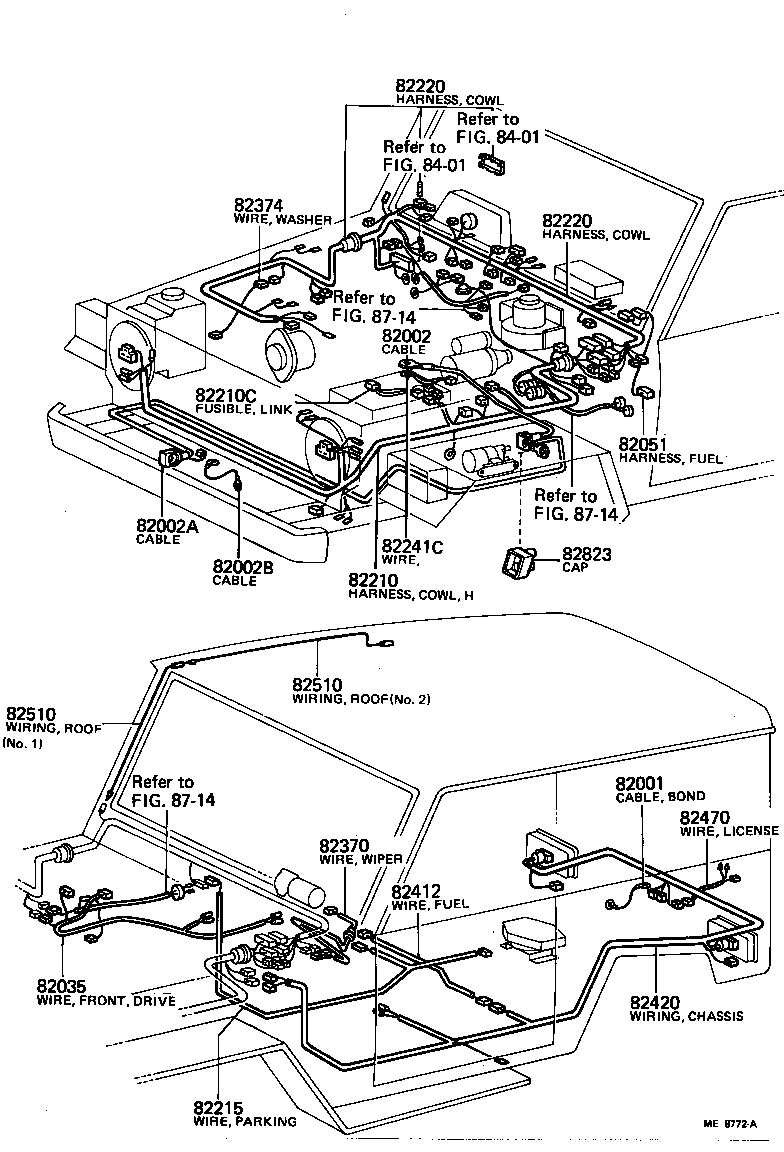

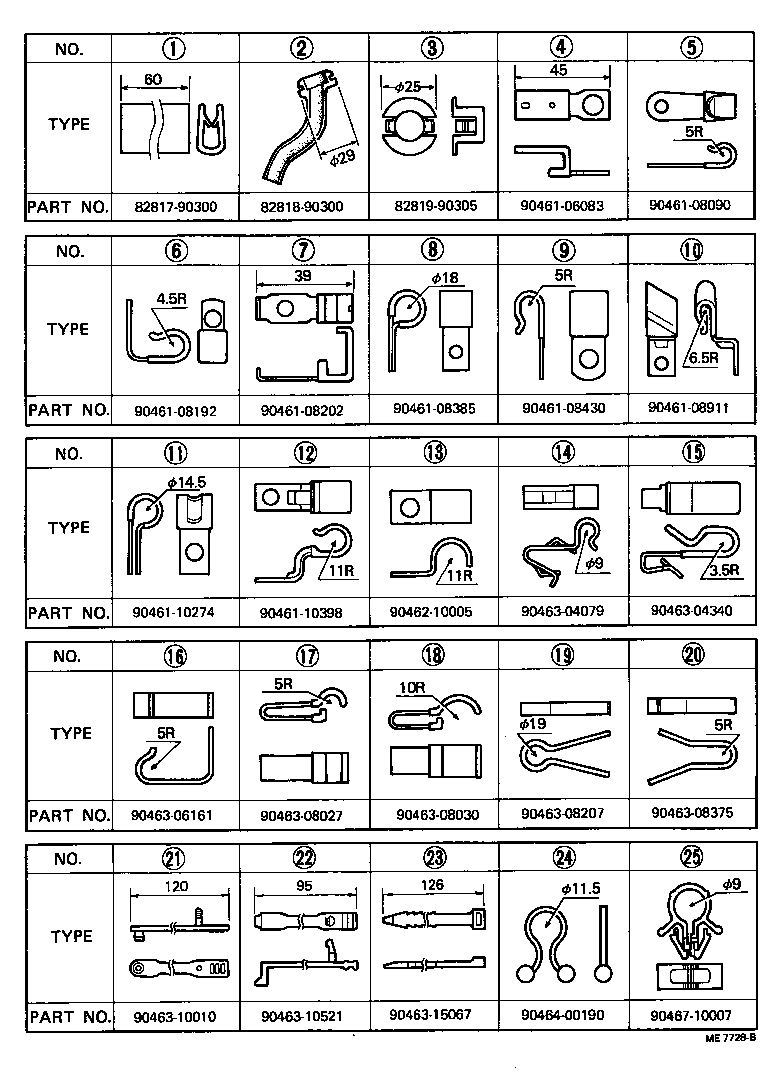

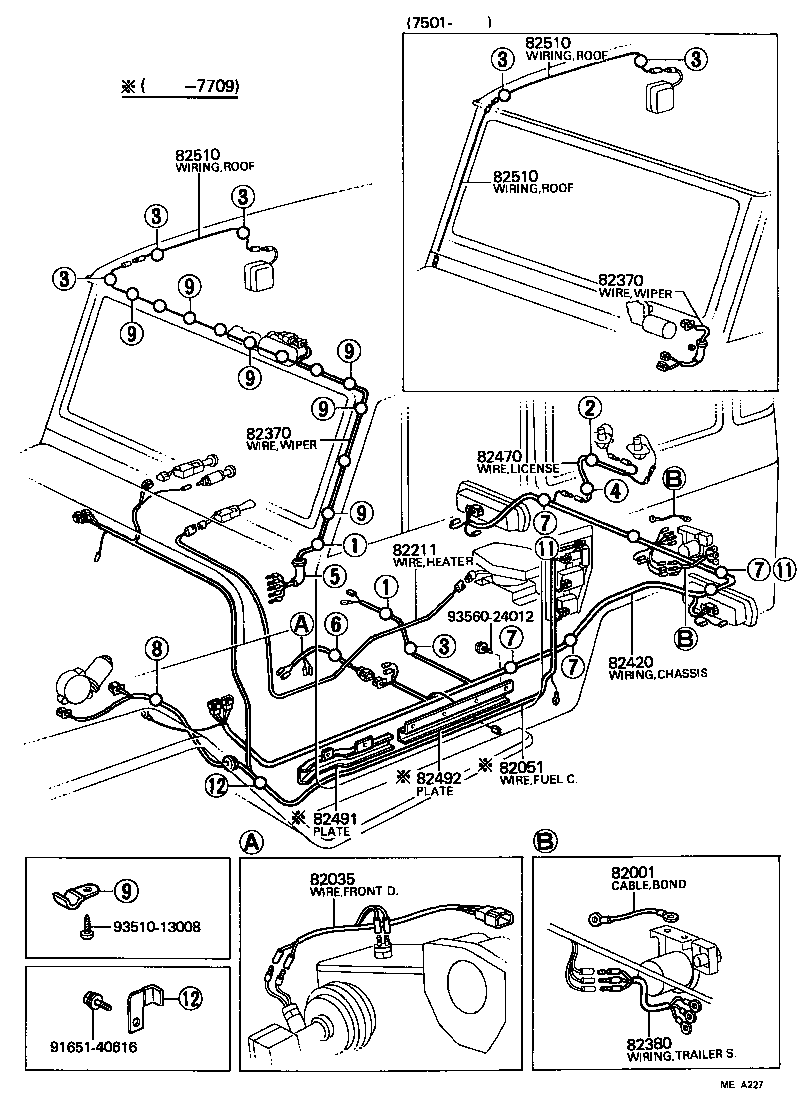

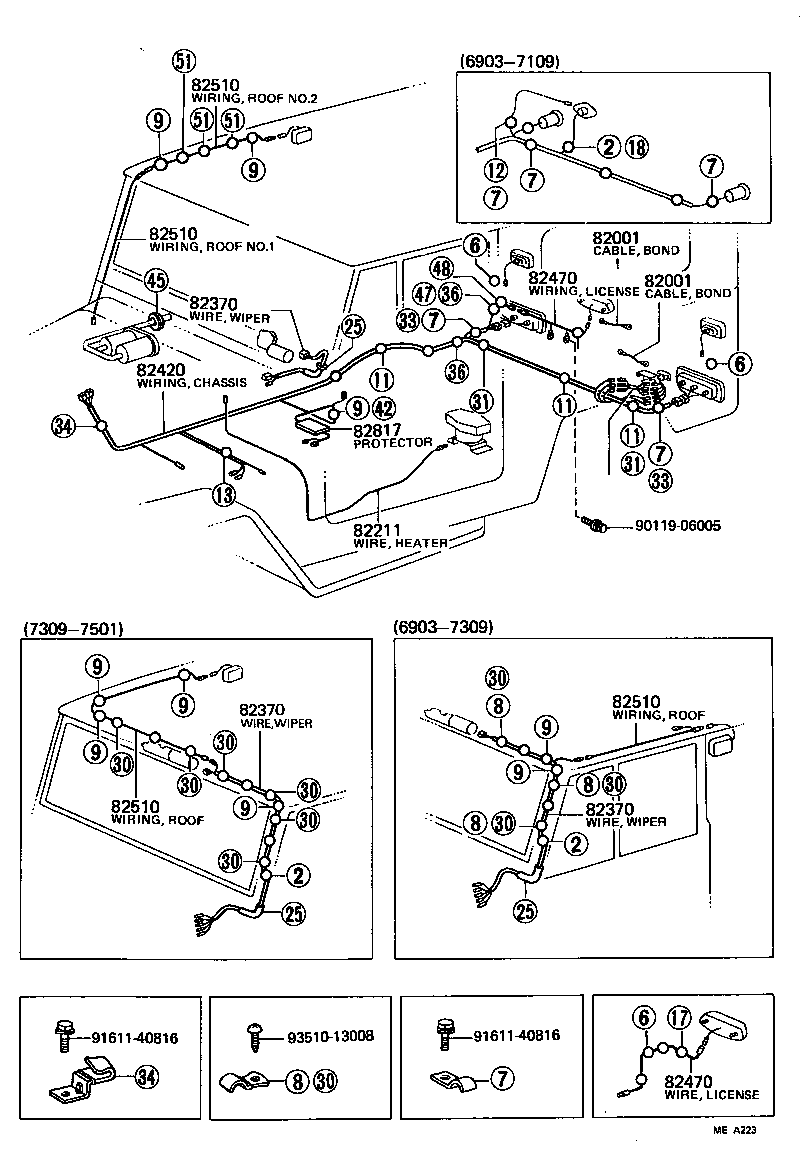

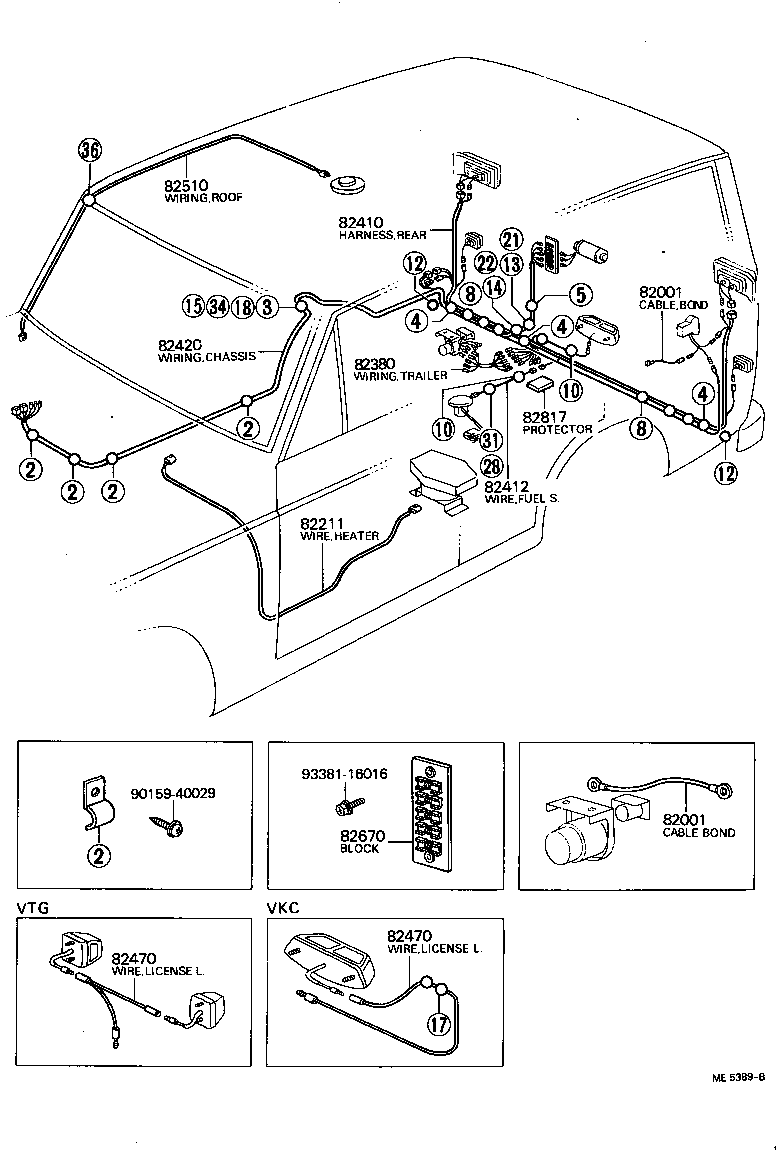

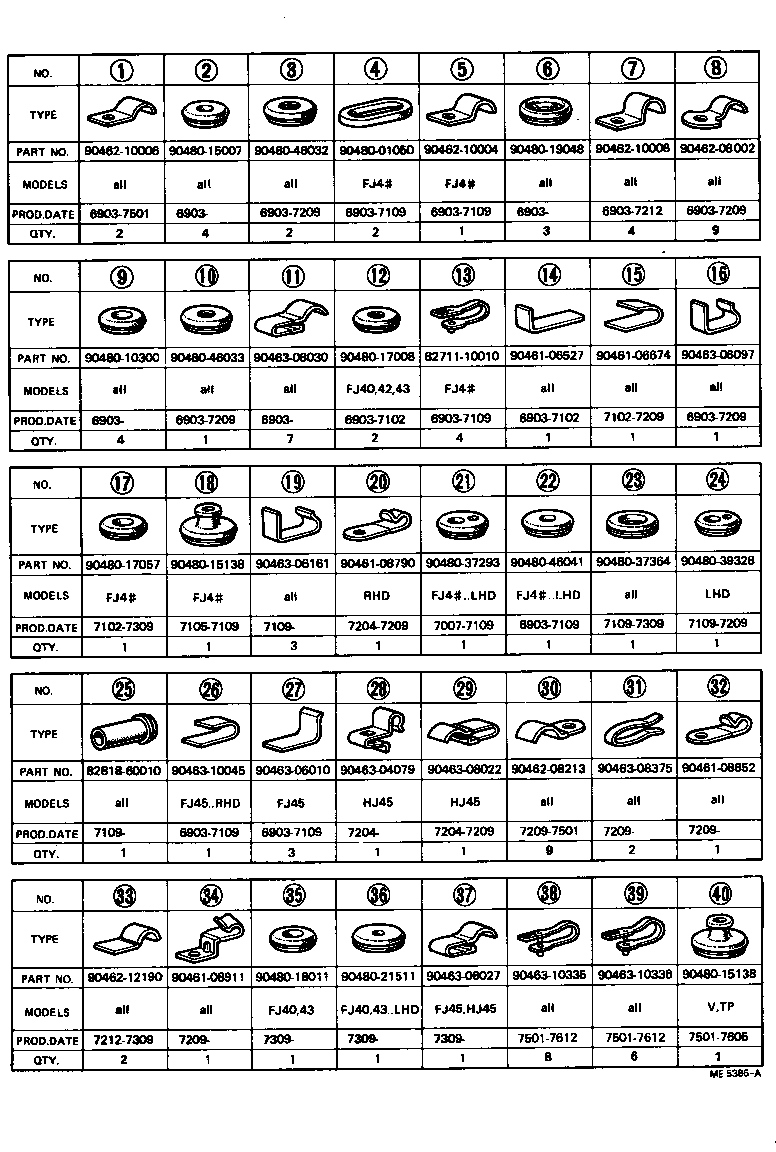

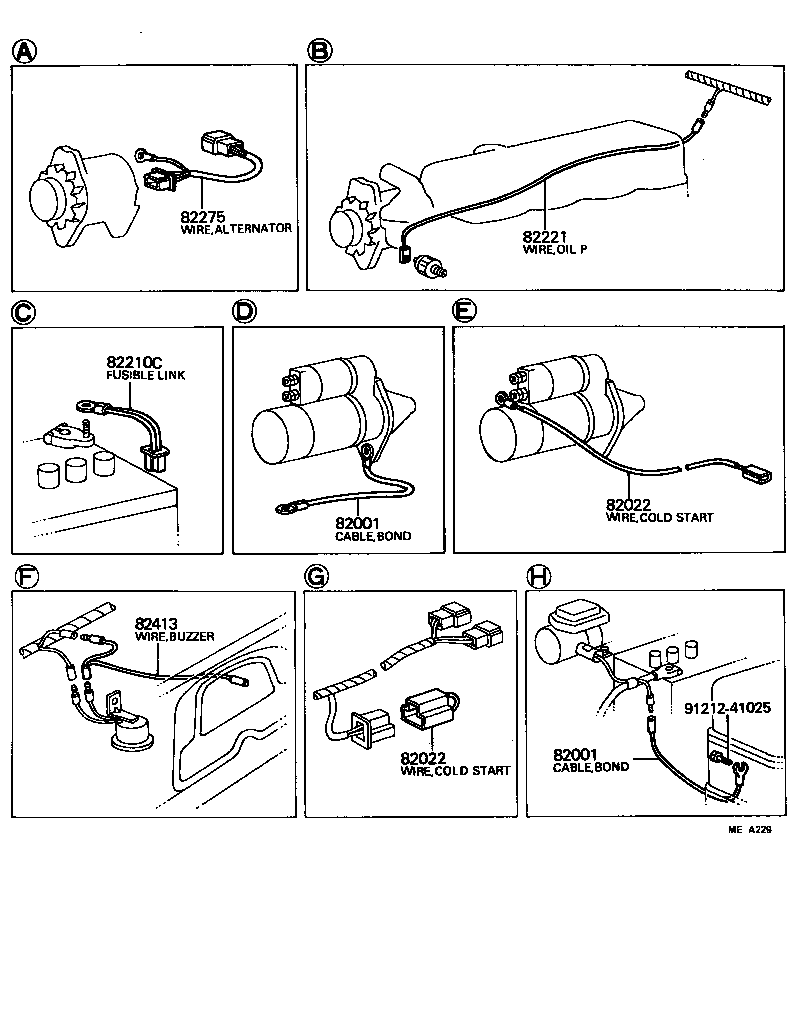

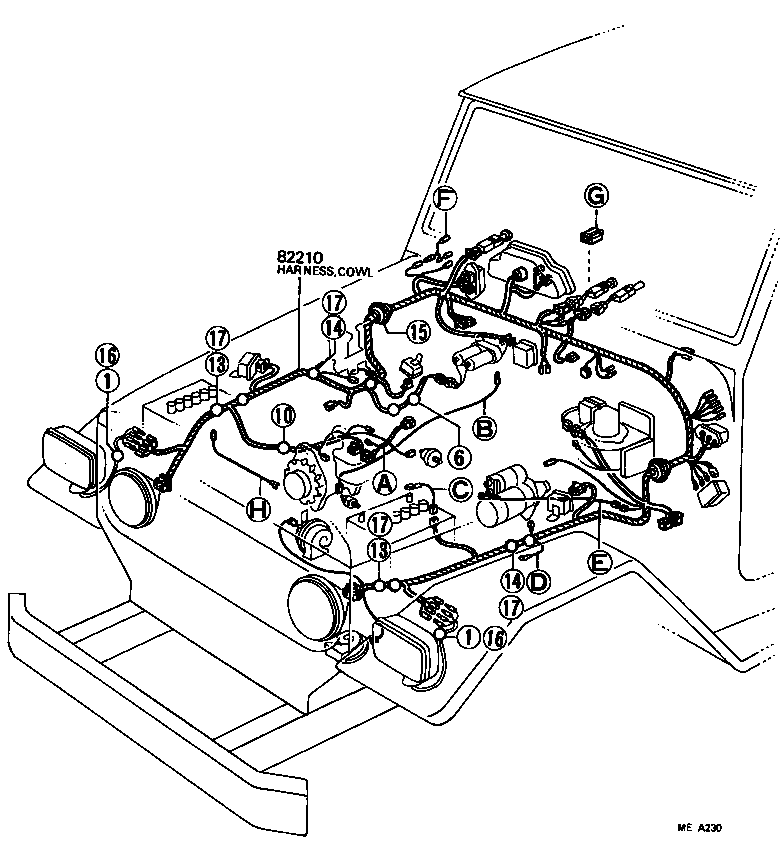

Figure MEA222 MEA222 1969-03 → 1975-09 Figure MEA223 MEA223 1969-03 → 1975-09 Figure ME5386A ME5386A 1969-03 → 1975-09 Figure MEA224 MEA224 1969-03 → 1977-09 Figure ME5389B ME5389B 1969-03 → 1977-09 Figure MEA225 MEA225 1977-09 → 1979-02 Figure MEA226 MEA226 1977-09 → 1979-02 Figure ME5390F ME5390F 1969-03 → 1979-02 Figure MEA230 MEA230 1974-02 → 1977-09 Figure MEA227 MEA227 1974-02 → 1977-09 Figure MEA228 MEA228 1977-09 → 1979-02 Figure MEA229 MEA229 1974-02 → 1979-02 Figure ME5394F ME5394F 1974-02 → 1979-02 Figure ME8771A ME8771A 1979-02 → 1980-07 Figure ME8772A ME8772A 1979-02 → 1980-07 Figure ME7728B ME7728B 1979-02 → 1980-07 Figure ME7729D ME7729D 1979-02 → 1980-07

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82002 Cable, Battery TO Magnet Switch
82002A Cable, Magnet Switch TO Winch
82002B Cable, Winch TO Ground
82011 Wiring Assy, Brake Warning System
82022 Wiring Sub-assy, Cold Start Switch
82035 Wire Sub-assy, Front Drive
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch
82051 Harness Assy, Fuel Control
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82211 Wire, Heater Blower Fan Switch
82215 Wire, Parking Brake Lamp Switch
82220 Harness Assy, Wiring Cowl
82221 Wire, Oil Pressure Switch
82241 Wiring Assy, Headlamp Junction
82241C Wire, Relay
82275 Wire, Alternator
82293 Wire Assy, Front Drive Solenoid
82310 Wiring Assy, TO Back UP Lamp Switch
82370 Wire Assy, Wiper Switch TO Wiper
82374 Wire, Washer
82380 Wiring Assy, Trailer Socket
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82413 Wire, Buzzer
82420 Wiring Assy, Chassis
82460 Wiring Assy, Tail Gate Regulator
82470 Wire Assy, License Lamp Feed
82491 Plate, Wiring Harness Protector, NO.1
82492 Plate, Wiring Harness Protector, NO.2
82510 Wiring Assy, Roof
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
