Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 5 illustrations

Illustrations

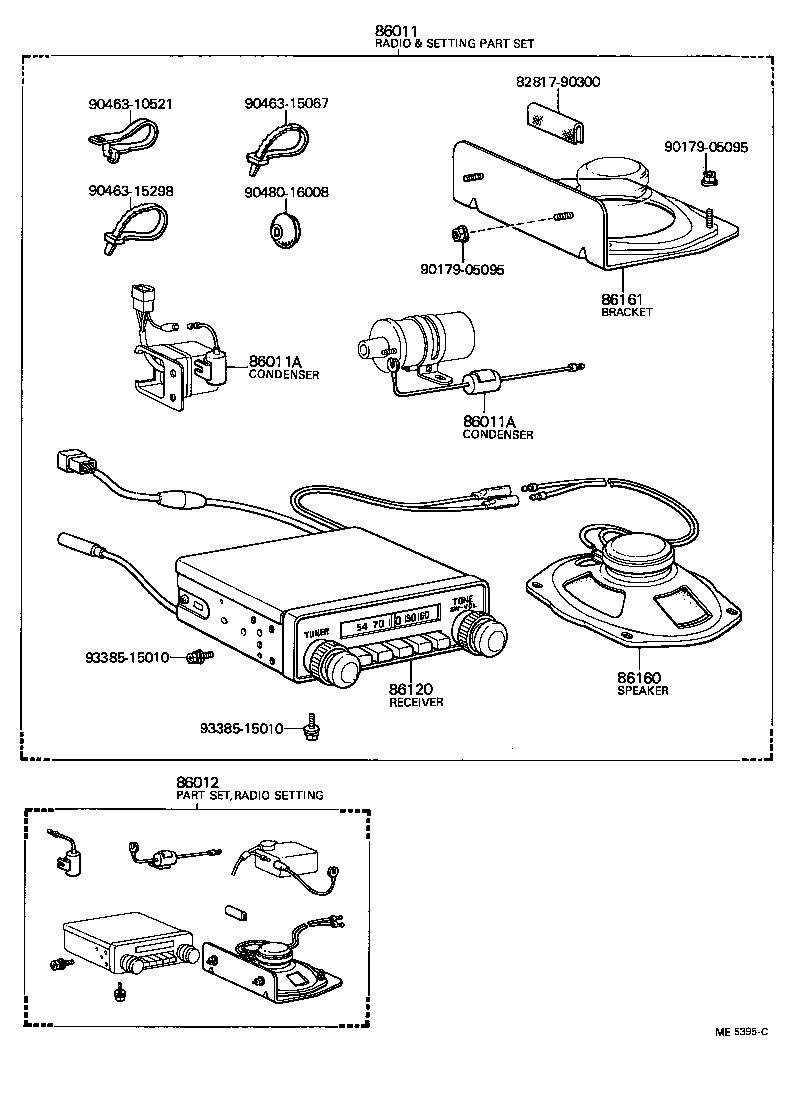

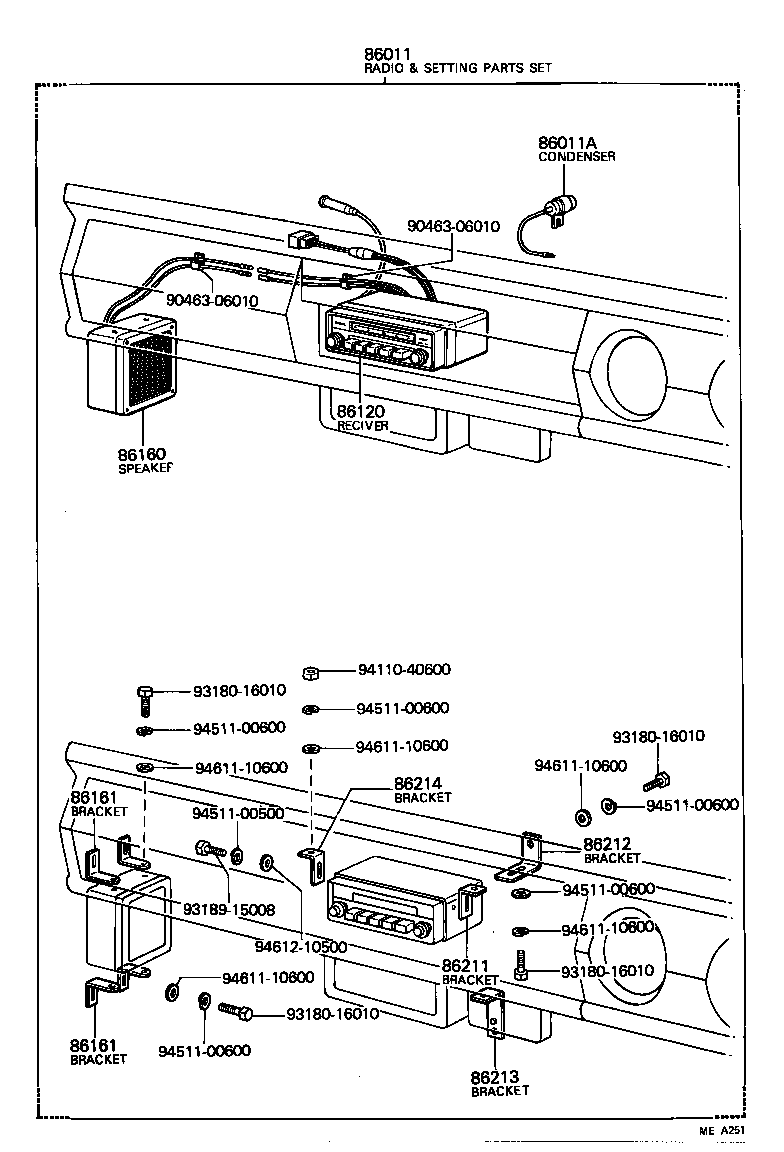

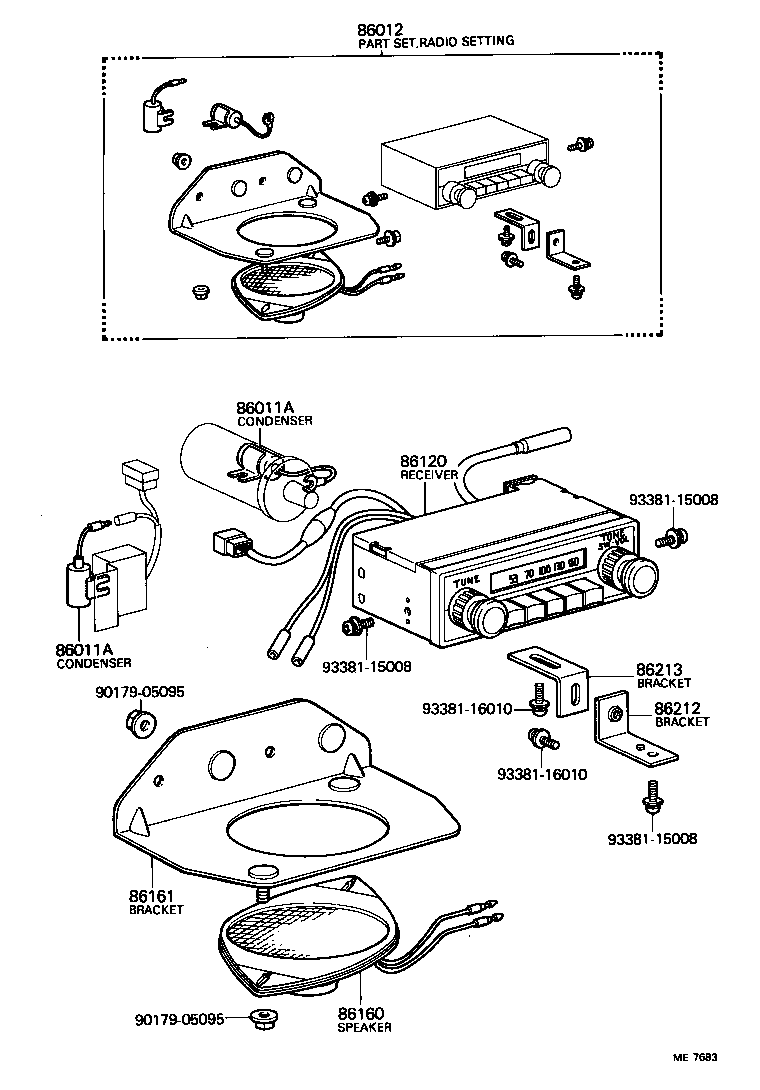

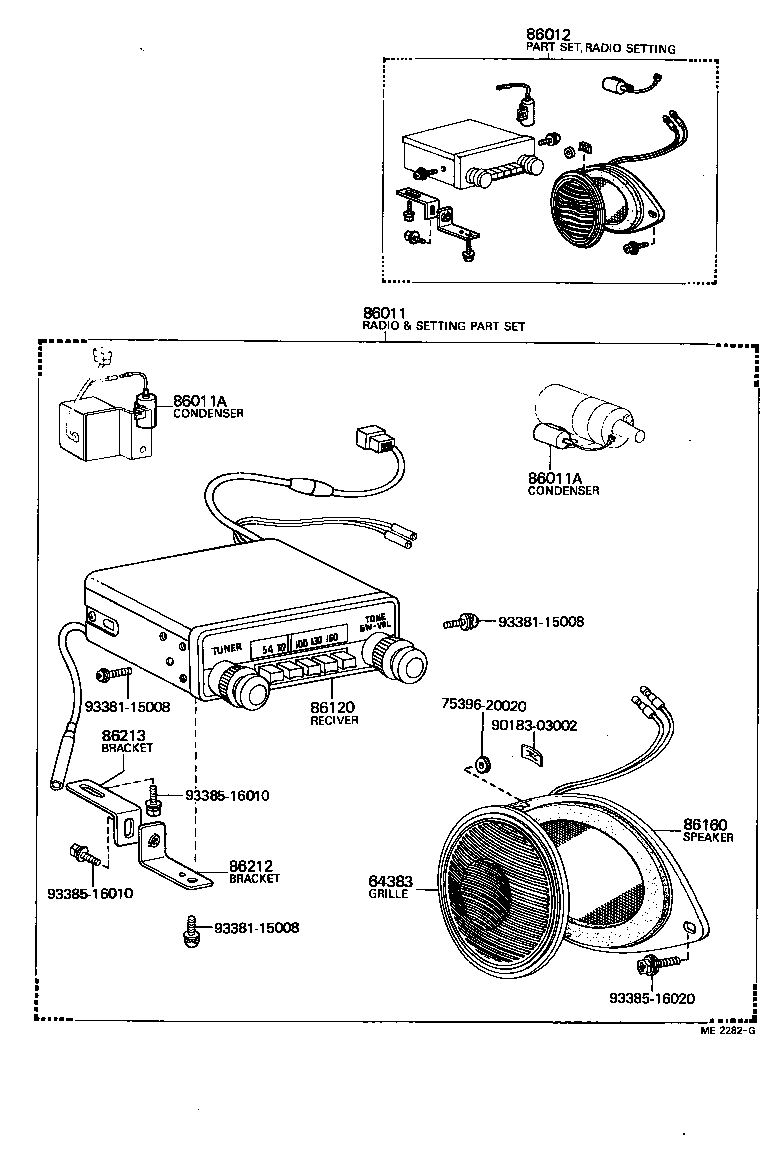

Figure ME1897E ME1897E 1972-09 → 1976-08 Figure ME5395C ME5395C 1976-08 → 1980-07 Figure MEA251 MEA251 1969-03 → 1972-09 Figure ME2282G ME2282G 1972-09 → 1979-02 Figure ME7683 ME7683 1979-02 → 1980-07

Part groups

PNCDescription
64383 Grille, Speaker, Rear
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86012 Parts Set, Radio Setting
86105 Panel Sub-assy, Speaker Separate
86120 Receiver Assy, Radio
86160 Speaker Assy, Front NO.1
86161 Bracket, Speaker, Front NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86214 Bracket, Radio, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
