Toyota Land Cruiser Van

1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan

Discontinued model Data version 1981-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 6 illustrations

Illustrations

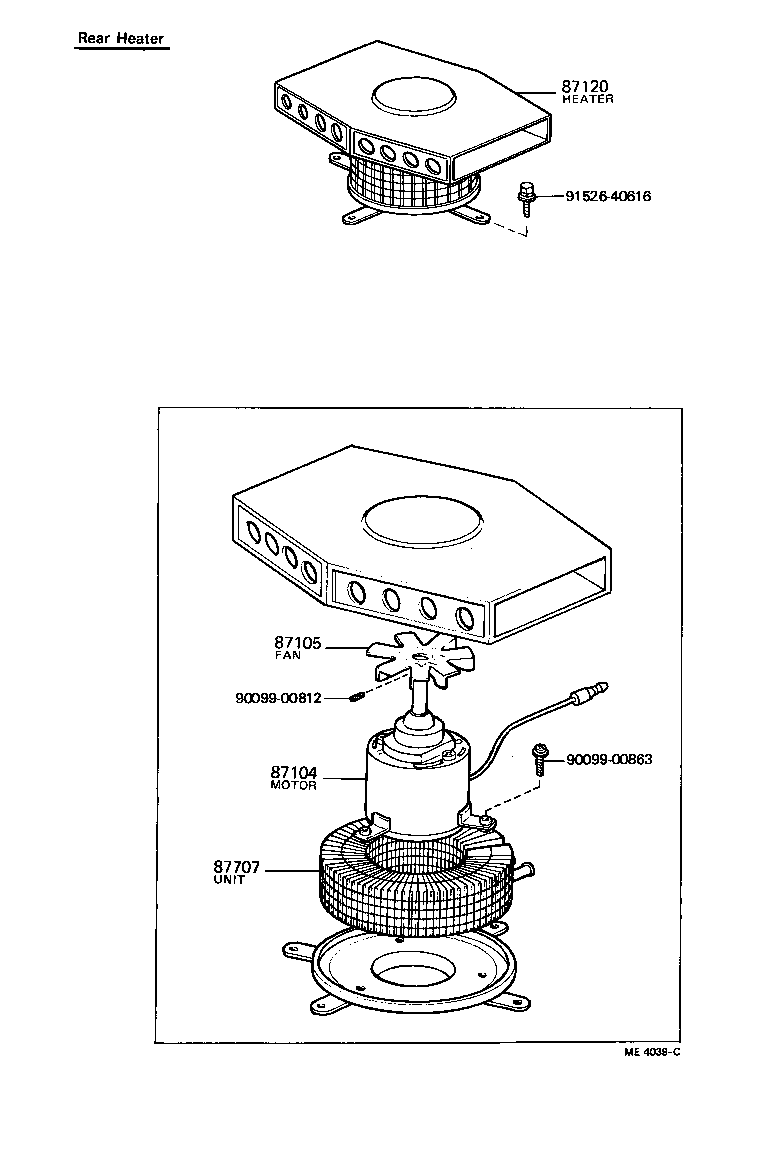

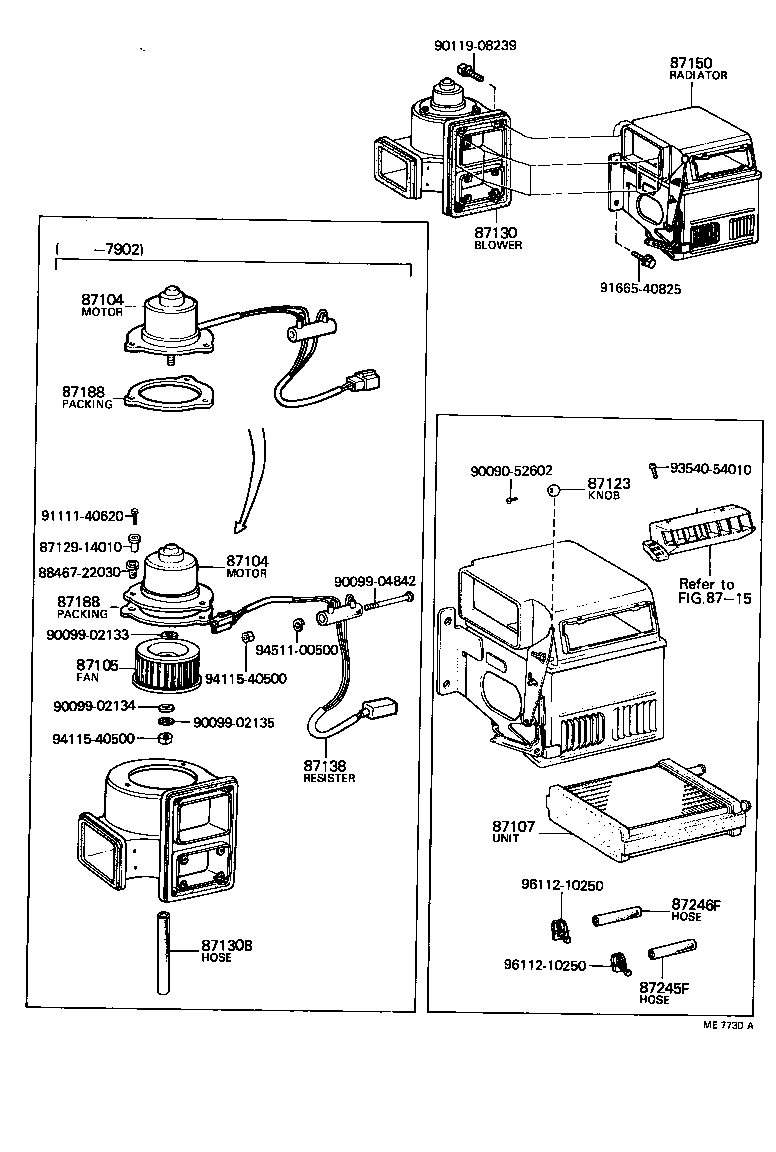

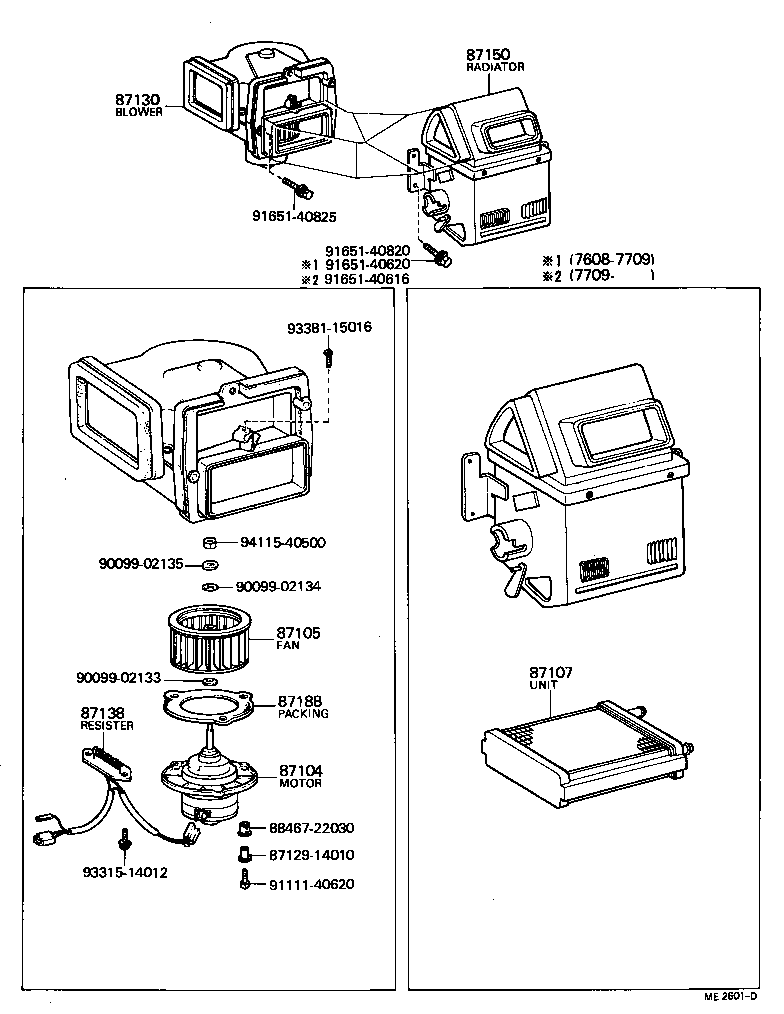

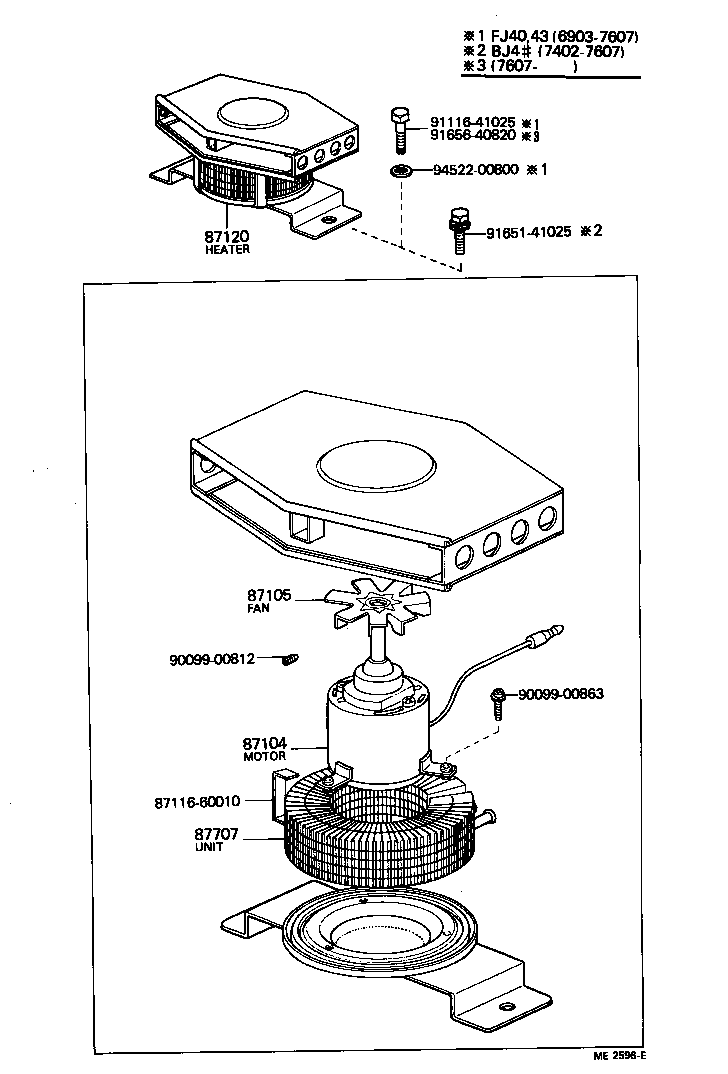

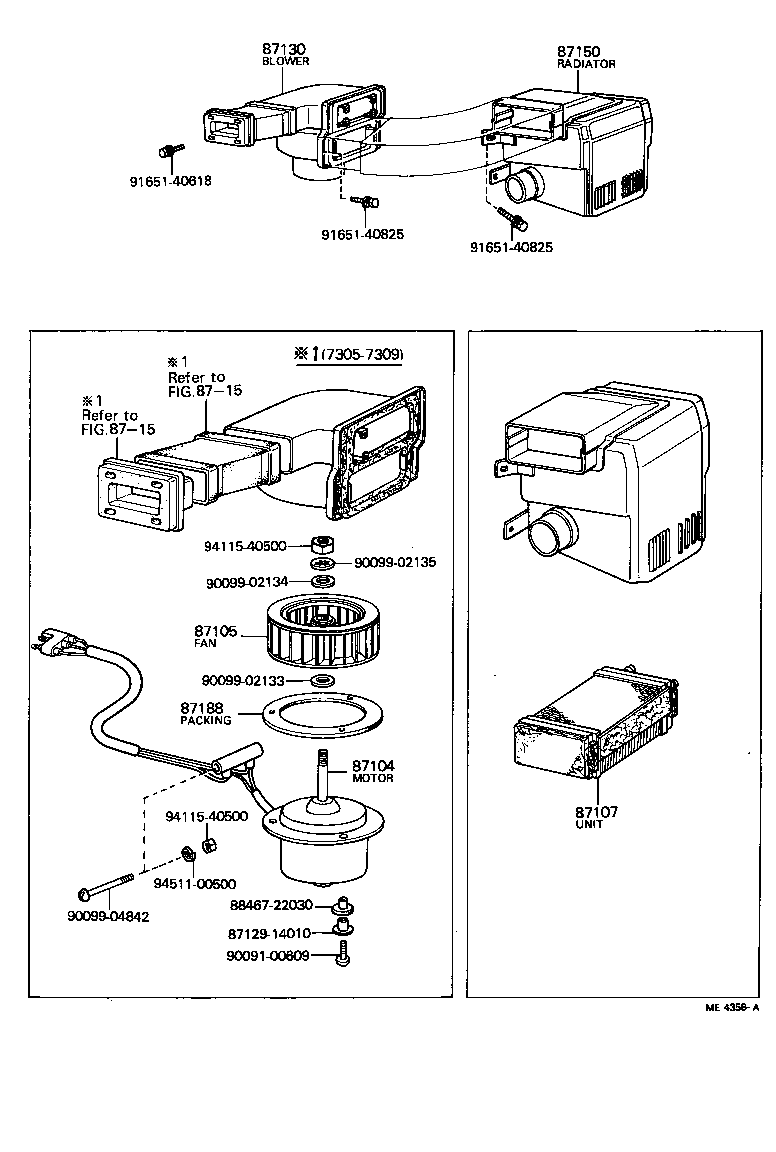

Figure ME1673C ME1673C 1969-03 → 1973-09 Figure ME7730A ME7730A 1973-09 → 1980-07 Figure ME2596E ME2596E 1969-03 → 1980-07 Figure ME4358A ME4358A 1969-03 → 1973-09 Figure ME2601D ME2601D 1973-09 → 1980-07 Figure ME4039C ME4039C 1973-09 → 1980-07

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87120 Heater Assy, Rear
87123 Knob, Heater
87130 Blower Assy, Heater, Front
87130B Hose, Heater Blower Drain
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87188 Packing, Heater Blower Motor
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87707 Unit Sub-assy, Rear Heater Radiator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
