Toyota Land Cruiser Van
1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan
Discontinued model
Data version 1981-01
Heating & Air Conditioning - Control & Air Duct

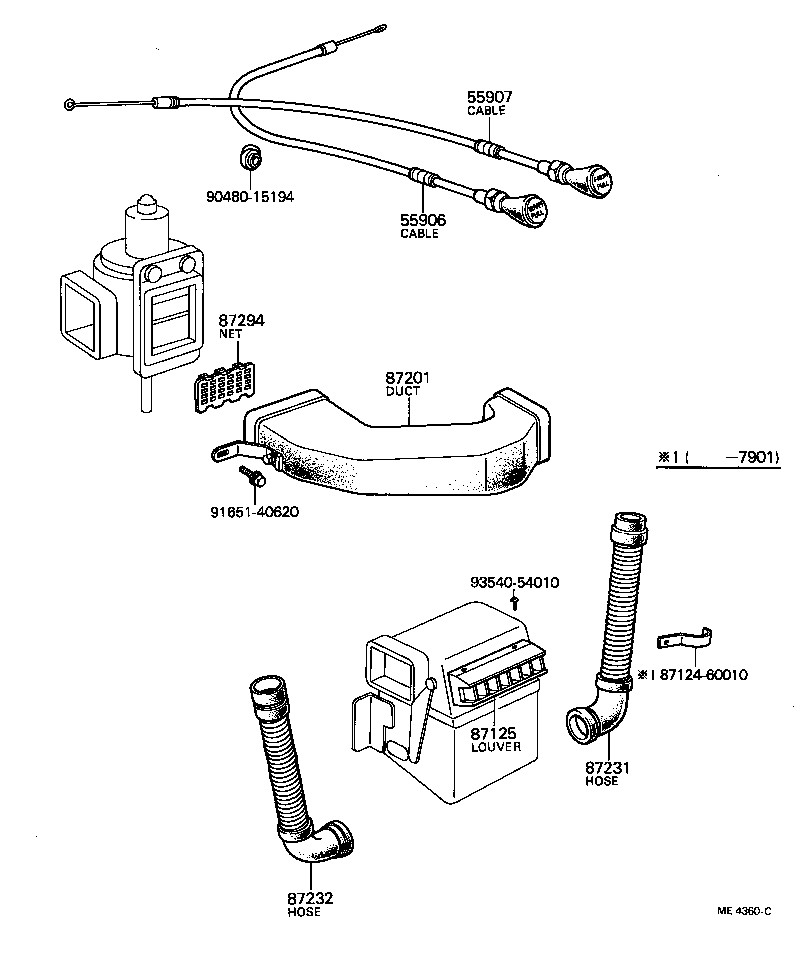

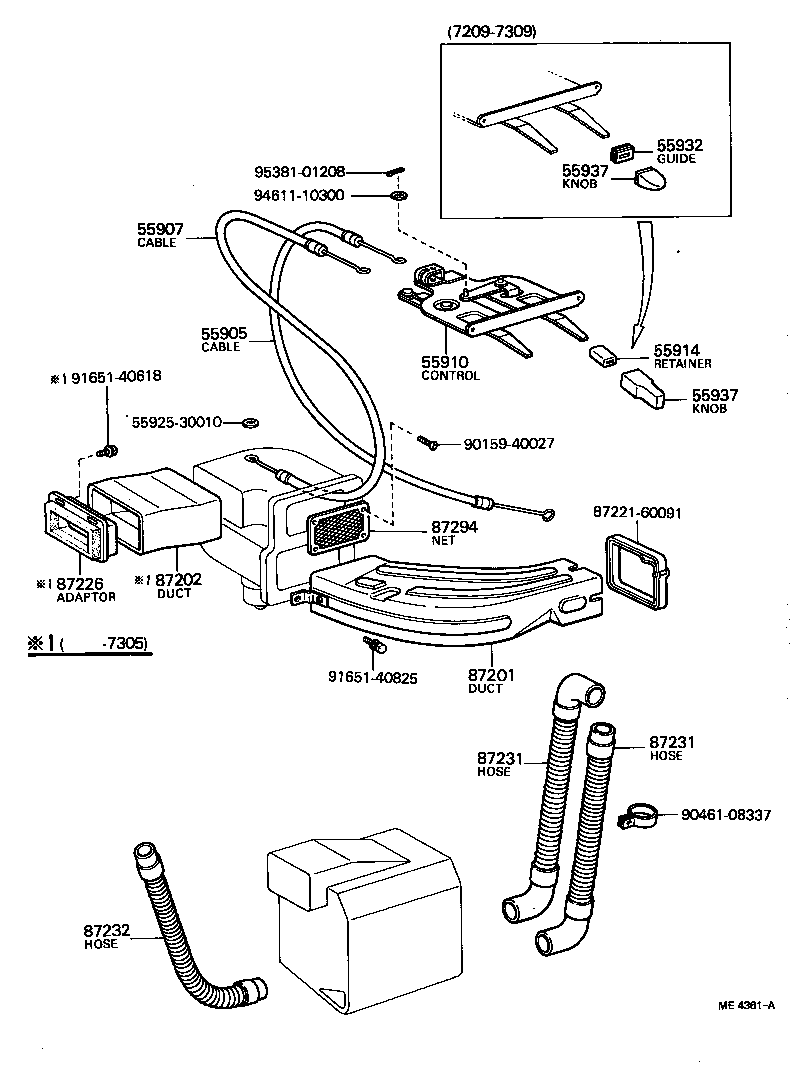

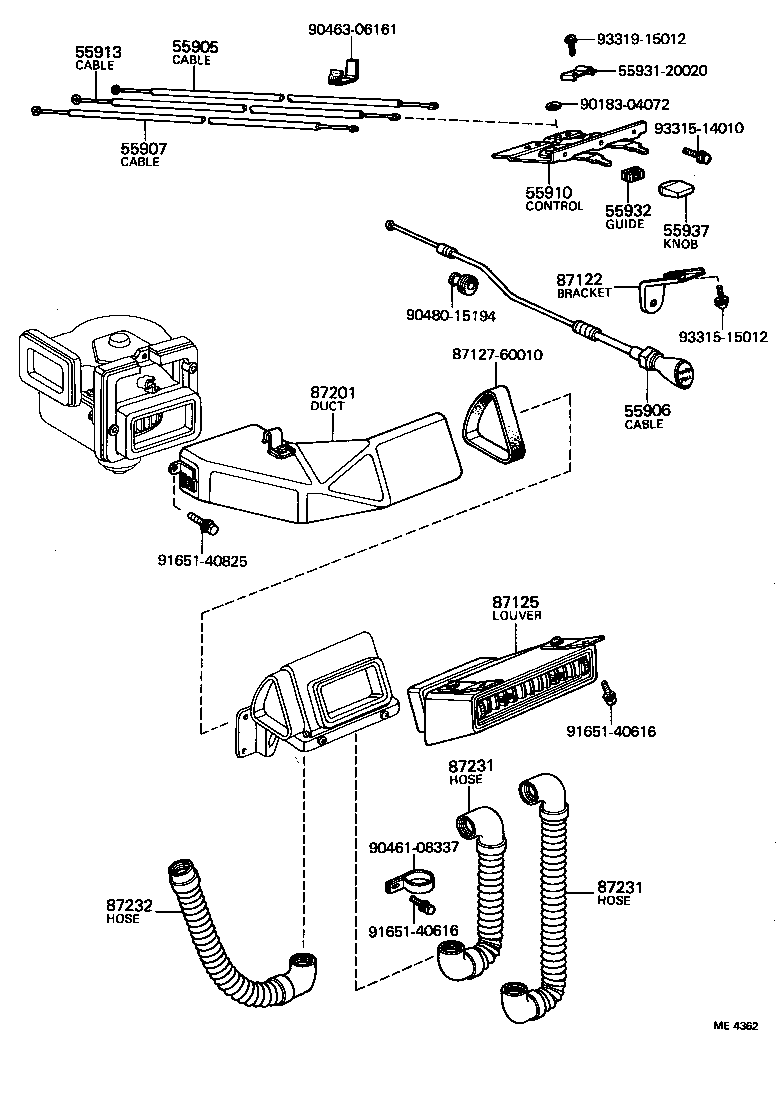

16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55905 | Cable Sub-assy, Defrost Control |
| 55906 | Cable Sub-assy, Heater Control |
| 55907 | Cable Sub-assy, Heater Air Inlet Butterfly |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55913 | Cable Sub-assy, Boost Vent Control |
| 55914 | Retainer, Heater Control Knob |
| 55932 | Guide, Lever, NO.1 |
| 55937 | Knob, Heater Control Lever |
| 87122 | Bracket, Heater Control Cable |
| 87125 | Louver, Ventilation |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87202 | Duct, Heater Air |
| 87226 | Adapter, Air Duct |
| 87231 | Hose, Heater Defroster, RH |
| 87232 | Hose, Heater Defroster, LH |
| 87294 | Net, Air Duct |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
