Toyota Land Cruiser Van
1969-03 → 1980-07 · chassis FJ4#,5#,BJ4# · catalogue 791110 · Japan
Discontinued model
Data version 1981-01

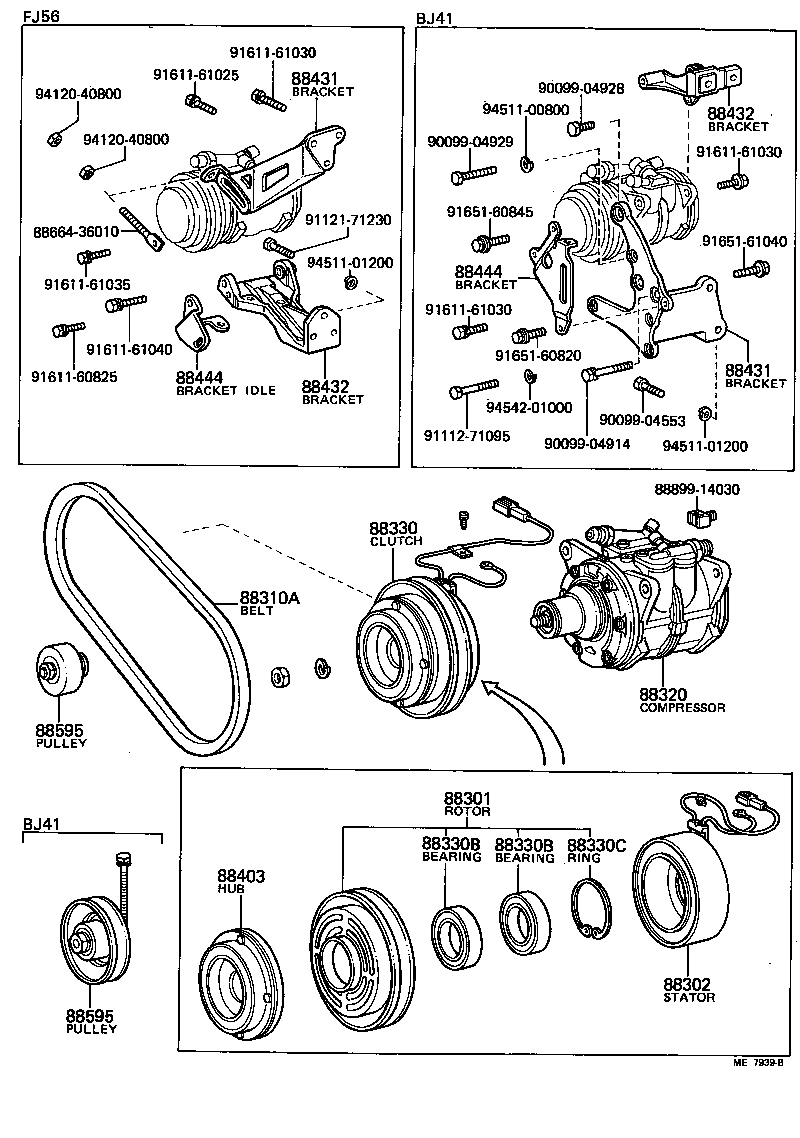

Heating & Air Conditioning - Compressor
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88310 | Compressor Assy, W/Pulley |
| 88310A | Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 |
| 88320 | Compressor Assy, Cooler |
| 88330 | Clutch Assy, Magnet |
| 88330B | Bearing, Magnet Clutch |
| 88330C | Ring, Snap (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88413 | Pulley Sub-assy, Magnet Clutch |
| 88414 | Ring, Shield |
| 88414A | Ring, Shield Snap |
| 88415 | Retainer, Magnet Clutch Bearing, NO.1 |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88432 | Bracket, Compressor Mounting, NO.2 |
| 88433 | Bracket, Compressor Mounting, NO.3 |
| 88444 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
