Toyota Land Cruiser Van
1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan
Discontinued model
Data version 1988-01

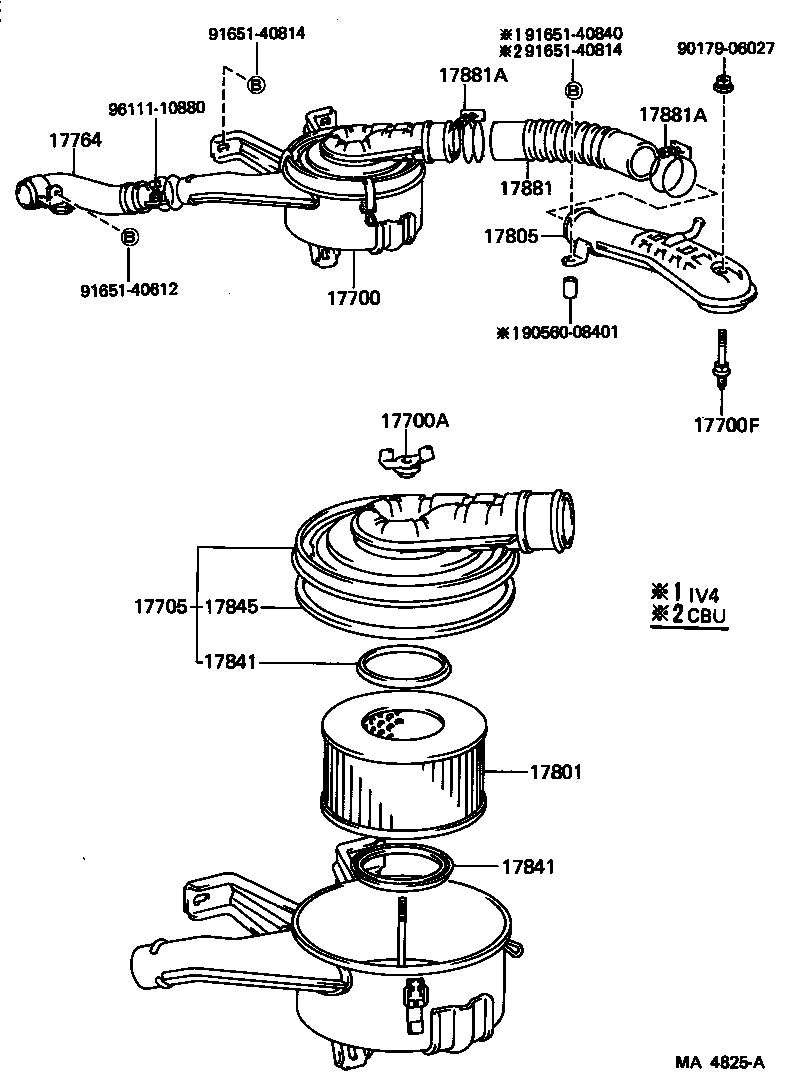

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-68010 |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
2F FJ60 | ¥27,300 | |
| 17700-68010 |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
3B BJ60 | ¥27,300 | |
| 17700-68011 |
Cleaner Assy, Air
1982-10 → 1984-11
ended
|
2H HJ60 | ¥27,300 | |
| 17700-68011 |
Cleaner Assy, Air
1982-10 → 1984-11
ended
|
2F FJ61 | ¥27,300 | |
| 17700-68011 |
Cleaner Assy, Air
1982-10 → 1984-11
ended
|
3B BJ61 | ¥27,300 | |
| 17700-68140 |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
3B BJ61 | ¥27,400 | |
| 17700-68140 |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
3F FJ62 | ¥27,400 | |
| 17700-68140 |
Cleaner Assy, Air
1984-11 → 1986-08
ended
|
2H HJ60 | ¥27,400 | |
| 17700-68140 |
Cleaner Assy, Air
1986-08 → 1987-08
ended
|
3F FJ62 | ¥27,400 | |
| 17700-68180 |
Cleaner Assy, Air
1985-10 → 1987-08
ended
|
12HT HJ61 | ¥31,800 | |
| 17700-68210 note |
Cleaner Assy, Air
1985-10 → 1986-08
ended
|
2H HJ60 4FC | ¥27,400 | |
| 17700-68220 |
Cleaner Assy, Air
1986-08 → 1987-08
ended
|
2H HJ60 | ¥31,700 | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08
ended
|
3B BJ6# | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08
ended
|
2F,3F FJ6# | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08
ended
|
12HT,2H HJ6# | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1984-11
ended
|
2F FJ6# | ¥240 | |
| 90116-06024 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1987-08
ended
|
3F FJ62 CBU | ¥200 | |
| 90116-06222 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1987-08
ended
|
3F FJ62 IV4 | ¥230 | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-68010 |
Cap Sub-assy, Air Cleaner
1980-08 → 1984-11
ended
|
3B BJ6# | — | |
| 17705-68010 |
Cap Sub-assy, Air Cleaner
1980-08 → 1984-11
ended
|
2F FJ6# | — | |
| 17705-68010 |
Cap Sub-assy, Air Cleaner
1980-08 → 1984-11
ended
|
2H HJ60 | — | |
| 17705-68100 |
Cap Sub-assy, Air Cleaner
1984-11 → 1987-08
ended
|
3B BJ61 | — | |
| 17705-68100 |
Cap Sub-assy, Air Cleaner
1984-11 → 1987-08
ended
|
3F FJ62 | — | |
| 17705-68100 |
Cap Sub-assy, Air Cleaner
1984-11 → 1987-08
ended
|
2H HJ60 | — | |
| 17705-68120 |
Cap Sub-assy, Air Cleaner
1985-10 → 1987-08
ended
|
12HT HJ61 | — | |
| 17764 — Duct, Air Cleaner | ||||
| 53207-90A00 |
Duct, Air Cleaner
1980-08 → 1987-08
ended
|
3B BJ6# | ¥3,470 | |
| 53207-90A00 |
Duct, Air Cleaner
1980-08 → 1987-08
ended
|
2F,3F FJ6# | ¥3,470 | |
| 53207-90A01 |
Duct, Air Cleaner
1982-10 → 1987-08
ended
|
12HT,2H HJ6# | ¥7,200 | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-66020 |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10
ended
|
3B BJ60 | ¥2,420 | |
| 17801-66020 |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10
ended
|
2F FJ60 | ¥2,420 | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08
ended
|
3B BJ61 | ¥3,990 | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08
ended
|
2F,3F FJ6# | ¥3,990 | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08
ended
|
2H HJ60 | ¥3,990 | |
| 17801-68030 |
Element Sub-assy, Air Cleaner Filter
1985-10 → 1987-08
ended
|
12HT HJ61 | ¥5,100 | |
| 17805 — Connector Sub-assy, Intake Air | ||||
| 17805-61010 |
Connector Sub-assy, Intake Air
1980-08 → 1984-11
ended
|
2F FJ6# | ¥17,000 | |
| 17805-61020 |
Connector Sub-assy, Intake Air
1984-11 → 1987-08
ended
|
3F FJ62 CBU | ¥12,200 | |
| 17805-61030 |
Connector Sub-assy, Intake Air
1984-11 → 1987-08
ended
|
3F FJ62 IV4 | ¥12,100 | |
| 17841 — Gasket, Filter Element | ||||
| 17841-68010 |
Gasket, Filter Element
1980-08 → 1987-08
ended
|
3B BJ6# | ¥0 | |
| 17841-68010 |
Gasket, Filter Element
1980-08 → 1987-08
ended
|
2F,3F FJ6# | ¥0 | |
| 17841-68010 |
Gasket, Filter Element
1980-08 → 1987-08
ended
|
12HT,2H HJ6# | ¥0 | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1987-08
ended
|
3B BJ61 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1987-08
ended
|
12HT,2H HJ6# | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1987-08
ended
|
2F,3F FJ6# | — | |
| 17845-68010 |
Gasket, Air Cleaner Cap
1980-08 → 1982-10
ended
|
2F FJ60 | — | |
| 17845-68010 |
Gasket, Air Cleaner Cap
1980-08 → 1982-10
ended
|
3B BJ60 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-58010 |
Hose, Air Cleaner, NO.1
1980-08 → 1984-11
ended
|
3B BJ6# | ¥5,100 | |
| 17881-58090 |
Hose, Air Cleaner, NO.1
1984-11 → 1986-08
ended
|
3B BJ61 | ¥3,240 | |
| 17881-61050 |
Hose, Air Cleaner, NO.1
1980-08 → 1984-11
ended
|
2F FJ6# | ¥7,000 | |
| 17881-68010 |
Hose, Air Cleaner, NO.1
1982-10 → 1987-08
ended
|
2H HJ60 | ¥6,200 | |
| 17881-68060 |
Hose, Air Cleaner, NO.1
1985-10 → 1987-08
ended
|
12HT HJ61 | ¥4,560 | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1984-11
ended
|
3B BJ6# | ¥160 | |
| 96111-10710 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-11 → 1986-08
ended
|
3B BJ61 | ¥160 | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1982-10 → 1987-08
ended
|
2H HJ60 | ¥410 | |
| 96111-10800 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1984-11
ended
|
2F FJ6# | ¥160 | |
| 96111-10830 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1982-10 → 1987-08
ended
|
12HT,2H HJ6# | ¥180 | |
| 96111-10900 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-10 → 1987-08
ended
|
12HT HJ61 | ¥410 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
