Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

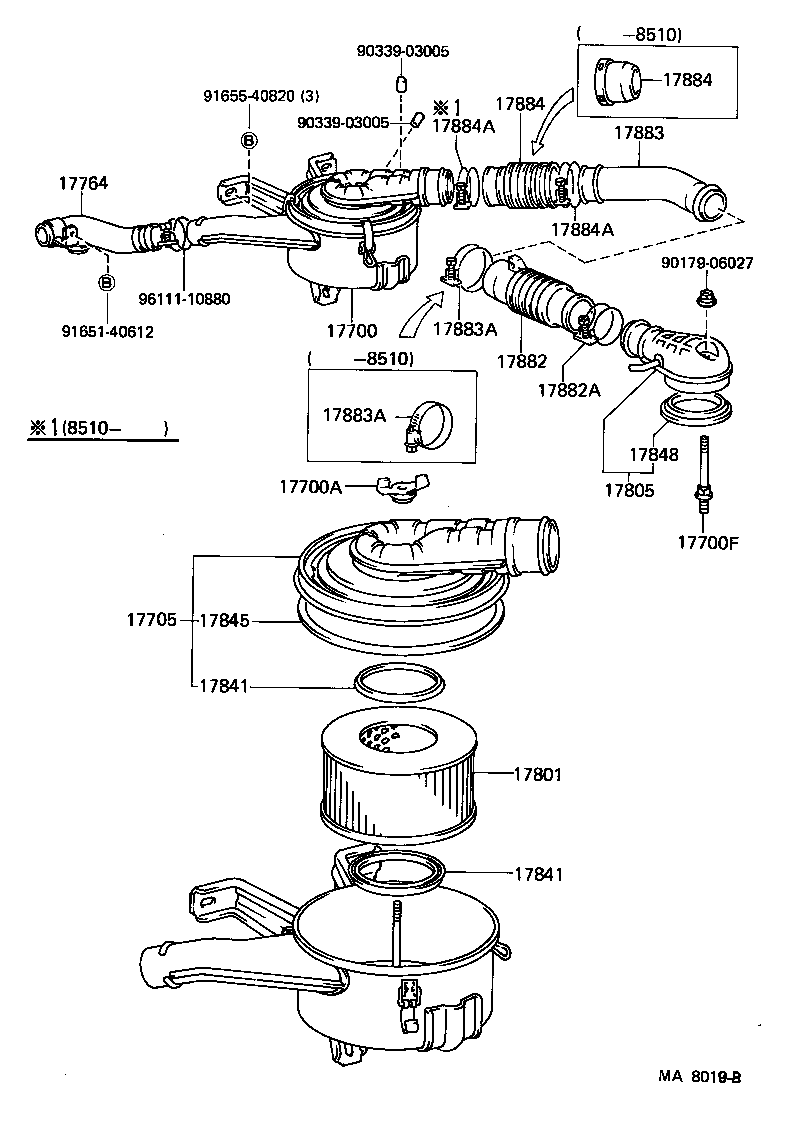

Exploded illustration MA8019B 9033903005 — not listed in this catalogue 17884 — HOSE, AIR CLEANER, NO.4 (2 parts) 9165540820 — not listed in this catalogue 17884 — HOSE, AIR CLEANER, NO.4 (2 parts) 9033903005 — not listed in this catalogue 17884A — CLAMP(FOR AIR CLEANER HOSE, NO.4) (3 parts) 17883 — HOSE, AIR CLEANER, NO.3 (3 parts) 17764 — DUCT, AIR CLEANER (3 parts) 17884A — CLAMP(FOR AIR CLEANER HOSE, NO.4) (3 parts) 9017906027 — not listed in this catalogue 9611110880 — not listed in this catalogue 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (3 parts) 17700 — CLEANER ASSY, AIR (12 parts) 9165140612 — not listed in this catalogue 17882 — HOSE, AIR CLEANER, NO.2 (5 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (6 parts) 17883A — CLAMP(FOR AIR CLEANER HOSE, NO.3) (3 parts) 17848 — GASKET, AIR CLEANER TO CARBURETOR (1 parts) 17700A — NUT, WING(FOR AIR CLEANER) (3 parts) 17805 — CONNECTOR SUB-ASSY, INTAKE AIR (3 parts) 17700F — BOLT, STUD(FOR AIR CLEANER SETTING) (3 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (7 parts) 17845 — GASKET, AIR CLEANER CAP (5 parts) 17841 — GASKET, FILTER ELEMENT (3 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (6 parts) 17841 — GASKET, FILTER ELEMENT (3 parts)
MA8019B · 20 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-68010 Cleaner Assy, Air
1980-08 → 1982-10 ended
2F FJ60 ¥27,300
17700-68010 Cleaner Assy, Air
1980-08 → 1982-10 ended
3B BJ60 ¥27,300
17700-68011 Cleaner Assy, Air
1982-10 → 1984-11 ended
2H HJ60 ¥27,300
17700-68011 Cleaner Assy, Air
1982-10 → 1984-11 ended
2F FJ61 ¥27,300
17700-68011 Cleaner Assy, Air
1982-10 → 1984-11 ended
3B BJ61 ¥27,300
17700-68140 Cleaner Assy, Air
1984-11 → 1986-08 ended
3B BJ61 ¥27,400
17700-68140 Cleaner Assy, Air
1984-11 → 1986-08 ended
3F FJ62 ¥27,400
17700-68140 Cleaner Assy, Air
1984-11 → 1986-08 ended
2H HJ60 ¥27,400
17700-68140 Cleaner Assy, Air
1986-08 → 1987-08 ended
3F FJ62 ¥27,400
17700-68180 Cleaner Assy, Air
1985-10 → 1987-08 ended
12HT HJ61 ¥31,800
17700-68210 note Cleaner Assy, Air
1985-10 → 1986-08 ended
2H HJ60 4FC ¥27,400
17700-68220 Cleaner Assy, Air
1986-08 → 1987-08 ended
2H HJ60 ¥31,700
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08 ended
3B BJ6# —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08 ended
2F,3F FJ6# —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08 ended
12HT,2H HJ6# —
17700F — Bolt, Stud(FOR AIR CLEANER SETTING)
90116-06018 Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1984-11 ended
2F FJ6# ¥240
90116-06024 Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1987-08 ended
3F FJ62 CBU ¥200
90116-06222 Bolt, Stud(FOR AIR CLEANER SETTING)
1984-11 → 1987-08 ended
3F FJ62 IV4 ¥230
17705 — Cap Sub-assy, Air Cleaner
17705-68010 Cap Sub-assy, Air Cleaner
1980-08 → 1984-11 ended
3B BJ6# —
17705-68010 Cap Sub-assy, Air Cleaner
1980-08 → 1984-11 ended
2H HJ60 —
17705-68010 Cap Sub-assy, Air Cleaner
1980-08 → 1984-11 ended
2F FJ6# —
17705-68100 Cap Sub-assy, Air Cleaner
1984-11 → 1987-08 ended
3B BJ61 —
17705-68100 Cap Sub-assy, Air Cleaner
1984-11 → 1987-08 ended
3F FJ62 —
17705-68100 Cap Sub-assy, Air Cleaner
1984-11 → 1987-08 ended
2H HJ60 —
17705-68120 Cap Sub-assy, Air Cleaner
1985-10 → 1987-08 ended
12HT HJ61 —
17764 — Duct, Air Cleaner
53207-90A00 Duct, Air Cleaner
1980-08 → 1987-08 ended
3B BJ6# ¥3,470
53207-90A00 Duct, Air Cleaner
1980-08 → 1987-08 ended
2F,3F FJ6# ¥3,470
53207-90A01 Duct, Air Cleaner
1982-10 → 1987-08 ended
12HT,2H HJ6# ¥7,200
17801 — Element Sub-assy, Air Cleaner Filter
17801-66020 Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10 ended
3B BJ60 ¥2,420
17801-66020 Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10 ended
2F FJ60 ¥2,420
17801-68020 Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08 ended
3B BJ61 ¥3,990
17801-68020 Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08 ended
2F,3F FJ6# ¥3,990
17801-68020 Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08 ended
2H HJ60 ¥3,990
17801-68030 Element Sub-assy, Air Cleaner Filter
1985-10 → 1987-08 ended
12HT HJ61 ¥5,100
17805 — Connector Sub-assy, Intake Air
17805-61010 Connector Sub-assy, Intake Air
1980-08 → 1984-11 ended
2F FJ6# ¥17,000
17805-61020 Connector Sub-assy, Intake Air
1984-11 → 1987-08 ended
3F FJ62 CBU ¥12,200
17805-61030 Connector Sub-assy, Intake Air
1984-11 → 1987-08 ended
3F FJ62 IV4 ¥12,100
17841 — Gasket, Filter Element
17841-68010 Gasket, Filter Element
1980-08 → 1987-08 ended
3B BJ6# ¥0
17841-68010 Gasket, Filter Element
1980-08 → 1987-08 ended
2F,3F FJ6# ¥0
17841-68010 Gasket, Filter Element
1980-08 → 1987-08 ended
12HT,2H HJ6# ¥0
17845 — Gasket, Air Cleaner Cap
17845-61011 note Gasket, Air Cleaner Cap
1982-10 → 1987-08 ended
3B BJ61 —
17845-61011 note Gasket, Air Cleaner Cap
1982-10 → 1987-08 ended
2F,3F FJ6# —
17845-61011 note Gasket, Air Cleaner Cap
1982-10 → 1987-08 ended
12HT,2H HJ6# —
17845-68010 Gasket, Air Cleaner Cap
1980-08 → 1982-10 ended
3B BJ60 —
17845-68010 Gasket, Air Cleaner Cap
1980-08 → 1982-10 ended
2F FJ60 —
17848 — Gasket, Air Cleaner TO Carburetor
17848-61020 Gasket, Air Cleaner TO Carburetor
1984-11 → 1987-08 ended
3F FJ62 ¥0
17882 — Hose, Air Cleaner, NO.2
17342-68010 Hose, Air Cleaner, NO.2
1985-10 → 1987-08 ended
12HT HJ61 ¥7,400
17881-61060 Hose, Air Cleaner, NO.2
1984-11 → 1985-10 ended
3F FJ62 ¥3,620
17881-61061 Hose, Air Cleaner, NO.2
1985-10 → 1987-08 ended
3F FJ62 ¥4,840
17882-58010 Hose, Air Cleaner, NO.2
1980-08 → 1984-11 ended
3B BJ6# ¥7,100
17882-58070 Hose, Air Cleaner, NO.2
1984-11 → 1986-08 ended
3B BJ61 ¥3,350
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1984-11 ended
3B BJ6# ¥160
96111-10710 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-11 → 1986-08 ended
3B BJ61 ¥160
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.2)
1984-11 → 1987-08 ended
3F FJ62 ¥160
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1985-10 → 1987-08 ended
12HT HJ61 ¥160
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1980-08 → 1986-08 ended
3B BJ6# ¥180
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1985-10 → 1987-08 ended
12HT HJ61 ¥410
17883 — Hose, Air Cleaner, NO.3
17341-68010 Hose, Air Cleaner, NO.3
1985-10 → 1987-08 ended
12HT HJ61 ¥2,510
17882-61031 Hose, Air Cleaner, NO.3
1985-10 → 1987-08 ended
3F FJ62 ¥2,290
17882-61040 Hose, Air Cleaner, NO.3
1984-11 → 1985-10 ended
3F FJ62 ¥2,280
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
90460-65004 Clamp(FOR AIR CLEANER HOSE, NO.3)
1985-10 → 1987-08 ended
12HT HJ61 ¥400
90460-80001 Clamp(FOR AIR CLEANER HOSE, NO.3)
1984-11 → 1985-10 ended
3F FJ62 ¥820
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.3)
1985-10 → 1987-08 ended
3F FJ62 ¥160
17884 — Hose, Air Cleaner, NO.4
17883-61010 Hose, Air Cleaner, NO.4
1984-11 → 1985-10 ended
3F FJ62 ¥1,600
17883-61011 Hose, Air Cleaner, NO.4
1985-10 → 1987-08 ended
3F FJ62 ¥3,720
17884A — Clamp(FOR AIR CLEANER HOSE, NO.4)
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.4)
1985-10 → 1987-08 ended
3F FJ62 ¥160
96111-10830 Clamp(FOR AIR CLEANER HOSE, NO.4)
1984-11 → 1985-10 ended
3F FJ62 ¥180
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.4)
1985-10 → 1987-08 ended
3F FJ62 ¥520
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
