Factory parts data · Europe

Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

6 part groups · 5 illustrations

Illustrations

Figure MA4683E

MA4683E 1980-08 → 1984-11

Figure MA7964

MA7964 1984-11 → 1986-08

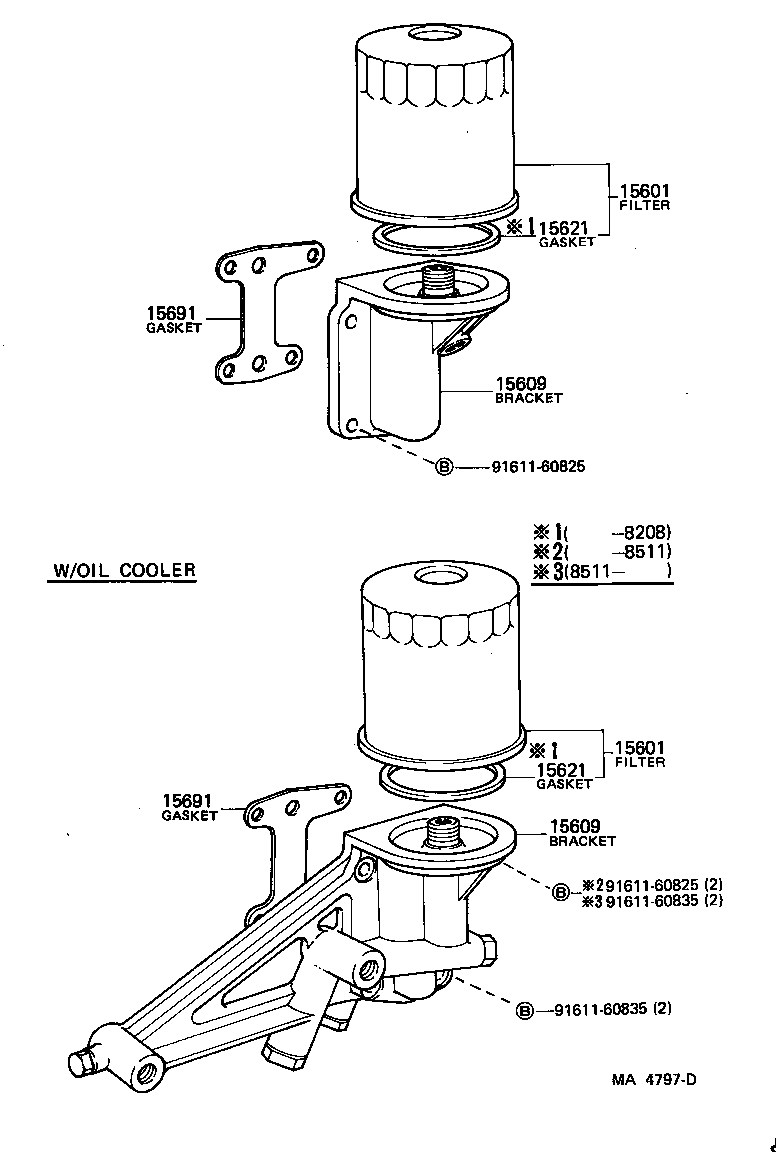

Figure MA4797D

MA4797D 1980-08 → —

Figure MA6192A

MA6192A 1982-10 → 1984-11

Figure MA7933

MA7933 1984-11 → —

Part groups

PNC	Description
15601	Filter Sub-assy, Oil
15602	Valve Sub-assy, Oil Pressure
15602A	Gasket, Oil Pressure Valve
15609	Bracket Sub-assy, Oil Filter
15621	Gasket, Oil Filter Body
15691	Gasket, Oil Filter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
