Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 7 illustrations

Illustrations

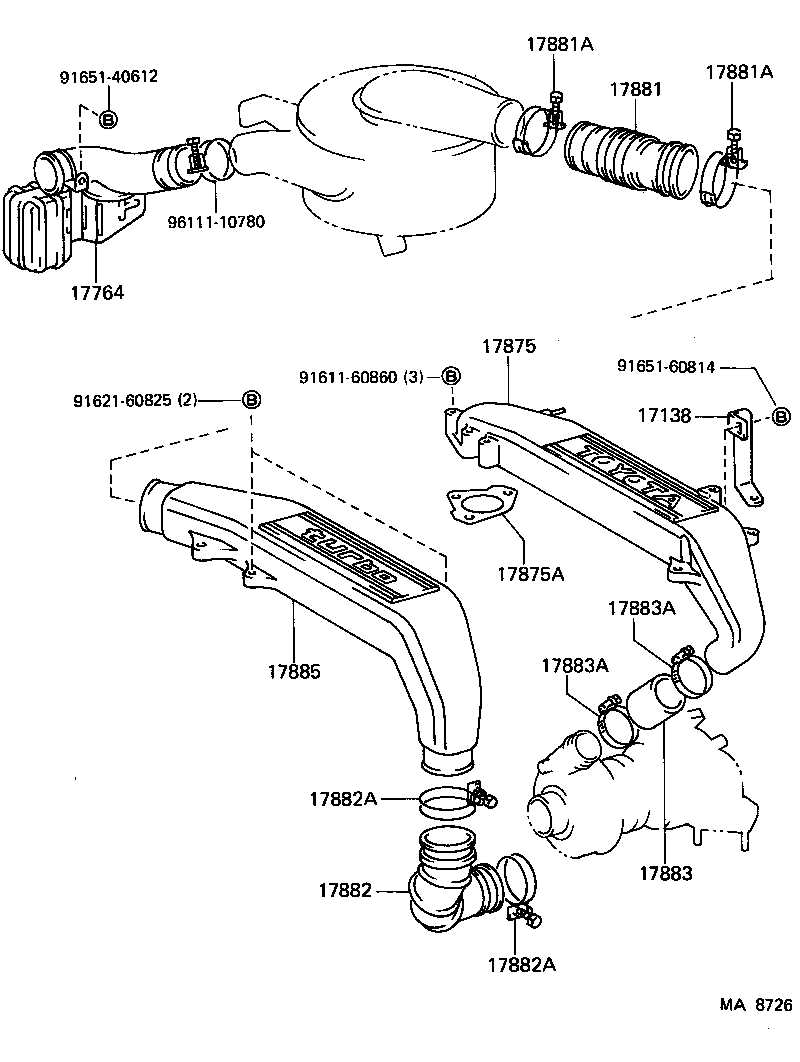

Figure MA4717C MA4717C 1980-08 → 1984-11 Figure MA8048A MA8048A 1984-11 → 1986-08 Figure MA4825A MA4825A 1980-08 → 1984-11 Figure MA8019B MA8019B 1984-11 → — Figure MA4871E MA4871E 1982-10 → — Figure MA8725 MA8725 1985-10 → — Figure MA8726 MA8726 1985-10 → —

Part groups

PNCDescription
17138 Stay, Intake Pipe OR Hose
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17703 Case Sub-assy, Bottom Air Cleaner Filter
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17705 Cap Sub-assy, Air Cleaner
17764 Duct, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17875 Pipe, Intake Air Connector
17875A Gasket, Intake Pipe
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
