Toyota Land Cruiser Van
1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan
Discontinued model
Data version 1988-01

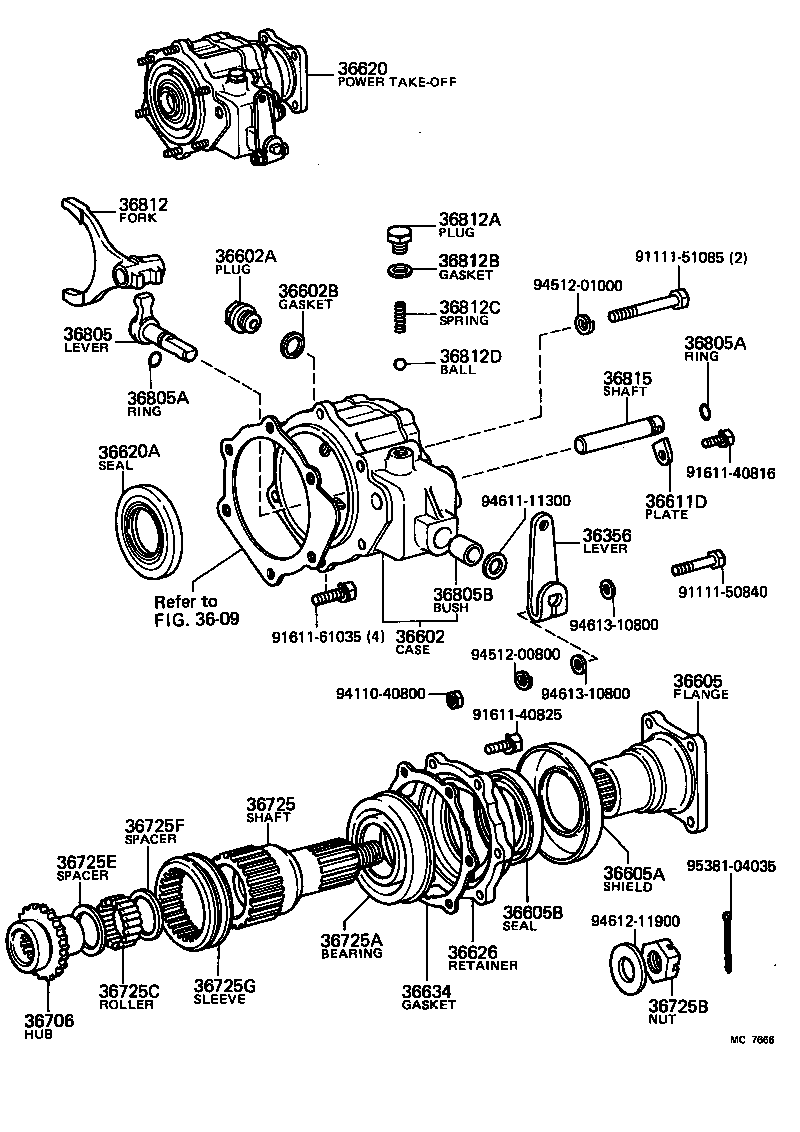

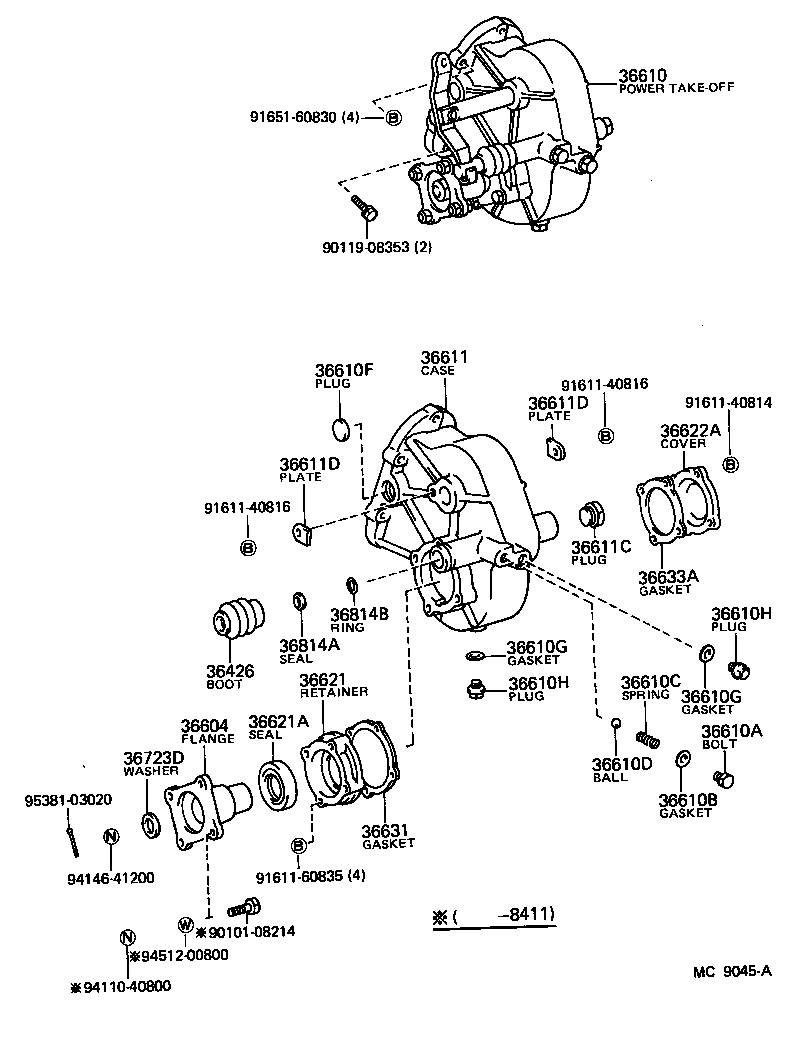

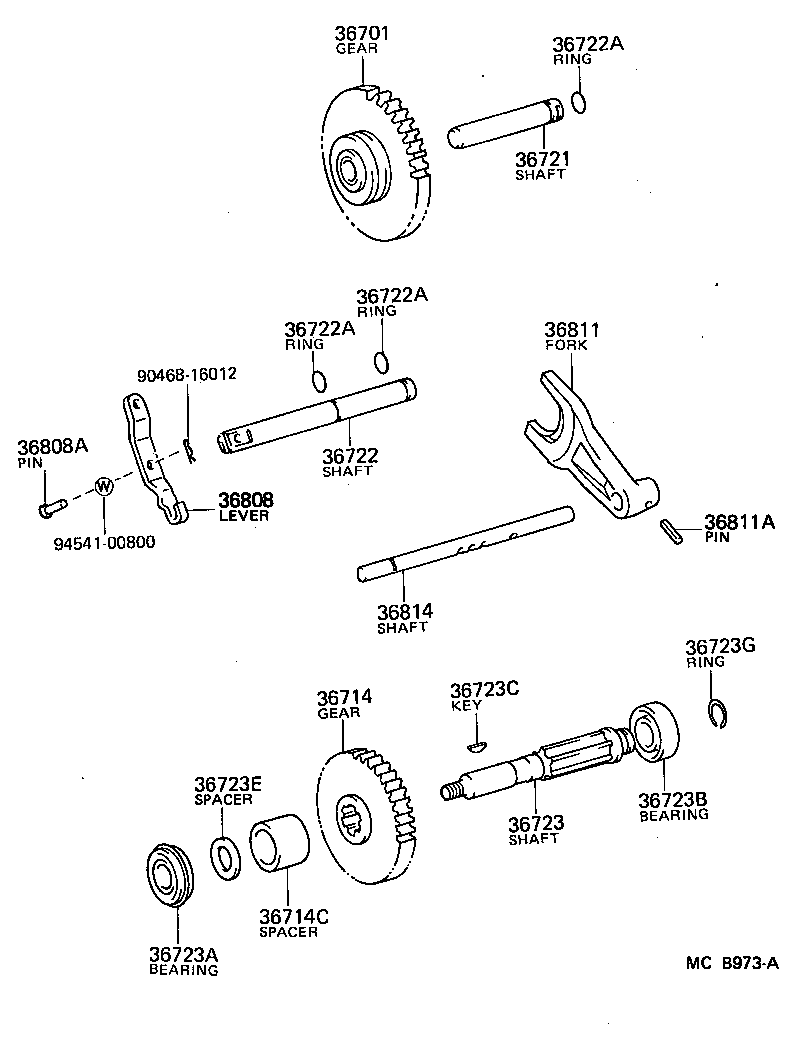

Power Take-off Case & Gear
75 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 36356 | Lever, High & Low Shift Link,NO.1(FOR CENTER POWER TAKE-OFF) |
| 36426 | Boot, Diaphragm Push Rod |
| 36602 | Case Sub-assy, Center Power Take-off |
| 36602A | Plug (FOR CENTER POWER TAKE-OFF CASE) |
| 36602B | Gasket (FOR CENTER POWER TAKE-OFF CASE) |
| 36604 | Flange, Universal Joint (FOR FRONT POWER TAKE-OFF) |
| 36605 | Flange, Universal Joint (FOR CENTER POWER TAKE-OFF) |
| 36605A | Shield, Dust (FOR CENTER POWER TAKE-OFF FLANGE) |
| 36605B | Seal, Oil (FOR CENTER POWER TAKE-OFF FLANGE) |
| 36610 | Power Take-off Assy |
| 36610A | Bolt, Lock Ball (FOR POWER TAKE-OFF) |
| 36610B | Gasket, Seat (FOR POWER TAKE-OFF) |
| 36610C | Spring, Gear Shift Fork Lock Ball (FOR POWER TAKE-OFF) |
| 36610D | Ball, Gear Shift Fork Lock (FOR POWER TAKE-OFF) |
| 36610F | Plug, Expansion (FOR POWER TAKE-OFF) |
| 36610G | Gasket (FOR FRONT POWER TAKE-OFF DRAIN) |
| 36610H | Plug (FOR FRONT POWER TAKE-OFF DRAIN) |
| 36611 | Case, Power Take-off |
| 36611C | Plug, W/Head Straight Screw (FOR POWER TAKE-OFF CACE) |
| 36611D | Plate, Lock (FOR POWER TAKE-OFF CASE) |
| 36620 | Power Take-off Assy, Center |
| 36620A | Seal, Type T Oil (FOR CENTER POWER TAKE-OFF) |
| 36621 | Retainer, Power Take-off Bearing |
| 36621A | Seal, Oil (FOR POWER TAKE-OFF BEARING RETAINER) |
| 36622A | Cover, Power Take-off |
| 36626 | Retainer, Center Power Take-off Bearing |
| 36631 | Gasket, Power Take-off Bearing Retainer |
| 36633A | Gasket, Power Take-off Cover |
| 36634 | Gasket, Center Power Take-off Bearing Retainer |
| 36701 | Gear Sub-assy, Power Take-off Input |
| 36701A | Spacer (FOR POWER TAKE-OFF INPUT GEAR) |
| 36701B | Bearing (FOR POWER TAKE-OFF INPUT GEAR) |
| 36703 | Gear Sub-assy, Power Take-off Reverse Idler |
| 36703A | Bush, Solid (FOR POWER TAKE-OFF REVERSE IDLER GEAR) |
| 36706 | Hub Sub-assy, Center Power Take-off Clutch |
| 36714 | Gear, Power Take-off Output |
| 36714C | Spacer (FOR POWER TAKE-OFF OUTPUT GEAR) |
| 36721 | Shaft, Power Take-off Input Gear |
| 36722 | Shaft, Power Take-off Idler Gear |
| 36722A | Ring, O (FOR POWER TAKE-OFF REVERSE IDLER SHAFT) |
| 36723 | Shaft, Power Take-off Output, NO.1 |
| 36723A | Bearing (FOR OUTPUT SHAFT FRONT) |
| 36723B | Bearing (FOR OUTPUT SHAFT REAR) |
| 36723C | Key, Woodruff (FOR POWER TAKE-OFF OUTPUT SHAFT) |
| 36723D | Washer, Plate (FOR FRONT POWER TAKE-OFF SHAFT) |
| 36723E | Spacer (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING) |
| 36723G | Ring, Shaft Snap (FOR OUTPUT SHAFT REAR BEARING) |
| 36725 | Shaft, Center Power Take-off Output |
| 36725A | Bearing(FOR CENTER POWER TAKE-OFF OUTPUT SHAFT) |
| 36725B | Nut, Castle(FOR CENTER POWER TAKE-OFF OUTPUT SHAFT) |
| 36725C | Roller(FOR CENTER POWER TAKE-OFF SHAFT) |
| 36725E | Spacer(FOR CENTER POWER TAKE-OFF SHAFT) |
| 36725F | Spacer(FOR CENTER POWER TAKE-OFF SHAFT) |
| 36725G | Sleeve,Transfer High&Lower Clutch(FOR CENTER POWER TAKE OFF) |
| 36732 | Spacer, Power Take-off Reverse Idler Gear |
| 36805 | Lever Sub-assy, Power Take-off Inner Shift |
| 36805A | Ring, O (FOR POWER TAKE-OFF INNER SHIFT LEVER) |
| 36805B | Bush (FOR POWER TAKE-OFF INNER SHIFT LEVER) |
| 36808 | Lever Sub-assy, Power Take-off Shift Link |
| 36808A | Pin, W/Hole (FOR POWER TAKE-OFF SHIFT LINK LEVER) |
| 36808B | Shoe, Power Take-off Shift Link Lever |
| 36811 | Fork, Powr Take-off Shift, NO.1 |
| 36811A | Pin, Slotted Spring (FOR POWER TAKE-OFF SHIFT FORK) |
| 36812 | Fork, Power Take-off Shift, NO.2 |
| 36812A | Plug, Power Take-off Shift Fork Lock |
| 36812B | Gasket, Power Take-off Shift Fork Lock Bolt |
| 36812C | Spring, Power Take-off Shift Fork Lock |
| 36812D | Ball, Power Take-off Shift Fork Lock |
| 36814 | Shaft, Powr Take-off Fork, NO.1 |
| 36814A | Seal, Dust (FOR FRONT POWER TAKE-OFF SHAFT) |
| 36814B | Ring, O (FOR FRONT POWER TAKE-OFF SHAFT) |
| 36815 | Shaft, Power Take-off Fork, NO.2 |
| 36816 | Bolt, Power Take-off Drive Fork Lock |
| 37348 | Cap, Retainer |
| 37349 | Gasket, Retainer Cap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
