Toyota Land Cruiser Van
1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan
Discontinued model
Data version 1988-01

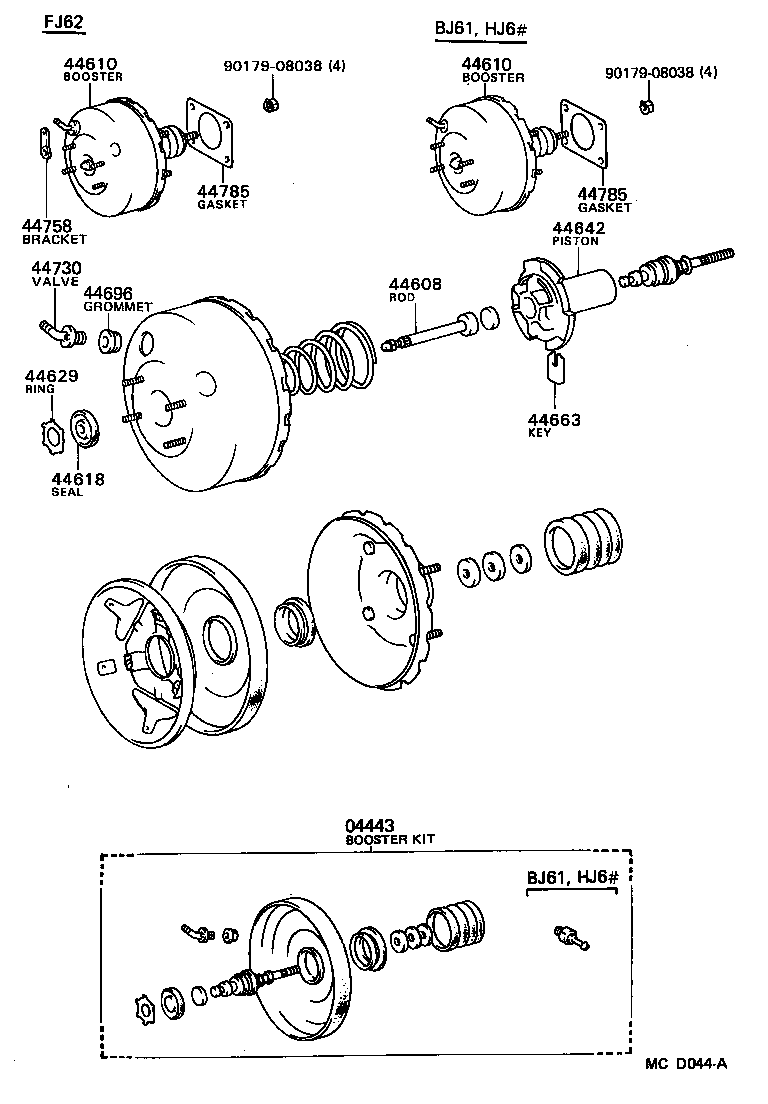

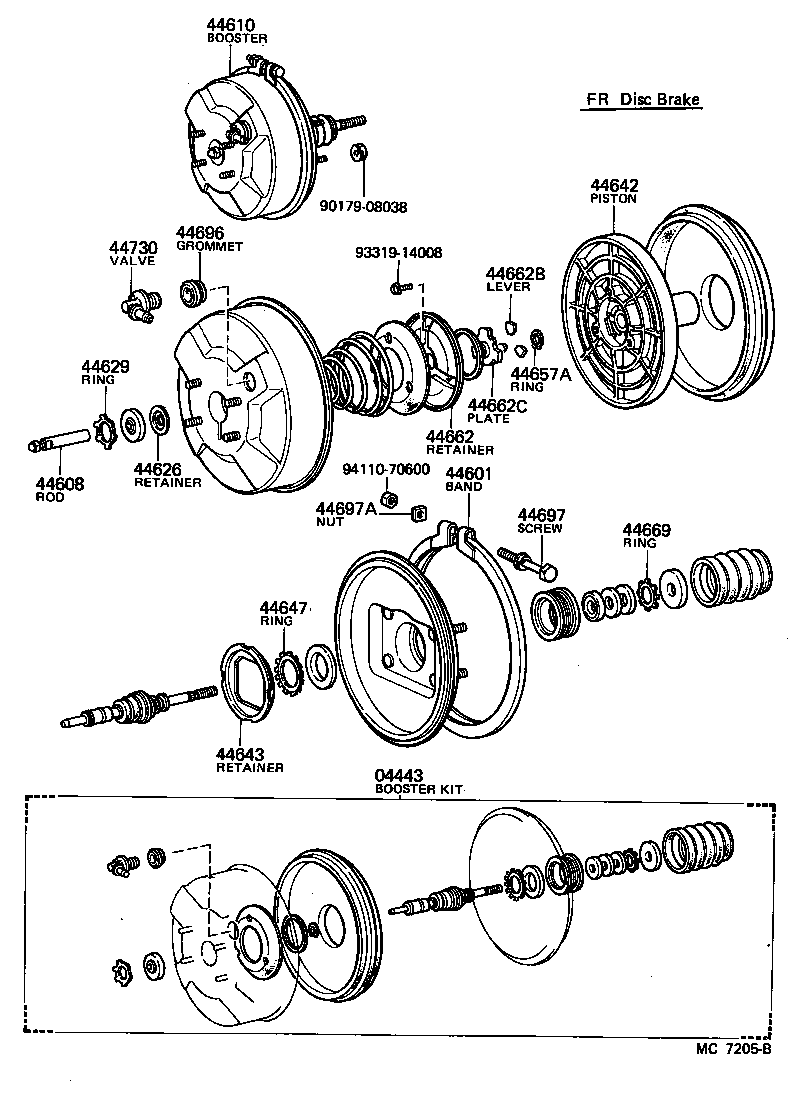

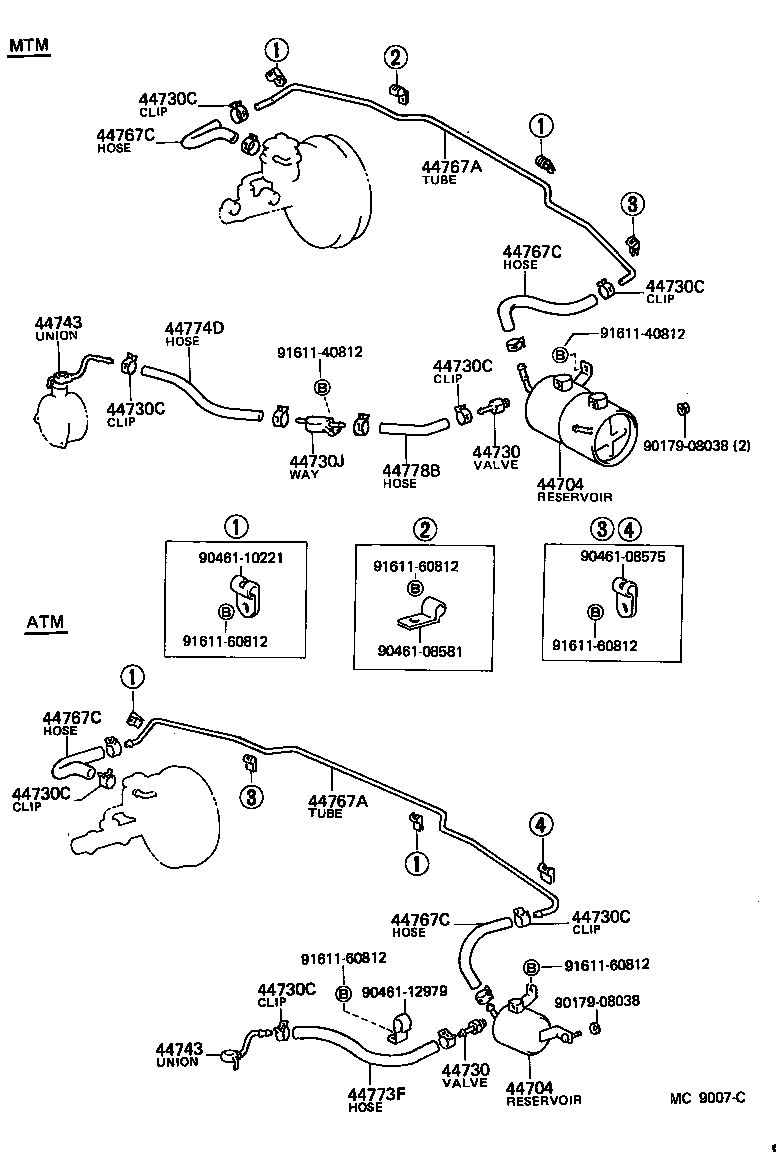

Brake Booster & Vacuum Tube
39 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44580 | Valve Assy, Actuator Check |
| 44601 | Band Sub-assy, Booster Body |
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44618 | Seal, Booster Body |
| 44626 | Retainer, Booster Rod Cup |
| 44629 | Ring, Circular Internal |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44647 | Ring, Circular Internal(FOR BOOSTER BODY SEAL STOPPER) |
| 44657A | Ring, Snap(FOR BOOSTER AIR VALVE STOPPER) |
| 44657B | Washer, Plate(FOR BOOSTER AIR VALVE STOPPER) |
| 44662 | Retainer, Reaction, NO.1 |
| 44662B | Lever, Reaction |
| 44662C | Plate, Reaction, NO.1 |
| 44663 | Key, Valve Stopper |
| 44669 | Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER) |
| 44683 | Connector, Booster Body |
| 44683A | Lock, Connector |
| 44696 | Grommet, Check Valve |
| 44697 | Screw, Booster Band Set |
| 44697A | Nut(FOR BOOSTER BAND SET) |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44743 | Union(FOR VACUUM PUMP) |
| 44758 | Bracket, Vacuum Check Valve |
| 44767A | Tube, Vacuum Reservoir TO Brake Booster |
| 44767C | Hose(FOR VACUUM RESERVOIR TO BRAKE BOOSTER) |
| 44773F | Hose, Union TO Check Valve |
| 44774D | Hose, Union TO Way |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44778 | Hose, Connector TO Check Valve |
| 44778B | Hose, Way TO Check Valve |
| 44779 | Hose, Union TO Connector |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
