Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01

Instrument Panel & Glove Compartment

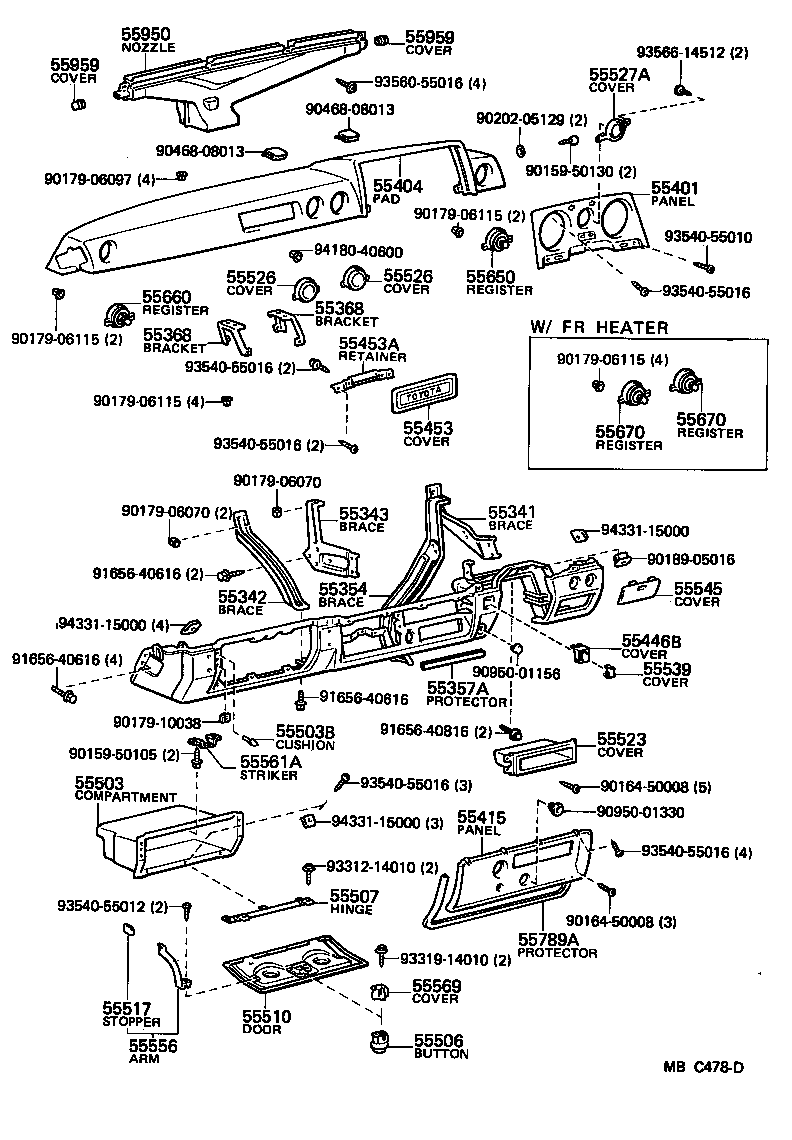

40 part groups · 2 illustrations

PNC	Description
55301	Panel Sub-assy, Instrument
55341	Brace, Instrument Panel, NO.1
55342	Brace, Instrument Panel, NO.2
55343	Brace, Instrument Panel, NO.3
55354	Brace, Instrument Panel TO Floor
55357A	Protector, Edge, NO.1
55368	Bracket, Radio Tuner Mounting
55401	Panel Sub-assy, Instrument Cluster Finish
55404	Safety Pad Sub-assy, Instrument Panel, Upper
55414	Bezel, Cigar Lighter Hole
55415	Panel, Instrument Cluster Finish, Center
55423	Panel, Stereo Player Finish
55446B	Spacer, Instrument Panel Safety Pad, Set
55453	Cover, Radio Tuner Opening
55453A	Retainer, Radio Tuner Opening, NO.1
55503	Compartment Sub-assy, Glove
55503B	Cushion(FOR GLOVE COMPARTMENT)
55506	Button Sub-assy, Glove Compartment Door Lock
55507	Hinge Sub-assy, Glove Compartment Door
55510	Door Assy, Glove Compartment
55513C	Plate, Radio Tuner Finish
55517	Stopper, Glove Compartment Door Arm
55523	Cover, Heater Control Opening
55526	Cover, Instrument Panel Register Opening
55527A	Cover, Meter Opening
55539	Cover, Spare Switch Hole
55545	Cover, Fuse Box Opening
55547	Cover, Remote Control Mirror Hole
55556	Arm, Glove Compartment Door Check
55561A	Striker, Glove Compartment Door Lock
55569	Cover, Glove Compartment Door Lock
55619	Cover, Switch Hole
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55789A	Protector, Instrument Cluster Finish Panel
55950	Nozzle Assy, Defroster
55959	Cover, Defroster Nozzle Opening, NO.1
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
