Toyota Land Cruiser Van
1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan
Discontinued model
Data version 1988-01

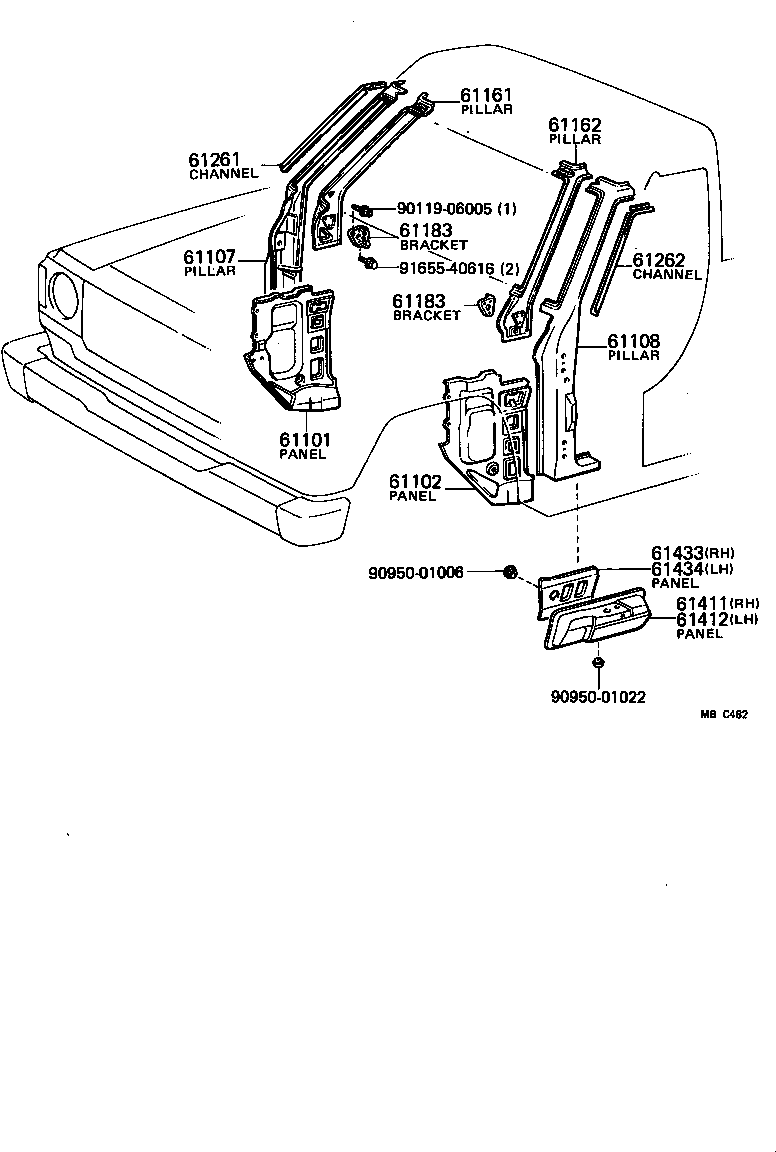

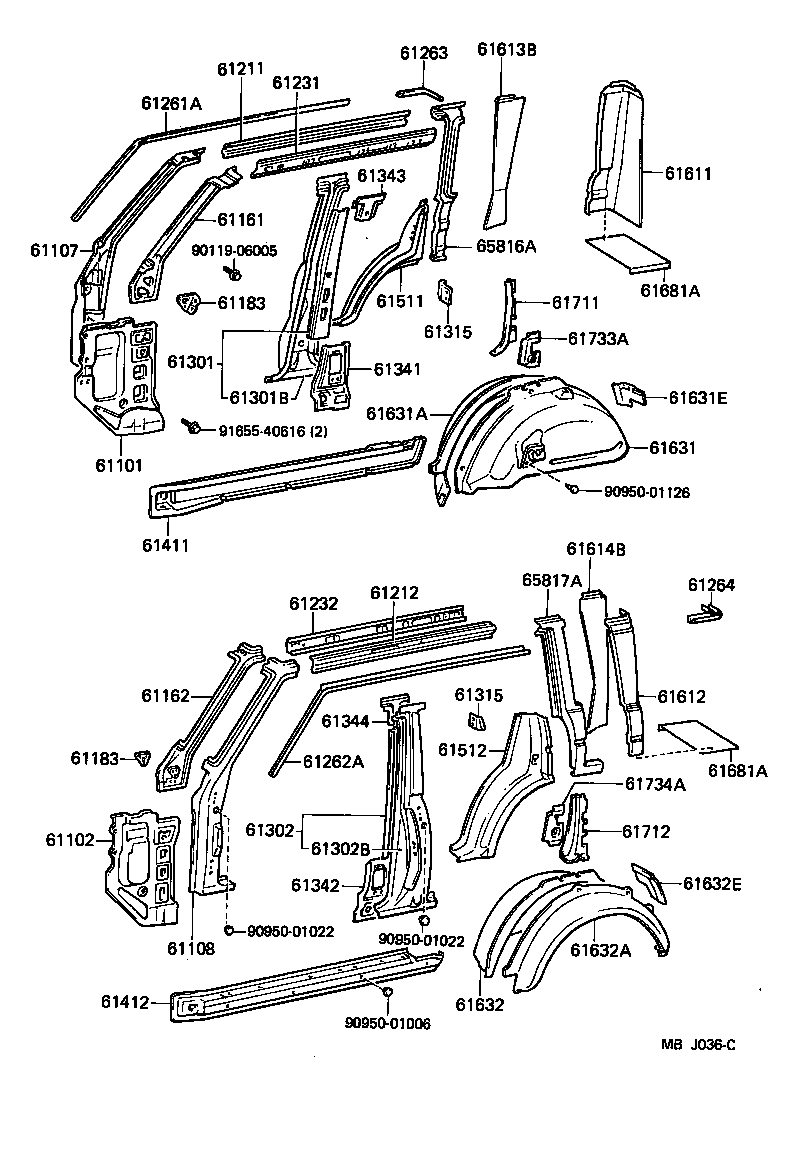

Side Member
72 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61101 | Panel Sub-assy, Cowl Side, RH |
| 61102 | Panel Sub-assy, Cowl Side, LH |
| 61107 | Pillar Sub-assy, Front Body Outer, RH |
| 61108 | Pillar Sub-assy, Front Body Outer, LH |
| 61161 | Pillar, Front Body, Upper Inner RH |
| 61162 | Pillar, Front Body, Upper Inner LH |
| 61183 | Bracket, Instrument Panel Side |
| 61197A | Cover, Front Pillar, RH |
| 61198A | Cover, Front Pillar, LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61261 | Channel, Roof Drip, RH |
| 61261A | Channel, Roof Drip Side, Front RH |
| 61262 | Channel, Roof Drip, LH |
| 61262A | Channel, Roof Drip Side, Front LH |
| 61263 | Channel, Roof Drip, Rear RH |
| 61264 | Channel, Roof Drip, Rear LH |
| 61281 | Bracket, Sliding Roof Housing Mounting, NO.1 |
| 61282 | Bracket, Sliding Roof Housing Mounting, NO.2 |
| 61283 | Bracket, Sliding Roof Housing Mounting, NO.3 RH |
| 61284 | Bracket, Sliding Roof Housing Mounting, NO.3 LH |
| 61285 | Bracket, Sliding Roof Housing Side |
| 61301 | Pillar Sub-assy, Center Body, RH |
| 61301B | Pillar, Center Body, Outer RH |
| 61302 | Pillar Sub-assy, Center Body, LH |
| 61302B | Pillar, Center Body, Outer LH |
| 61315 | Retainer, Door Lock Striker Plate |
| 61341 | Pillar, Center Body, Inner Lower RH |
| 61342 | Pillar, Center Body, Inner Lower LH |
| 61343 | Pillar, Center Body, Inner Upper RH |
| 61344 | Pillar, Center Body, Inner Upper LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61433 | Panel, Rocker, Inner RH |
| 61434 | Panel, Rocker, Inner LH |
| 61481 | Bracket, Roof Side Rail Reinforce, NO.1 |
| 61482 | Bracket, Roof Side Rail Reinforce, NO.2 |
| 61511 | Pillar, Quarter Lock, RH |
| 61512 | Pillar, Quarter Lock, LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61613B | Panel, Quarter, Inner Front RH |
| 61614B | Panel, Quarter, Inner Front LH |
| 61625A | Extension Sub-assy, Quarter Panel, RH |
| 61626A | Extension Sub-assy, Quarter Panel, LH |
| 61631 | Panel, Quarter Wheel House, RH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61631E | Gusset, Quarter Wheel House, Rear RH |
| 61632 | Panel, Quarter Wheel House, LH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61632E | Gusset, Quarter Wheel House, Rear LH |
| 61681A | Step, Quarter Panel, NO.1 |
| 61705 | Panel Sub-assy, Roof Side, Inner RH |
| 61706 | Panel Sub-assy, Roof Side, Inner LH |
| 61711 | Panel, Roof Side, Outer RH |
| 61712 | Panel, Roof Side, Outer LH |
| 61719B | Bracket, Roof Side, Inner |
| 61725 | Box, Fuel Inlet |
| 61733A | Panel, Roof Side, Inner Front RH |
| 61734A | Panel, Roof Side, Inner Front LH |
| 61743 | Reinforcement, Back Door Opening, Inner RH |
| 61744 | Reinforcement, Back Door Opening, Inner LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61792 | Cover, Roof Side Inner Service Hole |
| 61793B | Bracket, Cooler Condenser, NO.1 |
| 65816A | Panel, Rear Body Side, RH |
| 65817A | Panel, Rear Body Side, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
