Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

7 part groups · 2 illustrations

Illustrations

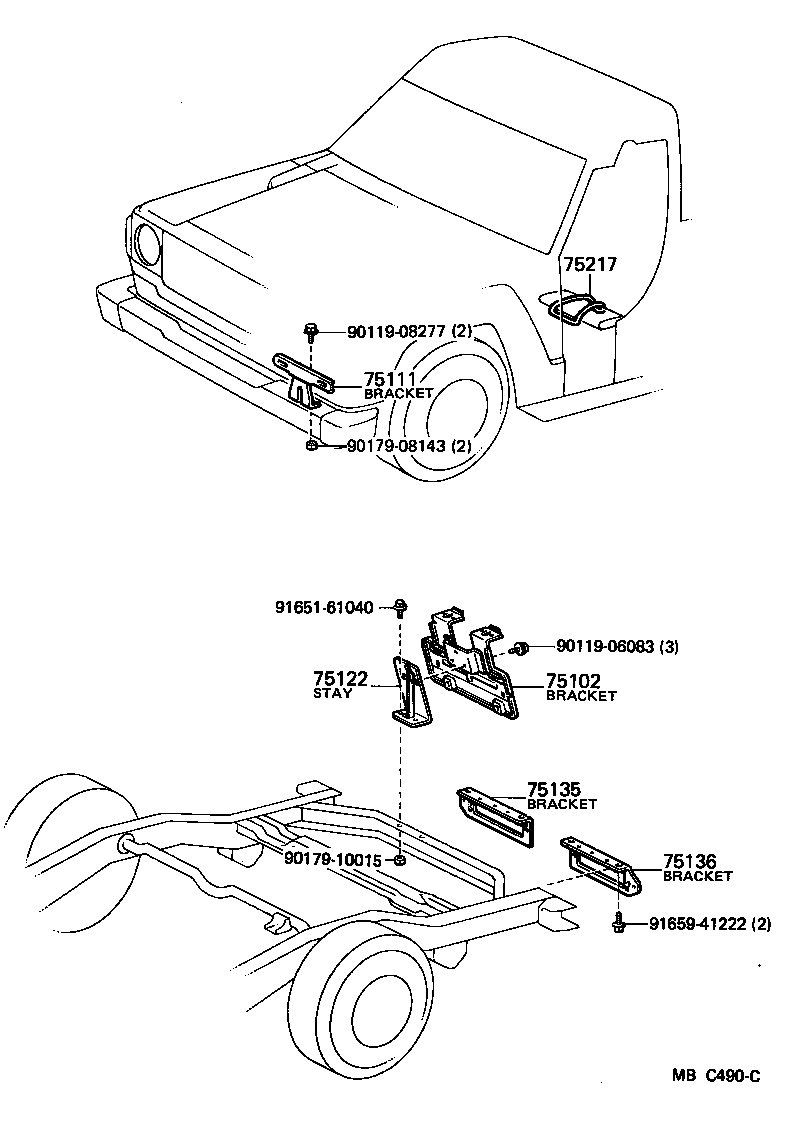

Figure MBB675E MBB675E 1980-08 → — Figure MBC490C MBC490C 1980-11 → —

Part groups

PNCDescription
58790 Carrier Assy, Jack
75102 Bracket Sub-assy, Rear License Plate
75111 Bracket, Front License Plate
75122 Stay, Rear License Plate Bracket, Upper
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75217 Band, Tool Bag
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
