Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

20 part groups · 7 illustrations

Illustrations

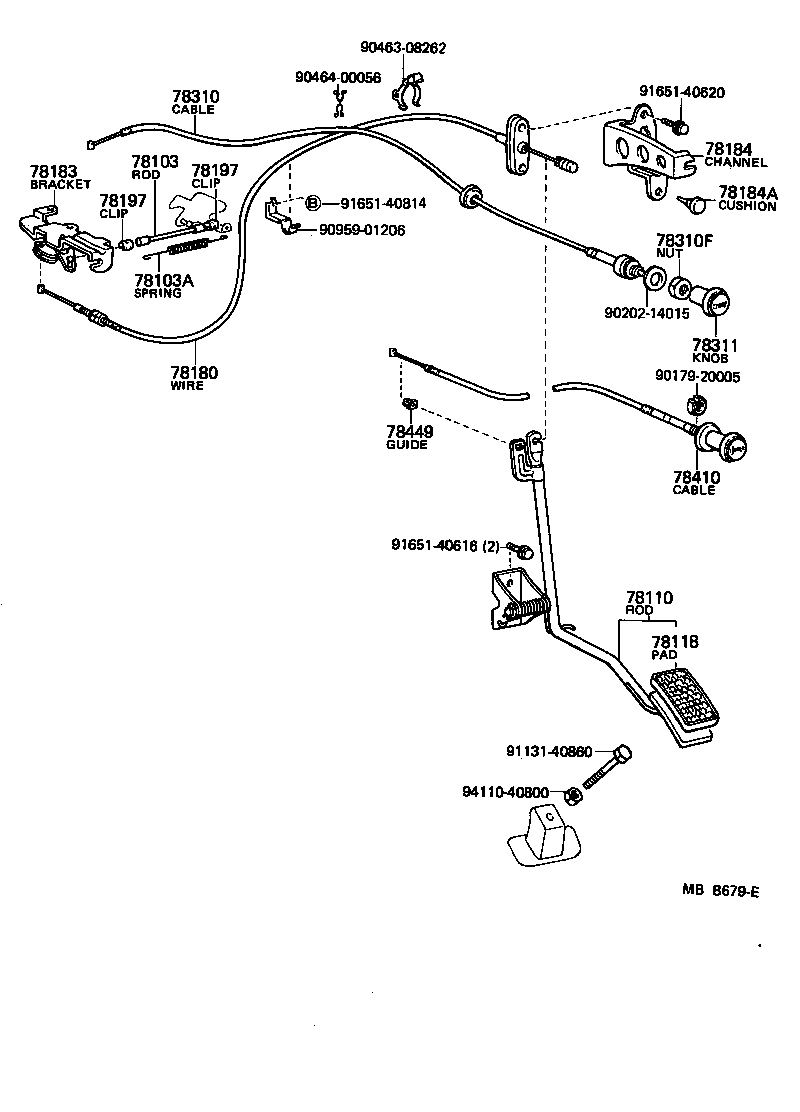

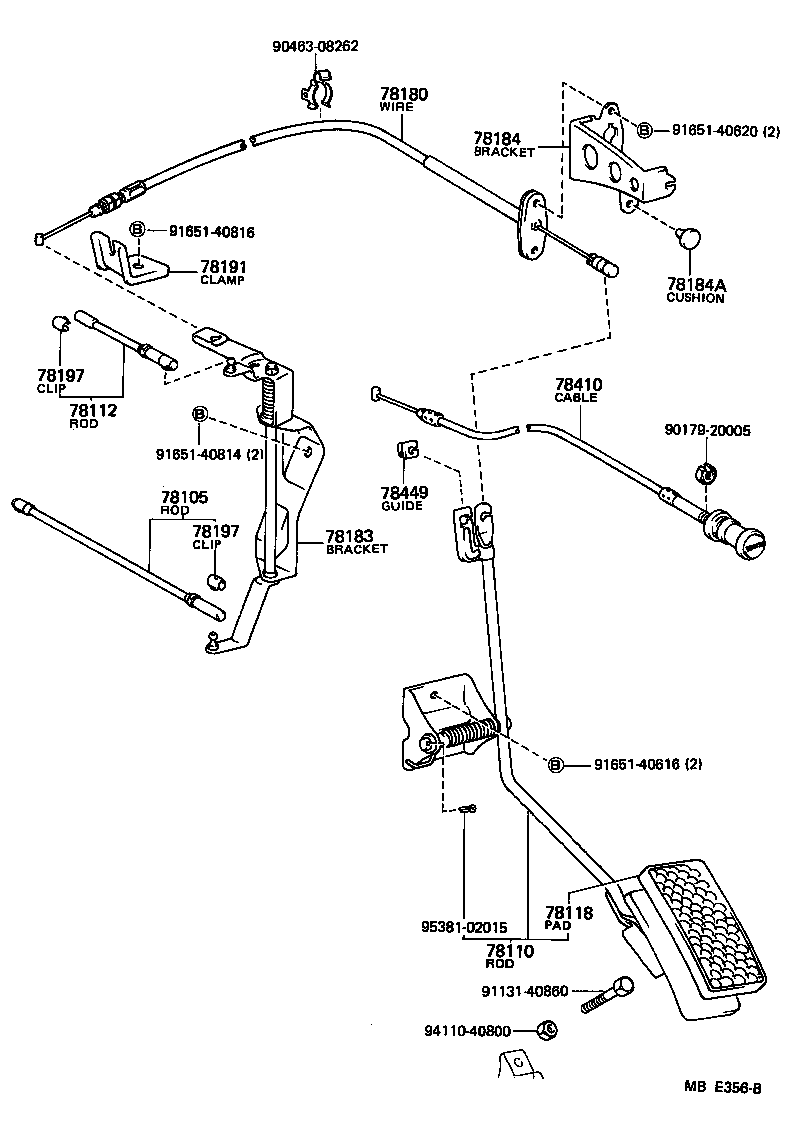

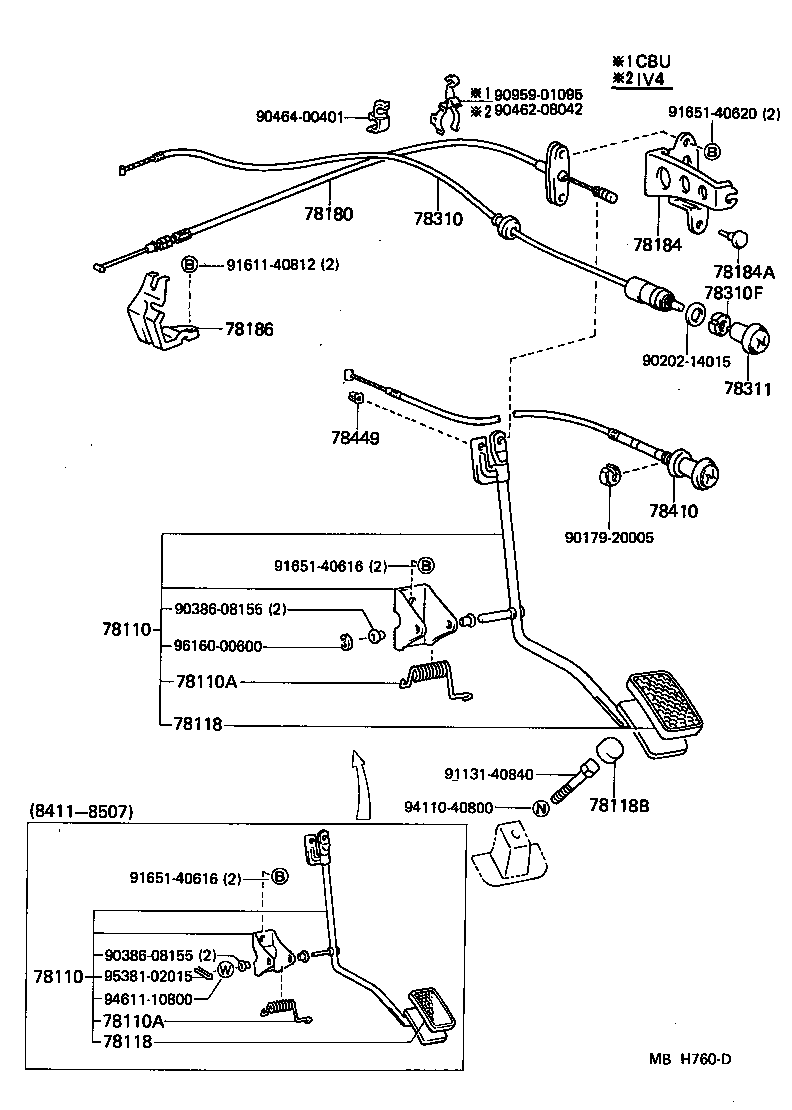

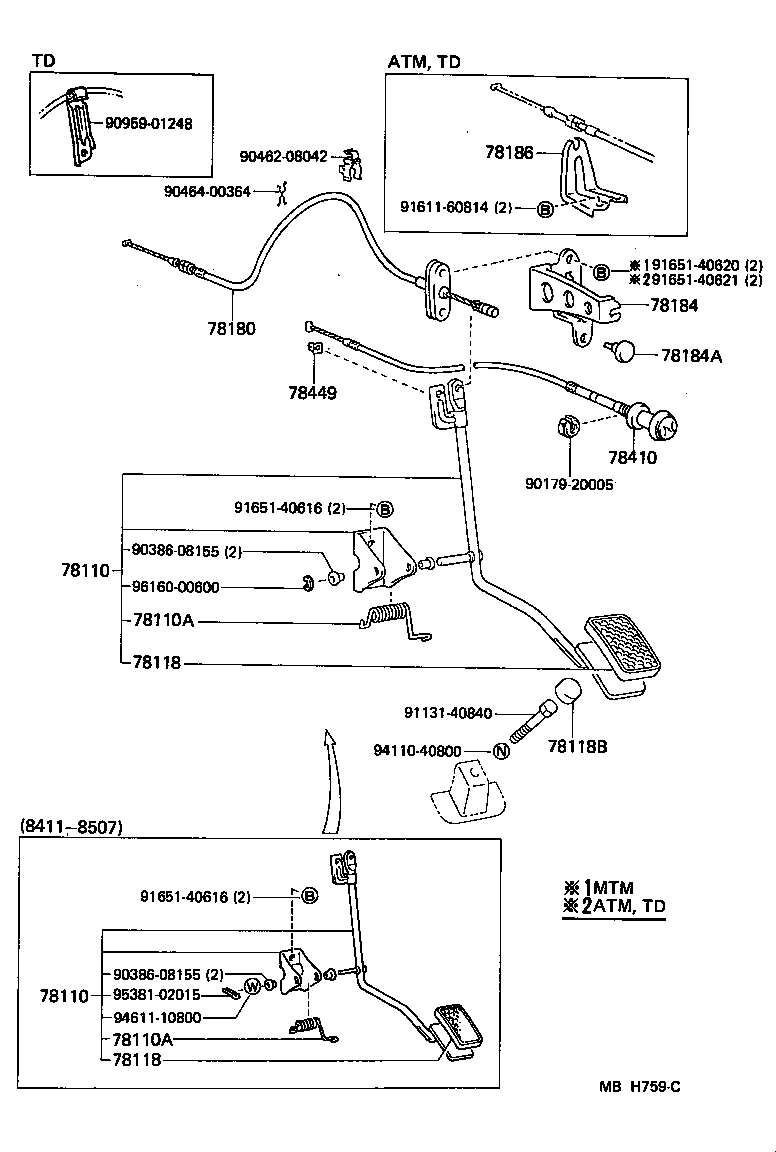

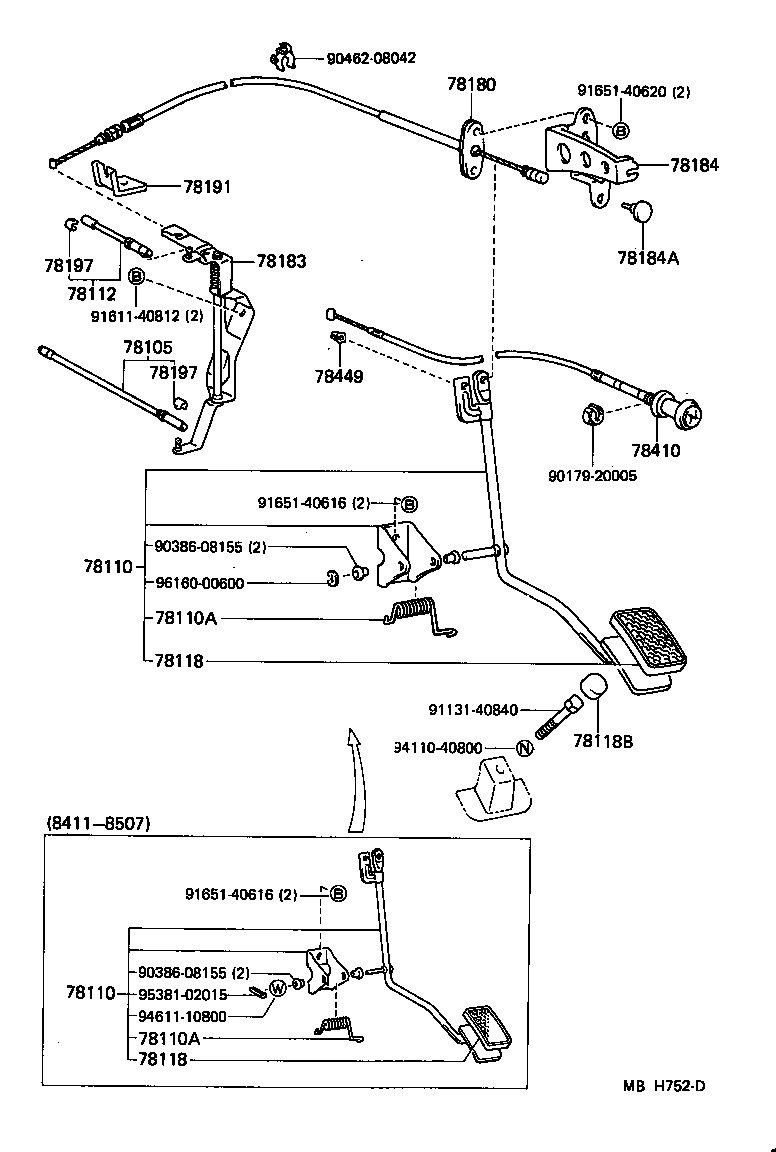

Figure MBB678C MBB678C 1980-08 → 1982-10 Figure MBE356B MBE356B 1982-10 → 1984-11 Figure MBH752D MBH752D 1984-11 → — Figure MBE357C MBE357C 1982-10 → 1984-11 Figure MBH759C MBH759C 1984-11 → — Figure MBB679E MBB679E 1980-08 → 1984-11 Figure MBH760D MBH760D 1984-11 → —

Part groups

PNCDescription
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78103A Spring (FOR ACCELERATOR CONNECTING ROD, NO.1)
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78112 Rod Sub-assy, Accelerator Connecting, NO.4
78118 Pad, Accelerator Pedal
78118B Stopper, Accelerator Pedal
78180 Wire Assy, Accelerator
78183 Bracket, Accelerator Link Rod
78184 Channel, Accelerator Idle Adjusting Stopper
78184A Cushion (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
78186 Support, Accelerator Control Cable, NO.1
78191 Bracket, Accelerator Wire Support
78197 Clip, Accelerator Joint Ball
78310 Cable Assy, Choke
78310F Nut, Choke
78311 Knob, Choke Control Cable
78410 Cable Assy, Throttle Control
78449 Guide, Throttle Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
