Toyota Land Cruiser Van
1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan
Discontinued model
Data version 1988-01
Meter
32 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100C | Connector, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83110B | Bulb, Speedometer |
| 83111B | Socket Sub-assy, Speedometer Bulb |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83136 | Glass, Gage Meter |
| 83145 | Lens, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |

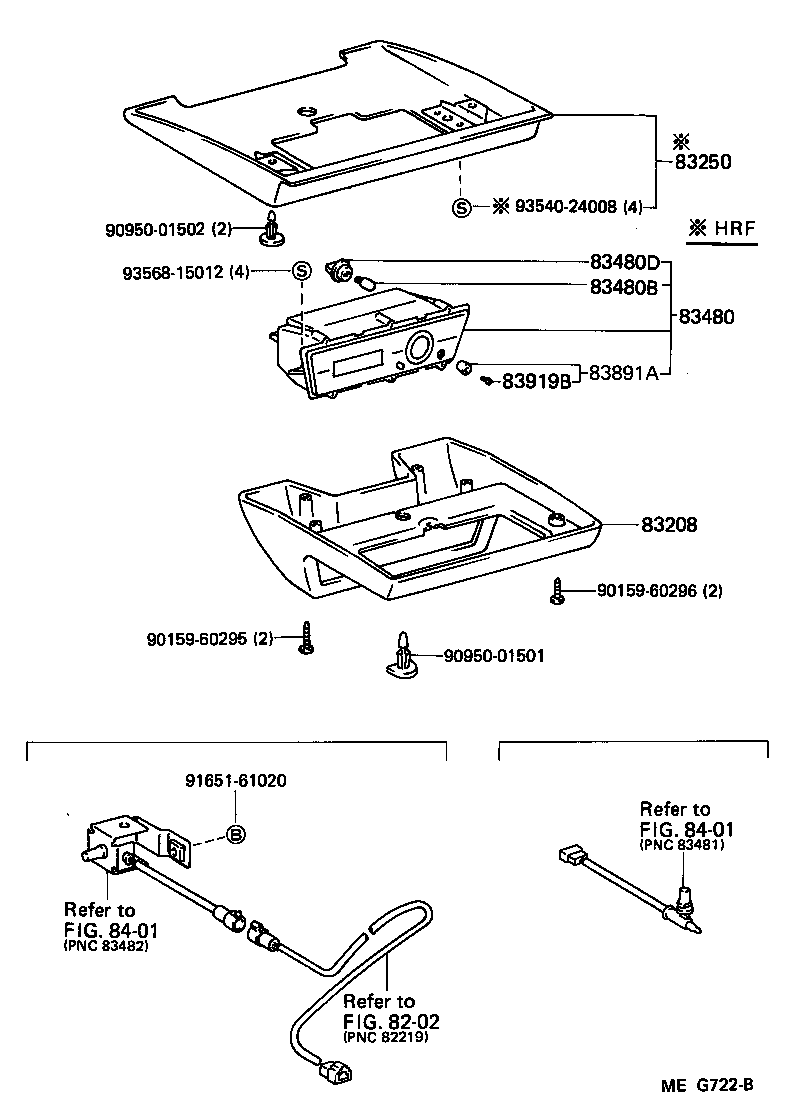

| 83208 | Panel Sub-assy, Roof Console Meter |
| 83250 | Bracket Assy, Roof Console Meter |
| 83251 | Meter, Voltage |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83480 | Thermometer Assy |
| 83480B | Bulb(FOR THERMOMETER) |
| 83480D | Socket Sub-assy, Thermometer Bulb |
| 83510 | Gage Assy, Oil Pressure Receiver |
| 83560 | Gage Assy, Oil Temperature Receiver |

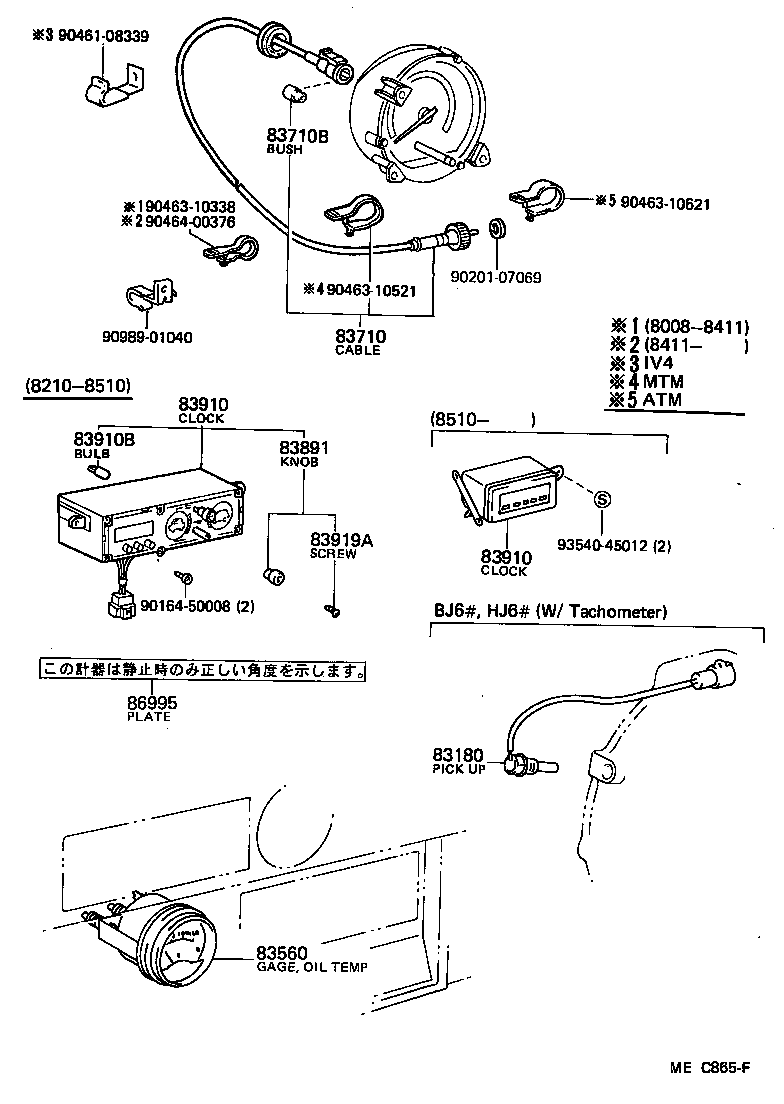

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710B | Bush, Speedometer Drive Cable |
| 83891 | Knob, Clinometer |
| 83891A | Knob, Thermometer |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83919A | Screw (FOR CLINOMETER) |
| 83919B | Screw (FOR THERMOMETER) |
| 86995 | Plate, Caution (FOR CLINOMETER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
